SOAR NBA Wireless Mouse and Mouse Pad User Manual

Indledning

Thank you for choosing the SOAR NBA Wireless Mouse and Mouse Pad. This product combines reliable wireless technology with ergonomic design and your favorite NBA team's spirit, providing a comfortable and efficient experience for work or leisure. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new device.

Image: The SOAR NBA Wireless Mouse and Mouse Pad featuring the Philadelphia 76ers logo and colors, shown together on a white background.

Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• 1 x SOAR Wireless Mouse
• 1 x SOAR Mouse Pad with Wrist Rest
• 1 x USB Wireless Receiver (stored inside the mouse battery compartment)
• Note: 1 AA battery required for the mouse (not included).

Image: The SOAR NBA Wireless Mouse and Mouse Pad displayed in its clear retail packaging, showing both components.

Opsætning

1. Installer batteri: Locate the battery compartment on the underside of the wireless mouse. Slide open the cover. Insert one AA battery (not included) ensuring correct polarity (+/-). Close the battery compartment cover.

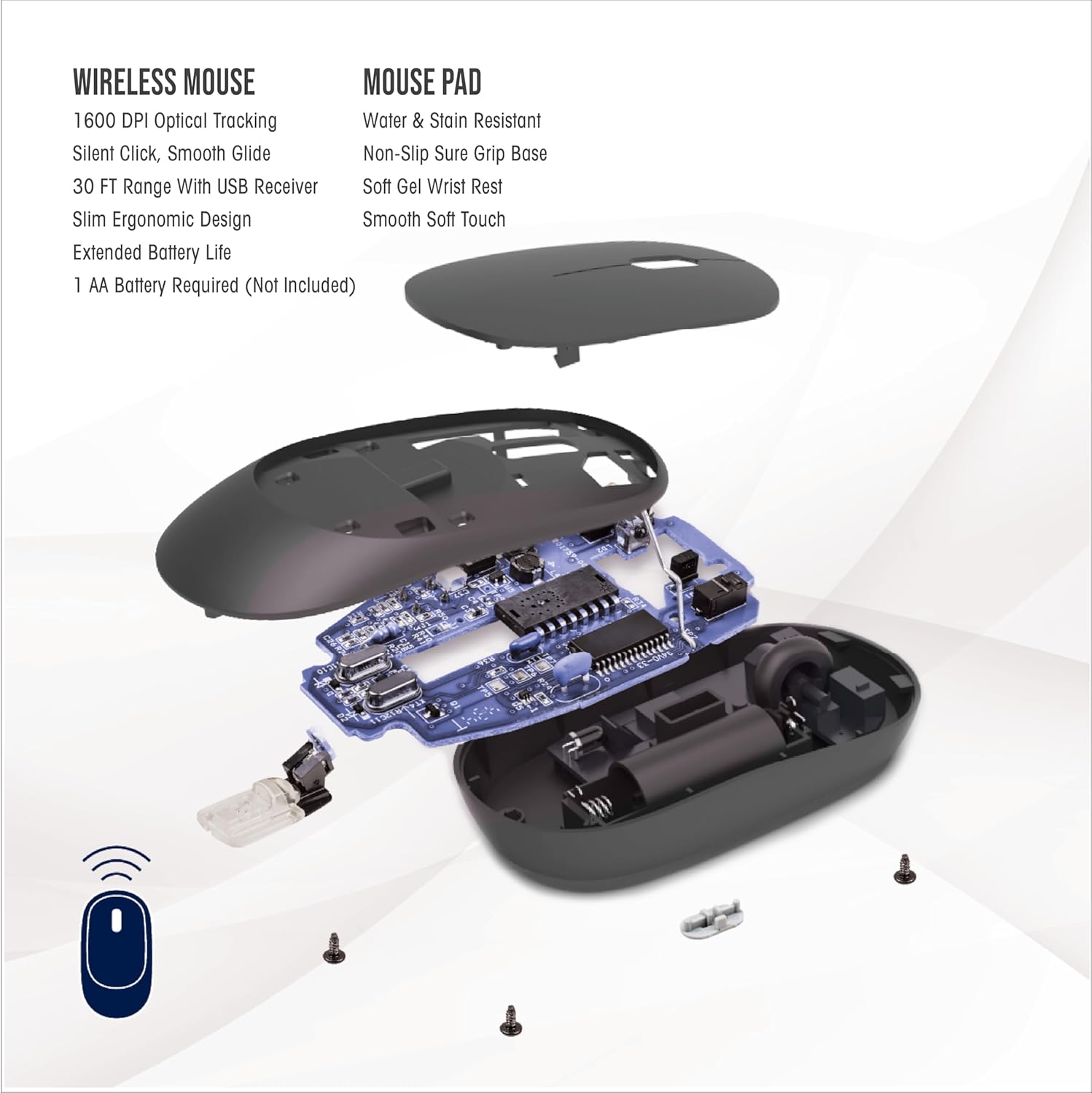

   Image: An exploded diagram of the wireless mouse, illustrating the internal components, including the battery slot and the location of the USB receiver.
2. Hent USB-modtager: The small USB wireless receiver is typically stored inside the mouse's battery compartment for safe keeping during transit. Gently remove it.
3. Tilslut modtager: Plug the USB wireless receiver into an available USB-A port on your computer (desktop, laptop, etc.). Your computer should automatically detect and install the necessary drivers. No special software installation is required.
4. Placering af musemåtte: Place the mouse pad on a flat, stable surface. The anti-slip base will help keep it firmly in place during use. Position the wrist rest to comfortably support your wrist.

   Image: A hand positioned on the wireless mouse, with the wrist comfortably supported by the mouse pad's gel wrist rest, illustrating optimal wrist alignment.

Betjeningsvejledning

Wireless Mouse Functionality:

• Grundlæggende navigation: The mouse features standard left-click and right-click buttons for primary and secondary functions.
• Scrollhjul: Use the scroll wheel for vertical scrolling through documents and web pages. Pressing down on the scroll wheel can activate an auto-scroll function in some applications.
• DPI-justering: The "DPI" button, located near the scroll wheel, allows you to cycle through three different sensitivity settings (low, medium, high). This adjusts the cursor speed to suit your preference and task.
• Lydløst klik: The mouse is designed with silent click technology, reducing noise during use.
• Trådløs rækkevidde: The mouse operates using advanced 2.4GHz technology, providing a stable and reliable connection within a 30-foot range from the USB receiver.

Mouse Pad Benefits:

• Ergonomisk støtte: The soft gel wrist rest provides ergonomic support, helping to reduce wrist fatigue and discomfort during extended use.
• Stabil overflade: The anti-slip base ensures the mouse pad remains securely in place on your desk, providing a consistent and smooth gliding surface for the mouse.

Image: A user's hands operating the wireless mouse and mouse pad alongside a laptop, demonstrating a typical desk setup.

Opretholdelse

• Udskiftning af batteri: When the mouse performance degrades or stops responding, it is likely time to replace the AA battery. Follow the steps in the "Setup" section to open the battery compartment and insert a new AA battery.
• Rengøring af musen: Use a soft, dry cloth to wipe the exterior of the mouse. For stubborn dirt, a slightly damp En klud kan bruges, men sørg for, at der ikke kommer fugt ind i enheden. Undgå skrappe kemikalier eller slibende rengøringsmidler.
• Rengøring af musemåtten: The mouse pad is water and stain resistant. For minor spills, wipe immediately with a damp cloth. For general cleaning, a mild soap solution and a soft cloth can be used. Allow the mouse pad to air dry completely before reuse.

Fejlfinding

• Musen reagerer ikke:
  • Sørg for, at AA-batteriet er korrekt installeret og har tilstrækkelig opladning. Udskift det om nødvendigt.
  • Verify the USB wireless receiver is securely plugged into a working USB port on your computer. Try a different USB port.
  • Flyt musen tættere på USB-modtageren for at udelukke problemer med rækkevidden eller interferens.
  • Genstart din computer.
• Intermitterende forbindelse eller forsinkelse:
  • Ensure there are no large metallic objects or other wireless devices (like Wi-Fi routers, cordless phones) directly between the mouse and the receiver that could cause interference.
  • The effective range is 30 feet; operating beyond this distance may cause connection issues.
• Cursor Movement is Erratic or Too Slow/Fast:
  • Press the "DPI" button on the mouse to cycle through the sensitivity settings.
  • Sørg for, at den optiske sensor i bunden af ​​musen er ren og fri for snavs.
  • Ensure the mouse pad surface is clean and free from obstructions.
• USB Receiver Hard to Remove:
  • Grip the receiver firmly and pull straight out. Avoid twisting or bending.

Specifikationer

Garanti og support

This SOAR product comes with a 1 års begrænset garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by accident, misuse, abuse, neglect, improper installation, or unauthorized repair.

For warranty claims or technical support, please contact the manufacturer, Prime Brands Group Inc., through their official support channels. Please retain your proof of purchase for warranty validation.
