Ultenic AC1 Elite våd-tør støvsuger brugermanual

Indledning

Thank you for choosing the Ultenic AC1 Elite Wet Dry Vacuum Cleaner. This all-in-one cordless vacuum and mop is designed to simplify your floor cleaning routine by vacuuming, washing, and mopping simultaneously. Featuring smart mess detection, a self-cleaning function, and a long runtime, the AC1 Elite provides an efficient and thorough cleaning experience for hard floors and sticky messes.

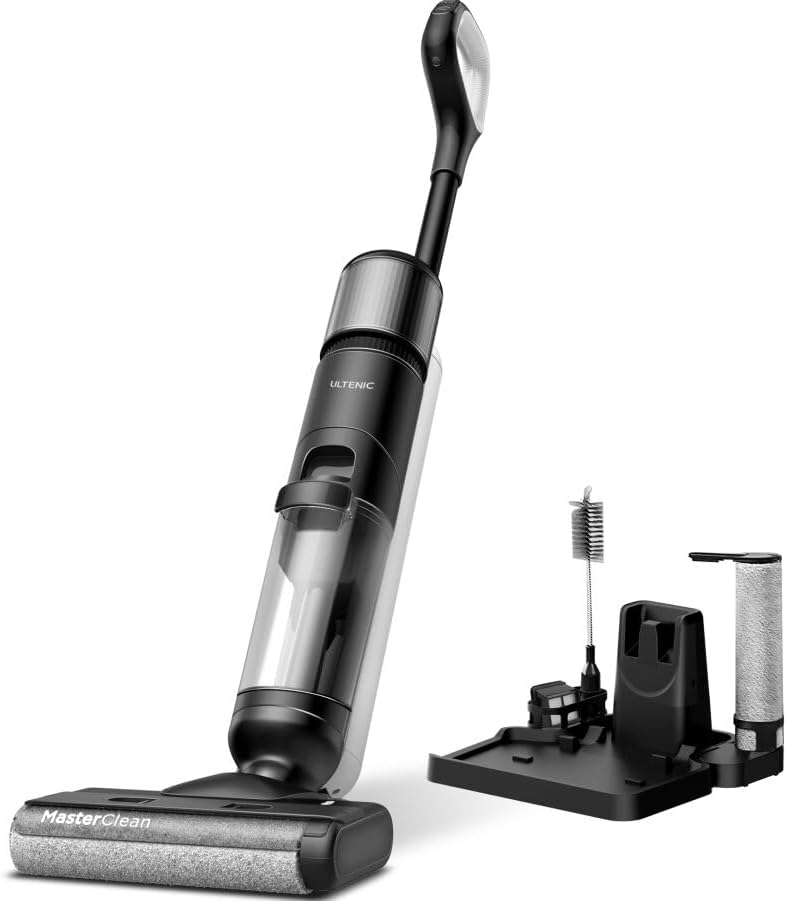

Figure 1: Ultenic AC1 Elite Wet Dry Vacuum Cleaner and accessories.

Hvad er der i æsken

Carefully unpack all components and ensure all items are present before discarding packaging materials.

• Ultenic AC1 Elite våd-tør støvsuger (hovedenhed)
• Opladningsbase
• AC Adapter
• HEPA Filter (Spare)
• Floor Cleaning Solution (Lemon Shine)
• Rengøringsbørste

Figur 2: Pakkens indhold.

Nøglefunktioner

• Alt-i-en rengøring: Vacuums, washes, and mops simultaneously for efficient wet and dry mess cleanup.


Figure 3: Vacuum Mop All-in-One capability.

• Smart snavsdetektion: Automatically adjusts suction power based on the type and amount of mess detected, optimizing cleaning performance.


Figure 4: Smart Dirt Detection modes.

• Selvrensning med et enkelt tryk: Initiates an automatic cleaning cycle for the brush roller and internal tubing, ensuring hygiene and preventing odors.


Figure 5: One-Touch Self-Cleaning feature.

• Lang løbetid: Provides up to 50 minutes of continuous cleaning on a single charge, suitable for larger areas.


Figure 6: Up to 50 minutes of runtime.

• Self-Propelled Brush Roller: Assists in moving the vacuum forward and backward, reducing user effort during cleaning.


Figure 7: Self-Propelled feature.

• Dobbelt tankdesign: Separates clean water from dirty water, ensuring you always clean with fresh solution.


Figure 8: Dual Tank Design for clean and dirty water.

• Kant-til-kant rengøring: Designed to effectively clean along baseboards and into corners, leaving no dirt behind.


Figure 9: Edge-to-Edge Cleaning.

• Letvægtsdesign: Weighing approximately 9.46 pounds, it is easy to maneuver and carry.


Figur 10: Letvægtsdesign for nem bærbarhed.

• LCD-skærm: Provides real-time information on battery level, cleaning mode, and alerts.


Figure 11: Smart Touch LCD Display and Dual Water Tank.

Opsætningsvejledning

1. Forsamling:

   Sæt håndtaget ind i støvsugeren, indtil det klikker sikkert på plads.

2. Opladning:

   Place the vacuum on the charging base. Connect the AC adapter to the charging base and plug it into a power outlet. The LCD display will indicate charging status. Ensure the unit is fully charged before first use (approximately 4-5 hours).

3. Fyld ren vandtank:

   Remove the clean water tank from the main unit. Fill it with clean tap water up to the MAX line. For optimal cleaning, add the recommended amount of Ultenic floor cleaning solution (provided) to the clean water tank. Reattach the tank securely.

Betjeningsvejledning

1. Tænd:

   Press the Power button on the handle to turn on the vacuum. The LCD display will light up.

2. Vælg rengøringstilstand:

   The AC1 Elite features Smart Mode, Max Mode, and Vac Mode. The vacuum will automatically detect the mess and adjust suction in Smart Mode. For heavy messes, manually switch to Max Mode. Use Vac Mode for dry vacuuming only.
3. Start rengøring:

   Tilt the main body of the vacuum backward to engage the brush roller. The self-propelled feature will assist in movement. Guide the vacuum across your hard floors, covering the desired area. The dual tank system ensures continuous cleaning with fresh water.

4. Skærm skærm:

   Pay attention to the LCD display for real-time information, including battery status, current cleaning mode, and alerts such as "Low battery, please charge" or "Insufficient water in clean water tank, please refill."



   Figure 12: LCD Display alerts.
5. Sluk:

   Press the Power button again to turn off the vacuum when cleaning is complete.

Opretholdelse

Efter hver brug:

1. Selvrensende cyklus:

   Place the vacuum back on its charging base. Ensure there is sufficient clean water in the clean water tank. Press the dedicated self-cleaning button on the handle. The vacuum will perform an automatic cleaning cycle for the brush roller and internal tubing. This process helps prevent odors and keeps the unit hygienic.



   Figure 13: Mess-Free Self Cleaning.

2. Tøm beskidt vandtank:

   Remove the dirty water tank and empty its contents. Rinse the tank thoroughly with clean water. Allow it to air dry before reattaching.

3. Rengør børstevalsen:

   Even after self-cleaning, it is recommended to periodically remove the brush roller and rinse it under running water to remove any trapped hair or debris. Use the provided cleaning brush if necessary. Allow the brush roller to air dry completely before reinserting.
4. Rens filter:

   Remove the HEPA filter from the dirty water tank assembly. Tap it gently to remove loose dust. Rinse under running water if heavily soiled, but ensure it is completely dry before reinserting to prevent mold or damage.

Regelmæssig vedligeholdelse:

• Inspect the brush roller and filter regularly for wear and tear. Replace them as needed to maintain optimal performance.
• Tør det ydre af støvsugeren af ​​med adamp klæde. Brug ikke skrappe kemikalier.

Fejlfinding

Specifikationer

• Model: AC1 Elite
• Mærke: Ultenisk
• Dimensioner: 27.75 cm L x 13.25 cm B x 12 cm H
• Varens vægt: 9.46 pund
• Renvandsbeholderkapacitet: 1.15 liter
• Kapacitet: Beskidt vandtank 0.5 Liters (approx. based on A+ content image)
• Kørselstid: Op til 50 minutter
• Wattage: 230 watt
• Støjniveau: 78 dB
• Filtertype: HEPA filter
• Kontrolmetode: Trykknap, app
• Batteri: 1 CR5 batteri påkrævet (medfølger)

Garanti & Support

For warranty information, technical support, or to purchase replacement parts and accessories, please visit the official Ultenic webwebstedet eller kontakt deres kundeservice. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Officiel Webwebsted: www.ultenic.com
