Indledning
This manual provides comprehensive instructions for the safe and effective use and maintenance of your Zippo Windproof Lighter, model Taurus #Z506. Please read all instructions carefully before initial use.
Produkt overview
Billede: Forside view of the Zippo Windproof Lighter featuring a Taurus zodiac sign design.
Image: The Zippo lighter is packaged in a black gift box with the Zippo logo.
Image: Zippo logo with the text "Made in U.S.A." indicating its origin.

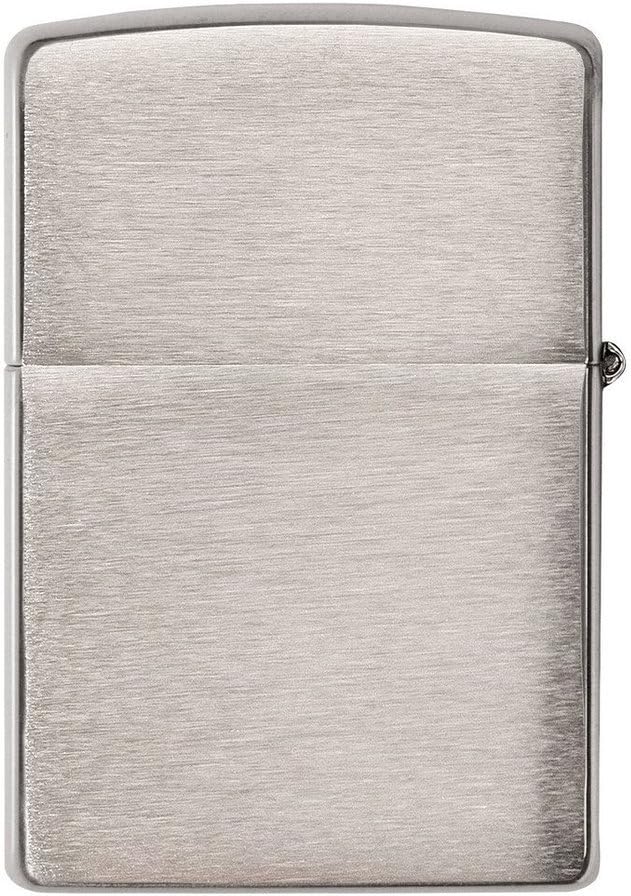

Billede: Bagside view of the Zippo Windproof Lighter, showing its smooth metal finish.
Image: A visual representation highlighting the Zippo lighter's metal case construction, refillable design, and the genuine bottom stamp for authenticity.
Image: Key features of the Zippo Windproof Lighter, including its windproof design, manufacturing location in Bradford, PA, USA, lifetime guarantee, and refillable nature with Zippo lighter fuel.
Vigtige sikkerhedsoplysninger
- WARNING: Keep out of the reach of children.
- The lighter is not child resistant.
- Tænd lighteren væk fra ansigt og tøj.
- All new Zippo Windproof Lighters are empty and must be filled before use.
- When filled, it will contain flammable fluid.
- Udsæt aldrig for varme over 122°F (50°C) eller for længerevarende sollys.
- Du må aldrig punktere eller sætte ild til.
- Be sure flame is out after use. This lighter does not self-extinguish; close the cover to put it out.
- Fuel is a skin irritant; avoid overfilling.
For detailed safety information, refer to the instruction manual included in the packaging.
Video: "Zippo Lighter-Getting Started" - This video provides an overview of the Zippo lighter's components, initial setup, and important safety tips for new users.
Setup: Filling Your Zippo Lighter
Your Zippo lighter is shipped without fuel for safety reasons. It must be filled with Zippo lighter fluid before use. Always use genuine Zippo fluid, flints, and wicks for optimal performance and safety.
- Hold the lighter in one hand. Use the other hand to remove the lighter insert (the inner unit).
- Lift the felt pad on the bottom of the insert to reveal the packing material in the fuel chamber.
- Slowly saturate the packing material with Zippo lighter fluid. Stop filling when the fuel reaches the top of the packing material. Do not overfill.
- Wipe any spilled fluid from the lighter and your hands before igniting. Return the lighter insert into the case.
- Ensure the fuel can is closed and there is no spilled fuel in the vicinity before igniting.
If fuel gets on skin, wash the affected area. If irritation persists or worsens, consult a doctor.
Image: Detailed instructions and diagrams illustrating the process of filling a Zippo lighter with fluid, including removing the insert and saturating the packing material.
Operating Your Zippo Lighter
Once your Zippo lighter is properly fueled, it is ready for use.
- Åbn låget på lighteren.
- With your thumb, firmly strike the flint wheel downwards to create a spark.
- The spark will ignite the wick, producing a flame.
- To extinguish the flame, simply close the lid. The Zippo lighter does not self-extinguish.
Always ensure the flame is completely extinguished before storing the lighter.
Opretholdelse
Vedligeholdelse af væge
When the wick becomes black from carbon, pull it up with tweezers until clean wick appears (approximately 1 cm). Trim the end, making sure it is even with the chimney height. Perform this maintenance once or twice a year. It will be necessary to replace the wick after it has been trimmed two or three times.
Flint Replacement
- Tag lighterindsatsen ud af etuiet.
- Unscrew the flint spring from the bottom of the insert.
- Fjern den gamle flint og isæt en ny Zippo-flint.
- Replace the flint spring and screw. Ensure the screw is turned as far as it will go; if not, the cover will not close properly. If the wheel binds after the new flint is inserted, turn the wheel backwards a few times to free it.
Billede: En eksploderet view diagram illustrating the various components of a Zippo Windproof Lighter, including the wick, flint wheel, fuel chamber, and flint spring.
Fejlfinding
- Lighteren tænder ikke: Ensure the lighter is filled with Zippo lighter fluid and that the flint is not worn down. Replace flint if necessary.
- Svag flamme: Check the wick. If it's black or too short, trim or replace it. Ensure the lighter is adequately fueled.
- Låget lukker ikke ordentligt: Check for any obstructions or ensure the flint spring is fully screwed in.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Zippo |
| Model | Taurus #Z506 |
| Farve | Multicolor (Taurus design) |
| Materiale | Metal |
| Varens vægt | 1 ounce |
| Produktdimensioner | 2.25 cm L x 1.5 cm B x 0.5 cm T |
| UPC | 191693086041 |

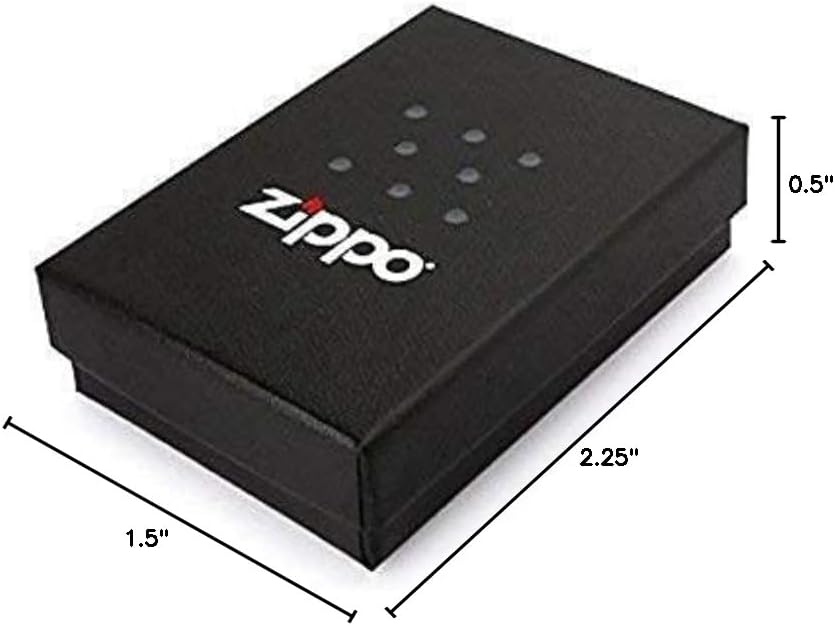

Image: The Zippo gift box with its dimensions clearly marked.
Garanti
Your Zippo Windproof Lighter is backed by the world-famous Zippo Guarantee: "It works or we fix it free." Any Zippo pocket lighter, when returned to the factory, will be put in first-class mechanical condition free of charge, regardless of age or condition. The finish, however, is not guaranteed.
This guarantee provides specific legal rights, and you may also have other rights which vary by state. Other Zippo products carry their own specific warranties.
Image: The official Zippo Guarantee statement, detailing the lifetime repair policy for mechanical issues.
Støtte
For further assistance, product registration, or to purchase genuine Zippo accessories (fluid, flints, wicks), please visit the official Zippo webwebsted eller kontakt deres kundeserviceafdeling.
Zippo Manufacturing Company
33 Barbour Street
Bradford, PA 16701 USA
Du kan også besøge Zippo-butik på Amazon for flere produkter og information.
