Indledning
This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your Jasion EB7 2.0 Electric Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.
Image: The Jasion EB7 2.0 Electric Bike, showcasindens design og funktioner.
Sikkerhedsoplysninger
Prioritér altid sikkerhed, når du bruger din elcykel. Manglende overholdelse af sikkerhedsretningslinjerne kan resultere i alvorlig personskade eller beskadigelse af cyklen.
- Brug altid hjelm og passende sikkerhedsudstyr.
- Sæt dig bekendt med lokale færdselslove og -regler for elcykler.
- Udfør en inspektion før hver brug, hvor du kontrollerer bremser, dæk og batteriniveau.
- Ensure all quick releases and fasteners are securely tightened.
- Kør ikke cyklen under påvirkning af alkohol eller narkotika.
- Vær opmærksom på dine omgivelser og kør defensivt.
- The throttle is half-twist to help prevent accidental activation. Use with caution.
- The bike is rated IPX4 for water resistance, meaning it is protected against splashing water from any direction. Avoid submerging the bike or riding in heavy rain for extended periods.
Opsætning og montering
Your Jasion EB7 2.0 Electric Bike requires some assembly. Tools are included to assist with this process. It is recommended to watch an assembly video or consult detailed instructions if you are unsure.
Udpakning
- Tag forsigtigt cyklen og alle komponenter ud af emballagen.
- Undersøg for eventuelle forsendelsesskader. Kontakt kundesupport med det samme, hvis der konstateres skader.
- Verify all included components are present: Electric Bike, Assembly Tools, Manual.
Initial Assembly Steps
- Udfoldning af rammen: Carefully unfold the bike frame until it locks into place. Ensure the folding mechanism is securely latched.
- Montering af styr: Attach the handlebar stem to the fork. Ensure the protective metal sleeve is removed if present, as noted in some user experiences. Tighten all bolts securely.
- Pedalfastgørelse: Identify left (L) and right (R) pedals. Thread them into the crank arms by hand, then tighten with a wrench. Note that the left pedal is reverse-threaded.
- Justering af sadelpind: Insert the seat post and adjust the height for a comfortable riding position. Secure the quick-release lever.
- Dækpumpe: Pump dækkene op til det anbefalede tryk, som typisk findes på dækkets sidevæg.

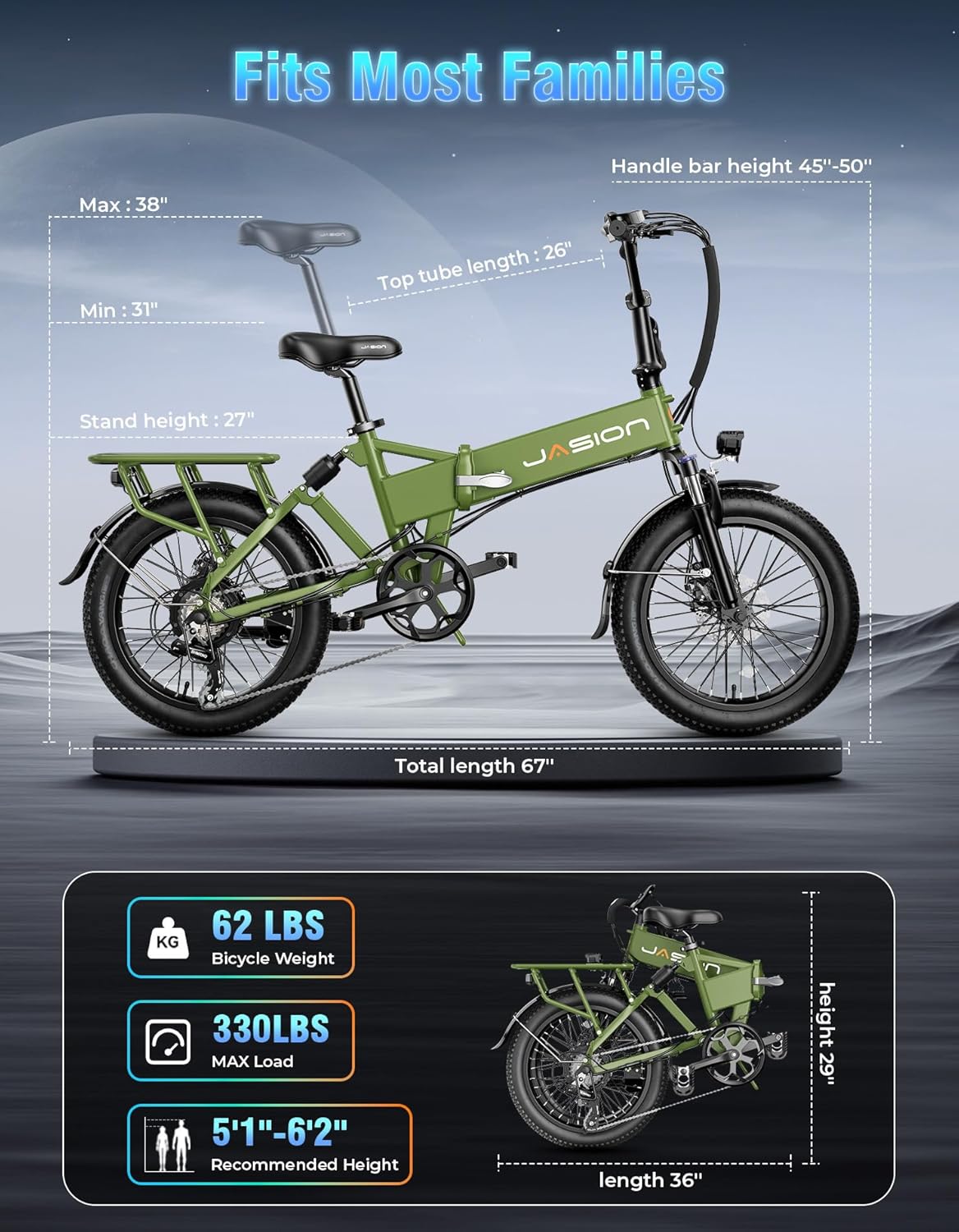

Image: Visual guide showing the bike's dimensions and its folded configuration.
Betjeningsvejledning
Batteri og opladning
The Jasion EB7 2.0 is equipped with a 48V 10Ah (480Wh) removable lithium-ion battery. For optimal performance and longevity, fully charge the battery before your first ride.
- Opladning: The battery can be charged while installed on the bike or removed. Connect the charger to the battery port and then to a power outlet. A full charge typically takes 5-6 hours.
- Fjernelse af batteri: Use the provided key to unlock and remove the battery for off-bike charging or secure storage.
- Batteripleje: Avoid completely draining the battery. Charge regularly, especially if storing for extended periods.
Billede: Detaljeret view of the bike's integrated battery, highlighting its specifications.
Tænd og LCD-skærm
To power on the bike, press and hold the power button on the handlebar control panel. The intuitive LCD display will activate, showing key riding data.
- Vis oplysninger: The LCD shows current speed, battery charge level, pedal assist level, and travel distance.
- USB opladningsport: A USB port is available on the display for charging mobile devices.
Image: The handlebar and LCD display, providing real-time riding data.
Riding Modes and Gearing
The EB7 2.0 offers three riding modes and a 7-speed transmission for versatile riding.
- Ren elektrisk tilstand: Engages the motor without pedal input using the half-twist throttle.
- Pedalhjælpstilstand (PAS): Provides motor assistance as you pedal. Adjust the assist level via the control panel.
- Cykeltilstand: Fungerer som en traditionel cykel uden motorassistance.
- 7-trins gearkasse: Use the twist grip shifter to select appropriate gears for different terrains and speeds.
Image: The 7-speed gear system, designed for adapting to various terrains.
Bremsesystem
The bike features 160mm front and rear mechanical disc brakes for reliable stopping power.
- Brug begge bremser samtidigt for kontrolleret standsning.
- Regularly check brake pads and rotors for wear.
Image: The dual disc brake system, emphasizing responsive stopping capability.
Lys
The EB7 2.0 includes a bright headlight and an adjustable rear light for visibility.
- Activate lights using the control panel, typically integrated with the headlight switch.
- Ensure lights are functional before riding in low-light conditions.
Opretholdelse
Regelmæssig vedligeholdelse er afgørende for din elcykels levetid og sikre drift.
- Batteripleje: Charge the battery regularly, even during periods of non-use, to maintain its health. Store in a cool, dry place.
- Dæktryk: Check tire pressure before each ride. Maintain pressure within the range indicated on the tire sidewall for optimal performance and safety.
- Bremseinspektion: Regularly inspect brake levers, cables, pads, and rotors for wear or damage. Adjust or replace components as needed.
- Kædesmøring: Hold kæden ren og smurt for at sikre jævne gearskift og forhindre slid.
- Fastgørelseskontrol: Kontrollér regelmæssigt alle bolte, møtrikker og hurtigudløsere for fastspænding.
- Rensning: Rengør cyklen med en damp klud. Undgå højtryksspuling direkte på elektriske komponenter.
Fejlfinding
This section addresses common issues you might encounter with your Jasion EB7 2.0 Electric Bike.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Cyklen tænder ikke. | Batteriet er ikke opladet, batteriet er ikke isat korrekt, strømkablet er løst. | Sørg for, at batteriet er fuldt opladet og sikkert installeret. Kontroller alle kabelforbindelser. |
| Motoren hjælper ikke. | Pedal assist level set to zero, battery low, motor connection issue. | Increase pedal assist level. Check battery charge. Inspect motor cable connections. |
| Brakes making noise or rubbing. | Brake pads misaligned, rotor bent, worn pads. | Adjust brake caliper alignment. Inspect rotor for damage. Replace worn brake pads. |
| Difficulty shifting gears. | Derailleur out of adjustment, dirty/dry chain, damaged shifter cable. | Clean and lubricate chain. Adjust derailleur. Consult a bike mechanic if issues persist. |
| Battery connection pins issue. | Pins bent or damaged during battery reinstallation or folding. | Carefully inspect battery connection pins. If damaged, contact customer support for assistance. Exercise caution when reinstalling the battery and folding the bike. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Jasion customer support.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | EB7 2.0 Electric Bike |
| Type cykel | El-cykel |
| Motor | 750W børsteløs (1200W peak) |
| Max hastighed | 28 MPH (45 km/t) |
| Max Uphill Angle | 25° |
| Moment | 55 NM |
| Batteri | 48V 10Ah (480Wh) Removable Lithium-ion |
| Rækkevidde pr. opladning | 22-55 Miles (depending on mode and terrain) |
| Opladningstid | 5-6 timer |
| Hjulstørrelse | 20 Inches Fat Tires (20"x3") |
| Rammemateriale | Aluminium |
| Ophængstype | Dobbelt (foran og bagpå) |
| Bremse stil | 160mm Dual Mechanical Disc Brakes |
| Antal hastigheder | 7-speed |
| Varens vægt | 59 pund (26.7 kg) |
| Maksimal belastningskapacitet | 330 pund (150 kg) |
| Anbefalet brugerhøjde | 152 cm - 188 cm (5'0" - 6'2") |
| Expanded Dimensions (LxWxH) | 68.9 x 24.8 x 49.6 tommer (175 x 63 x 126 cm) |
| Foldede mål (LxBxH) | 36 x 21 x 29 tommer (91 x 53 x 74 cm) |
| Vandmodstandsvurdering | IPX4 |
Image: Close-up of the powerful 1200W peak brushless motor.
Image: The advanced front suspension system, contributing to riding comfort.
Image: The 20"x3" fat tires, suitable for diverse riding conditions including city, mountain, sand, and snow.
Garantioplysninger
The Jasion EB7 2.0 Electric Bike comes with a 1 års begrænset garanti. Additionally, Jasion offers Extra 1 Year Product Care. Please refer to the official Jasion website or contact customer support for full warranty terms and conditions.
Kundesupport
For any questions, technical assistance, or warranty claims, please contact Jasion Customer Support.
- Livstids teknisk vejledning: Jasion provides ongoing technical support for your product.
- Professional Customer Support Team: A dedicated team is available to assist you.
- Svartid: Inquiries are typically answered within 24 hours during working days.
- Kontakte: Visit the official Jasion store on Amazon for contact options: Jasion Store.
