Sparkleiot MOC 5-trins med bakgearkasse, instruktionsmanual

Indledning

This manual provides essential information for the assembly, operation, and maintenance of your Sparkleiot MOC 5-Speed with Reverse Gearbox Model. This product is a loose set of building blocks designed for self-assembly, allowing for integration into various technology car modifications or custom building block creations.

Please read these instructions carefully before beginning assembly to ensure correct construction and safe use.

Sikkerhedsoplysninger

Advarsel om små dele: This product contains small parts which may pose a choking hazard. Keep all components away from young children. Recommended age for assembly and use is 18 years and up.
Sørg for, at alle forbindelser er sikre under montering for at forhindre, at dele løsner sig under drift.
Do not modify the components in ways not intended by the manufacturer, as this may compromise functionality or safety.

Pakkens indhold

Når du åbner pakken, vil du finde:

1 set of building bricks for the 5-speed with reverse gearbox model.

Please verify that all components are present and undamaged before proceeding with assembly. If any parts are missing or damaged, please contact Sparkleiot customer support.

Monteringsvejledning

The Sparkleiot MOC 5-Speed with Reverse Gearbox Model is provided as a loose set of parts requiring self-assembly. For detailed, step-by-step graphical instructions, please refer to the official PDF manual.

Vigtig: Scan the QR code provided on the product packaging to access the comprehensive PDF assembly instructions. This digital guide will walk you through each step of the construction process.

Assembled Sparkleiot 5-Speed with Reverse Gearbox Model — Figure 1: Fully assembled Sparkleiot MOC 5-Speed with Reverse Gearbox Model. This image shows the completed gearbox from an angled front view, highlighting the gear selector lever and various grey, red, and black building block components.

Tips til generalforsamlingen:

Organize your parts before starting. Sorting by type or color can simplify the process.
Follow the PDF instructions sequentially. Do not skip steps.
Ensure all pins and axles are fully inserted and connections are firm.
Pay close attention to gear alignment to ensure smooth operation of the gearbox mechanism.

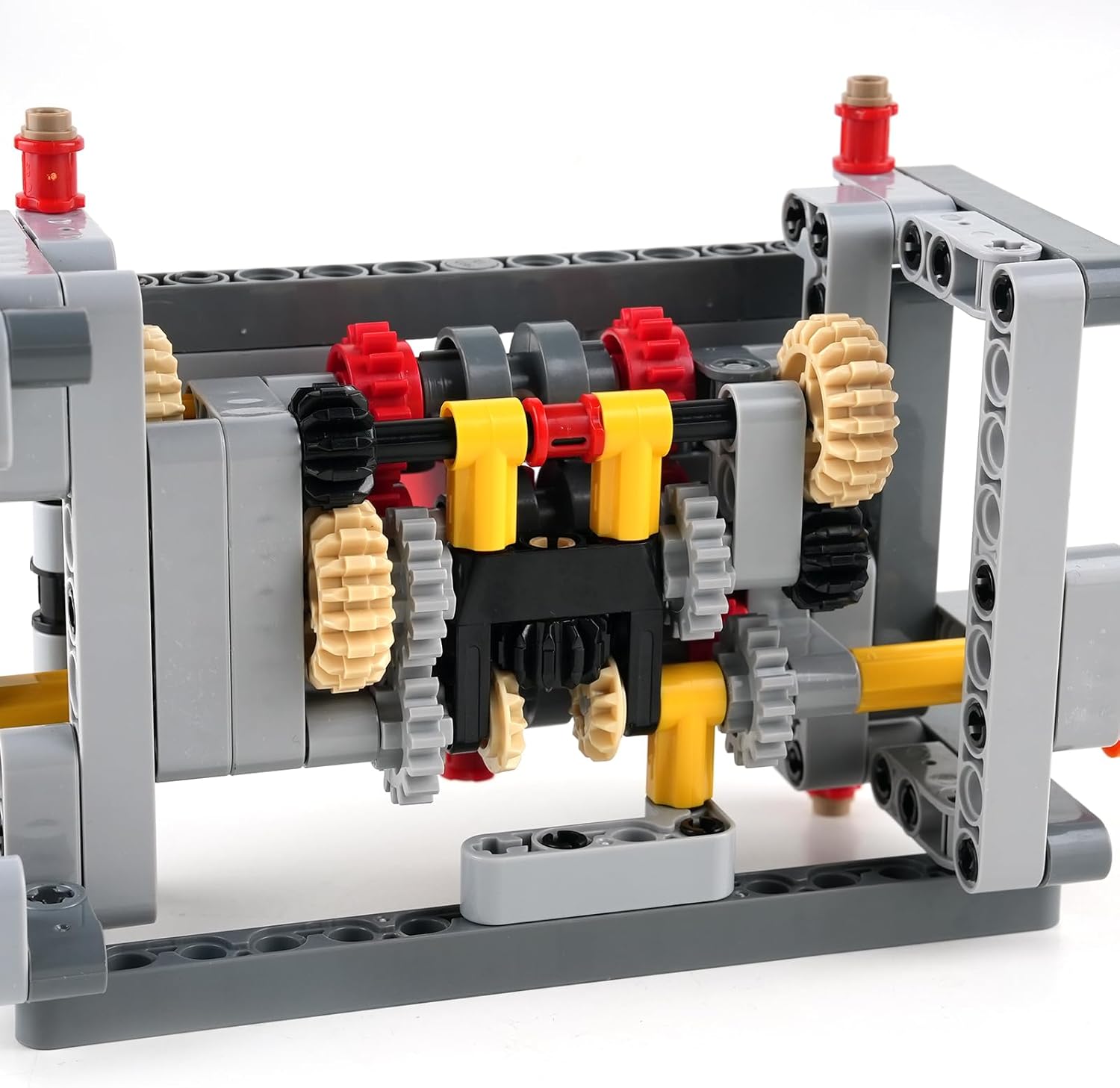

Indre view of the gearbox mechanism — Figur 2: Intern view of the gearbox mechanism. This image provides a closer look at the arrangement of gears and axles within the assembled unit, demonstrating the intricate internal workings.

Betjeningsvejledning

Once assembled, the 5-speed with reverse gearbox allows for manual selection of different gear ratios and a reverse function. The primary control is the gear selector lever.

Gearvalg: Move the black lever to engage different speeds. Each position corresponds to a distinct gear ratio.
Omvendt funktion: A specific position of the lever will engage the reverse gear, changing the direction of the output shaft.
Integration: This gearbox is designed to be integrated into larger building block models, such as custom vehicles. It can be connected to a motor (sold separately) to provide power to the input shaft.

Gearbox connected to an external motor — Figure 3: The gearbox connected to an external motor unit. This illustrates how the gearbox can be integrated with a power source (motor and battery box, not included with the gearbox set) to drive a model.

Note: The gearbox itself does not require batteries. If connecting to an external motor or power functions, those components may require their own power source (e.g., Nonstandard Battery batteries as specified for some power functions).

Opretholdelse

Rensning: Dust can accumulate in the gears. Use a soft brush or compressed air to gently remove dust and debris. Avoid using liquids.
Inspektion: Periodically check for loose connections or worn parts. Re-secure any loose pins or axles.
Opbevaring: Store the assembled gearbox or loose parts in a clean, dry place away from direct sunlight and extreme temperatures.

Fejlfinding

Problem	Mulig årsag	Løsning
Gears do not engage smoothly.	Misaligned gears or axles.	Disassemble the affected section and re-align gears according to the PDF instructions. Ensure all axles are fully inserted.
Gearbox output is stiff or jammed.	Excessive friction, incorrect assembly, or foreign object.	Check for any misplaced parts or debris. Verify all connections are correct and not overly tight.
Parts detach during use.	Incomplete insertion of pins/axles or loose connections.	Ensure all pins and axles are pushed in completely. Re-check the assembly steps for secure connections.

Specifikationer

Model: MOC 5-Speed with Reverse Gearbox Model
Mærke: Sparkleiot
Produktmål (samlet): Cirka 2 x 2 x 4 tommer (5.08 x 5.08 x 10.16 cm)
Varens vægt: 4.8 ounce (136 gram)
Anbefalet alder: 18 år og opefter
Strømkilde: Not applicable (passive mechanical component). External power functions (e.g., motors) may require batteries.
Materiale: Building block plastic components

Støtte

For further assistance, missing parts, or detailed inquiries, please refer to the official Sparkleiot customer support channels. You can often find contact information on the product packaging or by visiting the Sparkleiot brand store on Amazon:

Visit the Sparkleiot Store on Amazon

Remember to have your product model name and ASIN (B0FWJRRL3L) ready when contacting support.
