Hykolity 30" Electric Space Heater Instruction Manual

1. Vigtige sikkerhedsforanstaltninger

Please read all instructions carefully before using this electric space heater and retain them for future reference. Failure to follow these instructions may result in fire, electric shock, injury, or property damage.

• Placer altid varmelegemet på en fast, plan overflade.
• Do not operate the heater near water or in wet locations.
• Do not cover the heater or block the air intake/outlet vents.
• Hold børn og kæledyr væk fra varmeapparatet.
• Tag stikket ud af varmeapparatet, når det ikke er i brug, eller før rengøring.
• Sørg for, at netledningen ikke er beskadiget, og at den holdes væk fra varme overflader.
• This heater is equipped with multiple safety features, including V0 flame-retardant material, cool-touch housing, thermal insulated wiring, child lock, 45° tip-over protection, and overheat protection. It is ETL certified.

2. Produktet er slutview

The Hykolity 30-inch electric space heater (Model WHJ-0902) is designed for efficient heating of rooms up to 300 sq ft. It features a powerful PTC heating element, 70° oscillation, and smart controls for optimal comfort.

Pakkeindhold:

• 1 x Hykolity 30" Electric Space Heater Unit
• 1 x fjernbetjening
• 1 x brugermanual

3. Opsætning

3.1 Udpakning

Carefully remove the heater and all accessories from the packaging. Inspect the unit for any signs of damage. If any damage is found, do not operate the heater and contact customer support.

3.2 Placering

Place the heater on a stable, level, and heat-resistant surface. Ensure there is at least 3 feet (0.9 meters) of clearance from any walls, furniture, curtains, or other combustible materials. Do not place the heater directly under a power outlet.

3.3 Strømtilslutning

Plug the power cord into a standard 120V AC, 60Hz electrical outlet. Ensure the outlet is in good condition and not overloaded with other appliances.

4. Betjeningsvejledning

4.1 Kontrolpanel

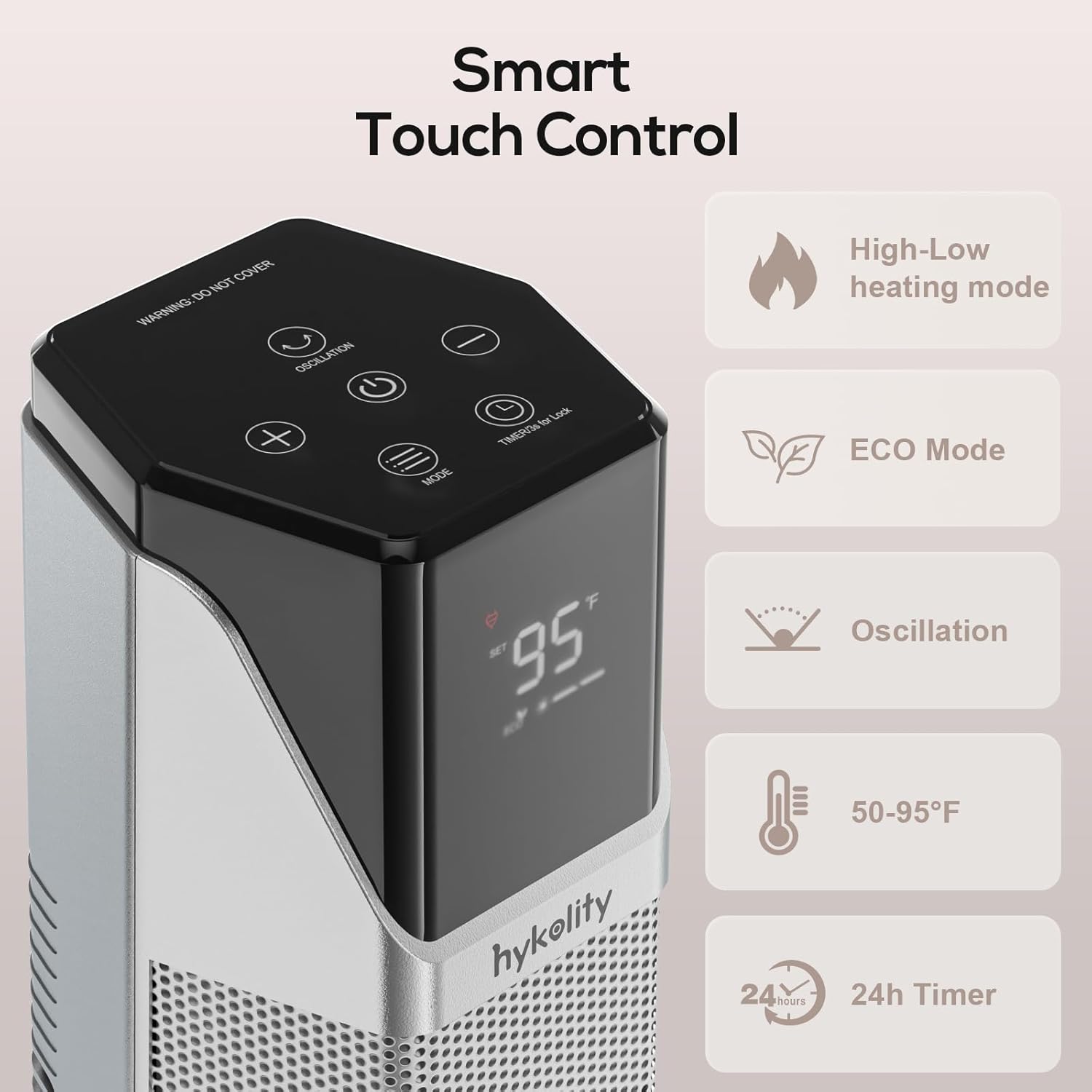

The heater features a smart touch control panel located on the top of the unit. The LED display shows the current temperature and selected settings.

• Power knap: Tænder/slukker varmelegemet.
• Mode knap: Cycles through heating modes (H1, H2, FA, ECO).
• Temperaturjustering (+/-): Increases or decreases the target temperature in ECO mode (50-95°F).
• Oscillationsknap: Activates/deactivates the 70° wide-angle oscillation.
• Timer knap: Sets the 24-hour auto-off timer.
• Børnelås: Press and hold the oscillation button for 3 seconds to activate/deactivate.

4.2 Fjernbetjening

The included remote control allows for convenient operation of all heater functions from a distance.

• All buttons on the remote correspond to the functions on the control panel.
• Ensure a clear line of sight between the remote and the heater's display for optimal performance.

4.3 driftstilstande

• H1 (Lav varme): Provides a lower heat output for gentle warmth.
• H2 (Høj varme): Leverer maksimal varmeafgivelse for hurtig opvarmning.
• FA (Fan Only): Circulates air without heat, useful for air circulation.
• ØKO -tilstand: Automatically adjusts heat output based on the set temperature (50-95°F) to optimize energy consumption.

4.4 Oscillation

The 70° wide-angle oscillation feature distributes warm air evenly across a larger area, covering rooms from 100 to 300 sq ft.

4.5 Timer funktion

Set the auto-off timer for up to 24 hours. The heater will automatically turn off after the set duration, providing convenience and energy efficiency.

4.6 Temperaturkontrol

In ECO mode, you can set your desired room temperature between 50°F and 95°F with 1°F precision. The heater will maintain this temperature by cycling on and off as needed.

4.7 Officiel produktvideo

5. Vedligeholdelse

5.1 Rengøring

• Tag altid stikket ud af stikkontakten, og lad varmelegemet køle helt af, inden rengøring.
• Tør de udvendige overflader af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Use a vacuum cleaner with a brush attachment to gently clean the air intake and outlet grilles to remove dust and lint.
• Nedsænk aldrig varmelegemet i vand, og lad aldrig vand dryppe ind i det indre.

5.2 Opbevaring

When not in use, store the heater in a cool, dry place. It is recommended to store it in its original packaging or cover it to protect it from dust.

6. Fejlfinding

Hvis din varmelegeme ikke fungerer korrekt, kan du se følgende almindelige problemer og løsninger:

7. Specifikationer

8. Garanti og support

For detailed warranty information, please refer to the warranty card included with your product or visit the official Hykolity website. If you encounter any issues or require technical assistance, please contact Hykolity customer support through the contact information provided in your product packaging or on the official webwebsted.
