AIYAPLAY 12V Electric Quad for Kids - Instruction Manual

1. Vigtige sikkerhedsoplysninger

• Voksenopsyn påkrævet: This product must be used under direct adult supervision at all times.
• Alders- og vægtgrænser: Suitable for children aged 3 to 8 years (37-96 months). Maximum load capacity is 30 kg. Do not exceed these limits.
• Beskyttelsesudstyr: Sørg altid for, at barnet bærer passende sikkerhedsudstyr, herunder hjelm, knæbeskyttere og albuebeskyttere.
• Sikkert køremiljø: Use the quad in safe, open areas away from public roads, traffic, steep inclines, swimming pools, or other hazards. Ensure the riding surface is flat and clear of obstacles.
• Batterisikkerhed: Only use the provided charger and battery. Do not modify the electrical system. Keep the battery away from heat sources and moisture.
• Forsamling: Adult assembly is required before first use. Ensure all parts are securely fastened.
• Bremsning: Instruct children on how to stop the vehicle safely.

2. Pakkens indhold

Please check the box for the following components:

• Main Quad Body
• Hjul (3)
• Sæde
• Styr
• Headlights (pre-installed or separate)
• 12V batteri
• Oplader
• Monteringshardware
• Instruktionsmanual

Image: The AIYAPLAY 12V Electric Quad, showcasing its black and white design with red accents. This image represents the complete product after assembly.

3. Opsætning og montering

Adult assembly is required. Please follow these general steps. Refer to the detailed diagrams in the included paper manual for specific part identification and attachment.

1. Udpak komponenter: Fjern forsigtigt alle dele fra emballagen, og kontroller dem med pakkens indholdsliste.
2. Monter hjul: Attach the wheels to the quad body according to the instructions, ensuring all fasteners are tightened securely.
3. Fastgør styret: Secure the handlebar to the steering column.
4. Tilslut batteri: Connect the 12V battery to the vehicle's electrical system. Ensure connections are firm.
5. Installer sæde: Place the seat onto the quad and secure it in position.
6. Indledende opkrævning: Before first use, fully charge the battery for the recommended duration (typically 8-12 hours). Do not overcharge.

Image: A diagram illustrating the overall dimensions of the AIYAPLAY Electric Quad (113x74x63 cm) and recommended child height, along with the seat dimensions. This helps in understanding the size for assembly and usage.

4. Betjeningsvejledning

Familiarize your child with the controls before allowing them to operate the quad independently.

• Tænd/sluk: Press the power button (often marked with a power symbol) to turn the quad on or off.
• Starte: The quad features a 'one-click start' for ease of use.
• Hastighedskontrol: The quad has two speeds, typically a low speed (approx. 3 km/h) and a high speed (approx. 5 km/h). Select the appropriate speed using the designated switch.
• Frem/tilbage: Brug frem/tilbage-kontakten til at vælge den ønskede kørselsretning.
• Acceleration: Press the foot pedal to accelerate. Releasing Pedalen vil aktivere bremsen.
• Lys: The integrated LED headlights and taillights can be activated for visibility and realism.
• Music and USB: The quad includes an MP3 player with a USB input. Insert a USB drive with MP3 files to play music. Use the control buttons to adjust volume or change tracks.

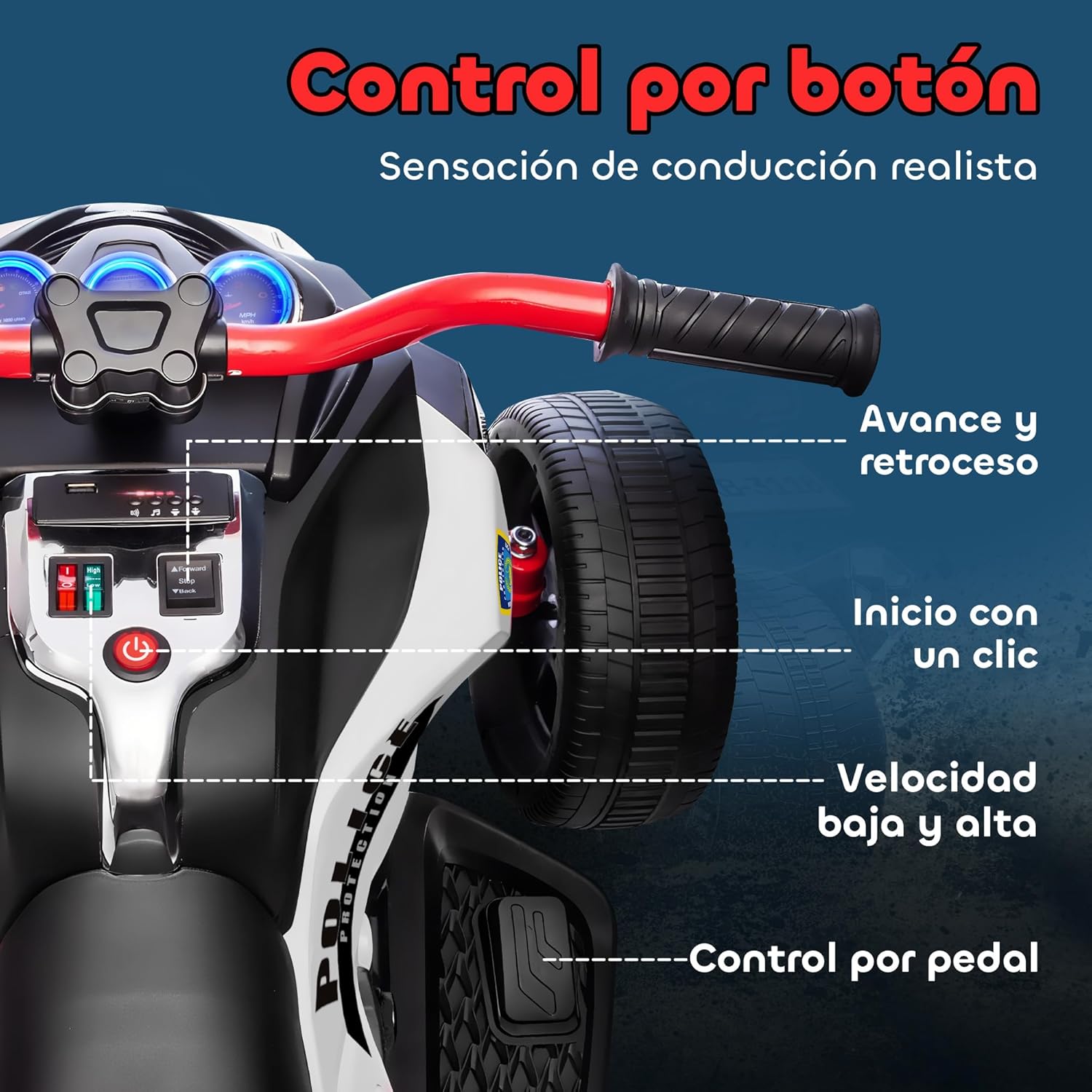

Billede: En detaljeret view of the quad's control panel, highlighting the power button, forward/reverse switch, speed selector, and the USB port for music playback. This image assists users in locating and understanding the vehicle's operational controls.

Image: A close-up of the USB port and music control buttons, indicating the functionality for playing audio files. This image helps users understand how to utilize the integrated music feature.

5. Vedligeholdelse

• Batteriopladning: Recharge the battery after each use. Do not allow the battery to fully discharge. Store the quad with a fully charged battery if not used for extended periods, and recharge monthly to prolong battery life.
• Rensning: Wipe the quad with a damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Undgå at sprøjte vand direkte på elektriske komponenter.
• Opbevaring: Store the quad in a dry, cool place, away from direct sunlight and moisture.
• Inspektion: Regularly check all nuts, bolts, and fasteners to ensure they are tight. Inspect tires for wear and tear.

6. Fejlfinding

If the quad is not functioning correctly, please check the following common issues:

• Quad Does Not Start:
  • Sørg for, at batteriet er fuldt opladet og korrekt tilsluttet.
  • Kontroller, om tænd/sluk-knappen er i 'ON'-positionen.
  • Kontroller, at alle elektriske forbindelser er sikre.
• Low Power/Slow Speed:
  • Batteriet skal muligvis genoplades.
  • Ensure the quad is not overloaded (check maximum weight capacity).
  • Check if the speed selector is set to the desired speed.
• Lights/Music Not Working:
  • Kontroller batteriets opladning.
  • Ensure USB device is properly inserted and contains compatible MP3 files.
  • Verify connections to lights/speakers.

Hvis problemerne fortsætter, bedes du kontakte kundesupport.

7. Produktspecifikationer

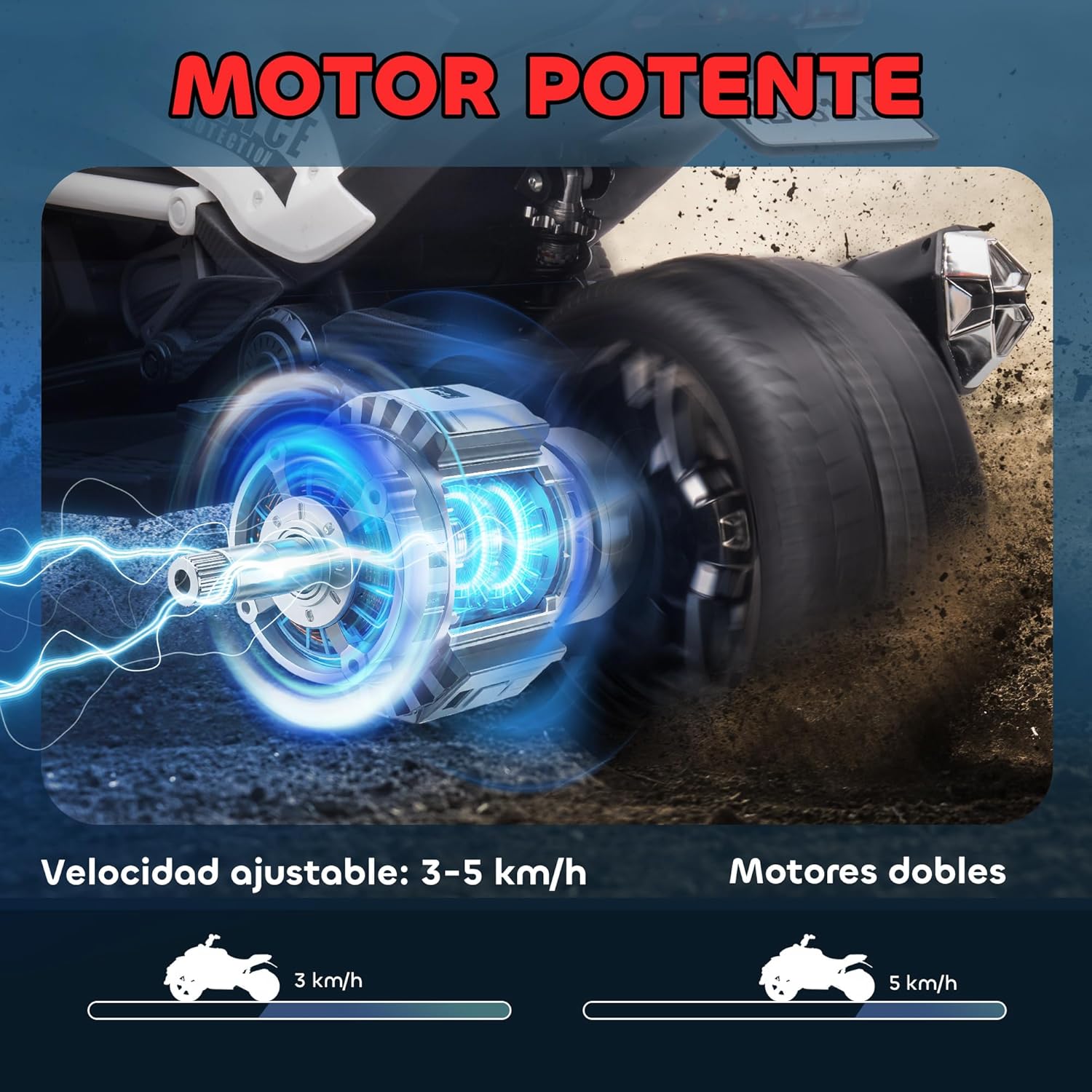

Image: A graphic illustrating the powerful dual motor system and adjustable speed settings (3-5 km/h) of the electric quad. This visually explains the performance capabilities mentioned in the specifications.

Image: A close-up of the rear wheel suspension system, demonstrating the quad's capability to handle various terrains such as asphalt, cement, brick roads, and grass. This highlights the durability and versatility of the product.

8. Garanti og support

For garantioplysninger, teknisk support eller reservedele, kontakt venligst sælgeren eller producenten direkte. Gem din købskvittering som købsbevis.

Manufacturer: AIYAPLAY

For further assistance, please refer to the contact information provided at the point of purchase or on the product packaging.
