Indledning
Thank you for choosing the Satco S12535 ST19 LED Light Bulb. This manual provides essential information for the safe and efficient use of your new LED bulb. Please read these instructions carefully before installation and retain them for future reference.

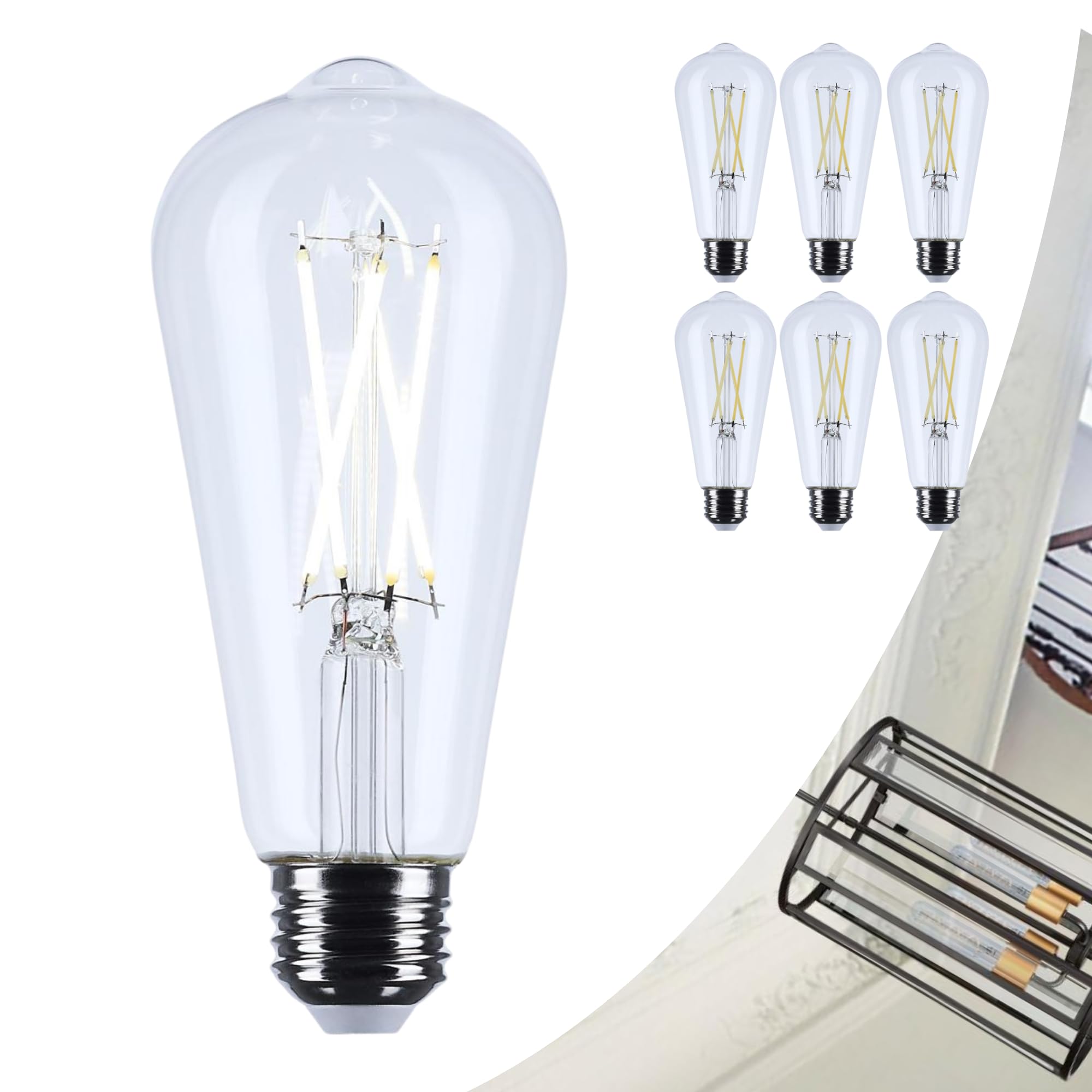

Image: The Satco S12535 ST19 LED Light Bulb, clear glass with visible filaments.
Vigtige sikkerhedsoplysninger
- Risiko for elektrisk stød: Always disconnect power before installing or replacing the bulb.
- Indendørs/udendørs brug: This bulb is rated for wet locations (IP65) and suitable for enclosed fixtures. It can be used indoors or in covered outdoor environments.
- Voltage: Sørg for, at armaturet voltage is 120V. Do not use with incompatible voltage.
- Dæmpning: This bulb is dimmable. Use only with compatible 120V dimmers. Incompatible dimmers may cause flickering or damage.
- Temperatur: Do not operate outside the specified temperature range of -20°C to +45°C.
- Håndtering: Allow the bulb to cool before handling. Avoid touching the bulb with bare hands immediately after use.
- Bortskaffelse: Bortskaf LED-pærer i henhold til lokale regler.
Opsætning og installation
- Sluk: Before installation, ensure the power supply to the fixture is turned off at the circuit breaker or fuse box.
- Fjern gammel pære: Skru forsigtigt den eksisterende pære af armaturet.
- Indsæt ny pære: Screw the Satco S12535 LED bulb into the E26 medium base socket. Ensure it is securely tightened but do not overtighten.
- Tænd: Gendan strømmen til armaturet.
- Dimmer Compatibility (if applicable): If using a dimmer, ensure it is compatible with LED bulbs and rated for 120V.
Image: Close-up of the E26 medium base of the Satco LED bulb, indicating its standard screw-in design.
Operation
The Satco S12535 LED bulb is designed for immediate illumination upon power activation. It provides 425 lumens of 5000K natural white light, suitable for various applications.
- Lysstyrkekontrol: When connected to a compatible 120V dimmer, the brightness can be adjusted from full intensity to a lower, softer glow.
- Lys kvalitet: The bulb features a high Color Rendering Index (CRI) of 92, ensuring accurate and natural color representation of objects in its light.
- Strålespredning: A 300-degree beam spread provides wide and even illumination, minimizing shadows.
Image: The Satco ST19 LED bulb installed in a fixture, providing illumination to a modern living room and kitchen area.
Opretholdelse
The Satco S12535 LED bulb requires minimal maintenance due to its long rated life of 15,000 hours.
- Rensning: For at rengøre pæren skal du sørge for, at strømmen er slukket, og at pæren er kold. Tør forsigtigt af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Udskiftning: Replace the bulb when it reaches the end of its operational life. Follow the installation steps in reverse to remove the old bulb.
Fejlfinding
If you encounter issues with your Satco S12535 LED bulb, refer to the following common troubleshooting steps:
- Pæren lyser ikke:
- Sørg for, at strømforsyningen til armaturet er tændt.
- Kontroller om pæren er skruet ordentligt i.
- Test pæren i en anden fungerende armatur for at bekræfte, at den ikke er defekt.
- Verify the fixture itself is operational.
- Flimrende eller uregelmæssigt lys:
- If using a dimmer, ensure it is compatible with LED bulbs. Older incandescent-only dimmers may cause flickering.
- Check for loose connections in the fixture or bulb socket.
- Sørg for, at voltage supply is stable at 120V.
- Bulb is Too Dim or Too Bright:
- Hvis du bruger en lysdæmper, skal du justere lysdæmperindstillingen.
- Confirm the bulb's specifications (425 lumens, 5000K) match your lighting requirements.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | S12535 |
| Wattage | 5 watt (40W glødelampeækvivalent) |
| Lysstyrke | 425 lumen |
| Farvetemperatur | 5000K (naturhvid) |
| Pære form | ST19 |
| Base Type | E26 Medium Base |
| Color Rendering Index (CRI) | 92 |
| Strålevinkel | 300 grader |
| Voltage | 120V |
| Dæmpbar | Ja (med kompatible 120V lysdæmpere) |
| Rated Life | 15,000 timer |
| Miljøvurdering | Wet Location Rated (IP65), Enclosed Fixture Rated |
| Driftstemperatur | -20°C til +45°C |
| Certificeringer | cULus, FCC, RoHS |
| Effektfaktor | 0.7 |
| Frekvens | 60 Hz |
| Item Weight (6-pack) | 1.06 pund |
Image: Lighting Facts label detailing brightness, estimated yearly energy cost, life, light appearance (5000K), and energy used (5 watts).
Garanti og support
The Satco S12535 ST19 LED Light Bulb is backed by a 2 års producentgaranti fra købsdatoen.
For warranty claims, technical assistance, or product support, please contact Satco customer service directly. Refer to the product packaging or the official Satco webhjemmeside for aktuelle kontaktoplysninger.
Webwebsted: www.satco.com
