VINGLI Queen Bed Frame with Storage, Charging Station, and RGB LED Lights Instruction Manual

1. Introduktion

This manual provides detailed instructions for the assembly, operation, and maintenance of your VINGLI Queen Bed Frame. This bed frame features four large storage drawers, an adjustable headboard with a built-in charging station, and integrated RGB LED lighting. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

Samlet set view of the VINGLI Queen Bed Frame, showcasing its headboard, storage drawers, and integrated features.

2. Sikkerhedsoplysninger

• Sørg for, at alle dele er til stede og ubeskadigede før montering. Må ikke anvendes, hvis nogen af ​​delene mangler eller er i stykker.
• Saml sengerammen på en blød, ren overflade for at forhindre ridser.
• Spænd alle skruer godt fast, men overspænd dem ikke for at undgå at beskadige materialet.
• Hold små dele væk fra børn under montering for at undgå kvælningsfare.
• Do not exceed the maximum weight capacity of 880 lbs for the bed frame and 55 lbs per storage drawer.
• Sørg for, at sengerammen er placeret på en plan overflade for at forhindre ustabilitet.
• Only use a mattress between 10-12 inches thick for optimal fit and safety.
• For electrical components (charging station, LED lights), ensure proper connection to a suitable power source. Do not overload outlets.

3. Pakkens indhold

Before beginning assembly, verify that all components listed below are present in your package. Refer to the assembly video for visual identification of parts.

• Headboard components (metal frame, wooden panels, charging station)
• Side rails and footboard components (metal frame, wooden panels)
• Bed slats and support legs
• Four storage drawers (metal baskets, wooden fronts, wheels)
• RGB LED light strip and remote control
• Assembly hardware (screws, washers, Allen wrench)
• EVA mute strips

4. Monteringsvejledning

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly. An Allen wrench is included for most fasteners.

4.1 Headboard Assembly

1. Attach the wooden panels (parts 4 and 5) to the headboard frame (parts 2 and 3) using the provided screws. Ensure the panel with the cutout (part 5) is positioned correctly for the charging station.
2. Install the charging station (part H) into the cutout on the headboard panel (part 5) and secure it with screws (part I).
3. Connect the headboard side frames (part 1) to the assembled headboard panels. Secure with screws (part C) and washers (part E).
4. The headboard features an adjustable shelf. You can customize the board position as desired during assembly.

The headboard features an adjustable shelf for personalized storage and display.

4.2 Bed Frame Assembly

1. Attach the side rails (parts 7) and footboard (parts 8 and 9) to the headboard assembly. Secure with screws (part C) and washers (part E).
2. Install the central support beams (parts 10) and adjustable support legs (part D) to the bed frame. Ensure all connections are tight.
3. Place the bed slats (parts 11 and 12) across the frame. Secure them using the provided fasteners (part C).
4. Apply the EVA mute strips (part G) to the metal frame where the slats rest to reduce noise.
5. Attach the mattress anti-slip brackets (part 15) to the corners of the bed frame.

Detail of the anti-slip mattress design to keep your mattress securely in place.

4.3 Storage Drawer Assembly

1. Assemble the metal baskets for the drawers (parts 16 and 17) using the clips (part M). Repeat for all four drawers.
2. Attach the wheels (part L) to the bottom of each assembled metal basket.
3. Secure the wooden drawer fronts (part 14) to the metal baskets using screws (part A) and nuts (part N). Note: Tighten the screws only 10mm; over-tightening may cause cracking or bursting of the wood.
4. Slide the assembled drawers under the bed frame. Align the screw (part B) on the drawer front with the holes on the bed frame to stop the drawer from sliding too far under.

The bed frame includes four large capacity drawers on wheels for convenient under-bed storage.

4.4 LED-lysinstallation

1. Peel the EVA foam backing from the LED light strip (part K) and firmly stick it to the designated area on the headboard.
2. Connect the LED strip plug to the charging socket on the headboard.
3. The LED lights can be controlled via the included remote (part J), a mobile app, or a switch.

The headboard features integrated RGB LED lights with various color and mode options.

4.5 Videovejledning til montering

For a visual guide to the assembly process, please refer to the video below:

5. Betjeningsvejledning

5.1 RGB LED-lys

The integrated RGB LED lights offer over 6000 colors, adjustable brightness levels, various scene modes, and music sync functionality. They can be controlled using three methods:

• Fjernbetjening: Use the included remote to change colors, adjust brightness, select modes, and set timers.
• Mobil app: Download the dedicated mobile application (refer to the LED light manual for app details) to control the lights from your smartphone. This often provides more advanced customization options.
• Skifte: A physical switch on the headboard allows for basic on/off control.

Ensure the LED strip is properly connected to the charging station for power.

5.2 Ladestation

The headboard features a convenient built-in charging station to power your electronic devices. It includes:

• 2 AC-udtag (120V/12A)
• 2 USB-porte (5V/2A)
• 1 Type-C-port (5V/2A)

Simply plug your devices into the appropriate ports. Ensure the bed frame is connected to a wall outlet for the charging station to function.

Close-up of the headboard's integrated charging station with AC, USB, and Type-C ports.

5.3 opbevaringsskuffer

The four under-bed storage drawers are designed for easy access and organization. Each drawer is equipped with wheels and a keyhole slot design to ensure smooth gliding. To use:

• Gently pull the drawer out from under the bed.
• The keyhole slot on the drawer front aligns with a screw on the bed frame to prevent the drawer from being pulled out too far.
• Push the drawer back under the bed until it is fully closed.

6. Vedligeholdelse

• Rensning: Wipe the metal and wooden surfaces with a soft, damp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler.
• Fastgørelsesmidler: Periodically check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability and prevent noise.
• Skuffer: Hold skuffehjulene fri for snavs for at sikre problemfri drift.
• Elektriske komponenter: Ensure the charging station and LED light connections are secure. Unplug from the wall outlet before cleaning or performing any maintenance on electrical parts.

7. Fejlfinding

• Bed Frame is Wobbly/Noisy:

  Check all screws and bolts. Tighten any loose fasteners. Ensure the bed frame is on a level surface. Verify that the EVA mute strips are properly installed on the slats.

• LED-lys virker ikke:

  Ensure the LED strip is securely plugged into the charging station. Check if the bed frame is plugged into a working wall outlet. Verify the remote control battery is functional. Try controlling with the mobile app or physical switch.

• Ladestationen fungerer ikke:

  Confirm the bed frame's power cord is securely plugged into a working wall outlet. Test the outlet with another device. Ensure devices are properly connected to the charging ports.
• Skuffer glider ikke jævnt:

  Check for any obstructions under the bed or in the drawer tracks. Clean the wheels and ensure they are free of debris. Verify that the drawer fronts are not overtightened, which could cause warping.

8. Specifikationer

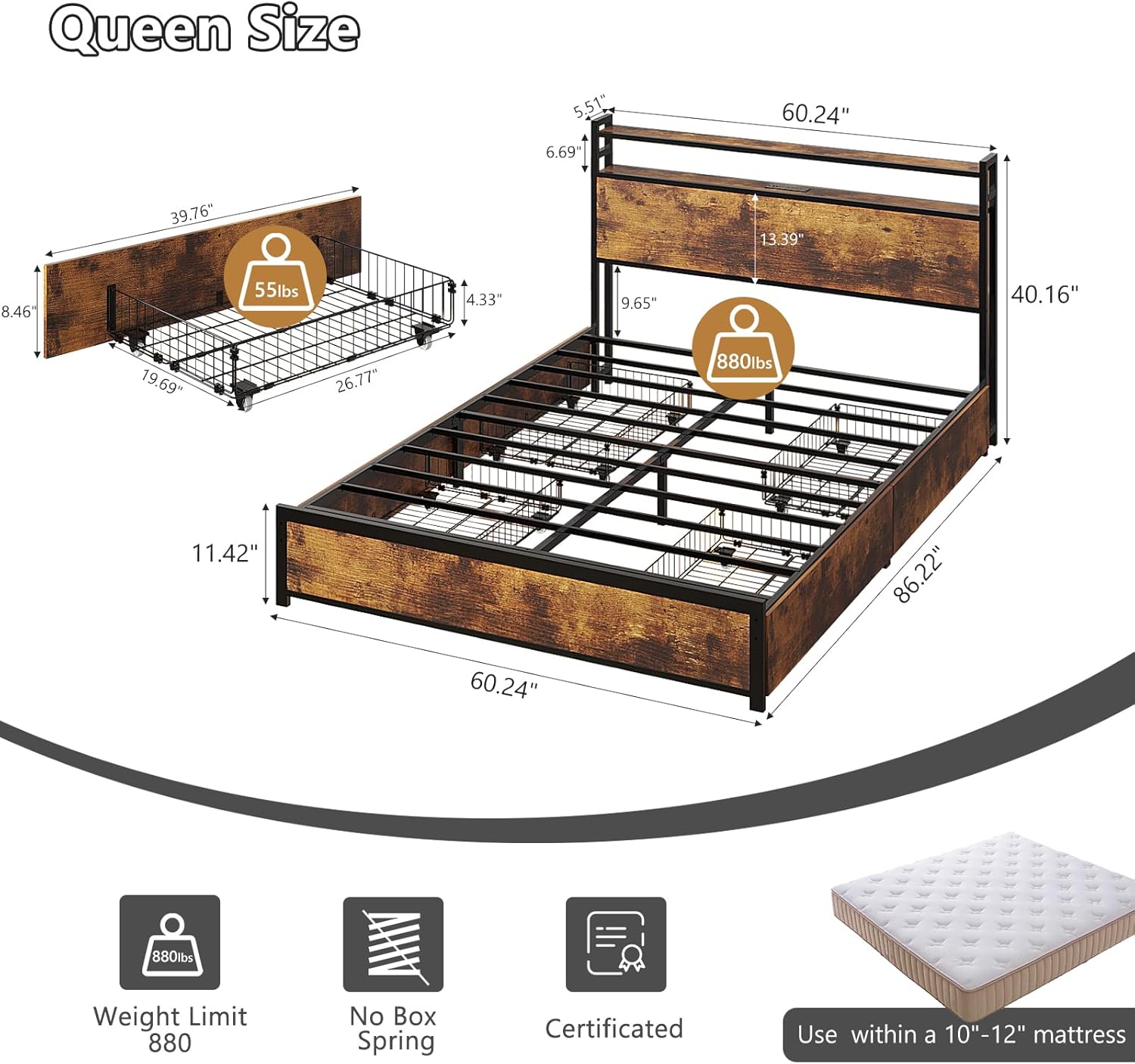

Detailed dimensions of the VINGLI Queen Bed Frame.

9. Garanti og support

For warranty information, product support, or to order replacement parts, please contact VINGLI customer service. Refer to your purchase documentation or the VINGLI official webwebsted for kontaktoplysninger.

Webwebsted: VINGLI Store on Amazon
