Baseus EnerFill FM11 10000mAh 30W Magnetisk Bærbar Oplader Brugermanual

1. Introduktion

Thank you for choosing the Baseus EnerFill FM11 10000mAh 30W Magnetic Portable Charger. This device is designed to provide convenient and efficient power to your mobile devices, featuring both magnetic wireless charging and wired fast charging capabilities, along with a built-in USB-C cable for enhanced portability.

Image: Baseus EnerFill FM11 Magnetic Portable Charger attached to a smartphone, showcasing its compact design and magnetic connection.

2. Produktet er slutview

The Baseus EnerFill FM11 is a versatile power solution. Familiarize yourself with its components:

• Magnetisk trådløs opladningspude: For MagSafe-compatible devices (iPhone 12 and later).
• Built-in Braided USB-C Cable: Provides wired charging and doubles as a lanyard for carrying.
• Additional USB-C Port: For charging other devices or recharging the power bank.
• Power knap: To activate/deactivate the power bank and check battery status.
• LED-indikatorer: Display remaining battery life.
• Integrated Kickstand: Allows for hands-free viewunder opladning.

Image: The Baseus EnerFill FM11 highlighting its durable braided built-in USB-C cable, which also functions as a carrying strap.

3. Opsætning

3.1 Opladning af powerbanken

1. Connect the built-in USB-C cable or an external USB-C cable to the power bank's USB-C port.
2. Sæt den anden ende af kablet i en kompatibel USB-strømadapter (medfølger ikke).
3. LED-indikatorerne lyser for at vise opladningsforløbet. Alle LED-indikatorer lyser konstant, når batteriet er fuldt opladet.

4. Betjeningsvejledning

4.1 Charging Devices - Wireless (MagSafe)

1. Ensure your device is MagSafe compatible (iPhone 12 series or newer).
2. Align the back of your MagSafe-compatible device with the magnetic charging pad on the power bank. The magnets will snap into place.
3. The device should begin charging wirelessly at up to 7.5W.

4.2 Charging Devices - Wired

1. For devices with a USB-C port, use the built-in braided USB-C cable or an external USB-C to USB-C cable.
2. Connect the cable to your device and the power bank's USB-C port.
3. The power bank supports up to 30W fast charging via wired connection.

4.3 Opladning af flere enheder

The Baseus EnerFill FM11 can charge up to three devices simultaneously:

• One device wirelessly via the magnetic pad.
• One device via the built-in USB-C cable.
• One device via the additional USB-C port.

Image: The power bank simultaneously charging an iPhone wirelessly, a Samsung phone via the built-in USB-C cable, and AirPods via the additional USB-C port.

5. Funktioner

• Magnetisk fastgørelse: Equipped with 16 built-in N52 magnets for a strong and secure connection to MagSafe-compatible devices.
• 30W hurtig opladning: Delivers rapid wired charging, capable of charging an iPhone 17 Pro from 0% to 67% in 30 minutes.
• 7.5W trådløs opladning: Provides convenient wireless power for compatible iPhones.
• Built-in Braided USB-C Cable: Offers immediate wired charging without needing to carry extra cables, and can be used as a lanyard.
• 10,000mAh høj kapacitet: Sufficient to charge an iPhone 17 approximately 1.8 times.
• Low-Temperature Control (NTC): Features an NTC temperature control chip and 9 layers of protection to prevent overheating and ensure safe charging.
• Slankt og bærbart design: At just 0.7 inches thick, it fits easily into pockets or bags. The soft Nano-coated silicone magnetic pad is waterproof, fingerprint-resistant, and scratch-resistant.
• Universal kompatibilitet: Supports wireless charging for iPhone 12-17 series and wired charging via USB-C for various Android phones, tablets, and earbuds.

Image: Illustration of the Baseus NTC temperature control technology, highlighting 9 layers of protection for safe and cool charging.

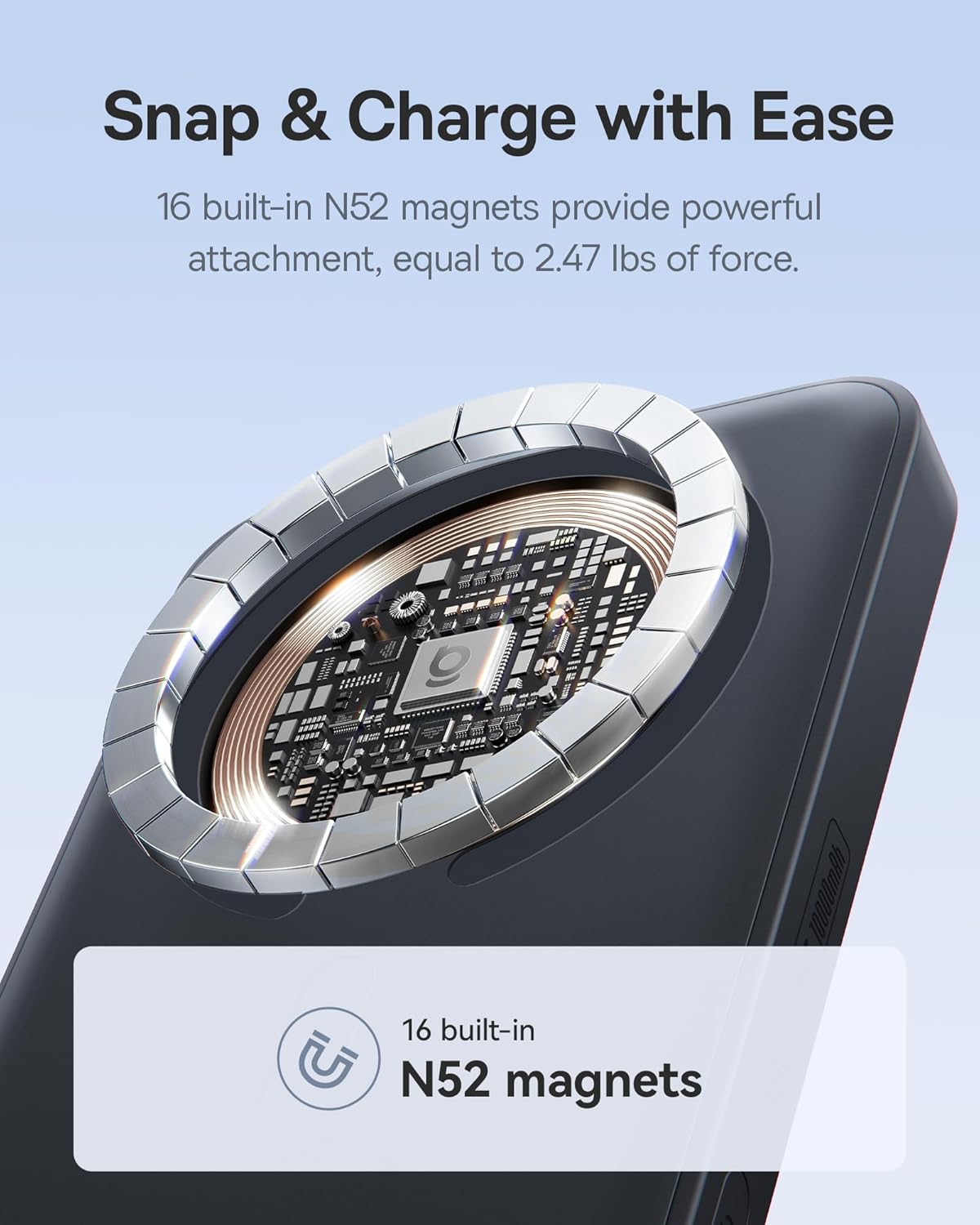

Billede: Nærbillede view of the Baseus EnerFill FM11's magnetic array, indicating 16 built-in N52 magnets for strong attachment.

Image: The power bank demonstrating both 7.5W wireless charging for iPhones and 30W wired charging via USB-C.

Image: Visual representation of the 10,000mAh capacity, showing approximate full charges for iPhone 17 (1.8x), Samsung S25 Ultra (1.5x), and AirPods (16.5x).

Image: Compatibility chart showing wireless charging for iPhone 12-17 series and USB-C port compatibility for various devices including Samsung Galaxy, iPad, Google, and AirPods.

6. Sikkerhedsoplysninger

This product contains a built-in polymer lithium-ion battery. Please observe the following safety guidelines:

• Do not disassemble, hit, crush, or throw into fire.
• Afbryd straks brugen, hvis batteriet er alvorligt hævet.
• Do not use in a high-temperature environment.
• Do not use if immersed in water.
• Opbevar dette produkt utilgængeligt for børn.
• The NTC temperature control chip provides 9 layers of protection: Over-Voltage, Under-bindtage, Over-Charge, Over-Discharge, Over-Temperature, Over-Current, Short Circuit, Recovery, and Over-Power Protection.

7. Vedligeholdelse

• Clean the power bank with a soft, dry cloth. Avoid liquid cleaners.
• Opbevares på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Charge the power bank fully at least once every three months to maintain battery health if not in regular use.

8. Fejlfinding

• Enheden oplader ikke: Ensure the power bank is sufficiently charged. Check all cable connections. For wireless charging, ensure proper alignment and device compatibility.
• Langsom opladning: Verify that your cables and devices support fast charging. Wireless charging is generally slower than wired charging.
• Power bank not turning on: Press the power button to activate. If still unresponsive, try recharging the power bank.

9. Specifikationer

10. Garanti og support

Baseus offers a 24-month warranty for worry-free ownership. You will also receive lifelong 24/7 professional support, free returns, or replacements for guaranteed satisfaction. For technical assistance or product guidance, please contact our dedicated support team.

11. Officiel produktvideo

Watch the official product video from Baseus for a visual guide on the EnerFill FM11 Magnetic Power Bank:
