1. Introduktion
This manual provides essential information for the safe and effective operation of your Magcubic HY350Max Android 14 Mini Projector. Please read it thoroughly before use and retain it for future reference.
Image 1.1: Magcubic HY350Max Mini Projector and included remote control.
Video 1.1: En overview of the Magcubic Mini Projector's features and design.
2. Opsætning
2.1 Udpakning og første placering
Carefully remove all components from the packaging. Place the projector on a stable, flat surface. Ensure adequate ventilation around the device.
2.2 Strømtilslutning
Connect the provided power adapter to the projector's power input and then to a suitable electrical outlet.
2.3 Automatic Adjustments (Auto Focus & Keystone Correction)
The HY350Max features intelligent auto-focus, 6D keystone correction, auto obstacle avoidance, and auto screen alignment. Upon power-on or movement, the projector will automatically adjust the image for optimal clarity and shape. For distances exceeding 2.5 meters, manual focus adjustment via the remote control may be necessary.
Image 2.1: The projector's automatic focus, keystone correction, obstacle avoidance, and screen alignment features.

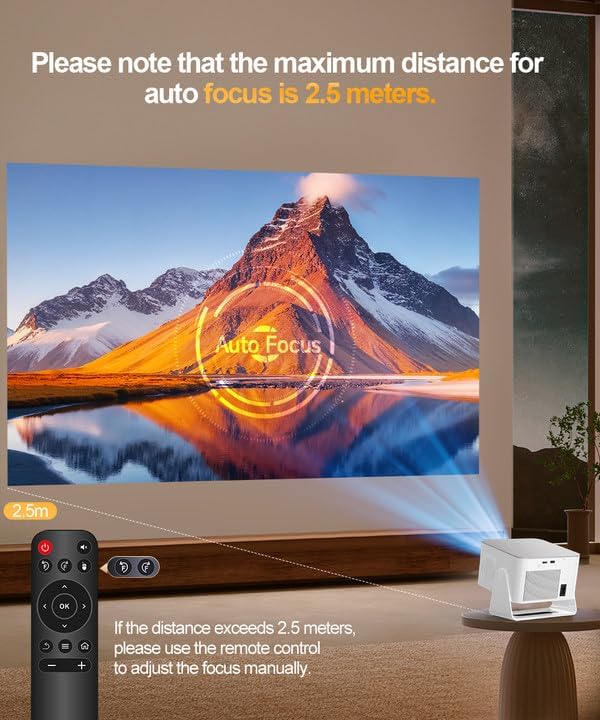

Image 2.2: Note on the maximum distance for auto-focus (2.5 meters) and manual adjustment beyond this range.
Video 2.1: A demonstration of the projector's easy setup process, including automatic adjustments.
3. Betjeningsvejledning
3.1 Tænd/sluk
Tryk på tænd/sluk-knappen på projektoren eller fjernbetjeningen for at tænde eller slukke enheden.
3.2 Navigation with Air Mouse Remote
The included remote control features an Air Mouse function for intuitive navigation. Point the remote at the screen to move the cursor and select options. Traditional button navigation is also available.
Image 3.1: The Android 14 interface with various apps and the Air Mouse remote in use.
3.3 Tilslutningsmuligheder
The projector offers multiple ways to connect to your devices:
- Wi-Fi 6: For ultra-fast and stable wireless streaming.
- Bluetooth 5.4: Connect external audio devices like speakers or headphones.
- HDMI-port: Connect laptops, PCs, gaming consoles (Switch, PS5), TV sticks, and other HDMI-enabled devices.
- USB-port: Connect USB drives, smartphones, tablets, or a mouse for additional input.
Billede 3.2: Overview of wired (HDMI) and wireless (Wi-Fi, Bluetooth) connectivity options.
3.4 Smart Features (Android 14 OS)
The projector runs on Android 14 OS, providing access to a wide range of applications and streaming services directly from the device. Navigate through the 'My Apps' or 'Store' sections to find and install desired applications.
3.5 Projection Modes and Placement
The projector's 180-degree rotatable design allows for versatile placement and projection onto various surfaces, including walls and ceilings.
- Brug af bordplade: Place the projector on a flat surface in front of the projection area.
- Stativmontering: Utilize the tripod screw hole for stable positioning.
- Loftmontering: Mount the projector to the ceiling for overhead projection.
- Sideprojektion: The 180-degree adjustment allows for projection from various angles, including side walls.
Image 3.3: The projector's portable design and 180-degree rotation for flexible projection.
Image 3.4: Recommended throw ratio and screen sizes for tabletop, ceiling, and tripod mounts.
Video 3.1: En kort introduktionview demonstrating the projector's ability to project onto a ceiling.
3.6 Lydudgang
The projector includes built-in 15W Hi-Fi stereo speakers. For enhanced audio, connect external Bluetooth speakers or use the 3.5mm audio output jack.
4. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din projektor.
- Rengøring af linser: Brug en blød, fnugfri klud, der er specielt designet til optiske linser, til forsigtigt at rengøre projektorlinsen. Undgå slibende materialer eller barske kemikalier.
- Ventilation: Ensure the projector's ventilation ports are clear of obstructions to prevent overheating. Do not block air inlets or outlets.
- Opbevaring: Når projektoren ikke er i brug, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
5. Fejlfinding
Hvis du støder på problemer med din projektor, kan du bruge følgende almindelige løsninger:
- Intet billede/dårlig billedkvalitet:
- Kontroller strømforbindelsen, og sørg for, at projektoren er tændt.
- Verify input source selection (HDMI, USB, Wi-Fi).
- Adjust focus manually if the auto-focus is not sufficient (especially beyond 2.5m).
- Sørg for, at projektionsfladen er flad og fri for forhindringer.
- Check for sufficient ambient light conditions; performance is best in darker environments.
- Ingen lyd/lav lyd:
- Adjust volume on the projector and connected devices.
- Check Bluetooth connection if using external speakers.
- Ensure internal speakers are not muted.
- Forbindelsesproblemer (Wi-Fi/Bluetooth):
- Ensure Wi-Fi and Bluetooth are enabled in settings.
- Restart the projector and your connected device.
- Tjek Wi-Fi-signalstyrken.
6. Specifikationer
Image 6.1: Key features of the Magcubic HY350Max projector.
| Feature | Detalje |
|---|---|
| Mærke | Magkubisk |
| Modelnummer | HY350MAX |
| Skærmopløsning | Native 1920 x 1080 (1080P) |
| Video support | 4K & 8K Supported |
| Lysstyrke | 600 ANSI Lumens |
| Operativsystem | Android 14 |
| RAM/ROM | 2 GB RAM / 16 GB ROM |
| Forbindelse | Wi-Fi 6, Bluetooth 5.4, HDMI, USB |
| Lyd | Built-in 15W Hi-Fi Stereo Speakers |
| Særlige funktioner | Auto Focus, 6D Keystone Correction, Auto Obstacle Avoidance, Auto Screen Alignment, 180° Rotatable Design, Air Mouse Remote |
| Varens vægt | 3.08 lbs (Net Weight) / 3.85 lbs (Item Weight) |
| Dimensioner | 7.2" x 8.7" x 4.3" (with base) |
7. Garanti og support
Magcubic is committed to providing excellent customer service.
- Kundesupport: 24-hour live customer support is available for assistance.
- Return Guarantee: A 30-day return guarantee is provided.
- Teknisk support: Lifetime technical support is included with your purchase.
For further assistance, please refer to the contact information provided with your product packaging or visit the official Magcubic webwebsted.
