Indledning
Welcome to the Heybike Ranger 3.0 Pro Electric Bike user manual. This guide provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.
The Heybike Ranger 3.0 Pro is a versatile folding electric bike designed for various terrains, featuring a powerful motor, long-range battery, dual suspension, and smart control options.
Sikkerhedsoplysninger
Always prioritize safety when operating your electric bike. Failure to follow safety guidelines can result in serious injury or damage to the product.
- Brug altid hjelm og passende sikkerhedsudstyr.
- Sørg for, at alle komponenter er forsvarligt fastgjort før hver tur.
- Sæt dig bekendt med lokale færdselslove og -regler for elcykler.
- Kør ikke cyklen under påvirkning af alkohol eller narkotika.
- Kontroller regelmæssigt bremser, dæk og batteri for optimal ydeevne.
- Avoid riding in extreme weather conditions or on excessively rough terrain if you are not experienced.
Opsætning og montering
Your Heybike Ranger 3.0 Pro arrives approximately 80% pre-assembled. The following steps outline the final assembly and initial setup procedures.
1. Udfoldning af cyklen
Carefully remove the bike from its packaging. Locate the folding mechanism on the frame and handlebar stem. Release the safety latches and unfold the frame and stem until they lock into place. Ensure all quick-release levers are securely tightened.
Image: The Heybike Ranger 3.0 Pro electric bike, shown fully assembled and unfolded.
2. Batteriinstallation og første opladning
The 720WH removable battery is typically integrated into the frame. If not already installed, slide the battery into its compartment until it clicks securely. Use the provided key to lock the battery in place. Before your first ride, fully charge the battery using the included charger. A full charge takes approximately 5-6 hours. The battery can be charged while installed on the bike or removed.
Image: Illustration of the 720WH removable battery and its integration within the bike frame.
3. Adjusting Seat and Handlebars
Adjust the seat post height so that your feet can comfortably touch the ground when stopped, and your legs have a slight bend at the knee when pedaling. Adjust the handlebar height for a comfortable riding posture. Ensure all quick-release clamps are tightened after adjustment.
Image: Product dimensions and adjustable features, including handlebar and seat height.
4. Tjek før kørsel
- Check tire pressure (20" x 4" fat tires).
- Verify brake functionality (front and rear hydraulic brakes).
- Ensure lights (headlight, turn lights) are working.
- Confirm all bolts and quick releases are tight.
Operating Your Heybike Ranger 3.0 Pro
1. Powering On and Smart Controls
Press the power button on the handlebar display to turn on the bike. The bright color TFT display will show real-time speed, battery level, mileage, and assist level. The bike can be unlocked via a passcode or a quick NFC tap using the provided NFC card. For advanced controls, connect to the Heybike App via Bluetooth to lock the bike, monitor rides, adjust assist levels, or set speed limits.

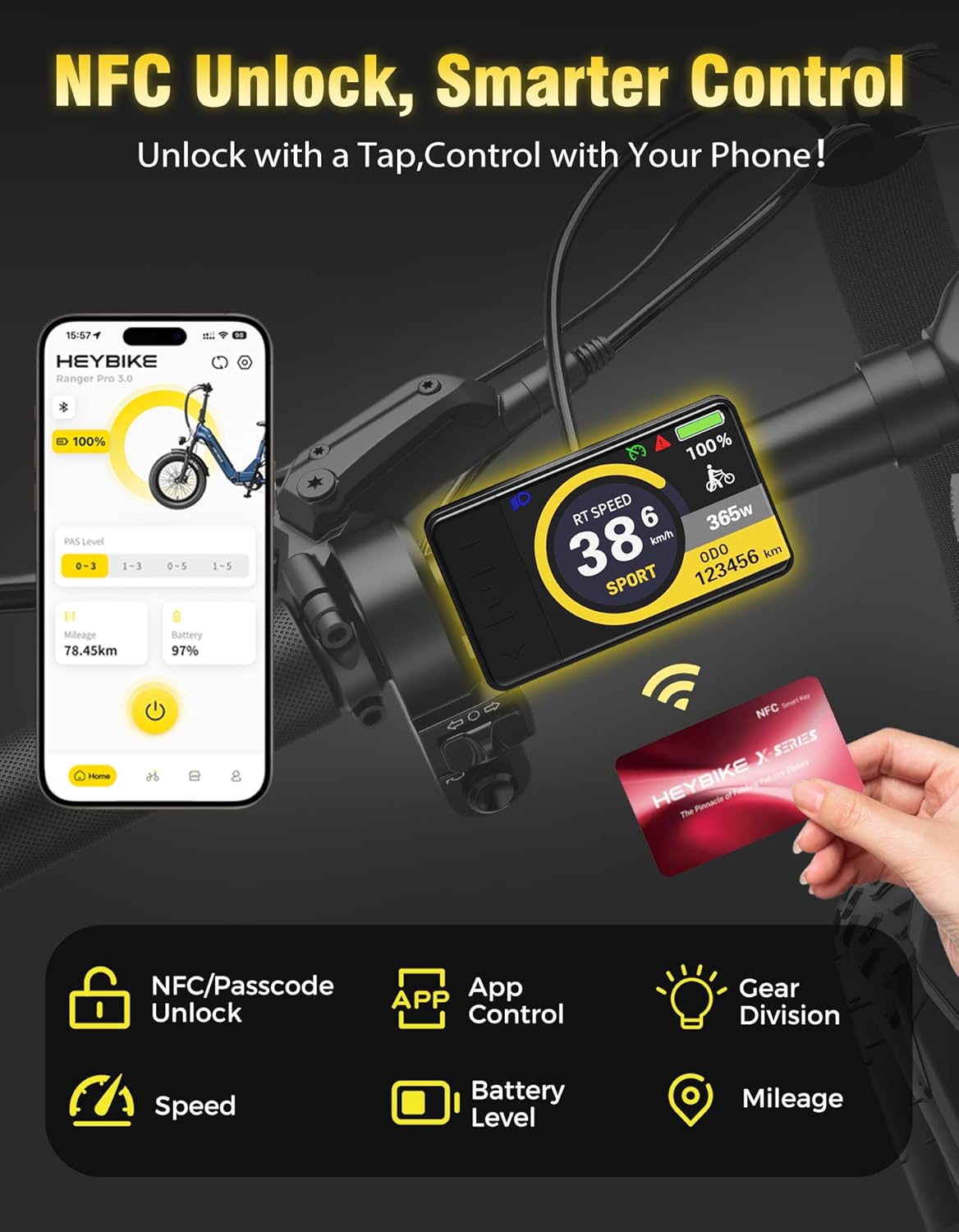

Billede: Overview of the smart TFT display, NFC unlock feature, and Heybike mobile application for bike control.
2. Motor and Assist Modes
The Ranger 3.0 Pro features a 1200W peak motor with 85Nm of torque, capable of speeds up to 28+ MPH. It offers multiple assist modes:
- Pedal Assist System (PAS): Provides motor assistance as you pedal. Adjust the assist level on the display or via the app.
- Gashåndtag: Allows you to propel the bike using only the throttle, without pedaling.
- Manuel tilstand: Kør cyklen som en traditionel cykel uden motorassistance.
Image: Visual representation of the 1200W peak motor's power and torque capabilities.
3. Gearskift
The bike is equipped with a Shimano 8-speed gear system. Use the shifter on the handlebar to change gears, allowing you to adapt to different terrains and riding conditions for optimal pedaling efficiency.
4. Bremsesystem
The Heybike Ranger 3.0 Pro features upgraded dual hydraulic disc brakes with 2.3mm thickened rotors. These provide responsive and powerful stopping power. Always apply both front and rear brakes simultaneously for balanced and effective deceleration. Avoid sudden, hard braking, especially at high speeds.
Image: Illustration of the dual hydraulic braking system, emphasizing its quick response and stopping power.
5. Affjedringssystem
The dual suspension system, including a 65mm hydraulic front fork and adjustable rear air shock, absorbs shocks and vibrations from uneven surfaces. This enhances comfort and control across various terrains. The front fork may feature a lockout mechanism for more efficient pedaling on smooth roads.
Billede: Detaljeret view of the dual suspension system, including the lockable front hydraulic fork and rear air shock.
6. Belysningssystem
The bike is equipped with a full lighting system, including a front headlight, brake lights, and turn lights. Ensure these are functional before riding, especially in low-light conditions, to enhance visibility and safety.
Opretholdelse
Regular maintenance is crucial for the longevity and safe operation of your Heybike Ranger 3.0 Pro.
- Batteripleje:
- Oplad batteriet regelmæssigt, selvom det ikke er i brug, for at bevare dets sundhedstilstand.
- Undgå at aflade batteriet helt.
- Store the battery in a cool, dry place. The IP65 rating provides water and dust protection, but avoid submerging it.
- Dæk:
- Kontroller dæktrykket før hver tur. Se dækkets sidevæg for anbefalet tryk.
- Undersøg dækkene for slid, snitsår eller punkteringer.
- Bremser:
- Kontroller regelmæssigt bremseklodserne for slid, og udskift dem efter behov.
- Ensure brake levers are firm and responsive. If they feel spongy, the hydraulic system may need bleeding by a qualified technician.
- Kæde og drivlinje:
- Hold kæden ren og smurt.
- Check for proper gear shifting and adjust if necessary.
- Generel rengøring:
- Rengør cyklen med en damp klud og mild sæbe. Undgå højtryksspuling direkte på elektriske komponenter.
- Tør cyklen grundigt efter rengøring.
Fejlfinding
This section addresses common issues you might encounter with your Heybike Ranger 3.0 Pro.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Cyklen tænder ikke. | Batteriet er ikke opladet eller ikke korrekt installeret. | Ensure battery is fully charged and securely seated. Check battery lock. |
| Motoren hjælper ikke. | Low battery, PAS level set to zero, or connection issue. | Check battery level. Increase PAS level on display. Restart the bike. |
| Bremserne føles svage eller svampede. | Worn brake pads, air in hydraulic lines, or low fluid. | Inspect brake pads for wear. If hydraulic, consult a bike mechanic for bleeding or fluid replacement. |
| Usædvanlige lyde under kørsel. | Loose components, dry chain, or rubbing parts. | Check all bolts and connections. Lubricate chain. Inspect for parts rubbing against each other. |
| Skærm fungerer ikke korrekt. | Loose cable connection or software glitch. | Check display cable connections. Try restarting the bike. If issues persist, contact support. |
For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Heybike customer support.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | Heybike Ranger 3.0 Pro |
| Type cykel | Elcykel, foldecykel |
| Motor | 1200W Peak Motor, 85Nm Torque |
| Max hastighed | 28+ mph |
| Batteri | 48V 15AH, 720WH Removable Battery (IP65 rated) |
| Maksimal rækkevidde (PAS) | Op til 90 miles |
| Opladningstid | 5-6 timer |
| Dæk | 20" x 4" terrængående tykke dæk |
| Affjedring | Dual (65mm Hydraulic Front Fork, Adjustable Rear Air Shock) |
| Bremser | Dual Hydraulic Disc Brakes (2.3mm thickened rotors) |
| Gear | Shimano 8-speed |
| Rammemateriale | Aluminium |
| Cykelvægt | 75 LBS |
| Max belastningskapacitet | 440 LBS |
| Anbefalet rytterhøjde | 175 cm - 175 cm |
| Særlige funktioner | Smart TFT Display, NFC Card Unlock, Bluetooth App Control, Folding Design, Front & Rear Basket |
| Inkluderede komponenter | Battery, Headlight, Turn Lights, User Manual |
Image: Detailed product information including dimensions, weight, load capacity, and recommended rider height.
Garantioplysninger
The Heybike Ranger 3.0 Pro comes with a 1-års garanti. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover normal wear and tear, damage from misuse, accidents, or unauthorized modifications.
For detailed warranty terms and conditions, please refer to the official Heybike webwebsted eller kontakt kundesupport.
Kundesupport
If you have any questions, require assistance with assembly, operation, or encounter any issues not covered in this manual, please contact Heybike customer support.
- Heybike Officiel Webwebsted: www.heybike.com
- Amazon Store: Visit the Heybike Store on Amazon
- Se din købsdokumentation for specifikke kontaktoplysninger.
