1. Introduktion
Thank you for choosing the AMEIFU PC450A Dehumidifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.
The AMEIFU PC450A Dehumidifier is designed to reduce excess moisture in your home environment, covering areas up to 1100 sq.ft. It features a 135-ounce water tank, quiet operation, timer settings, LED lighting, and automatic safety functions.
Billede 1.1: Forside view of the AMEIFU PC450A Dehumidifier, showing its compact design and water level indicator.
2. Sikkerhedsinstruktioner
For at sikre sikker drift skal du altid følge disse grundlæggende forholdsregler:
- Læs alle instruktioner før brug af apparatet.
- Brug ikke affugteren med en beskadiget netledning eller stik.
- Sørg for, at strømforsyningen voltage stemmer overens med klassificeringsmærkatet på enheden.
- Hold apparatet væk fra varmekilder, direkte sollys og brandfarlige materialer.
- Do not block air inlets or outlets. Maintain at least 8 inches (20 cm) clearance around the unit.
- Always place the dehumidifier on a stable, level surface to prevent water spillage.
- Tag stikket ud af enheden før rengøring, vedligeholdelse eller når den ikke er i brug i længere perioder.
- Enheden, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
- Dette apparat er kun til indendørs brug.
3. Produktet er slutview og komponenter
The AMEIFU PC450A Dehumidifier is designed for efficient moisture removal. Familiarize yourself with its main components:
- Hovedenhed: Houses the internal components, control panel, and air vents.
- Vandtank: Removable tank for collecting condensed water. Capacity: 135 fluid ounces.
- Kontrolpanel: Buttons for Power, Night Light, Timer, and Fan Speed.
- Strømadapter: Til tilslutning af enheden til en stikkontakt.
Billede 3.1: Intern view illustrating the dual semiconductor condensation technology and the 135-ounce water tank.
4. Opsætning
Følg disse trin for at konfigurere din affugter:
- Pakker ud: Carefully remove the dehumidifier and all accessories from the packaging. Retain packaging for future storage or transport.
- Placering: Place the dehumidifier on a firm, level surface in the desired location. Ensure there is at least 8 inches (20 cm) of clear space around all sides for proper airflow. Avoid placing it directly against walls or furniture.
- Strømtilslutning: Tilslut strømadapteren til affugterens strømindgang, og sæt derefter adapteren i en passende stikkontakt.
5. Betjeningsvejledning
The AMEIFU PC450A Dehumidifier offers various functions for optimal moisture control.
5.1 Kontrolpanel
The control panel features intuitive buttons:
- Power knap: Tryk for at tænde eller slukke enheden.
- Natlys knap: Press to cycle through 7 LED colors or to lock a specific color. Long press to turn the lights OFF.
- Timer knap: Press to set the operating timer (1H, 2H, 4H, 8H, 12H, 24H, 48H, 72H).
- Hastighedsknap: Press to adjust fan speed (Low, Medium, High).
5.2 Grundlæggende betjening
- Tænd: Press the Power button. The unit will start operating in its default mode.
- Juster blæserhastighed: Press the Speed button to select your desired fan speed (Low, Medium, High). Lower speeds result in quieter operation.
- Indstil timer: Press the Timer button repeatedly to select the desired operating duration. The unit will automatically turn off after the set time.
- Kontrol LED-lys: Press the Night Light button to activate the ambient LED lights. Each press cycles through colors. Long press to turn off the lights.
- Sove mode: The unit operates at a low 20dB in sleep mode, ideal for bedrooms. This mode is typically activated by selecting the lowest fan speed and turning off the LED lights.

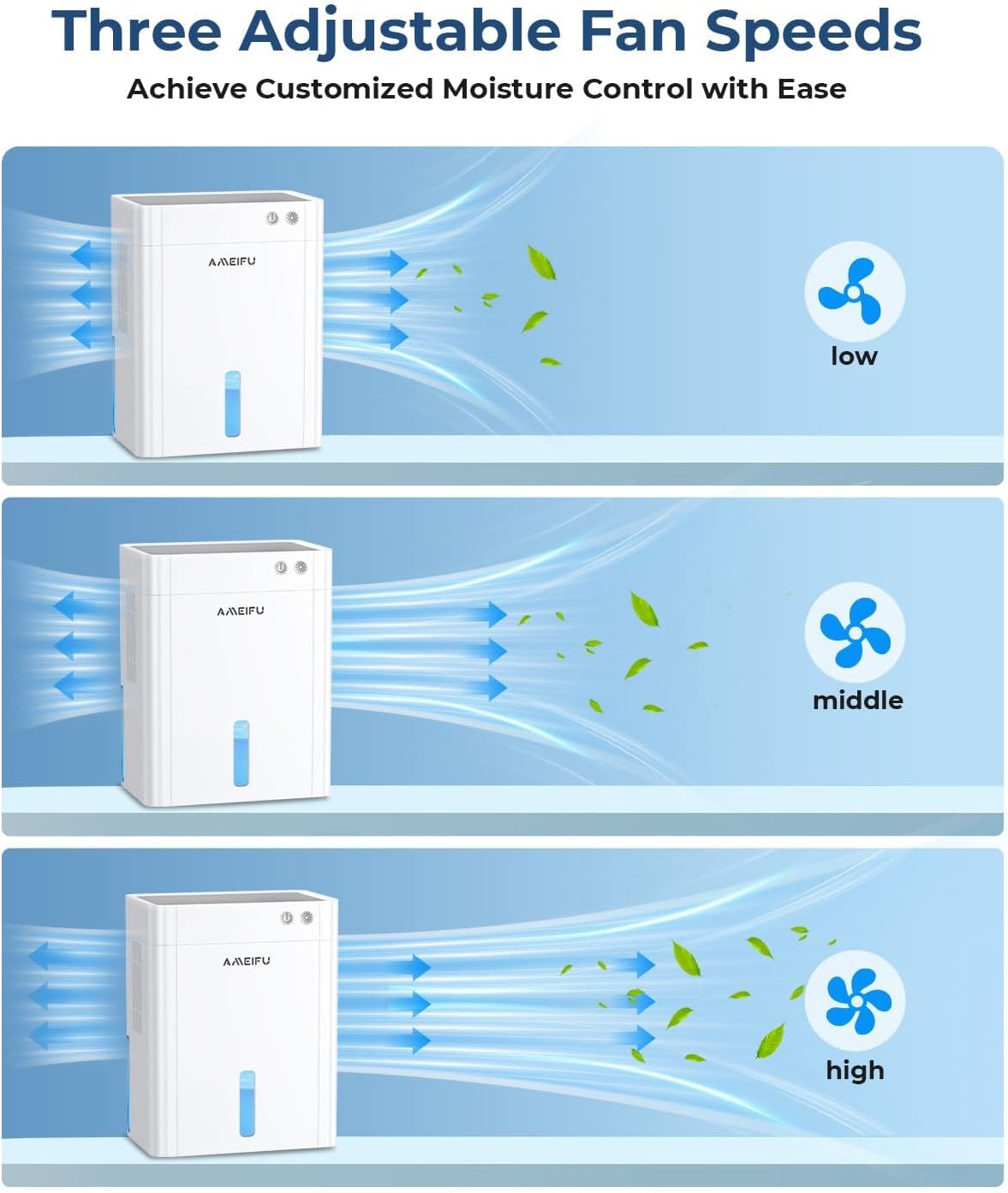

Image 5.1: Illustration of the three adjustable fan speeds for customized moisture control.
Image 5.2: The dehumidifier operating in a bedroom, emphasizing its quiet performance and suitability for sleep environments.
5.3 Automatiske funktioner
- Automatisk sluk: When the water tank is full, the dehumidifier will automatically shut off, and a red indicator light will flash. This prevents overflow and ensures safety.
- Automatisk afrimning: In low-temperature environments, if frost forms on the internal semiconductors, the unit will automatically activate defrost mode to maintain efficient operation.
Image 5.3: Visual representation of the auto shut-off protection when the water tank is full.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din affugters levetid og effektivitet.
6.1 Tømning af vandtanken
- When the water tank is full, the unit will stop operating, and a red indicator light will flash.
- Carefully pull out the water tank from the back of the unit.
- Hæld det opsamlede vand ud.
- Skub den tomme vandtank tilbage i enheden, indtil den klikker på plads. Affugteren genoptager driften.
6.2 Rengøring af enheden
- Ydre: Tør ydersiden af affugteren af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Vandtank: Clean the water tank periodically with mild soap and water to prevent mold or mildew growth. Rinse thoroughly before reinserting.
- Luftindtag/-udløb: Use a soft brush or vacuum cleaner attachment to gently remove dust and debris from the air inlets and outlets. Ensure they are not blocked.
Note: Always unplug the dehumidifier from the power outlet before performing any cleaning or maintenance.
7. Fejlfinding
Se dette afsnit for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Affugteren tænder ikke. | Ingen strømforsyning. Tænd/sluk-knappen er ikke trykket ned. | Sørg for, at strømadapteren er korrekt tilsluttet enheden og en fungerende stikkontakt. Press the Power button firmly. |
| Enheden kører, men opsamler ikke vand. | Den omgivende luftfugtighed er for lav. Rumtemperaturen er for lav. Luftindtag/udtag er blokeret. | The unit will only collect water if humidity levels are above 40-50% RH. The unit's efficiency decreases in very cold environments. Check for obstructions and ensure proper clearance around the unit. |
| Den røde indikatorlampe blinker. | Vandbeholderen er fuld. | Tøm vandtanken, og sæt den korrekt i igen. |
| Enheden er støjende. | Fan speed is set to high. Enheden står ikke på en plan overflade. | Reducer blæserhastigheden. Placer enheden på en stabil, flad overflade. |
Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | AMEIFU |
| Modelnavn | PC450A |
| Vandtankkapacitet | 135 Fluid Ounces (approx. 4 liters) |
| Affugtningskapacitet | Up to 40 ounces (1,182 ml) per day |
| Dækningsområde | Op til 1100 kvadratmeter |
| Produktmål (D x B x H) | 16 cm x 25 cm x 32 cm (6.3" x 9.84" x 12.6") |
| Varens vægt | 6.69 pund |
| Særlige funktioner | Quiet Operation, Sleep Mode, Automatic Shutoff, Automatic Defrost, 8 Timing Settings, 7 Color LED Light |
| Driftstilstand | Intermitterende |
| Inkluderede komponenter | Dehumidifier, Water Tank, Power Adapter, Manual |
9. Garanti og support
AMEIFU provides a warranty of more than 1 year for this dehumidifier, along with lifetime technical support.
If you encounter any problems during use or require assistance, please contact our customer support team. We are committed to resolving your issues within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official AMEIFU webwebsted.
