NEEWER BASICS Minikamerablitz med 2W LED-videolys (model A10L) brugsanvisning

Indledning

Thank you for choosing the NEEWER BASICS Mini Camera Flash with 2W LED Video Light (Model A10L). This compact and versatile lighting solution is designed to enhance your photography and videography with its powerful flash and continuous LED light capabilities. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.

Image: The NEEWER BASICS Mini Camera Flash A10L, featuring both the flash head and the LED video light panel, with a diffuser attached to the flash.

Hvad er der i æsken

• 1 x NEEWER BASICS Mini Camera Flash (A10L)
• 1 x Diffuser
• 1 x USB A til USB C-kabel

Image: A visual representation of the items included in the NEEWER BASICS Mini Camera Flash A10L package: the flash unit, a white diffuser, and a USB-A to USB-C charging cable.

Produkt overview & Funktioner

The A10L is a compact and lightweight camera flash with an integrated 2W LED video light. It features a guide number of 10 (ISO 100, meters) and a stable 6500K±300K color temperature for flash. The LED video light offers 4 color temperatures and 4 dimming levels with a high CRI of 95+ for accurate color reproduction.

• Kompakt design: Weighing just 3.88oz/110g, it's highly portable.
• 2-i-1 funktionalitet: Serves as both a camera flash and a continuous LED video light.
• Justerbar effekt: Flash intensity can be set from 1/1 to 1/8.
• Versatile LED Light: 4 color temperatures (2700K/4500K/6000K/7500K) and 4 dimming levels.
• Høj CRI: 95+ CRI ensures natural and accurate color rendering.
• Fast Recycling: Flash recycling time of 0.5-3.5 seconds.
• Indbygget batteri: 800mAh rechargeable battery supports up to 550 flashes at full power.
• Standard Hot Shoe: Compatible with most DSLR and mirrorless cameras with a single contact hot shoe.

Image: The NEEWER BASICS Mini Camera Flash A10L attached to a camera, emphasizing its lightweight design (3.88oz/110g) and core features such as Guide Number 10, 550 full power flashes, 800mAh battery capacity, and a quick recycling time.

Opsætning

Montering af blitzen

1. Sørg for, at dit kamera er slukket.
2. Slide the A10L's hot shoe mount into your camera's standard hot shoe.
3. Secure the flash by tightening the locking wheel on the hot shoe mount.

Image: An illustration demonstrating the wide compatibility of the A10L flash with standard single contact hot shoe cameras from brands such as Canon, Nikon, Sony, Fujifilm, Pentax, and Olympus. It clarifies the difference between hot shoes with and without a touchpoint.

Indledende batteriopladning

For optimal battery longevity, fully charge the device before first use. Connect the provided USB A to USB C cable to the flash unit and a suitable USB power source.

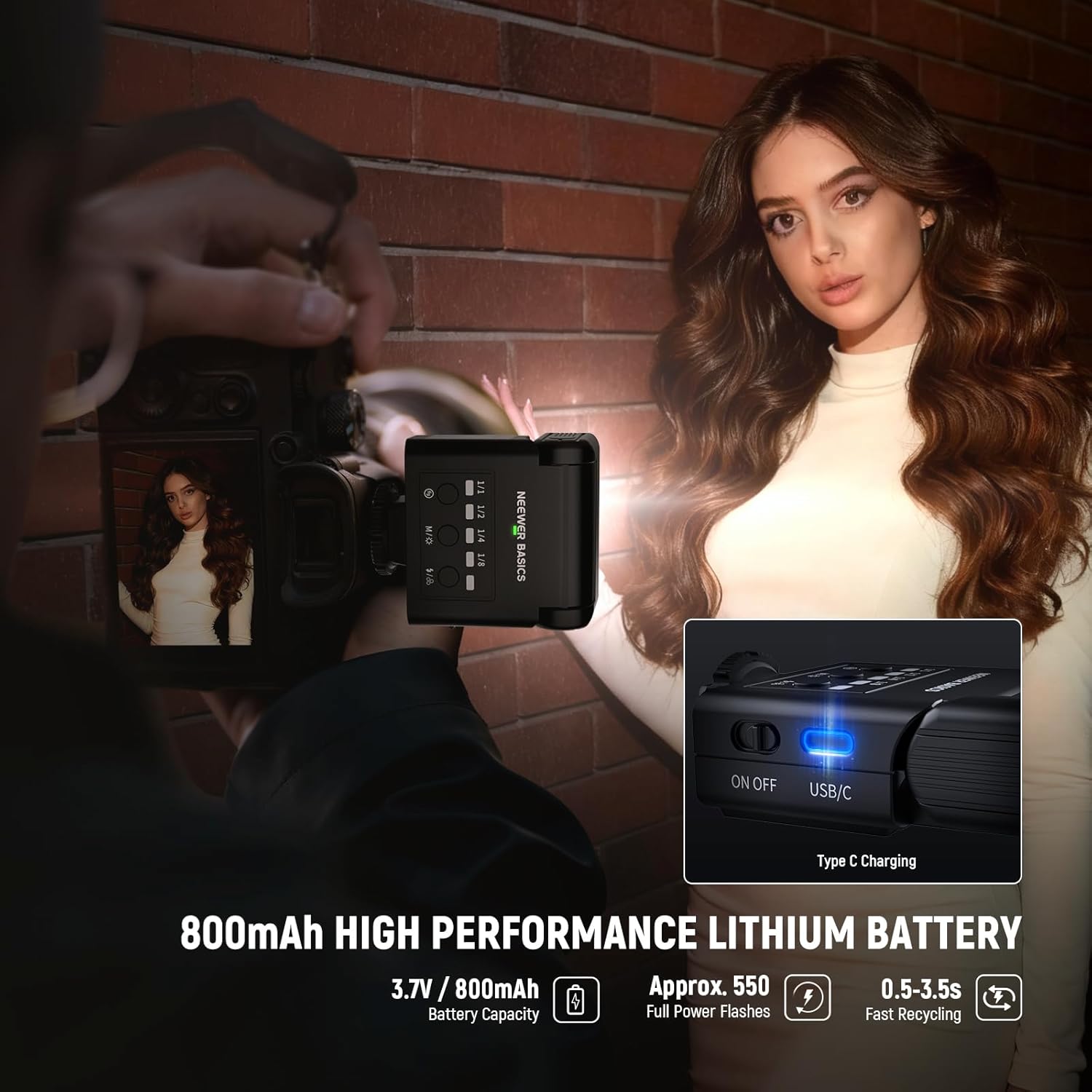

Billede: En detaljeret view of the NEEWER BASICS Mini Camera Flash A10L, highlighting the USB-C charging port and the power button. The image also displays key battery specifications: 3.7V/800mAh capacity, approximately 550 full power flashes, and a fast recycling time of 0.5-3.5 seconds.

Betjeningsvejledning

Tænd/sluk

Press and hold the power button (usually marked with a circle and a line) to turn the unit on or off.

Flashtilstand

The A10L operates as a manual flash. Adjust flash intensity using the dedicated buttons (1/1, 1/2, 1/4, 1/8) to achieve desired illumination. The flash has a guide number of 10 (ISO 100, meters).

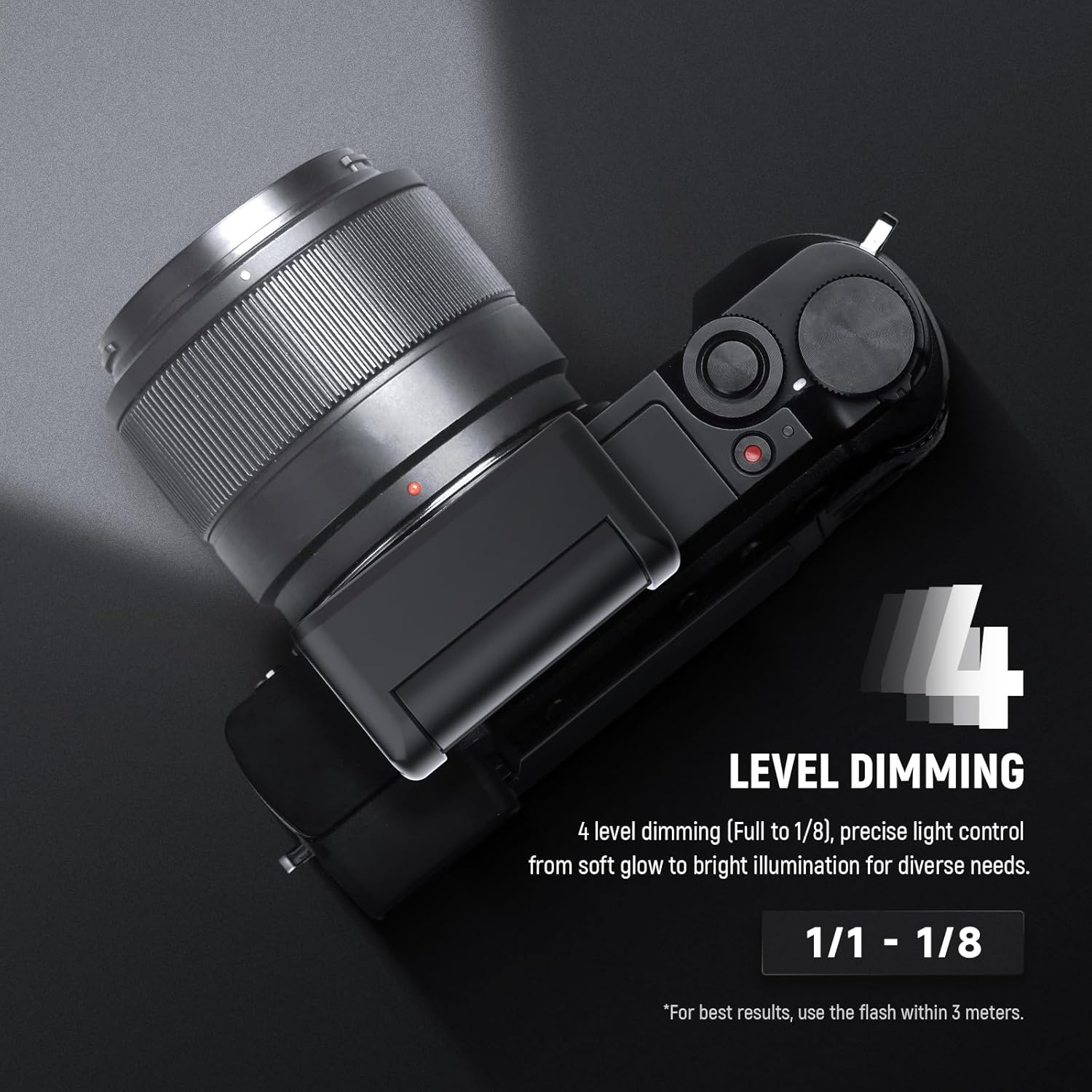

Billede: En top-down view of the NEEWER BASICS Mini Camera Flash A10L mounted on a camera, illustrating the four power levels (1/1, 1/2, 1/4, 1/8) for dimming, allowing precise control over flash intensity.

LED Video Light Mode

The A10L doubles as a 2W LED light. Use the mode button to cycle through 4 color temperature settings (2700K, 4500K, 6000K, 7500K) and 4 dimming levels for continuous lighting. The high CRI of 95+ ensures accurate color reproduction.

Image: A visual comparison of different color temperatures (2700K, 4500K, 6000K, 7500K) provided by the A10L's LED video light, showcasing its ability to produce true colors with a CRI of 95. Note: The flash and fill light cannot be used simultaneously.

Brug af diffusoren

Attach the included diffuser to the flash head to create softer, more even, and natural lighting effects, ideal for portraits and close-up shots.

Image: A visual demonstration of the soft lighting diffuser's effect when used with the A10L flash. The image shows a side-by-side comparison of a portrait with and without the diffuser, illustrating the softer and more natural lighting achieved with the accessory.

Kompatibilitetsnoter

The A10L speedlight does not support TTL (Through The Lens) or camera menu setting functions. It is a manual flash. It is NOT compatible with Sony ZV-1F, A9III, A99, A77, A350. NOT compatible with Canon EOS Rebel SL3, 250D, T7, 1500D, 2000D, T100, 3000D, 4000D, 200DII, R7, R6II, R8, R10, R50. NOT compatible with Fuji X-A3, X100F, X100T.

Batterioplysninger

The A10L features a built-in 800mAh rechargeable lithium battery. A full charge provides approximately 550 flashes at full power. The recycling time ranges from 0.5 to 3.5 seconds depending on the power level and battery charge.

To charge, connect the unit via its USB-C port using the provided cable. The charging indicator light will provide status updates.

Specifikationer

Fejlfinding

• Blitzen går ikke ud: Ensure the unit is powered on and fully charged. Check if it's securely mounted on the camera's hot shoe.
• Light output too strong/weak: Adjust the flash power levels (1/1 to 1/8) or LED dimming levels as needed.
• Incompatible camera: Refer to the compatibility notes in the "Operating Instructions" section. This flash does not support TTL or camera menu control.
• Slow recycling time: This can occur when the battery charge is low. Recharge the unit.

Sikkerhedsoplysninger

Dette produkt kan indeholde kemikalier, der af staten Californien er kendt for at forårsage kræft og fosterskader eller andre reproduktionsskader. For mere information, besøg venligst www.p65warnings.ca.gov.

Officiel produktvideo

Watch this official video from NEEWER for a comprehensive overview of the A10L Mini Camera Flash with 2W LED Video Light.
