Indledning
This manual provides comprehensive instructions for the setup, operation, and maintenance of your CHERRY XTRFY MX 10.1 Wireless Low-Profile Gaming Keyboard. Please read this manual thoroughly to ensure proper use and to maximize your keyboard's performance and longevity.
Billede: Top-down view of the CHERRY XTRFY MX 10.1 Wireless Gaming Keyboard, showcasing dens fulde layout og RGB-belysning.
Nøglefunktioner
- Triple-Mode-forbindelse: Offers flexible connection options via 2.4 GHz wireless, USB cable, or Bluetooth (up to three devices).
- Ultra-Fast Polling Rates: Achieves 4000 Hz in wireless mode and 8000 Hz in wired mode for rapid response.
- CHERRY MX LOW PROFILE 2.0 Switches: Enhanced switches with a revised design and premium lubricant for smoother typing, improved acoustics, and a lifespan exceeding 100 million keystrokes.
- Slim Aluminum Design: Robust aluminum housing combined with a low-profile form factor for durability and comfortable extended use.
- Rotary Knob and LCD Display: Intuitive controls for adjusting RGB lighting, media playback, switching connection modes, monitoring battery status, and managing three customizable profiles.
- Holdbare PBT-taster: Abrasion-resistant keycaps for long-lasting performance.
- Full N-key Rollover and Anti-Ghosting: Sikrer, at alle tastetryk registreres nøjagtigt, selv under hurtig input.
Billede: Nærbillede view highlighting the durable PBT keycaps, full N-key rollover, anti-ghosting, and stable fold-out feet of the CHERRY XTRFY MX 10.1 Wireless keyboard.
Opsætning
Pakkens indhold
- CHERRY XTRFY MX 10.1 Wireless Gaming Keyboard
- 2.4 GHz Wireless Dongle
- USB-C til USB-A-kabel
- Brugervejledning (dette dokument)
Indledende forbindelse
The keyboard offers three connection methods: 2.4 GHz wireless, wired USB, and Bluetooth. Ensure the keyboard is charged before initial wireless use. The keyboard includes one nonstandard battery.
- Kablet forbindelse: Connect the supplied USB-C to USB-A cable from the keyboard to an available USB port on your computer. The keyboard will automatically detect the connection and begin charging.
- 2.4 GHz trådløs forbindelse: Insert the 2.4 GHz wireless dongle into an available USB port on your computer. Turn on the keyboard. The keyboard should automatically pair with the dongle.
- Bluetooth-forbindelse: Turn on the keyboard. Use the rotary knob and LCD display to select a Bluetooth profile (BT1, BT2, or BT3). Initiate pairing mode on the keyboard (refer to the 'Operating Instructions' section for details on the rotary knob). On your device (PC, laptop), search for Bluetooth devices and select 'CHERRY XTRFY MX 10.1' to pair. You can pair up to three different devices via Bluetooth.

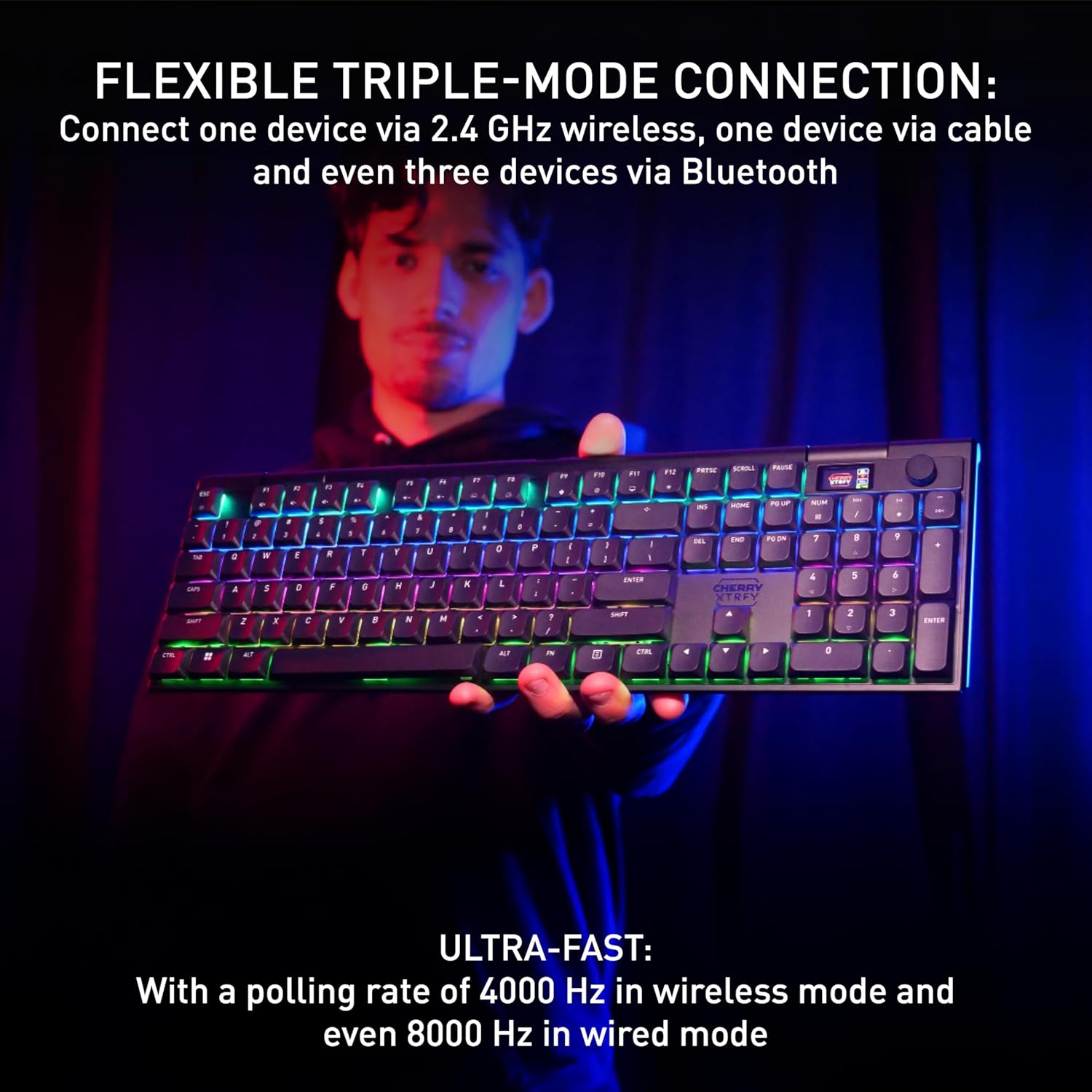

Image: Illustrates the flexible triple-mode connection options of the CHERRY XTRFY MX 10.1 Wireless keyboard, including 2.4 GHz wireless, cable, and Bluetooth.
Betjeningsvejledning
Rotary Knob and LCD Display
The CHERRY XTRFY MX 10.1 features an intuitive rotary knob and an LCD display for quick adjustments and status monitoring.
- Navigation: Rotate the knob to scroll through menu options on the LCD display.
- Udvælgelse: Press the knob to confirm a selection or enter a menu.
- RGB-lysstyring: Access lighting menus to change effects, colors, and brightness.
- Mediekontrol: Adjust volume, play/pause, and skip tracks.
- Connection Mode Switching: Easily switch between 2.4 GHz wireless, wired, and paired Bluetooth devices.
- Batteristatus: The LCD display shows the current battery level.
- Custom Profiles: The keyboard supports three customizable profiles for personalized settings, accessible via the display.
Image: Close-up of the rotary knob and LCD display on the CHERRY XTRFY MX 10.1 Wireless keyboard, showing its functionality for adjusting settings and displaying battery status.
CHERRY MX LOW PROFILE 2.0 Afbrydere
The keyboard is equipped with CHERRY MX LOW PROFILE 2.0 switches, designed for a responsive and smooth typing experience. These switches feature a linear actuation without an audible click, providing direct feedback. Their optimized design and lubrication contribute to improved acoustics and a durable lifespan of over 100 million keystrokes.
Billede: Detaljeret view of the CHERRY MX LOW PROFILE 2.0 Red switches, illustrating their low-profile design and internal components.
Opretholdelse
To maintain the performance and appearance of your keyboard, follow these guidelines:
- Rensning: Use a soft, lint-free cloth to wipe the keyboard surface. For deeper cleaning, use compressed air to remove dust and debris from between the keycaps. Avoid using harsh chemicals or abrasive materials.
- Opbevaring: Når tastaturet ikke er i brug i længere perioder, skal det opbevares tørt og køligt, væk fra direkte sollys.
- Batteripleje: For optimal battery life, avoid fully discharging the keyboard frequently. Charge the keyboard regularly, especially if it will be stored for a long time.
Fejlfinding
Forbindelsesproblemer
- Wireless (2.4 GHz/Bluetooth) Disconnection: Ensure the keyboard is charged. Verify the wireless dongle is securely plugged in for 2.4 GHz. For Bluetooth, check that the keyboard is in pairing mode and within range of your device. Try re-pairing the device.
- Kabelforbindelse ikke fundet: Sørg for, at USB-kablet er korrekt tilsluttet til både tastaturet og computeren. Prøv en anden USB-port eller et andet kabel.
RGB Lighting Malfunctions
- Lys virker ikke: Check the keyboard's settings via the LCD display to ensure RGB lighting is enabled and brightness is set appropriately.
- Incorrect Colors/Effects: Use the rotary knob and LCD display to cycle through lighting modes and effects to reset or select your desired configuration.
Taster reagerer ikke
- Specifikke nøgler: Clean around the affected keycap to remove any debris that might be obstructing the switch.
- Alle nøgler: Ensure the keyboard is properly connected and powered on. Try restarting your computer.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | CHERRY XTRFY MX 10.1 Wireless |
| Varemodelnummer | G8A-25100HJAUS-2 |
| Forbindelsesteknologi | Bluetooth, RF (2.4 GHz Wireless) |
| Tastaturbeskrivelse | Mekanisk Low-Profile Gaming tastatur |
| Switch Type | CHERRY MX LOW PROFILE 2.0 |
| Tastatur baggrundsbelysning | RGB |
| Særlige funktioner | Durable PBT keycaps, LCD display, Rotary knob, Slim aluminum design, Triple connection modes |
| Kompatible enheder | PC |
| Strømkilde | Batteridrevet (1 ikke-standardbatteri inkluderet) |
| Varens vægt | 4.54 pund (ca. 2.06 kg) |
| Pakkedimensioner | 19.3 x 7.6 x 2.4 tommer |
Image: Illustrates the dimensions of the CHERRY XTRFY MX 10.1 Wireless keyboard, showing its length (427 mm), width (134 mm), and height (27 mm), along with its approximate weight (1100 g).
Garanti og support
For warranty information, technical support, or service inquiries, please refer to the official CHERRY XTRFY webwebstedet eller kontakt deres kundesupport direkte. Gem din købsbevis til garantikrav.
