FIRMERST 2 Zone 200W Lav Voltage Landskabstransformator Brugsanvisning

1. Produktet er slutview

The FIRMERST 2 Zone 200W Low Voltage Landscape Transformer is designed to convert standard 120V AC household current to a safe 12V/14V AC output for outdoor landscape lighting. It features dual independent zones, multiple operating modes, a detachable photocell sensor, and built-in safety mechanisms for reliable and customizable outdoor illumination.

Billede 1.1: Forside view of the FIRMERST 2 Zone 200W Low Voltage Landscape Transformer, showcasing its circular design, control panel, and connected power and sensor cords.

Nøglefunktioner:

• Dual-Zone Independent Control: Manage two separate lighting zones with individual countdown schedules.
• 5 driftstilstande: Includes Photocell Auto (dusk-to-dawn), Dusk-to-Timer, Timer (on/off at set times), Countdown Timer, and Manual On/Off.
• Detachable Outdoor Photocell Sensor: A 6ft replaceable sensor cord allows for optimal placement in shaded or bright areas.
• Circuit Breaker & Memory Function: Features a resettable circuit breaker for overload protection and retains settings after power loss.
• Lav-voltage Safe Output: Converts 120V AC to dual 12V/14V outputs, supporting up to 200W (max 80% load).

2. Sikkerhedsoplysninger

Please read and understand all instructions before installing or operating this transformer. Failure to follow these instructions may result in electric shock, fire, or other hazards. Always disconnect power before servicing.

• Ensure the transformer is installed in a location protected from direct water spray and excessive moisture.
• Overskrid ikke det maksimale wattage capacity of 200W (80% load recommended for optimal performance).
• Brug kun lav-voltage landscape lighting fixtures with this transformer.
• Al ledningsføring skal overholde lokale el-forskrifter.
• Keep children and pets away from the transformer and wiring during operation.

3. Hvad er der i æsken

• 1 x FIRMERST Low Voltage Transformer
• 1 x Accessories Package (including photocell sensor, wire connectors, mounting hardware)

4. Opsætning og installation

Follow these steps for proper installation of your landscape transformer.

4.1 Montering af transformatoren

• Select a suitable outdoor location near a 120V AC power outlet.
• Mount the transformer at a minimum height of 12 inches (30 cm) from the ground.
• Use the provided mounting hardware to securely attach the transformer to a wall or sturdy surface.

4.2 Wiring Landscape Lights

• Ensure the transformer is unplugged from the power source.
• Tilslut lav-voltage wires from your landscape lights to the appropriate terminals (COM, 12V, 14V) for Zone 1 and Zone 2.
• Refer to the wiring diagram for correct connections. Ensure all connections are tight and secure.

Image 4.1: Diagram illustrating the four main installation steps: mounting height, connecting wires, fixing to wall, and placing lights.

4.3 Photocell Sensor Connection

• Plug the detachable photocell sensor into the designated port on the transformer.
• Position the sensor in an area that receives natural light, avoiding direct artificial light sources that could interfere with its operation.

Image 4.2: The detachable photocell sensor, shown with an illustration of how it detects dusk to turn lights on and dawn to turn them off.

4.4 Kabelvalg

Choose the appropriate cable gauge based on the total wattage and length of your lighting circuit to ensure optimal performance and prevent voltage drop.

Image 4.3: Visual guide for selecting appropriate cable gauges (e.g., 12AWG for 50FT, 100FT, 150FT) based on length and load.

5. Betjeningsvejledning

The transformer offers five distinct operating modes for flexible control of your landscape lighting. Each zone can be configured independently.

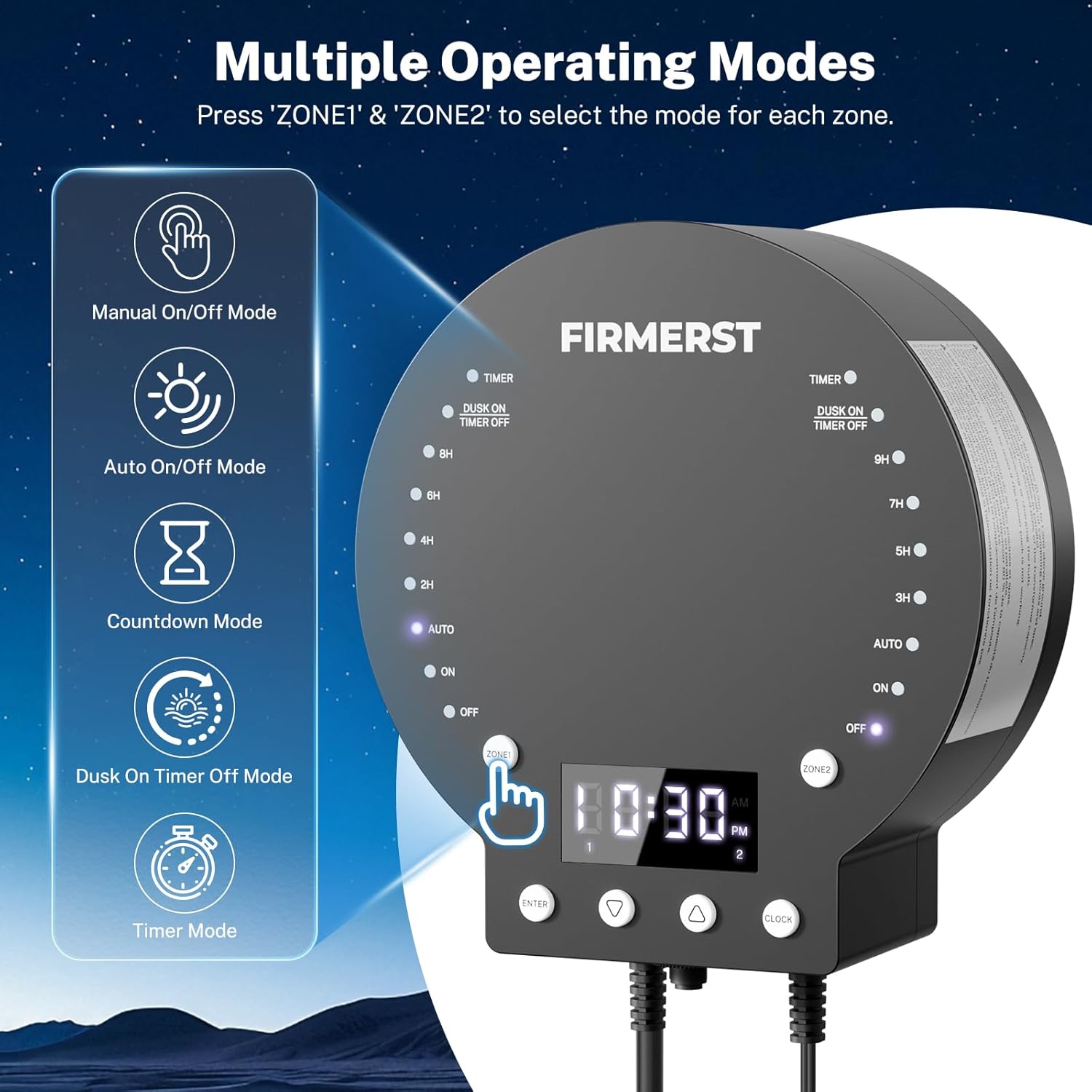

Image 5.1: The transformer's control panel highlighting the five operating modes for each zone: Timer, Dusk On/Timer Off, Countdown, Auto, and Manual On/Off.

5.1 Indstilling af uret

Press the 'CLOCK' button to enter clock setting mode. Use the 'UP' and 'DOWN' arrows to adjust the hour and minute. Press 'ENTER' to confirm.

5.2 Valg af driftstilstande

Press the 'ZONE1' or 'ZONE2' button repeatedly to cycle through the available operating modes for each respective zone. The illuminated indicator light will show the currently selected mode.

• Manual On/Off Mode: Lights remain continuously ON or OFF. Select 'ON' or 'OFF' for constant operation.
• Auto On/Off Mode (Photocell Dusk-to-Dawn): Lights automatically turn ON at dusk and OFF at dawn based on the photocell sensor. Select 'AUTO'.
• Nedtællingstilstand: Lights turn ON at dusk and remain ON for a set duration (2H, 4H, 6H, 8H for Zone 1; 3H, 5H, 7H, 9H for Zone 2). Select the desired hour.
• Dusk On/Timer Off Mode: Lights turn ON at dusk and turn OFF at a specific programmed time. Select 'DUSK ON TIMER OFF'.
• Timertilstand: Lights turn ON and OFF at specific programmed times. Select 'TIMER'.

Billede 5.2: Eks.ample of dual-zone timer control, showing Zone 1 in Manual On/Off mode and Zone 2 in Timer Mode with specific start and close times.

Image 5.3: Illustration of Auto Mode, where the photocell sensor automatically activates lights at dusk and deactivates them at dawn.

6. Særlige funktioner

6.1 Dual-Zone Independent Control

The transformer allows for independent control of two separate lighting zones. This means you can set different operating modes and schedules for lights connected to Zone 1 and Zone 2, providing maximum flexibility for your landscape design.

Image 6.1: The transformer's dual-zone capability, showing separate lighting configurations for Zone 1 (pathway lights) and Zone 2 (garden lights).

6.2 Strømafbryder

A resettable circuit breaker is located on the bottom of the unit. In case of an overload or short circuit, the breaker will trip to protect the transformer and connected lights. To reset, simply press the button after resolving the issue.

Billede 6.2: Nærbillede view of the bottom of the transformer, indicating the location of the resettable circuit breaker and the 12V/14V AC output terminals for both zones.

6.3 Hukommelsesfunktion

The transformer is equipped with a memory function that retains the last programmed settings even after a power outage. This eliminates the need for reprogramming after temporary power interruptions.

Billede 6.3: Bagside view of the transformer, highlighting the memory function and the wiring terminals for Zone 1 and Zone 2.

7. Vedligeholdelse

• Periodically inspect the transformer and wiring for any signs of damage or wear.
• Hold fotocellesensoren ren og fri for blokeringer for at sikre nøjagtig drift fra skumring til daggry.
• Clean the exterior of the transformer with a soft, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Ensure proper ventilation around the transformer to prevent overheating.

8. Fejlfinding

• Lysene tændes ikke: Check the power connection, ensure the circuit breaker is not tripped, verify the operating mode settings, and inspect wiring for loose connections.
• Lights staying on/off at wrong times: Check the photocell sensor for obstructions or interference from artificial light. Verify the clock setting and programmed timer schedules.
• Flimrende lys: This may indicate an overloaded circuit or insufficient cable gauge. Reduce the total wattage of connected lights or upgrade to a thicker gauge wire.
• Transformer not responding: Disconnect power for a few minutes, then reconnect. If the issue persists, contact customer support.

9. Specifikationer

Image 9.1: Diagram showing the physical dimensions of the transformer, along with specifications for the UL Listed power cord (SJTOW 18AWG/3C, 3 Feet) and sensor cord (SPT-1W 20AWG/2C, 6 Feet).

10. Garanti og support

For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official FIRMERST webwebsted. Gem din købskvittering for garantikrav.
