ANYFAR Decoder RM-LH2522F Instruction Manual

1. Introduktion

The ANYFAR Decoder RM-LH2522F is an advanced interface designed to integrate modern smartphone functionalities like Wireless CarPlay and Android Auto into compatible Land Rover and Jaguar vehicles. This device enhances your in-car experience by providing navigation, music, communication, and other applications directly on your vehicle's existing 10.25-inch Harman headunit screen, while retaining all original car controls.

1.1. Compatibility Notice

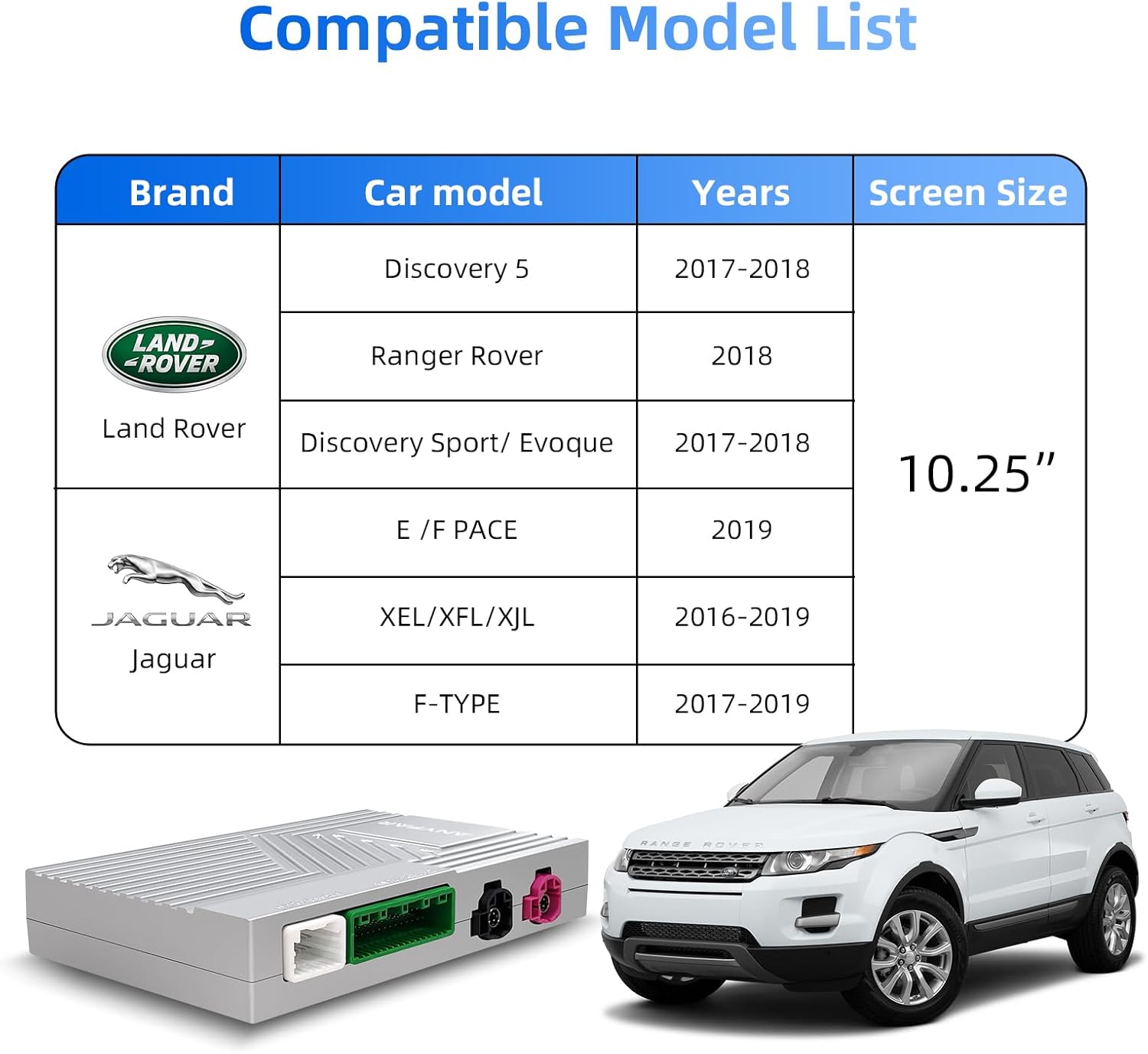

This decoder is specifically compatible with 2016–2019 Land Rover and Jaguar vehicles equipped with a Harman head unit og en 10.25 tommer skærm. Compatible models include:

• Land Rover: Evoque (2016–2019), Discovery 5 (2016–2019)
• Jaguar: XE (2016–2019), XF (2016–2019), XJL (2016–2019), F-Type (2016–2019)

Please verify your vehicle's head unit and screen size before installation. Refer to the compatibility image below for visual guidance on screen display styles.

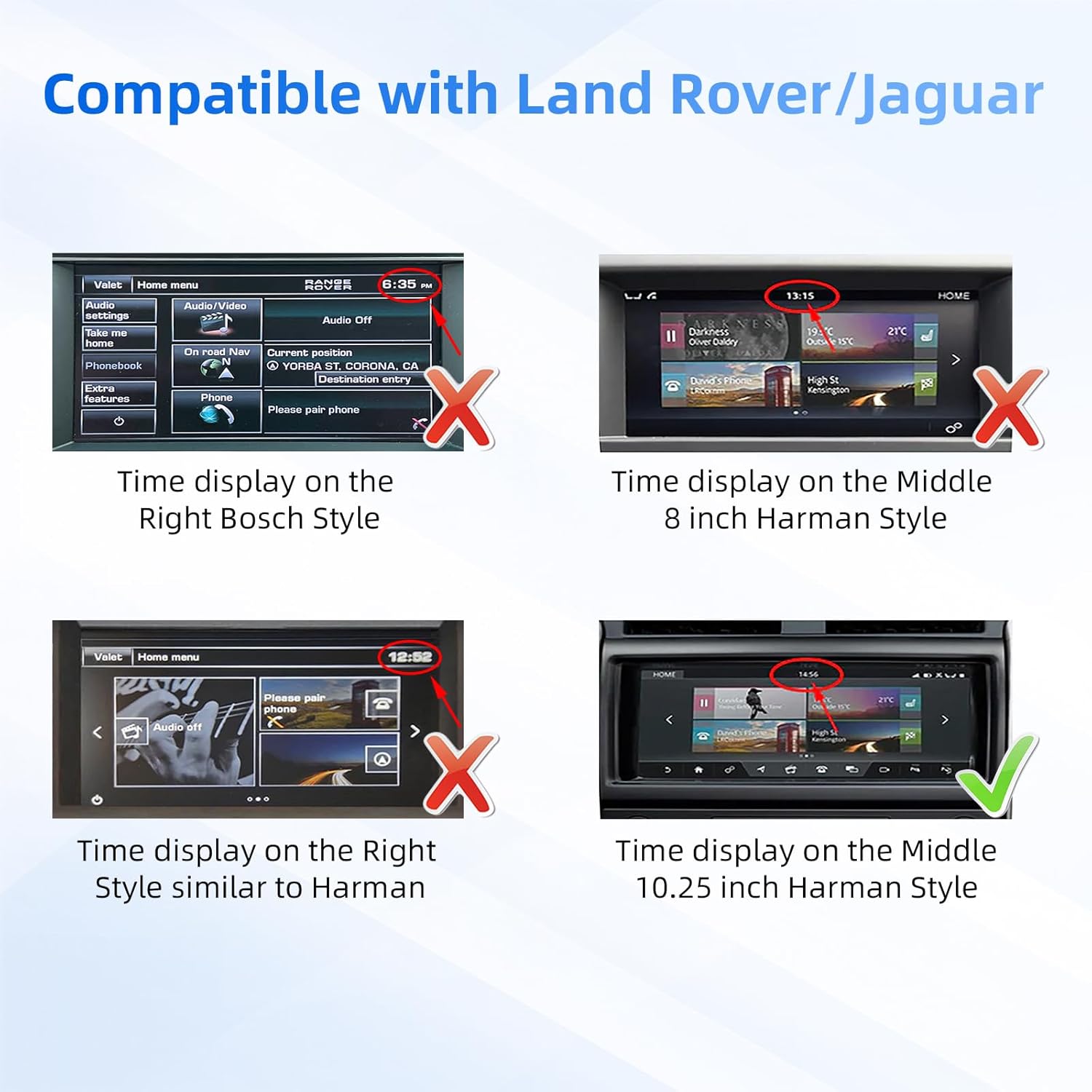

Billede 1.1: Visual guide for checking vehicle compatibility based on screen time display style. Ensure your screen matches the 10.25-inch Harman style shown as compatible.

2. Pakkens indhold

Before proceeding with installation, please ensure all components listed below are present in your package:

• ANYFAR Decoder Unit (RM-LH2522F)
• Strømkabel
• Adapter Cable A
• Adapter Cable B
• Adapter Cable C
• LVDS OUT-kabel
• LVDS IN-kabel
• RCA & USB Cable

Billede 2.1: Overview of the ANYFAR Decoder unit with its dimensions (139mm x 92mm x 20mm) and the various cables included in the package.

3. Opsætning og installation

Installation of the ANYFAR Decoder involves connecting it to your vehicle's existing head unit. Due to the complexity of vehicle electronics, professional installation is recommended to ensure proper functionality and avoid damage to your vehicle's system.

3.1. General Installation Steps (Consult a professional for detailed guidance)

1. Forberedelse: Sørg for, at køretøjets tænding er slukket, og at batteriet er frakoblet, før du påbegynder elektrisk arbejde.
2. Access Head Unit: Carefully remove the necessary trim panels to access the rear of your vehicle's Harman head unit.
3. Tilslut dekoder: Connect the provided power cable, adapter cables (A, B, C), LVDS IN, LVDS OUT, and RCA/USB cables to the corresponding ports on the ANYFAR Decoder unit and your vehicle's head unit wiring harness. Ensure all connections are secure.
4. Secure Decoder: Mount the decoder unit in a safe, dry location within the dashboard, ensuring it does not interfere with any moving parts or vehicle components.
5. Gentilslut batteri: Once all connections are verified, reconnect the vehicle's battery.
6. Test funktionalitet: Turn on the vehicle and test all functions of the decoder, including CarPlay, Android Auto, Mirror Link, and original car controls.

Billede 3.1: The ANYFAR Decoder unit, showing its various connection ports for integration into the vehicle's infotainment system.

4. Betjeningsvejledning

The ANYFAR Decoder provides a range of features to enhance your driving experience. Below are instructions for using its primary functions.

4.1. Switching Between OEM and Decoder System

To switch between your vehicle's original OEM system and the ANYFAR Decoder's interface (CarPlay/Android Auto), long-press the power button or a designated button on your car's knob. The system will seamlessly transition between the two interfaces.

Billede 4.1: Illustration of switching between the vehicle's OEM system and the CarPlay/Android Auto interface by long-pressing the car knob button.

4.2. Trådløs CarPlay og Android Auto

The decoder supports wireless CarPlay and wireless Android Auto. Once connected, your phone's interface will appear on the car's 10.25-inch screen, allowing access to navigation, music, calls, messaging, and voice assistants without needing a physical cable connection.

• Forbindelse: Follow the on-screen prompts to pair your smartphone via Bluetooth and Wi-Fi for wireless CarPlay or Android Auto.
• Funktionalitet: Navigate using maps, stream music, make and receive calls, send messages, and use voice commands directly from your car's display.

Billede 4.2: An in-car view of the 10.25-inch screen displaying the Apple CarPlay interface, demonstrating integrated smartphone features.

4.3. Mirror Link & USB Drive Playback

The Mirror Link (AirPlay/AutoLink) feature allows you to mirror your smartphone's display onto the car screen. This enables viewing of content from apps like YouTube, Netflix, or Disney+.

• Mirror Link: Connect your phone via Wi-Fi or USB to mirror its screen.
• USB-afspilning: Use the integrated USB port to play videos or music directly from a USB drive. The USB port can also be used for charging your phone.

Billede 4.3: An illustration of the Mirror Link feature, where a smartphone's display is mirrored onto the car's screen.

4.4. Intelligent stemmestyring

Utilize voice commands for hands-free operation, enhancing driving safety. The system supports voice assistants like Siri and Google Assistant.

• Aktivering: Activate your voice assistant through the car's controls or by saying the wake-up phrase (e.g., "Hey Siri" or "Hey Google").
• Kommandoer: Issue commands for navigation, playing music, making calls, sending messages, and more.

Billede 4.4: Examples of intelligent voice control functionality, showing interaction with Siri and Google Assistant for hands-free operation.

4.5. Retaining Original Car Controls

The ANYFAR Decoder is designed to work seamlessly with your vehicle's existing control systems. You will retain full access to:

• Touchskærm: Continue to use the 10.25-inch touchscreen for input.
• Stemmestyring: Original voice control functions remain accessible.
• Physical Buttons & Knobs: All physical buttons and rotary knobs on your dashboard and steering wheel will function as before.

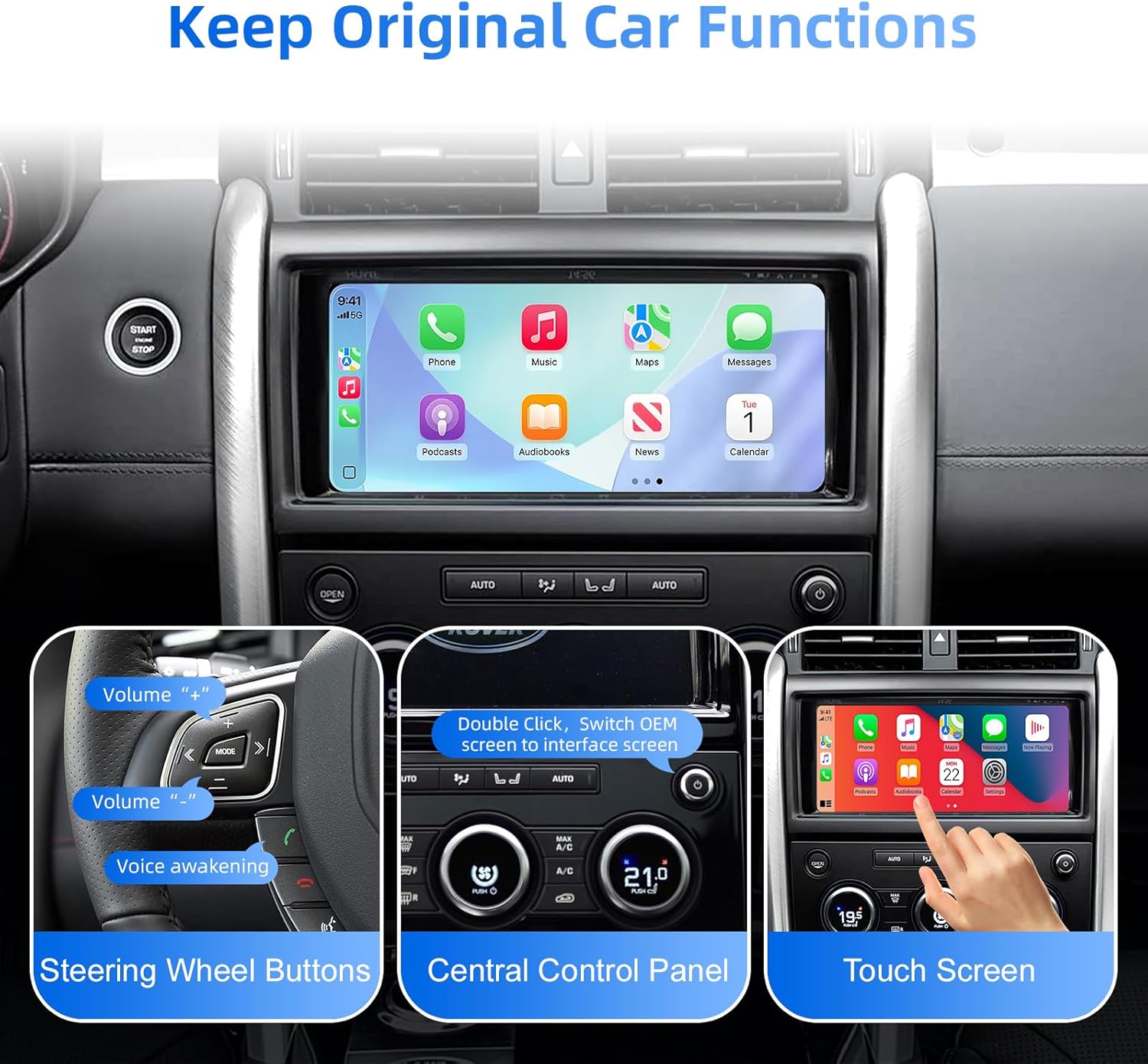

Billede 4.5: This image demonstrates that the decoder allows full retention of the vehicle's original controls, including steering wheel buttons, the central control panel, and touchscreen input.

4.6. Backup Camera Input Support

The decoder supports connecting an aftermarket backup camera or front camera. The camera feed will automatically display on the car screen when you shift into reverse, providing enhanced safety and convenience.

• Forbindelse: Connect your backup camera to the decoder via the designated wire input.
• Automatisk visning: Kameraet view will automatically activate when the vehicle is put into reverse gear.

Billede 4.6: The vehicle's screen showing the view from a connected backup camera, complete with dynamic parking guidelines.

4.7. In-Car Hi-Fi Audio

Experience high-fidelity audio quality through the ANYFAR Decoder. Its digital transmission technology ensures uninterrupted, high-quality music playback without signal interference or audio delay, preserving the original sound quality of your car's audio system.

5. Vedligeholdelse

To ensure the longevity and optimal performance of your ANYFAR Decoder, follow these general maintenance guidelines:

• Hold rent: Regularly clean the decoder unit and surrounding areas with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Undgå fugt: Protect the unit from water, excessive humidity, and other liquids.
• Temperaturkontrol: Do not expose the unit to extreme temperatures, either hot or cold, as this can affect its electronic components.
• Sikre forbindelser: Periodically check that all cables and connections are secure and free from damage.

6. Fejlfinding

If you encounter issues with your ANYFAR Decoder, consider the following basic troubleshooting steps:

• Ingen strøm/Intet display: Ensure all power cables are securely connected. Check the vehicle's fuse box for any blown fuses related to the infotainment system.
• No CarPlay/Android Auto Connection: Verify your phone's Bluetooth and Wi-Fi are enabled. Ensure the phone is properly paired with the decoder. Try restarting both your phone and the vehicle's infotainment system.
• Lydproblemer: Check audio settings on both your phone and the car's head unit. Ensure the correct audio input source is selected on the car's system.
• Intermitterende funktionalitet: Ensure all cables are firmly seated. Loose connections can cause intermittent issues.
• Original Controls Not Working: If original car controls are not responding, verify the decoder's connections to the head unit. A system reset (disconnecting and reconnecting the car battery) may resolve temporary software glitches.

If problems persist after attempting these steps, please contact ANYFAR customer support for further assistance.

7. Specifikationer

8. Garanti og support

Warranty information for the ANYFAR Decoder RM-LH2522F is typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for specific details regarding coverage and duration.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please visit the official ANYFAR website or contact their customer service department. Contact information can usually be found on the product packaging or the brand's online store page.
