Vissani VAW06R1AWTFR 6,000 BTU vinduesklimaanlæg brugermanual

Vigtige sikkerhedsinstruktioner

Please read all instructions carefully before using this air conditioner. Keep this manual for future reference.

Generel sikkerhed

• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.
• Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
• Do not operate the air conditioner with a damaged power cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• Do not use the air conditioner in a wet room such as a bathroom or laundry room.
• Ensure the air conditioner is installed securely to prevent it from falling.

Elektrisk sikkerhed

• This unit requires a standard 115-Volt, 60 Hz, 3-prong grounded outlet. Do not modify the plug.
• Brug ikke forlængerledninger eller adapterstik med denne enhed.
• Tag altid stikket ud af klimaanlægget før rengøring eller service.

Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Vissani VAW06R1AWTFR Window Air Conditioner Unit
• Fjernbetjening
• Window Installation Kit (side panels, top rail, sash lock, foam seals, screws)
• Brugervejledning (dette dokument)

Produkt overview

The Vissani VAW06R1AWTFR is a 6,000 BTU window air conditioner designed to cool rooms up to 250 sq. ft. It features a digital control interface, LED thermostat, and a compact remote control for convenient operation.

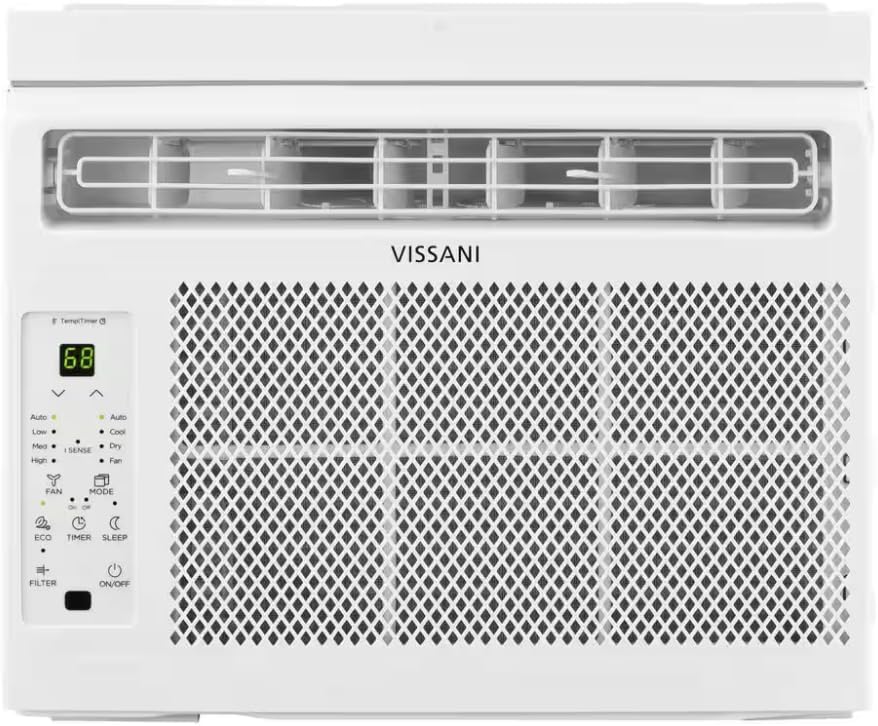

Figur 1: Front view of the Vissani VAW06R1AWTFR 6,000 BTU Window Air Conditioner. The unit is white with a digital display on the left and a large grille covering the front.

Nøglefunktioner:

• 3-i-1 komfort: Offers cooling, circulation (fan), and dehumidification modes.
• Digital kontrolpanel: Easy-to-use interface with an LED thermostat.
• Energy Saving Modes: Includes ECO mode and a 24-hour timer.
• Sove mode: Justerer temperaturen for en behagelig søvn.
• 4-vejs luftretning: Adjustable louvers to direct airflow up, down, left, or right.
• Filter Clean Warning: Indicator light for timely filter maintenance.
• Fjernbetjening: For bekvem betjening på afstand.

Enhedskomponenter:

Figur 2: Nærbillede view of the Vissani VAW06R1AWTFR control panel. It shows the digital temperature display, mode buttons (Auto, Cool, Dry, Fan), fan speed settings (Low, Med, High), ECO, Timer, Sleep, Filter, and On/Off buttons.

• Kontrolpanel: Located on the front of the unit, featuring a digital display and various function buttons.
• Luftfilter: Located behind the front grille, accessible for cleaning.
• Luftventiler: Adjustable vents for directing airflow.
• Strømledning: 3-benet jordet stik.

Opsætning og installation

This section provides instructions for installing your Vissani window air conditioner. A window opening with a maximum width of 36 inches is required.

Før installation:

1. Læs alle instruktioner inden du begynder.
2. Ensure you have all necessary tools (screwdriver, measuring tape, level).
3. Vælg et vindue, der er strukturelt solidt og kan bære enhedens vægt.

Window Installation Steps:

1. Forbered vinduet: Open the window and clean the sill area.
2. Fastgør topskinne: Secure the top rail to the top of the air conditioner unit with screws.
3. Installer sidepaneler: Slide the accordion side panels into the side channels of the unit.
4. Placer enhed i vindue: Carefully lift the unit and place it in the window opening, ensuring the bottom rail rests on the window sill. Tilt the unit slightly outwards to allow for proper drainage.
5. Forlæng sidepaneler: Extend the accordion side panels to fill the window opening and secure them to the window frame with screws.
6. Secure Window: Lower the window sash behind the top rail of the unit. Install the sash lock and foam seals to prevent air leakage and provide security.

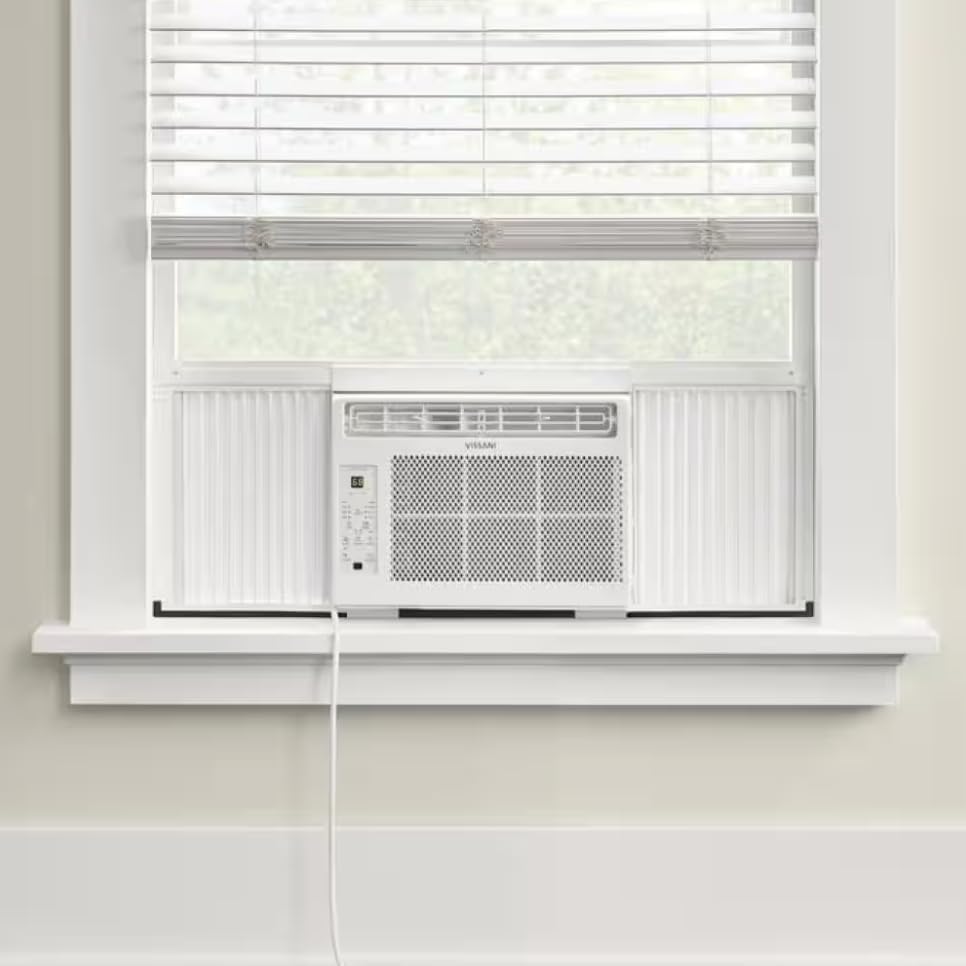

Figur 3: The Vissani VAW06R1AWTFR unit properly installed in a window, with side panels extended to fill the gap. The power cord is visible extending downwards.

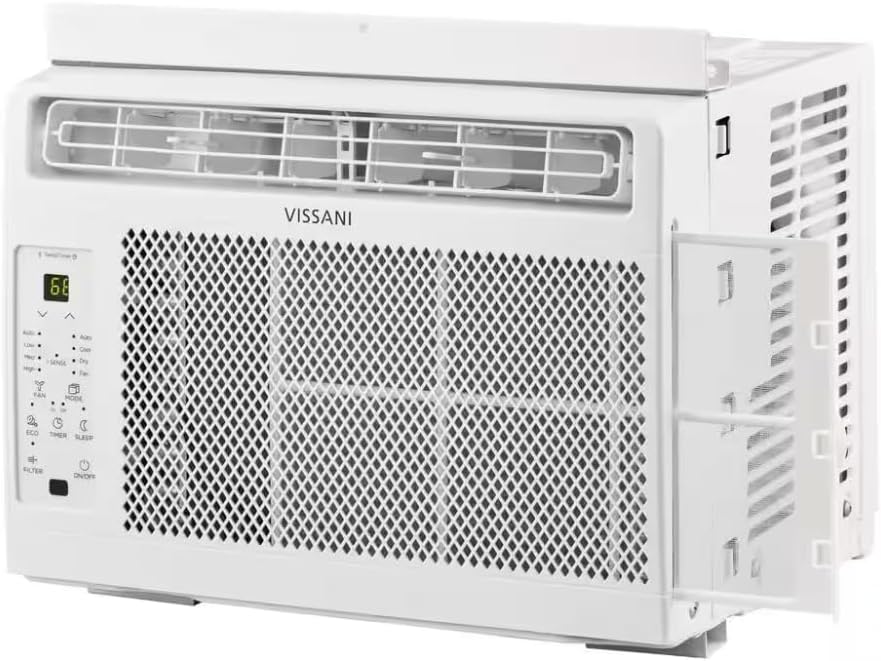

Figur 4: A view of the Vissani VAW06R1AWTFR unit showing the accordion-style side panels extended, ready for installation into a window frame.

Betjeningsvejledning

Your Vissani air conditioner can be operated using the control panel on the unit or the included remote control.

Kontrolpanelets funktioner:

• ON/OFF knap: Tryk for at tænde eller slukke for enheden.
• MODE knap: Cycles through operating modes: Auto, Cool, Dry (Dehumidify), Fan.
• FAN knap: Adjusts fan speed (Low, Med, High) in Fan mode. In Cool or Auto mode, it adjusts fan speed for cooling.
• Temperatur op/ned pile: Justerer den ønskede temperaturindstilling.
• ØKO -tilstand: Activates energy-saving operation. The fan will turn off when the compressor cycles off and will cycle on periodically to check room temperature.
• TIMER knap: Sets a delay start or delay stop time (up to 24 hours).
• SLEEP knap: Activates sleep mode, which gradually increases the set temperature over several hours for energy efficiency and comfort during sleep.
• FILTER knap: The filter clean warning light will illuminate after approximately 250 hours of operation. Press this button after cleaning the filter to reset the timer.

Fjernbetjeningsfunktioner:

Figur 5: The remote control for the Vissani VAW06R1AWTFR air conditioner. It features buttons for power, mode, fan speed, temperature adjustment, timer, sleep, ECO, and I Sense functions.

The remote control duplicates most functions of the control panel and adds the "I Sense" feature.

• I SENSE Button: When activated, the remote control acts as a thermostat, sensing the temperature at its location and adjusting the air conditioner's operation accordingly. This provides more precise temperature control in your immediate vicinity.
• C/F knap: Skifter temperaturvisningen mellem Celsius og Fahrenheit.
• LED Display Button: Turns the LED display on the unit on or off.

Opretholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på dit klimaanlæg.

Rengøring af luftfilteret:

1. Sluk og tag stikket ud: Sluk altid enheden og tag stikket ud af stikkontakten før rengøring.
2. Fjern filter: Open the front grille and carefully slide out the air filter.
3. Rens filter: Wash the filter with warm, soapy water. Rinse thoroughly. For heavy dust, a vacuum cleaner can be used first.
4. Tørt filter: Allow the filter to air dry completely before reinserting. Do not expose to direct sunlight or heat.
5. Geninstaller filter: Slide the dry filter back into its position and close the front grille.
6. Nulstil filterlampe: Press the "FILTER" button on the control panel or remote to reset the filter clean warning light.

Henstilling: Rengør luftfilteret hver anden uge eller oftere, hvis enheden bruges i et støvet miljø.

Rengøring af enhed Casing:

• Tør casing med en blød, damp klæde.
• Do not use harsh chemicals, abrasives, or solvents, as these can damage the surface.

Vinteropbevaring:

• If storing the unit for an extended period, clean the air filter and ensure the unit is dry.
• Store the unit in an upright position in a dry, cool place.

Fejlfinding

Før du kontakter kundeservice, bedes du læse følgende fejlfindingsvejledning for almindelige problemer.

Specifikationer

Figur 6: The Vissani VAW06R1AWTFR unit shown with its approximate dimensions: 15.99 inches width, 12.05 inches height, and 13.19 inches depth. The remote control is also pictured.

Garanti og support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact Vissani customer service directly. As this product is listed as "Renewed" by Amazon Renewed, specific warranty terms may vary. Please consult your purchase details for applicable warranty coverage.

For technical assistance or to inquire about replacement parts, please visit the official Vissani webwebstedet eller kontakt deres supportlinje.
