1. Introduktion
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your CIRCOOTER Cruiser Pro Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your scooter. Retain this manual for future reference.
Image 1.1: The CIRCOOTER Cruiser Pro Electric Scooter, showcasing its robust design and integrated lighting system.
2. Sikkerhedsretningslinjer
Your safety is paramount. Always adhere to local laws and regulations regarding electric scooter usage. Wearing a helmet and appropriate protective gear (knee pads, elbow pads) is strongly recommended.
2.1 Generelle sikkerhedsforanstaltninger
- Always perform a pre-ride check, including brakes, tires, and battery level.
- Do not ride in heavy rain or through standing water.
- Avoid riding on slippery surfaces, loose gravel, or excessively rough terrain.
- Hold en sikker afstand til andre køretøjer og fodgængere.
- Do not carry passengers or exceed the maximum weight limit of 330 pounds.
- Children under 13 years of age should not operate this scooter.
3. Produktet er slutview
The CIRCOOTER Cruiser Pro is an adult electric scooter designed for off-road and urban use, featuring dual motors, pneumatic tires, and advanced safety features.
3.1 Nøglefunktioner
- Dual 1200W Motors (2400W Total): Provides powerful acceleration and a top speed of up to 38 mph.
- 11-inch Pneumatic Off-Road Tires: Ensures stability and traction on various terrains.
- 48V 20Ah litium-ion-batteri: Offers an extended range of up to 40 miles on a single charge.
- Dual Hydraulic Spring Shock Absorption: Enhances ride comfort over uneven surfaces.
- Triple Braking System: Features oil brake, disc brake, and electronic brake for reliable stopping power.
- Integreret belysningssystem: Includes headlights, spotlights, taillights, ambient lights, and turn signals for visibility.
- Sammenfoldeligt design: Facilitates easy storage and transportation.
- CIRCOOTER App Support: Allows for smart control and monitoring via a mobile application.

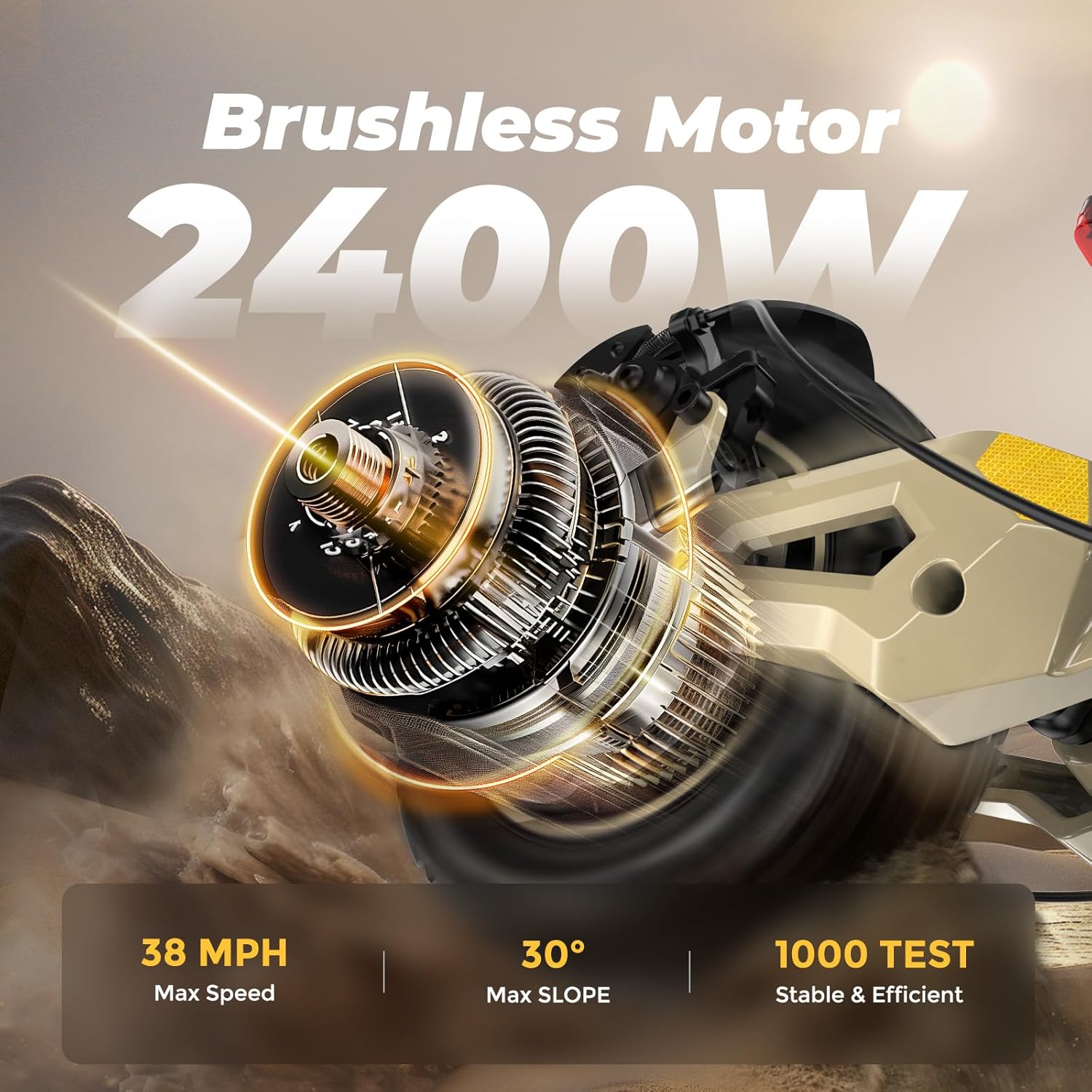

Image 3.1: Illustration of the powerful 2400W brushless motor, capable of reaching speeds up to 38 MPH and handling inclines of up to 30 degrees.
Image 3.2: The 48V 20Ah Lithium-ion battery, providing a maximum range of 40 miles and supporting a maximum load of 331 lbs.
4. Opsætning og indledende forberedelse
4.1 Udpakning og komponenttjek
Fjern forsigtigt alle komponenter fra emballagen. Kontroller, at alle medfølgende dele er til stede:
- CIRCOOTER Cruiser Pro El-løbehjul
- Oplader
- Reserveslange
- Opbevaringspose
- Værktøjskasse
- Brugervejledning (dette dokument)
4.2 Montering
- Montering af styr: Attach the handlebar to the stem, ensuring all bolts are securely tightened using the provided toolkit.
- Udfoldning af scooteren: Release the folding mechanism and carefully raise the stem until it locks into place. Ensure the locking mechanism is fully engaged.
- Dækpumpe: Check the tire pressure. Inflate the 11-inch pneumatic tires to the recommended PSI (typically indicated on the tire sidewall) using a suitable pump.
4.3 Indledende opladning
Before first use, fully charge the scooter's battery. Connect the charger to the scooter's charging port(s) and then to a power outlet. The charging indicator on the charger will change color (e.g., red to green) when charging is complete. Avoid overcharging.
5. Betjeningsvejledning
5.1 Tænd/sluk
Tryk og hold tænd/sluk-knappen på displayet nede for at tænde eller slukke scooteren.
5.2 Display og betjeningselementer
The scooter features a real-time smart display providing critical information and controls:
Image 5.1: The scooter's handlebar display showing speed, battery level, distance, and speed mode indicators.
- Hastighed: Displays current, average, or maximum speed.
- Batteriniveau: Indicates available battery power.
- Afstand: Tracks cycling mileage.
- Skift til hastighedstilstand: Toggle between TRUBO, STD (Standard), and ECO (Economy) modes for varying performance and range.
5.3 At køre på scooter
- Placer den ene fod fast på dækket og skub fra med den anden fod for at få indledende momentum.
- Tryk forsigtigt på gashåndtaget for at aktivere motoren.
- Use the handlebars for steering and balance.
- To brake, gently squeeze the brake levers. The scooter is equipped with front and rear braking systems for effective stopping.
- Utilize the integrated lighting system for enhanced visibility, especially during low-light conditions. Turn signals are available for indicating turns.
Image 5.2: The scooter's comprehensive lighting system, including a strong headlight, brake tail light, and left/right turn signals for improved safety and visibility.
5.4 CIRCOOTER App Integration
Download the "CIRCOOTER" app to unlock additional features and control options:
Image 5.3: The CIRCOOTER mobile application interface, demonstrating features such as riding records, headlight control, riding mode switch, and lock/unlock functionality.
- Kilometervisning: View your riding statistics.
- Gearskift: Adjust speed modes remotely.
- Fartpilot: Activate and manage cruise control settings.
- Forlygtekontrol: Turn headlights on or off.
- Lås/lås op: Secure your scooter.
6. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your CIRCOOTER Cruiser Pro.
6.1 Rutinemæssige kontroller
- Dæktryk: Check and maintain recommended tire pressure weekly.
- Bremser: Inspect brake levers, cables, and pads regularly for wear and proper function. Adjust or replace as needed.
- Bolte og fastgørelseselementer: Periodically check all bolts and fasteners for tightness. Tighten any loose components.
- Batteri: Store the scooter with a partially charged battery if not in use for extended periods. Avoid fully discharging the battery.
6.2 Rengøring og opbevaring
- Rengør scooteren med annonceamp klud. Undgå at bruge højtryksvandstråler direkte på elektriske komponenter.
- Opbevar scooteren et køligt og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- The foldable design allows for convenient storage in compact spaces.
7. Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på med din scooter. Ved problemer, der ikke er nævnt her, bedes du kontakte kundesupport.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Scooteren tænder ikke | Lavt batteri; Løse forbindelser; Fejl på tænd/sluk-knappen | Charge the battery; Check all visible cable connections; Contact customer support |
| Reduceret rækkevidde eller hastighed | Low tire pressure; Battery degradation; Riding in high-power mode constantly; Heavy load | Inflate tires to correct pressure; Use ECO mode; Reduce load; Contact customer support for battery issues |
| Bremserne føles svage | Worn brake pads; Loose brake cable; Air in hydraulic system | Inspect and replace brake pads; Adjust brake cable tension; Seek professional service for hydraulic system |
| Usædvanlige lyde under drift | Løse komponenter; Affald i hjul; Motorproblem | Check and tighten all bolts; Inspect wheels for foreign objects; Contact customer support |
8. Specifikationer
Detailed technical specifications for the CIRCOOTER Cruiser Pro Electric Scooter.
| Feature | Specifikation |
|---|---|
| Mærke | CIRKOOTER |
| Modelnavn | Cruiser Pro |
| Motorkraft | Dual 1200W (2400W Total) |
| Max hastighed | Op til 38 mph |
| Batteri | 48V 20Ah lithium-ion |
| Max rækkevidde | Op til 40 miles |
| Dæk | 11-inch Pneumatic Off-Road |
| Bremsesystem | Oil Brake, Disc Brake, Electronic Brake (Front & Rear) |
| Affjedring | Front and Rear Hydraulic Spring Shock Absorption |
| Rammemateriale | Aluminium-magnesiumlegering |
| Maksimal belastning (vægtgrænse) | 330 pund |
| Produktmål (LxBxH) | 54 cm L x 26 cm B x 52 cm H |
| Aldersinterval | 13+ |
| Speciel funktion | Sammenfoldelig |
| Vandtæt vurdering | IPX4 |
| Certificering | UL2272 |
9. Garanti og support
9.1 Garantioplysninger
All CIRCOOTER products, including the Cruiser Pro Electric Scooter, come with a limited warranty. The warranty coverage is as follows:
- 12 Months / 365 Days: For various accessories such as the rear fender, throttle, disc brake, etc.
- 180 dage: For the motor and battery.
This warranty ensures enhanced safety and professionalism, as the scooter has passed rigorous UL2272 certification.
9.2 Kundesupport
Should you have any questions, require assistance, or need to claim warranty service, our dedicated customer support team is available around the clock throughout the year to assist you. Your satisfaction is our top priority.
Kontakt email: hej@circooter.com
