Invengo MeowFlow E100 (PTM-673) Wireless Cat Water Fountain Instruction Manual

Indledning

Thank you for choosing the Invengo MeowFlow E100 Wireless Cat Water Fountain. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pet water dispenser. Please read this manual thoroughly before use and retain it for future reference.

The MeowFlow E100 is designed to provide your pets with fresh, clean water through an innovative wastewater separation system, eliminating the need for traditional filters. Its wireless design and long-lasting battery offer flexible placement options, ensuring your pet stays hydrated anywhere in your home.

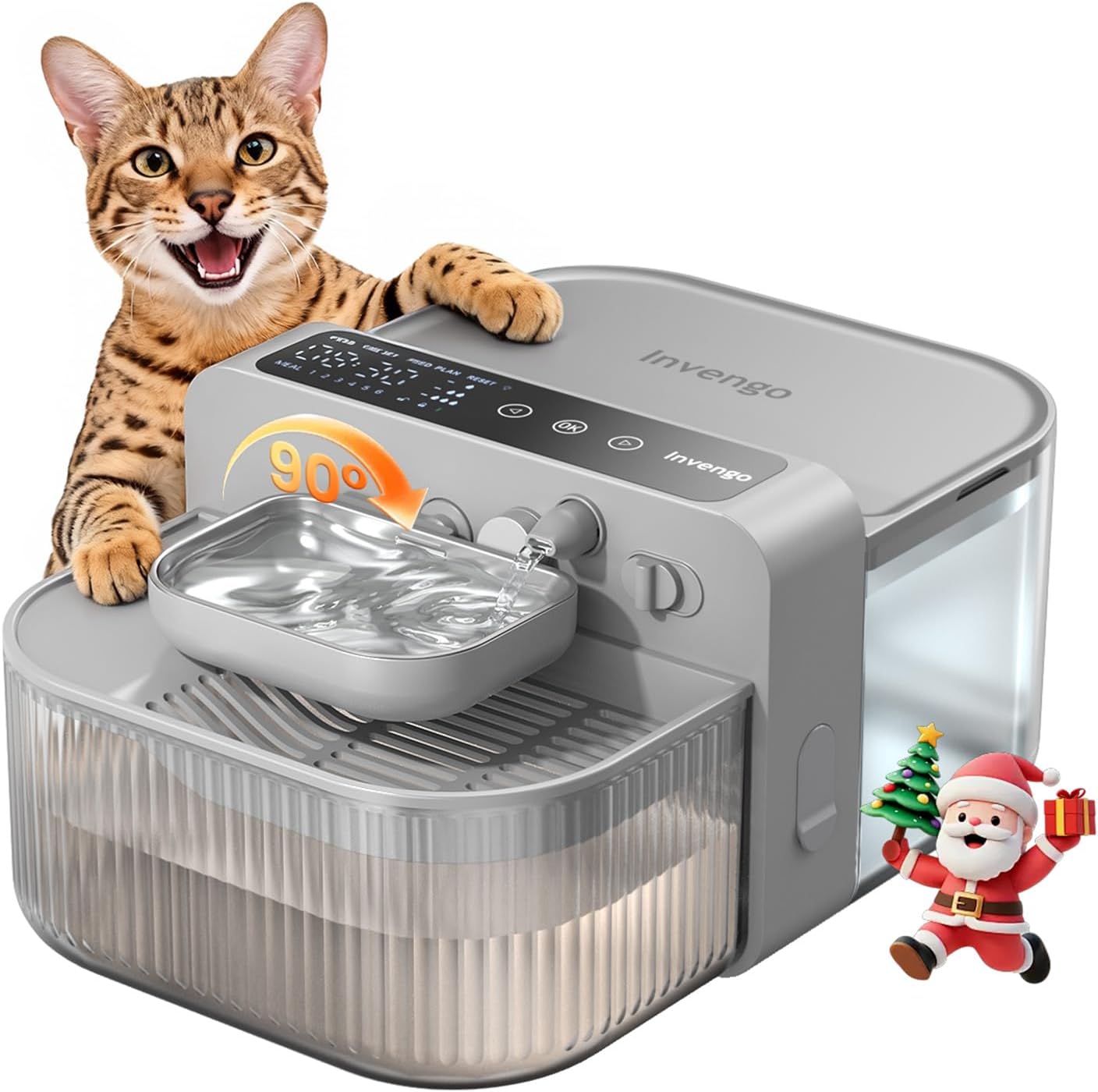

The Invengo MeowFlow E100 Wireless Cat Water Fountain, designed for optimal pet hydration.

Produkt overview og nøglefunktioner

The Invengo MeowFlow E100 offers several advanced features to ensure your pet's hydration needs are met with convenience and hygiene.

• Fresh & Hygienic Hydration: Features an innovative wastewater separation system, ensuring fresh water is always available for cats and dogs.
• No Filters Needed: Eliminates the need for expensive filter replacements, offering cost-saving and easy maintenance. Simple rinsing keeps the dispenser clean.
• Wireless Freedom & Long Battery Life: Powered by a 3000mAh rechargeable battery, providing up to 180 days of cordless operation for flexible placement.
• Safe & Durable Materials: Constructed with rust-resistant 304 stainless steel for the water bowl and food-grade ABS for the tank, ensuring pet safety and durability.
• Ultra-stille drift: Operates with minimal noise (0dB standby, <30dB refill noise), ensuring a peaceful environment for pets and owners.
• 3.5L Large Capacity & Smart Alerts: A 3.5L/118oz tank with 3 adjustable water levels and auto-refill. Smart panel alerts notify of low battery or full wastewater tank, and operation pauses if clean water runs low.

Innovative wastewater separation ensures only fresh water is consumed.

No filters required, reducing ongoing costs and maintenance.

Enjoy up to 180 days of cordless operation on a single charge.

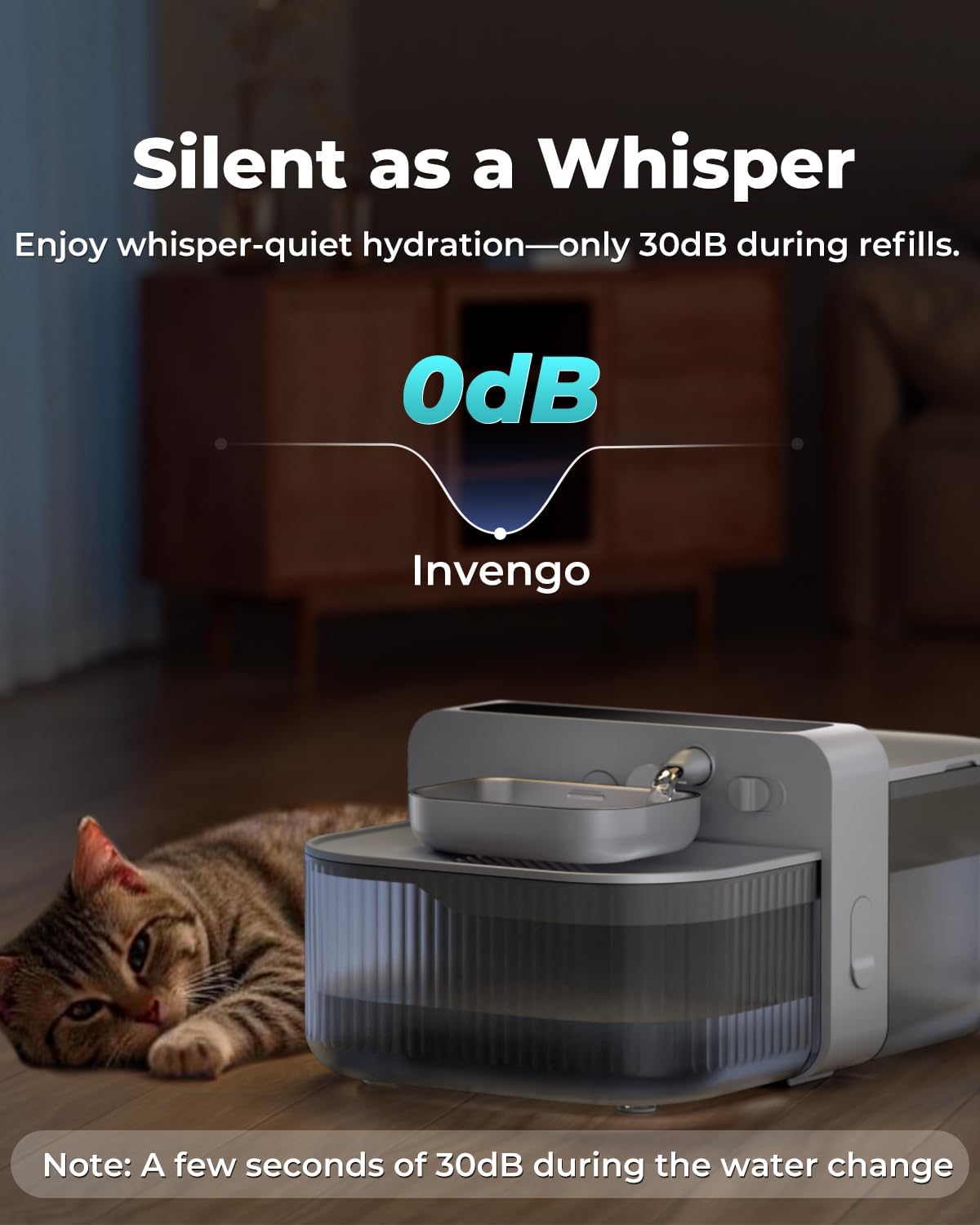

Ultra-quiet design ensures minimal disturbance.

Pakkens indhold

Ved udpakning skal du sørge for, at alle nedenstående varer er til stede og i god stand:

• Wireless Cat Water Fountain (Main Unit)
• Brugermanual
• Power Cord (USB Type-C)
• Adapter
• Rengøringsbørste

Alle komponenter er inkluderet i pakken.

Opsætning

Follow these steps to assemble your Invengo MeowFlow E100 water fountain:

1. Fjern alle komponenter fra emballagen.
2. Align the fresh water tank with the main unit and push it into position until it clicks securely.
3. Install the fresh water tank cover onto the opening of the fresh water tank.
4. Insert the waste water tank into the designated slot on the main unit.
5. Place the stainless steel water bowl into the holder on the main unit.
6. Attach the water outlet nozzle to the main unit.
7. Fill the fresh water tank with clean water. Do not overfill.
8. Ensure the power button on the side is in the 'ON' position.

Betjeningsvejledning

The MeowFlow E100 features an intuitive control panel for easy operation.

Kontrolpanelets funktioner:

• FODER: Manually dispense water.
• TID SET: Indstil den aktuelle tid.
• FEED PLAN: Program dispensing times and water levels.
• NULSTIL: Nulstil indstillingerne til fabriksindstillingerne.
• Pileknapper (< >): Naviger i menuer og juster værdier.
• OK knap: Bekræft valg.
• Børnelås: Touch and hold the "OK" button for 5 seconds to lock/unlock the panel.

Setting Water Dispensing Schedule:

1. Unlock the panel by holding the "OK" button for 5 seconds.
2. Press the "FEED PLAN" button to enter the scheduling interface.
3. Use the arrow buttons to select the desired meal (1-6) and press "OK".
4. Set the dispensing time and water level (small, medium, large) for each meal using the arrow buttons and "OK" to confirm.
5. After all meals are set, press and hold "OK" for 3 seconds to save and exit.

Vedligeholdelse og rengøring

Regular cleaning is crucial for your pet's health and the longevity of the water fountain. The MeowFlow E100 is designed for easy disassembly and cleaning.

1. Sørg for, at enheden er slukket, inden rengøring.
2. Remove both the fresh water tank and the waste water tank. Empty any remaining water.
3. Remove the stainless steel water bowl and the water outlet nozzle.
4. Clean the fresh water tank, waste water tank, and water bowl with mild soap and water. Use the provided cleaning brush for hard-to-reach areas.
5. VIGTIG: Do not soak or rinse the main unit. Wipe it with a damp cloth instead. The main unit is not washable.
6. Saml alle dele igen, når de er tørre.

Quick-clean design for easy maintenance.

Fejlfinding

If you encounter any issues with your Invengo MeowFlow E100, please refer to the following common solutions:

• Ingen vandudlevering: Check if the fresh water tank is empty. Refill if necessary. Ensure the power button is 'ON' and the device is charged.
• Vandstanden ændrer sig ikke: Verify that the water outlet nozzle is correctly installed and not blocked.
• Smart Alerts (Low Battery/Full Wastewater): The control panel will display alerts for low battery (at 30%) and when the wastewater tank is full. Charge the device or empty the wastewater tank accordingly.
• Panel reagerer ikke: Ensure the child lock is not activated. Hold the 'OK' button for 5 seconds to unlock.
• Usædvanlig støj: Check if all components are correctly assembled and seated. Ensure the water tanks are properly aligned.

Hvis problemet fortsætter, bedes du kontakte kundesupport.

Specifikationer

Garanti og support

Invengo provides the following warranty for your MeowFlow E100 Wireless Cat Water Fountain:

• Hovedenhed: 1 års garanti
• Vandpumpe: 2 års garanti

Ved spørgsmål, teknisk support eller garantikrav bedes du kontakte vores kundeserviceteam:

Email: service@invengo.com

Warranty information is included with your product.
