Mould King Rotary Engine Model Kit (2177+ PCS) Instruction Manual

1. Introduktion

Thank you for choosing the Mould King Rotary Engine Model Kit. This kit provides an engaging and educational experience, allowing you to construct a detailed, motorized replica of a Wankel rotary engine using over 2177 building pieces. This manual will guide you through the assembly process, operation, maintenance, and provide troubleshooting tips to ensure a rewarding building experience and a functional model.

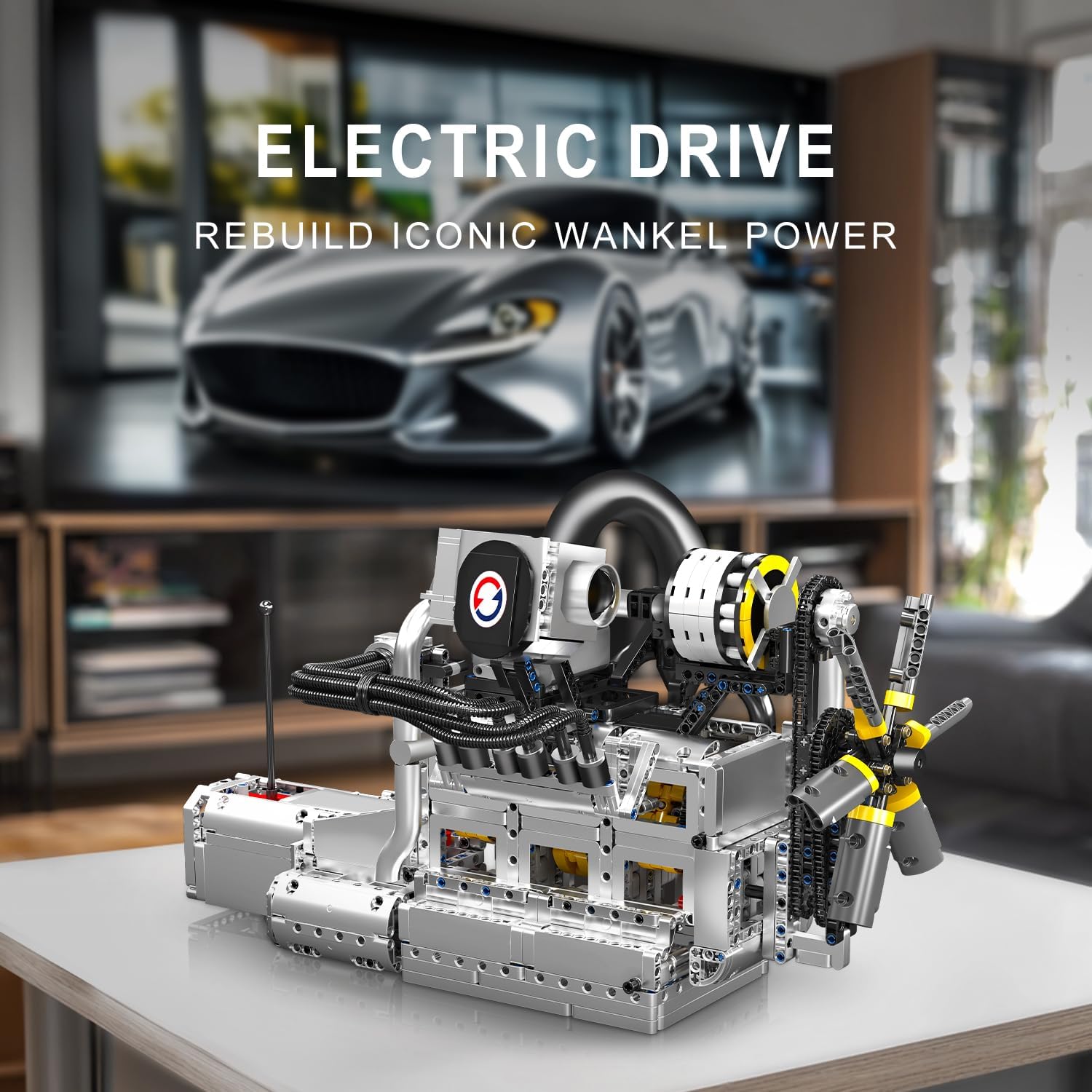

Image 1.1: The fully assembled Mould King Rotary Engine Model Kit.

2. Sikkerhedsoplysninger

Please read and understand all safety instructions before beginning assembly or operation of the model kit.

• Dette produkt anbefales til enkeltpersoner 14 år og ældre. Adult supervision is advised for younger builders.
• Hold små dele væk fra børn under 3 år for at forhindre kvælningsfare.
• Ensure all electrical components (motor, battery box) are handled carefully. Do not expose them to water or extreme temperatures.
• Batteries are not included with the kit. Use appropriate batteries as specified in the assembly instructions.
• Do not force pieces together. If parts do not fit, recheck the instructions.

3. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og ubeskadigede. Sættet indeholder:

• Over 2177 building block pieces, sorted into numbered bags.
• 1 x Electric Motor.
• 1 x Battery Box (requires 1 'A' battery, not included).
• 1 x Detailed Instruction Manual (this document).
• Additional accessories for assembly.

Image 3.1: The product packaging, indicating the kit contents.

4. Monteringsvejledning

The assembly of the Mould King Rotary Engine Model Kit is a detailed process designed to be both challenging and rewarding. Follow the included step-by-step graphical instructions carefully.

4.1. Forberedelse

• Ryd et rummeligt, godt oplyst arbejdsområde.
• Organize the numbered bags of building blocks according to the instruction manual's guidance.
• Ensure you have the necessary batteries for the battery box (1 'A' battery).

4.2. Trinvis bygning

Refer to the dedicated instruction booklet provided in your kit for detailed, visual assembly steps. Each step illustrates the parts required and their placement. Pay close attention to the orientation of pieces, especially gears and connecting rods.

• Follow the numbered steps sequentially. Do not skip steps.
• Verify part numbers and colors før de fastgøres.
• Sørg for, at forbindelserne er sikre but do not apply excessive force.
• Install the electric motor and battery box as indicated in the instructions. Proper placement is crucial for the engine's functionality.

Image 4.1: A builder engaged in the assembly process of the rotary engine model.

5. Betjeningsvejledning

Once fully assembled, your Mould King Rotary Engine Model Kit can be operated to demonstrate the principles of a Wankel engine.

5.1. Batteriinstallation

1. Locate the battery box on your assembled model.
2. Åbn batterirummets dæksel.
3. Insert 1 'A' battery, ensuring correct polarity (+/-).
4. Luk batterirummets dæksel forsvarligt.

5.2. Electric Motor Drive

The model features an electric motor that drives the rotary mechanism. Locate the power switch on the battery box or motor unit. Flip the switch to the 'ON' position to activate the motor. The internal rotors will begin to spin, simulating the operation of a real Wankel engine.

5.3. Gear Switching

Your model includes a functional gearshift mechanism. This allows you to observe the engine's operation at different speeds or in different modes. Experiment with the gear lever to understand how it changes the rotational speed or direction of the engine components.

Image 5.1: Visual guide for electric motor drive, gear switching, and battery box placement.

6. Pleje og vedligeholdelse

To ensure the longevity and optimal performance of your Mould King Rotary Engine Model Kit, follow these simple care and maintenance guidelines:

• Rensning: Støv modellen regelmæssigt af med en blød, tør klud. Ved genstridigt snavs, tør den let med enamp En klud kan bruges, men sørg for, at der ikke trænger fugt ind i de elektriske komponenter.
• Opbevaring: Opbevar modellen et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Fjernelse af batteri: If the model will not be used for an extended period, remove the battery from the battery box to prevent leakage and damage.
• Komponentkontrol: Kontrollér regelmæssigt alle forbindelser og bevægelige dele for at sikre, at de er sikre og fri for blokeringer.

7. Fejlfinding

If you encounter any issues with your model, refer to the following troubleshooting tips:

7.1. Engine Does Not Run

• Tjek batteri: Ensure the battery is correctly installed with the proper polarity and is not depleted. Replace if necessary.
• Afbryderen: Verify that the power switch on the battery box or motor is in the 'ON' position.
• Forbindelser: Inspect all electrical connections between the motor, battery box, and any wiring. Ensure they are firmly connected.
• Forhindringer: Check for any building blocks or foreign objects that might be obstructing the movement of the gears or rotors.

7.2. Gears Are Stiff or Jammed

• Recheck Assembly: Forsigtigt vedrview the assembly steps related to the gear mechanism. Incorrect placement of even one piece can cause jamming.
• Smøring: While not typically required for building blocks, ensure no dust or debris is interfering with gear movement.

8. Produktspecifikationer

Image 8.1: Dimensions of the assembled rotary engine model.

9. Kundesupport

For further assistance, missing parts, or any inquiries regarding your Mould King Rotary Engine Model Kit, please contact Mould King customer support through their official channels or the retailer where the product was purchased. Please have your ASIN (B0FNWR9V5T) and model number (2177+) ready when contacting support.
