Brugermanual til Anweller D208F Smart skydedørslås

1. Introduktion

Thank you for choosing the Anweller D208F Smart Sliding Glass Door Lock. This advanced biometric lock offers multiple unlocking methods including fingerprint, passcode, mobile app (WiFi remote), RFID card, and traditional key. Designed for enhanced security and convenience, it is suitable for various sliding doors such as glass sliding doors, patio doors, and aluminum alloy doors. Please read this manual carefully before installation and operation to ensure proper use and optimal performance.

2. Produktet er slutview

2.1 Nøglefunktioner

• 5 Unlocking Methods: Fingerprint, Passcode, Mobile App (WiFi Remote), RFID Card, and Mechanical Key.
• Forbedret sikkerhed: Features include wrong entry limit shutdown (90s after 5 invalid attempts), built-in tamper alarm, and anti-peeping passcode.
• Lang batterilevetid: Low power consumption ensures up to 8 months of battery life.
• Nødkraft: Equipped with a low battery reminder and a USB-C port for emergency power via a power bank.
• Holdbar konstruktion: Made from Zinc material with an Oil Rubbed finish.

2.2 Pakkens indhold

The Anweller D208F Smart Sliding Glass Door Lock package includes the following components:

• 1 x Front Lock Assembly
• 1 x Rear Lock Assembly
• 1 x Slagplade
• 1 x 2885 Mortise
• 2 x Mekaniske nøgler
• 2 x RFID-kort
• 1 x skruetrækker
• 1 x Screws Kit (various sizes for different door thicknesses)
• 1 x Brugermanual (dette dokument)

Image: Anweller D208F Smart Sliding Glass Door Lock with included accessories (keys, RFID cards, app interface).

3. Kompatibilitetskontrol

Before proceeding with installation, it is crucial to verify that your door is compatible with the Anweller D208F lock. Incompatibility may lead to improper function or damage.

• Dørtykkelse: Suitable for door thicknesses ranging from 13/15 inches (22mm) to 4-3/4 inches (120mm).
• Door Frame Width: The door frame must be at least 1.8 inches (45mm) wide for proper installation.
• Mortise Compatibility: Ensure the included 2885 Mortise is compatible with your door's existing mortise cutout or that your door can be modified to fit it. Extra drilling may be required.

Image: Diagram illustrating suitable door thickness (13/15" to 4-3/4") and minimum door frame width (≥1.8").

Image: Detailed dimensions of the 2885 Mortise, crucial for ensuring compatibility with your door.

4. Installation

Installation of the Anweller D208F lock requires precision. It is recommended to consult a professional locksmith or installer if you are not confident in performing the installation yourself. A detailed installation template is provided in the package to assist with drilling and alignment.

4.1 General Steps (Refer to included Installation and Setting Instruction manual for full details)

1. Forbered døren: Use the provided template to mark and drill necessary holes on your sliding door. Ensure accurate measurements for the mortise and lock body.
2. Install Mortise: Insert the 2885 Mortise into the prepared cutout on the door edge.
3. Assemble Lock Body: Connect the front and rear lock assemblies, ensuring all cables are properly routed and connected. Use the appropriate screws from the kit based on your door's thickness.
4. Sikr låsen: Fasten the lock assemblies to the door using the provided screws and screwdriver.
5. Installer låseplade: Attach the strike plate to the door frame, aligning it with the mortise.
6. Indsæt batterier: Open the battery compartment on the rear lock assembly and insert 4 AAA alkaline batteries (not included).
7. Test funktionalitet: After installation, test all unlocking methods and ensure the lock operates smoothly.

Image: The provided installation template helps ensure accurate drilling and alignment for the lock components.

5. Opsætning

After physical installation, configure the lock's smart features for optimal use.

5.1 App Setup (WiFi Remote)

The Anweller D208F lock connects to a mobile application (Tuya App) for remote management. This allows for remote unlocking, dynamic password generation, member management, unlocking record query, and real-time alerts.

1. Download the Tuya App from your smartphone's app store (iOS or Android).
2. Registrer eller log ind på din konto.
3. Add the D208F lock as a new device within the app, following the on-screen instructions. Ensure your lock is connected to a stable WiFi network.
4. Once connected, you can manage users, generate temporary passwords, and view oplåsning af poster.

Image: The mobile app interface demonstrating remote unlocking capabilities.

5.2 Opsætning af fingeraftryk

The lock features a highly accurate fingerprint sensor for quick and keyless entry.

1. Access the fingerprint management section via the lock's keypad or the mobile app.
2. Follow the prompts to register your fingerprint. You will typically need to place your finger on the sensor multiple times from different angles.
3. The lock supports up to 300 fingerprints with a recognition accuracy of 99% and an unlocking speed of less than 0.2 seconds.

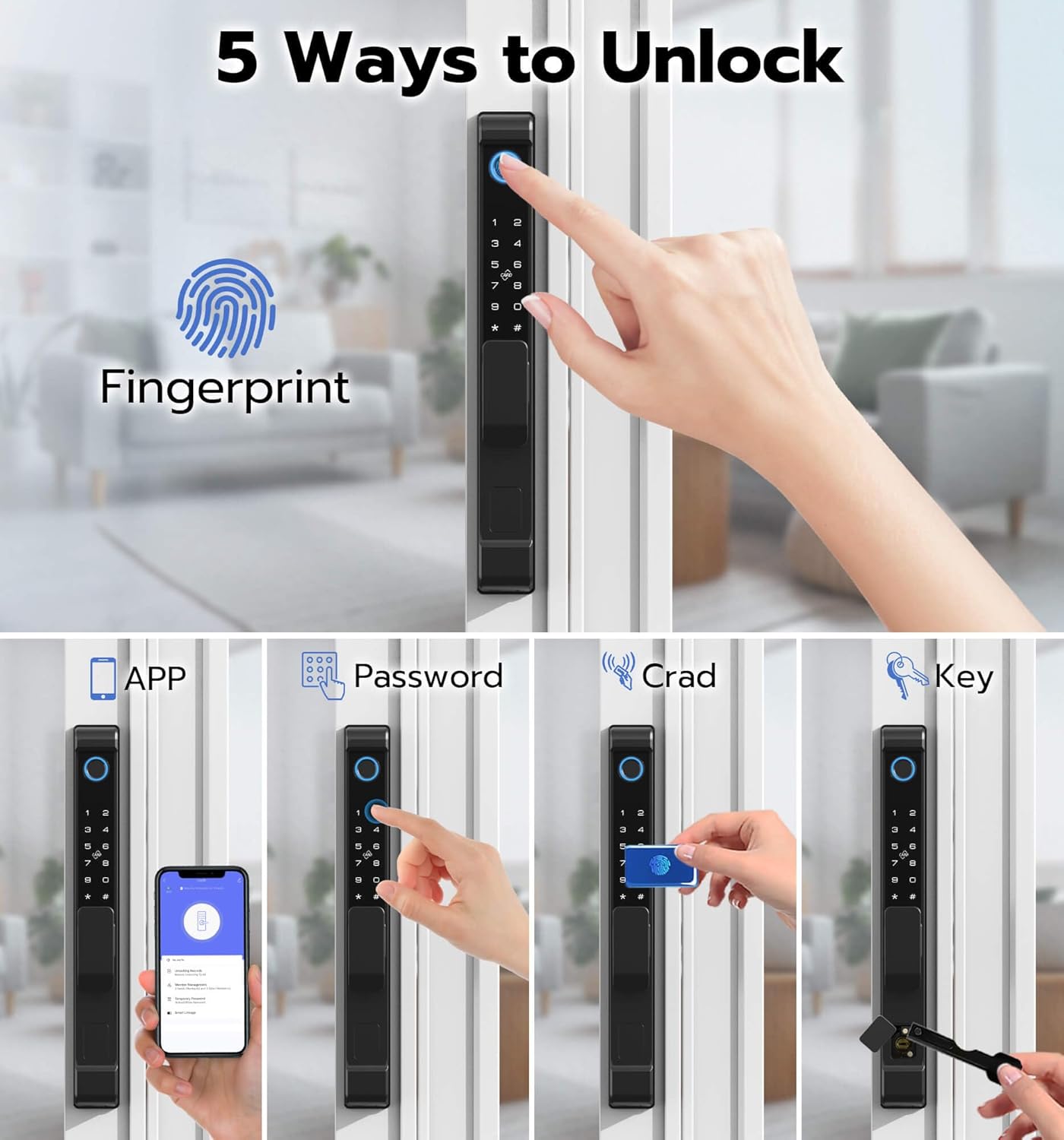

Image: Visual representation of the five unlocking methods, highlighting fingerprint access.

Image: A user demonstrating one-touch fingerprint unlocking for quick entry.

5.3 Passcode Setup

You can set up permanent or temporary passcodes for access.

1. From the lock's keypad or the app, navigate to the passcode settings.
2. Create a new passcode. The lock supports an anti-peeping passcode feature, allowing you to enter random digits before or after your actual code to prevent others from guessing it.
3. For temporary access, generate a one-time passcode via the mobile app.

Image: Illustration of the one-time passcode feature, useful for granting temporary access.

5.4 RFID Card Setup

The lock comes with two RFID cards for convenient tap-to-unlock access.

1. To register an RFID card, follow the instructions in the app or the lock's keypad menu.
2. Present the RFID card to the designated sensor on the lock when prompted.

6. Betjeningsvejledning

6.1 Oplåsning af døren

• Fingeraftryk: Placer din registrerede finger på fingeraftrykssensoren. Låsen låses op, hvis fingeraftrykket genkendes.
• Adgangskode: Indtast din registrerede adgangskode på tastaturet, efterfulgt af '#'-tasten.
• Mobil app: Open the Tuya App, select your lock, and tap the unlock button.
• RFID-kort: Tap a registered RFID card against the card reader area on the lock.
• Mekanisk nøgle: Insert the backup key into the emergency keyhole (located at the bottom of the exterior unit) and turn to unlock.

6.2 Låsning af døren

• Automatisk låsning: The lock can be configured to automatically lock after a set period once closed.
• Manual Locking (Exterior): Press the '#' key on the keypad or use the mobile app to lock the door.
• Manual Locking (Interior): Use the physical lock/unlock button or lever on the interior unit.

7. Vedligeholdelse

7.1 Batteristyring

The Anweller D208F lock requires 4 AAA alkaline batteries (not included). It is designed for low power consumption, providing approximately 8 months of battery life under normal usage.

• Lavt batteri påmindelse: The lock will provide an audible and visual alert when batteries are low.
• Udskiftning af batteri: Replace all 4 AAA batteries when the low battery warning appears.
• Nødkraft: If the batteries completely drain, you can provide emergency power by connecting a power bank to the USB-C port located at the bottom of the exterior unit. Alternatively, use the mechanical backup keys.

Image: Details on battery installation, 8-month battery life, and emergency USB-C charging port.

7.2 Rengøring og pleje

To maintain the appearance and functionality of your lock:

• Wipe the lock surface with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Keep the fingerprint sensor and keypad clean and dry for optimal performance.
• Ensure the lock mechanism is free from obstructions.

8. Fejlfinding

If you encounter issues with your Anweller D208F lock, please refer to the following common troubleshooting tips:

• Låsen svarer ikke: Check battery levels. If low, replace batteries or use emergency power.
• Fingeraftryk ikke genkendt: Sørg for, at din finger er ren og tør. Registrer dit fingeraftryk igen, hvis problemerne fortsætter.
• Passcode Entry Issues: Verify the correct passcode is entered. Utilize the anti-peeping feature by entering random digits before/after your code.
• Problemer med appforbindelse: Ensure your lock is within WiFi range and your router is functioning correctly. Reconnect the lock to the app if necessary.
• Låsemekanismen sidder fast: Check for any physical obstructions in the door frame or mortise. Ensure the door is properly aligned.
• Wrong Entry Alarm: If 5 invalid entry codes or RFIDs are attempted, the lock will shut down for 90 seconds. Wait for the lockout period to end before trying again.

For more complex issues or persistent problems, please contact Anweller Customer Support.

9. Specifikationer

10. Garanti og support

Anweller is committed to providing high-quality products and excellent customer service.

• Garanti: The Anweller D208F Smart Sliding Glass Door Lock comes with a 12-month warranty from the date of purchase. This covers manufacturing defects and malfunctions under normal use.
• Teknisk support: Anweller provides free lifetime technical support. If you have any questions, require assistance with installation, setup, or troubleshooting, please do not hesitate to contact our support team.
• Returnering/refusion: Hassle-free replacements or refunds are available within 12 months of purchase for eligible issues.

For support, please visit the Anweller store on Amazon or contact us directly through the contact information provided in your product packaging.
