1. Produktet er slutview
The LAMTTO 10.25'' Wireless CarPlay Screen is designed to enhance your in-car experience by providing seamless integration of smartphone features, entertainment, and navigation. This portable device offers a high-definition display, wireless connectivity for Apple CarPlay and Android Auto, and built-in applications like Netflix and YouTube.
Billede: Overview of the LAMTTO 10.25'' Wireless CarPlay Screen's multi-functional capabilities.
Nøglefunktioner:
- 10.25-inch HD In-Cell Touchscreen Display (1920x720 Resolution)
- Wireless Apple CarPlay and Android Auto compatibility
- Built-in streaming apps: Netflix, YouTube, TikTok
- Dual-band Wi-Fi and Bluetooth 5.3 for stable connectivity
- Voice control for navigation, music, and calls
- Split-screen functionality
- AHD Reverse Assistant Camera with dynamic guidelines
- Multiple audio output options: Built-in speaker, Bluetooth, FM Transmission, AUX
- Customizable UI with boot logos and wallpapers
2. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- 1 x 10.25'' In-Cell Portable CarPlay Screen
- 1 x Car Charger (Type-C, USB)
- 1 x 59-inch AUX Cable
- 2 x Mounting Brackets (Suction Cup and Adhesive)
- 1 x AHD Backup Camera with 256-inch Cable
- 1 x brugermanual
- Installation Tools & 3M Adhesive Tape
Billede: Detaljeret view of all items included in the product package.
Video: Unboxing and initial display of the LAMTTO CarPlay screen and its components.
3. Installation
3.1 Mounting the Screen
The LAMTTO CarPlay screen offers flexible mounting options to suit your vehicle's dashboard or windshield. Choose the most suitable bracket for your setup.
- Montering af instrumentbræt: Use the adhesive bracket for a secure placement on your dashboard. Ensure the surface is clean and dry before applying the adhesive.
- Forrudemontering: Utilize the suction cup bracket for easy attachment to your windshield. Clean the windshield surface thoroughly for optimal suction.
Image: Two primary installation methods for the CarPlay screen.
3.2 Strømtilslutning
Connect the provided car charger to your vehicle's cigarette lighter socket and plug the Type-C end into the CarPlay screen. The device will power on automatically when your vehicle starts.
3.3 Montering af bakkamera
The AHD backup camera provides a clear view for safe reversing. Connect the camera to the designated input on the CarPlay screen and route the cable to the rear of your vehicle. Professional installation is recommended for optimal wiring concealment and connection to your vehicle's reverse light circuit for automatic activation.

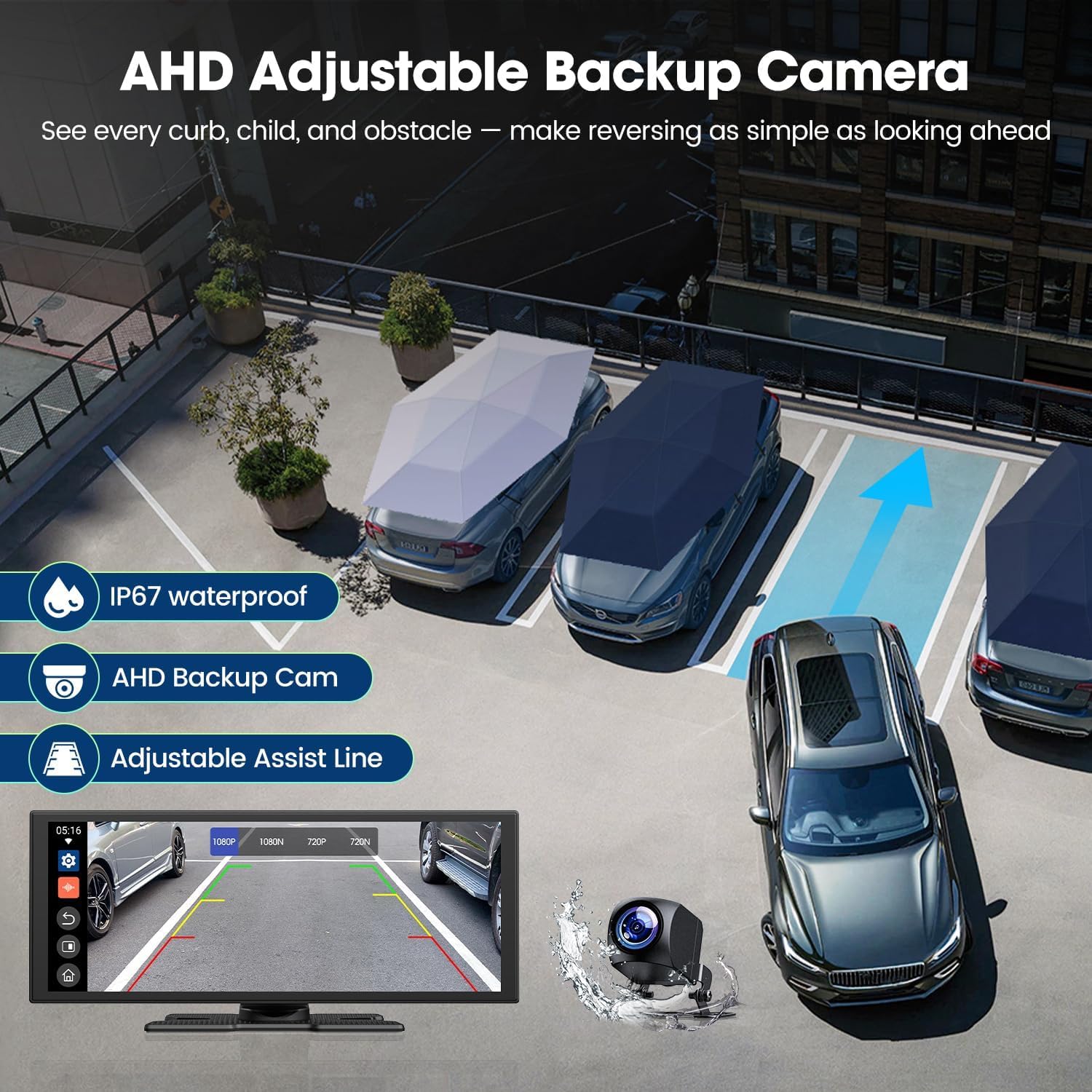

Image: AHD Adjustable Backup Camera with parking assist lines.
4. Indledende opsætning
Upon first power-on, the device will guide you through initial setup steps:
- Vælg sprog: Choose your preferred language (e.g., English).
- Vælg region: Choose your geographical region (e.g., United States, Canada).
- Sikker brugsvejledning: Review the safety guidelines. It is strictly prohibited to manually enter information, make or receive calls, or engage in any other activities that may interfere with driving while the vehicle is in motion. These actions should only be performed when the vehicle is stationary to ensure driving safety.
- Kørestilling: Select the driving position (left or right-hand side) to optimize the navigation bar layout.
5. Tilslutning af din smartphone
The CarPlay screen supports both Wireless Apple CarPlay and Android Auto for seamless smartphone integration.
5.1 Wireless Apple CarPlay Connection
To connect your iPhone:
- Ensure Bluetooth and Wi-Fi are turned on on your iPhone.
- On your iPhone, search for and connect to the Bluetooth name displayed on the CarPlay screen (e.g., T88-RX85EA0).
- Wait for the iPhone pop-up inquiry and select "Connect" to CarPlay.
- Forbindelsen lykkedes.
Image: Visual guide for connecting to Apple CarPlay.
5.2 Android Auto-forbindelse
To connect your Android phone:
- Ensure Bluetooth and Wi-Fi are turned on on your Android device.
- On your Android device, search for and connect to the Bluetooth name displayed on the CarPlay screen (e.g., T88-RX85EA0).
- Confirm the Bluetooth pairing request.
- Forbindelsen lykkedes.
Image: Visual guide for connecting to Android Auto.
Video: Demonstration of connecting a smartphone to the CarPlay screen.
6. Betjening af enheden
6.1 Brugergrænsefladenavigation
The device features an intuitive touchscreen interface. Swipe left or right to navigate between screens and tap icons to open applications. The side navigation bar provides quick access to frequently used functions like Home, Back, and currently open applications.
Image: CarPlay screen displaying its main user interface and features.
6.2 Built-in Apps (Netflix, YouTube, TikTok)
Connect the device to your phone's hotspot to stream content directly from built-in apps. These apps are designed for use when the vehicle is stationary.

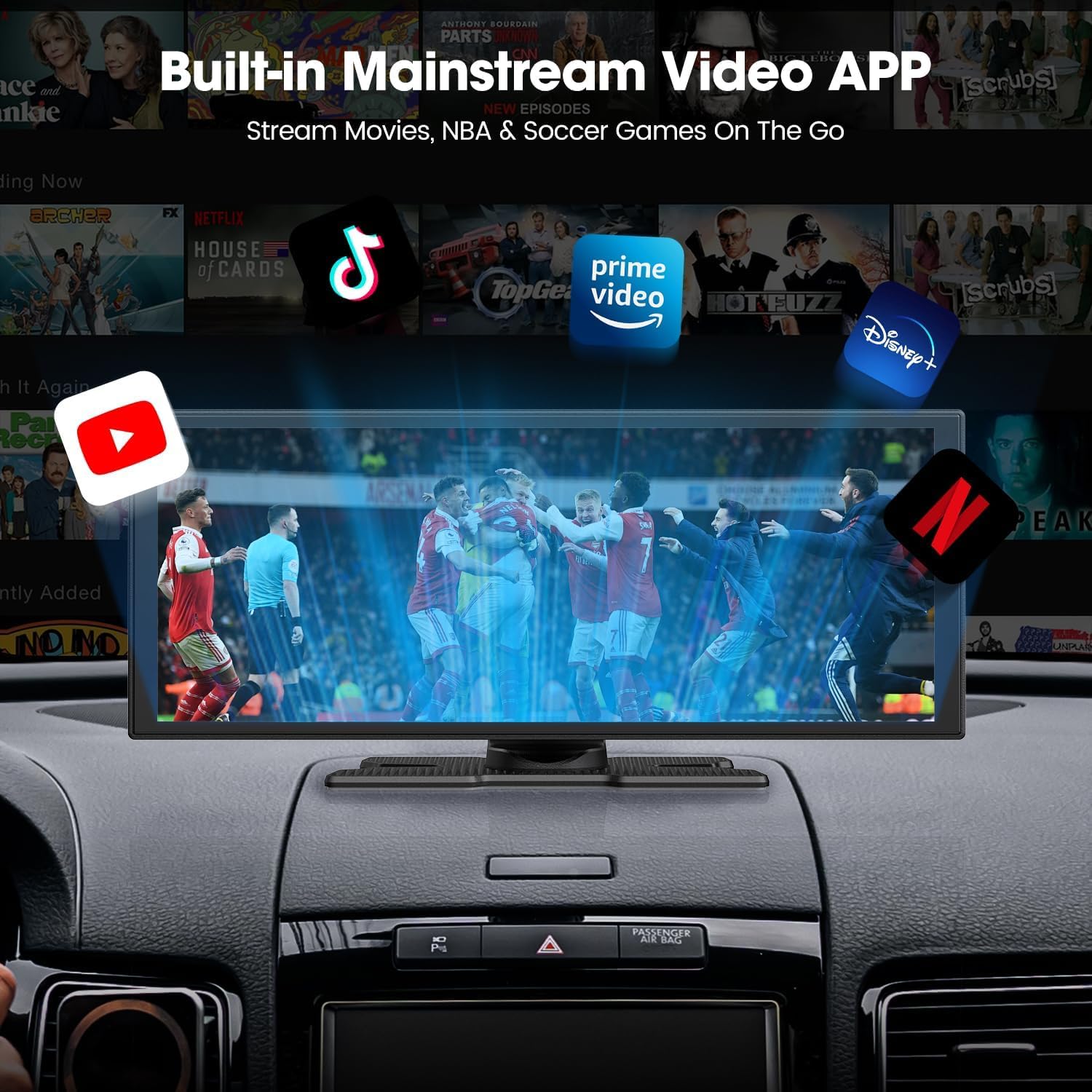

Image: Built-in mainstream video applications on the CarPlay screen.
Video: Overståetview of the CarPlay screen's built-in Netflix and YouTube applications.
6.3 Opdelt skærmfunktionalitet
Utilize the split-screen feature to display two applications simultaneously. For example, view navigation on one side while a passenger enjoys entertainment on the other.
Image: Wireless CarPlay and Android Auto with split-screen capability.
6.4 Stemmekontrol
Access navigation, make calls, and control music using voice commands through Apple CarPlay or Android Auto. This feature promotes safer driving by minimizing manual interaction with the screen.
Image: Wireless CarPlay/Android Auto with Voice Control.
6.5 Online Navigation
When connected to your smartphone, the device provides real-time online navigation through your preferred map applications (e.g., Apple Maps, Google Maps).
Image: Navigation requires a smartphone connection.
6.6 Musikafspilning
Stream music from your smartphone via CarPlay or Android Auto. The device supports various audio output options for an optimized listening experience.
7. Indstillinger for lydoutput
The CarPlay screen offers several ways to output audio:
- Indbygget højttaler: Audio is played directly through the CarPlay screen's integrated speaker.
- Bluetooth transmission: Pair the CarPlay screen with your car's original stereo system via Bluetooth to play audio through your car speakers.
- FM transmission: Use the FM output to connect the CarPlay screen to your car's original sound system. Tune your car radio to the matching FM frequency on the smart screen (between 100-108 MHz). Avoid non-popular or blank FM frequencies to prevent signal interference.
- AUX: Use the provided AUX cable to connect the CarPlay screen to your car's audio system for a wired connection.
8. Tilpasning
Personalize your CarPlay screen experience:
- Boot Logos & Wallpapers: Upload your favorite boot logos and wallpapers via an SD card to customize the device's appearance.
Image: Customizing the CarPlay screen with personal wallpapers and boot logos.
9. AHD Reverse Assistant Camera
The advanced AHD backup camera activates automatically when you shift into reverse, providing a stable and clear real-time view, even in low-light conditions. Intuitive dynamic guidelines assist with confident maneuvering and scratch prevention.
Image: Adjustable Parking Assist Lines for the AHD Reverse Assistant Camera.
10. Vedligeholdelse og pleje
- Rensning: Regularly clean the screen with a soft, lint-free cloth. Avoid harsh chemicals or abrasive materials.
- Temperatur: Avoid exposing the device to extreme temperatures. If the screen becomes hot during operation, do not worry; this is normal.
- Firmwareopdateringer: Check for online firmware updates to ensure optimal performance and compatibility.
11. Fejlfinding
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Video playback is lagging. | Unstable network connection or full cache. | Ensure a stable network connection (phone hotspot) and regularly clear the device's cache. |
| CarPlay/Android Auto frequently disconnects. | Switching between full-screen and split-screen mode can cause reconnection. | This is normal behavior as the system reconfigures. Ensure your phone's Wi-Fi and Bluetooth remain stable. |
| Cannot install other apps. | System stability restrictions. | For system stability, only apps available in the device's app store can be installed. |
| Screen does not switch to dark mode automatically. | Missing light sensor or theme not following Google Maps. | Check device settings for manual brightness adjustment or dark mode options. Some devices may not have an automatic light sensor. |
12. Specifikationer
| Feature | Detalje |
|---|---|
| Skærmstørrelse | 10.25 tommer |
| Skærmopløsning | 1920x720 |
| Forbindelsesteknologi | Bluetooth 5.3, Dual-band Wi-Fi |
| Særlige funktioner | Android Auto, Apple CarPlay, Built-In Bluetooth, Built-In YouTube & Netflix apps, Voice Control |
| Kompatible enheder | Smartphone (iOS 10+, Android 11+) |
| Connector Type | USB Type-C |
| Lydudgangstilstand | Stereoanlæg |
| Videokodning | H.264, H.265/HEVC, VP9, AV1 |
| Understøttede internettjenester | Google TV, Hulu, Netflix, YouTube |
| Varens vægt | 2.66 pund |
| Pakkedimensioner | 11.5 x 5.59 x 4.21 tommer |
13. Garanti og support
LAMTTO is committed to providing professional customer support. If you have any questions, require installation guidance, or need troubleshooting assistance, please contact us. We aim to respond within 24 hours with dedicated solutions.
Kontakt email: DC@yoomail.com
