GAOMON Greenhouse 8x16 FT Instruction Manual

1. Introduktion

This manual provides essential information for the assembly, operation, and maintenance of your GAOMON 8x16 FT Aluminum-Framed Heavy Duty Polycarbonate Greenhouse. Please read these instructions thoroughly before beginning assembly or use to ensure safe and efficient operation.

Image 1.1: GAOMON 8x16 FT Greenhouse in a garden setting.

2. Sikkerhedsoplysninger

ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i personskade eller beskadigelse af produktet.

• Always wear gloves when handling the greenhouse components to prevent injury from sharp edges.
• Be cautious of UV exposure when working under the polycarbonate panels.
• Ensure the greenhouse is properly anchored to prevent it from tipping over in strong winds.
• Follow the provided instructions for safe assembly and ventilation to prevent damage or injury.

3. Produktfunktioner

• UV-Blocking Polycarbonate Panels: These panels filter harmful light while maximizing beneficial sunlight, creating an ideal environment for plant growth and preventing sunburn.
• Adjustable Roof Vent & Gutter System: Equipped with an adjustable roof vent for customizable positioning and a gutter system for rainwater collection.
• Upgraded Aluminum Frame: Meticulously crafted with high-quality aluminum components, designed to withstand various harsh weather conditions. The frame has a wind resistance rating of 50 miles per hour and a snow load capacity of 40 kilograms per square meter.
• Versatile Gardening Space: Giver ample space for plant cultivation and can also serve as a private lounge or small reception room.
• Quick Setup Structure: Features a simple design with a quick installation system and plug-in panels, optimized for faster assembly and enhanced stability.

Image 3.1: All-season protection features of the greenhouse.

4. Monteringsvejledning

The GAOMON Greenhouse features a revolutionary quick-assembly design with plug-in panels, significantly reducing installation time. It is recommended that two adults perform the assembly.

4.1 General Assembly Overview

For a comprehensive visual guide, please refer to the official product assembly video below. This video demonstrates the step-by-step process for constructing the greenhouse.

4.2 Vigtige monteringstrin

1. Step 1: Installation of the Bottom Frame: Assemble the base frame components (A2-1, A2-2, A26, H9, H6) as shown in the diagram. Ensure all connections are secure.
2. Step 2: Installation of the Main Frame: Attach the vertical support poles (A5-1, A5-2, H1) to the bottom frame. Then, install the side panels (B1, B2, B12) and horizontal crossbars (A3-1, A3-2, A9) to form the main structure.
3. Step 3: Installation of the Top Window: Assemble the top window frame (A17, H20) and insert the window panel (B11). Secure with screws (H6).
4. Step 4: Mounting of Top Frame: Install the top roof frame components (A16, A10-1, A10-2) and secure them.
5. Step 5: Installation of Sink Components: Attach the gutter (A21) and downspout (H5) components, securing them with screws (H11). Ensure proper alignment for rainwater collection.
6. Step 6: Installation of Door Frame Components: Assemble the door frame (A18-1, A18-2, B6, A19, A20, H4) and attach the door handle (C4) and locking mechanism (H22).
7. Step 7: Installation of Top Reinforcement Components: Install the top reinforcement bars (A25-1, H8, C6) to enhance the structural integrity of the roof.

Image 4.2: Quick connector design for simplified assembly.

4.3 Side Panel Installation Guide

For detailed instructions on installing the side panels, please watch the video below. This video provides specific guidance on inserting and securing the polycarbonate panels into the frame.

5. Betjening

5.1 Ventilation

The greenhouse is equipped with an adjustable roof vent. Open the vent to allow for air circulation and temperature regulation, especially during warmer periods. Close the vent to retain heat during cooler periods.

Image 5.1: Adjustable roof vent for optimal airflow.

5.2 Rainwater Collection

The integrated gutter system collects rainwater from the roof. This water can be directed into a rain barrel or other collection system for sustainable irrigation of your plants.

Image 5.2: Lockable door and built-in gutter system.

5.3 Lockable Door

The greenhouse features a secure lockable door to protect your plants and resist wind impact. Ensure the door is properly latched or locked when not in use.

6. Vedligeholdelse

• Regelmæssig rengøring: Periodically clean the polycarbonate panels with mild soap and water to ensure maximum light transmission. Avoid abrasive cleaners that could scratch the panels.
• Rammeinspektion: Regularly check the aluminum frame for any loose screws or connections. Tighten as necessary to maintain structural integrity.
• Gutter Maintenance: Keep the gutter system clear of debris (leaves, dirt) to ensure efficient rainwater collection and prevent blockages.
• Vinter forberedelse: While the greenhouse is designed for all seasons, in areas with heavy snowfall, it is advisable to regularly clear snow from the roof to prevent excessive load.

7. Specifikationer

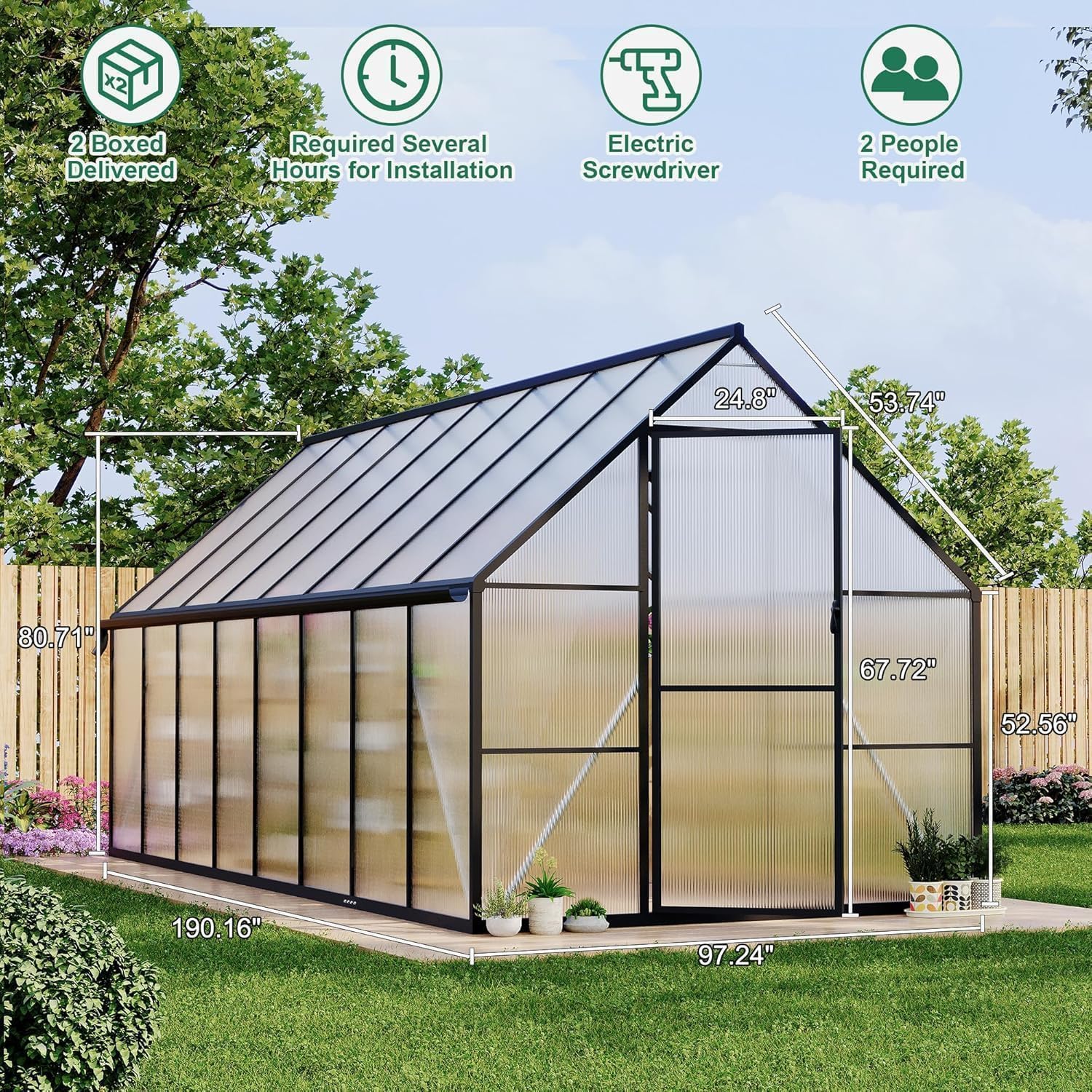

Image 7.1: Key dimensions of the GAOMON 8x16 FT Greenhouse.

8. Kundesupport

For any questions, concerns, or assistance with your GAOMON Greenhouse, please contact our customer support team. Refer to your purchase documentation for specific contact details or visit the GAOMON official webwebsted.
