Tineco FLOOR ONE S6 Stretch Steam Ledningsbaseret Våd-Tør Støvsugerdampmoppe Brugsanvisning

1. Introduktion

Thank you for choosing the Tineco FLOOR ONE S6 Stretch Steam Corded Wet Dry Vacuum Steam Mop. This all-in-one cleaning solution is designed to simplify your floor care routine by combining vacuuming, mopping, and high-temperature steam cleaning. Please read this instruction manual thoroughly before use to ensure safe and optimal operation of your appliance.

2. Vigtige sikkerhedsinstruktioner

When using an electrical appliance, basic precautions should always be followed to avoid fire, electric shock, or injury. Please observe the following:

• Læs alle instruktioner før brug af apparatet.
• Nedsænk ikke apparatet i vand eller andre væsker.
• Efterlad ikke apparatet uden opsyn, når det er tilsluttet. Tag stikket ud af stikkontakten, når det ikke er i brug, og før servicering.
• Må ikke bruges med beskadiget ledning eller stik. Hvis apparatet ikke fungerer, som det skal, er blevet tabt, beskadiget, efterladt udendørs eller tabt i vand, skal det returneres til et servicecenter.
• Træk ikke i eller bær med ledningen, brug ledningen som et håndtag, luk en dør på ledningen eller træk ledningen omkring skarpe kanter eller hjørner. Hold ledningen væk fra opvarmede overflader.
• Do not allow children to play with the appliance. Close attention is necessary when used by or near children.
• Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
• Always disconnect the appliance from the electrical outlet before filling with water.
• Ret ikke damp mod mennesker, dyr eller stikkontakter.
• Use caution when using the appliance on stairs.
• Do not use the appliance in enclosed spaces where explosive or toxic vapors are given off.
• Må ikke bruges på læder, vokspolerede møbler eller gulve, syntetiske stoffer, fløjl eller andre sarte, dampfølsomme materialer.
• Do not use cleaning solutions other than those recommended by Tineco.

3. Pakkens indhold

Your Tineco FLOOR ONE S6 Stretch Steam package includes the following items:

• Main Unit (with Dirty Water Tank and Clean Water Tank installed)
• Håndtag
• ZeroTangle Brush (pre-installed)
• Udskiftningsbørsterulle
• Dry Filter (pre-installed)
• Rengøringsværktøj
• Tørre- og opladningsdock

Figure 1: All included components of the Tineco FLOOR ONE S6 Stretch Steam.

4. Opsætning

4.1 Assembling the Main Unit

1. Insert the handle into the main unit until you hear a click. Ensure it is securely fastened.
2. Place the main unit onto the Drying & Charging Dock. Connect the power adapter to the dock and plug it into a wall outlet.

4.2 Fyldning af rentvandstanken

1. Press the Clean Water Tank release button and remove the tank from the main unit.
2. Open the tank cap and fill with cold tap water up to the MAX line. Do not use hot water.
3. If desired, add one capful of Tineco cleaning solution to the clean water tank. Do not use other cleaning solutions.
4. Close the tank cap securely and reinsert the Clean Water Tank into the main unit until it clicks into place.

Figure 2: The Tineco FLOOR ONE S6 Stretch Steam fully assembled and ready for charging.

5. Betjeningsvejledning

5.1 Powering On and Steam Preparation

1. Ensure the appliance is plugged into a power outlet.
2. Press the Power Button on the handle to turn on the appliance.
3. The appliance will begin heating the water for steam. This process typically takes around 60 seconds for the first use and about 45 seconds for subsequent uses. The display will indicate when steam is ready.

Figure 3: The appliance heating water for 320°F high-temperature steam cleaning.

5.2 Rengøringstilstande og -funktioner

• Tineco BoostSteam Technology: High-pressure steam instantly liquefies stubborn grime, grease, and deep-seated dirt effortlessly.
• 320°F High-Temp Steam Cleaning: Heats steam up to 320°F, ensuring the outlet temperature does not fall below 210°F, effectively dissolving stubborn grease and stains.

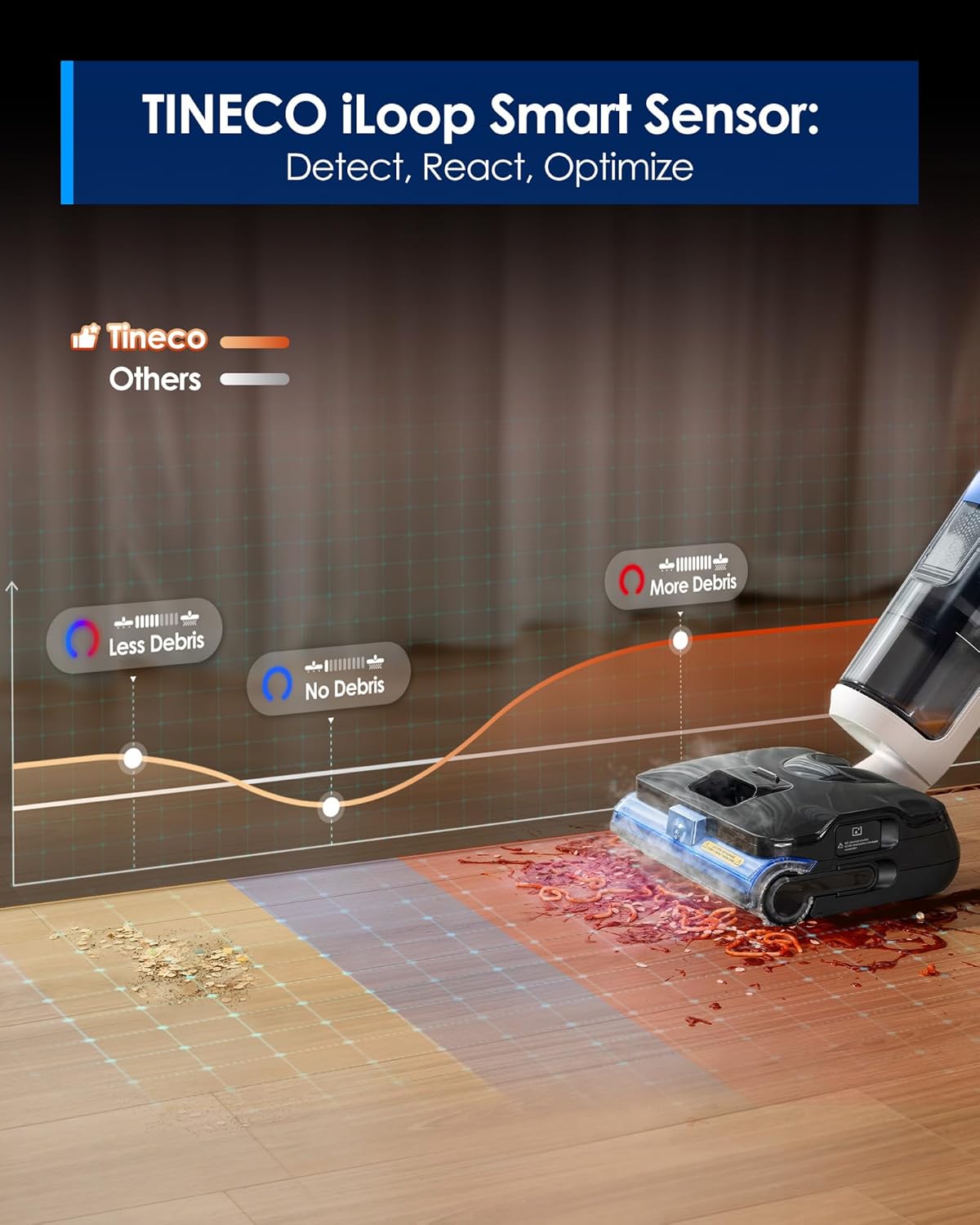

• iLoop Smart Sensor: The intelligent iLoop sensor detects dirt on your floor and automatically adjusts suction power and water flow for optimal cleaning efficiency. The LED display will change color (red for dirty, blue for clean) to indicate the floor's cleanliness.
• 180° Lay-Flat Design: With a slimmer body and a height of just 5.1 inches when laid flat, the appliance easily maneuvers under furniture and into low areas to clean hidden dust.
• Dobbeltsidet kantrengøring: The brush head is designed to effectively clean along baseboards, ensuring that every corner is thoroughly cleaned.
• 326 inches Extended Reach: The extra-long cord allows you to clean large areas continuously without unplugging interruptions.

Figure 4: BoostSteam Technology in action, showing steam dissolving grime.

Figure 5: The 180° Lay-Flat Design allows easy cleaning under low furniture.

Figure 6: Dual-sided edge cleaning for thorough cleaning along walls.

Video 1: Official Tineco video demonstrating the FLOOR ONE S6 Stretch Steam's features, including steam cleaning and maneuverability.

6. Vedligeholdelse

6.1 One-Touch Self-Cleaning System

After each cleaning session, place the appliance on the Drying & Charging Dock and press the self-cleaning button on the handle. The appliance will automatically perform a self-cleaning cycle:

1. Step 1: Self-cleaning with Steam & Heated Water: Using steam and fresh heated water, the system effectively dissolves stains from the pipe to the brush roller, providing a superior self-cleaning result.
2. Step 2: Centrifugal Air Drying: The system effectively removes water from the brush roller for a hygienic, odor-free home.

Figure 7: The appliance automatically cleans its brush roller and internal pipes.

6.2 Tømning af beskidtvandstanken

The Dirty Water Tank should be emptied after each use. Press the release button and remove the tank. Open the lid and dispose of the dirty water and debris. Rinse the tank with clean water and allow it to air dry before reinserting.

6.3 Cleaning the Brush Roller and Filter

Regularly inspect and clean the brush roller and dry filter to maintain optimal performance. The brush roller can be removed by opening the brush cover. Wash the brush roller and filter with water and allow them to air dry completely before reinstallation. Replace the brush roller every 3-6 months and the filter every 2-3 months, or as needed.

7. Fejlfinding

If you encounter any issues with your Tineco FLOOR ONE S6 Stretch Steam, please refer to the following common troubleshooting tips:

• Ingen strøm: Ensure the power cord is securely plugged into a working outlet and the charging dock. Check for any tripped circuit breakers.
• Ingen damp: Verify that the Clean Water Tank is filled with water and properly installed. Allow sufficient time (up to 60 seconds) for the appliance to heat up.
• Dårlig sugeevne: Check if the Dirty Water Tank is full and needs emptying. Ensure the brush roller and filter are clean and free from blockages.
• Ubehagelig lugt: Regularly empty and clean the Dirty Water Tank, brush roller, and filter. Run the self-cleaning cycle after each use.
• Appliance Not Charging: Ensure the appliance is correctly placed on the Drying & Charging Dock and the power adapter is connected.

For persistent issues, please contact Tineco Customer Support.

8. Specifikationer

9. Garanti og support

For warranty information and customer support, please refer to the official Tineco webwebstedet eller garantikortet, der er inkluderet i din produktemballage. Du kan også besøge Tineco Store on Amazon for yderligere ressourcer.
