WYBOT S2 Pro trådløs robotpoolrenser brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your WYBOT S2 Pro Cordless Robotic Pool Cleaner. The S2 Pro is designed for inground pools, offering advanced features such as underwater wireless charging, remote app control, and dual cleaning filtration. Please read this manual thoroughly before using the device to ensure proper setup and maintenance.

2. Sikkerhedsoplysninger

• Always ensure the power adapter is disconnected from the outlet before performing any maintenance or cleaning.
• Do not operate the cleaner if the power cord or docking station is damaged.
• Hold børn og kæledyr væk fra poolområdet, når rengøringsmaskinen er i drift.
• The cleaner is designed for underwater use only. Do not operate it out of water for extended periods.
• Ensure the pool water temperature is within the recommended operating range (typically 10°C to 35°C / 50°F to 95°F).

3. Pakkens indhold

Bekræft at alle komponenter er til stede i pakken:

• WYBOT S2 Pro Robotic Pool Cleaner
• Underwater Wireless Charging Dock
• Power Adapter for Charging Dock
• Brugervejledning (dette dokument)
• Filter Basket (pre-installed)
• Ultra-fine Sponge Filters (pre-installed)

4. Opsætning

4.1. Charging Dock Installation

The WYBOT S2 Pro features an underwater wireless charging dock. Proper installation of the dock is crucial for automatic charging and retrieval.

1. Prepare the Pool Wall: Ensure the pool wall where the dock will be installed is clean and dry. The distance between the top of the pool coping and the waterline should be at least 4 inches (100mm or 10cm). The bottom of the dock's wall attachment piece should be approximately 0.8 to 1 inch from the waterline.
2. Attach Wall Mount: Use the provided 3M adhesive tape to attach the backing piece of the charging dock to the pool wall. Press firmly to ensure a secure bond.
3. Hærdningstid: Allow 48 hours for the adhesive to cure completely before attaching the main charging dock unit.
4. Attach Charging Dock: After 48 hours, carefully lower the main charging dock unit into the water and latch it onto the installed wall mount. Ensure it is securely fastened.
5. Tilslut strøm: Plug the power adapter into a suitable DC outlet to provide power to the docking station.

Figure 1: WYBOT S2 Pro on its underwater wireless charging dock, illustrating the wireless charging feature.

Figur 2: Detaljeret view of the docking station's wall mount installation, highlighting the adhesive points.

5. Betjeningsvejledning

5.1. Tænd og valg af tilstand

The S2 Pro can be controlled via the WYBOT mobile application. Ensure your device is paired with the cleaner for full functionality.

• Gulvtilstand: In this mode, the cleaner focuses solely on the pool floor. It will not climb walls. This mode is recommended when using the ultra-fine sponge filter for collecting very small debris.
• Vægtilstand: In this mode, the cleaner will ascend pool walls and scrub the waterline. It can navigate various wall types and transitions, including steep tanning ledges. The cleaner will move along the waterline, scrub, then descend and repeat the pattern.
• App kontrol: Use the WYBOT app to start/stop cleaning, direct the cleaner to specific areas, or set daily cleaning schedules. The app allows for precise control and customization of cleaning patterns.

Figure 3: Remote control of the WYBOT S2 Pro via the mobile application.

Figure 4: Setting a precise cleaning schedule using the WYBOT app.

5.2. Smart Navigation and Sensors

The S2 Pro utilizes advanced sensors for efficient navigation and cleaning.

• Infrarød sensor: Determines the distance between objects and the robot, aiding in obstacle avoidance.
• Dybdesensor: Used to determine the underwater depth position of the machine.
• Gyroskop: Stabilizes the machine's posture for smoother operation and consistent cleaning paths.
• Sonarsensor: Establishes communication channels to receive mobile commands and enhances navigation.

Figur 5: Overview of the S2 Pro's integrated sensors for intelligent navigation.

6. Vedligeholdelse

6.1. Rengøring af filterkurven

Regular cleaning of the filter basket is essential to maintain optimal cleaning performance. The S2 Pro features a top-loading cartridge and sponge filters.

1. Retrieve the Cleaner: Once the cleaning cycle is complete, or when maintenance is required, retrieve the cleaner from the pool.
2. Åbn låget: Locate the lid on top of the cleaner and open it to access the filter basket.
3. Fjern filterkurv: Carefully lift out the filter basket.
4. Tøm affald: Open the filter basket to empty collected debris, including leaves, sand, and other particles.
5. Skyllefiltre: Rinse the filter cartridge and sponge filters thoroughly with a hose to remove any remaining fine debris.
6. Saml igen: Place the clean filters back into the basket, close the basket, and reinsert it into the cleaner. Close the cleaner's lid securely.

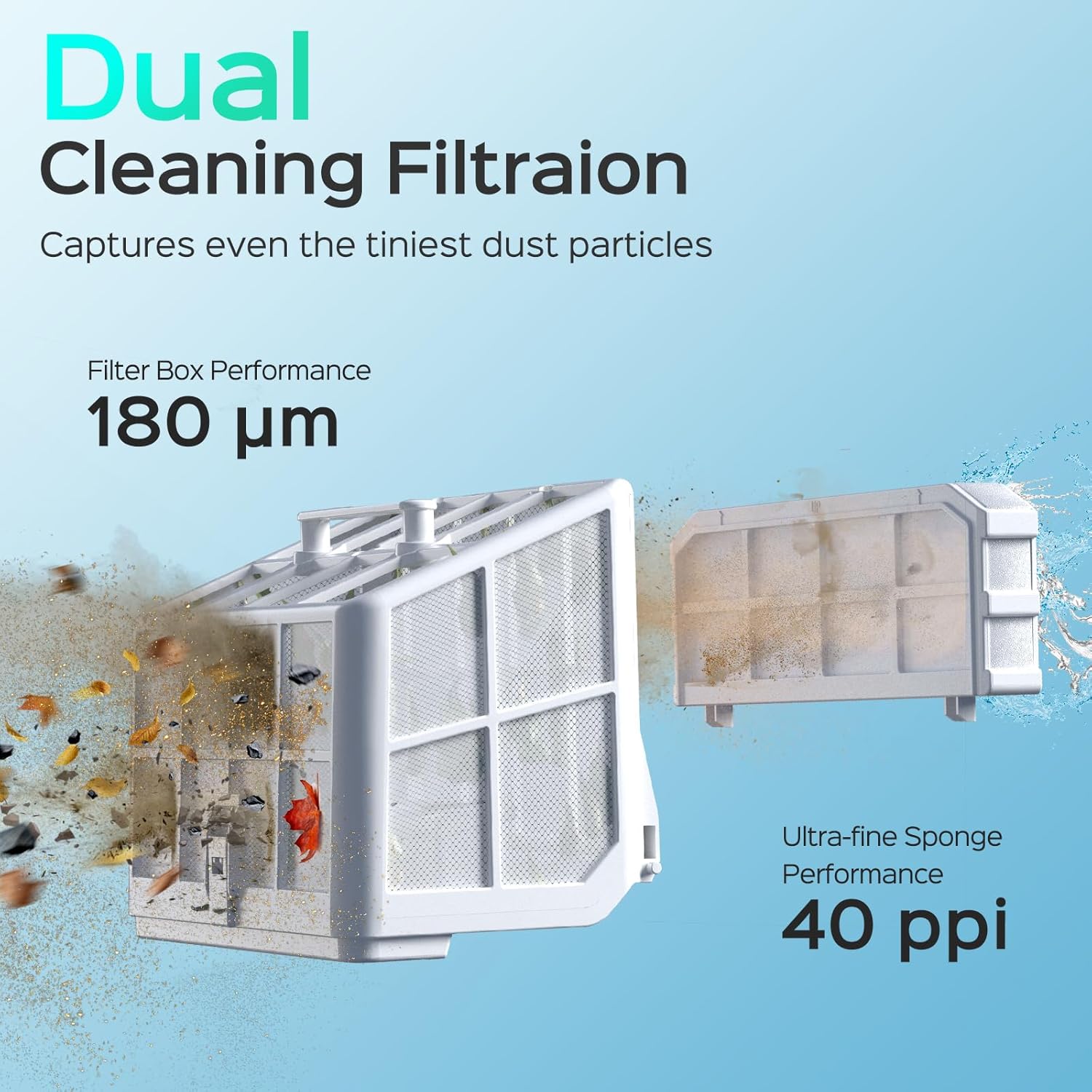

Figure 6: The dual cleaning filtration system, featuring a 180 µm filter box and 40 ppi ultra-fine sponge.

Figur 7: Eksample of debris collected in the filter basket after a cleaning cycle.

7. Specifikationer

8. Garanti og support

The WYBOT S2 Pro comes with a 2 års garanti. For warranty claims, technical support, or any inquiries regarding your product, please contact WYBOT customer service through their official webwebstedet eller kontaktoplysningerne i din købsdokumentation.

For yderligere ressourcer og produktinformation, besøg WYBOT Store on Amazon.
