DOOGEE Blade 20 Max Rugged Phone Brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient use of your DOOGEE Blade 20 Max Rugged Phone. Please read this manual thoroughly before operating your device to ensure optimal performance and longevity.

2. Hvad er der i æsken

Upon opening your DOOGEE Blade 20 Max package, you should find the following items:

• 1 x Blade 20 Max Rugged Phone
• 1 x Type-C USB-kabel
• 1 x oplader
• 1 x Serigrafitrykt beskyttelsesfilm (forudpåsat)
• 1 x Eksplosionsbeskyttelsesfilm
• 1 x pakkeboks
• 1 x manuel
• 1 x garantikort

3. Produktet er slutview

The DOOGEE Blade 20 Max is a rugged smartphone designed for durability and high performance. It features a robust build, a large display, and advanced camera capabilities.

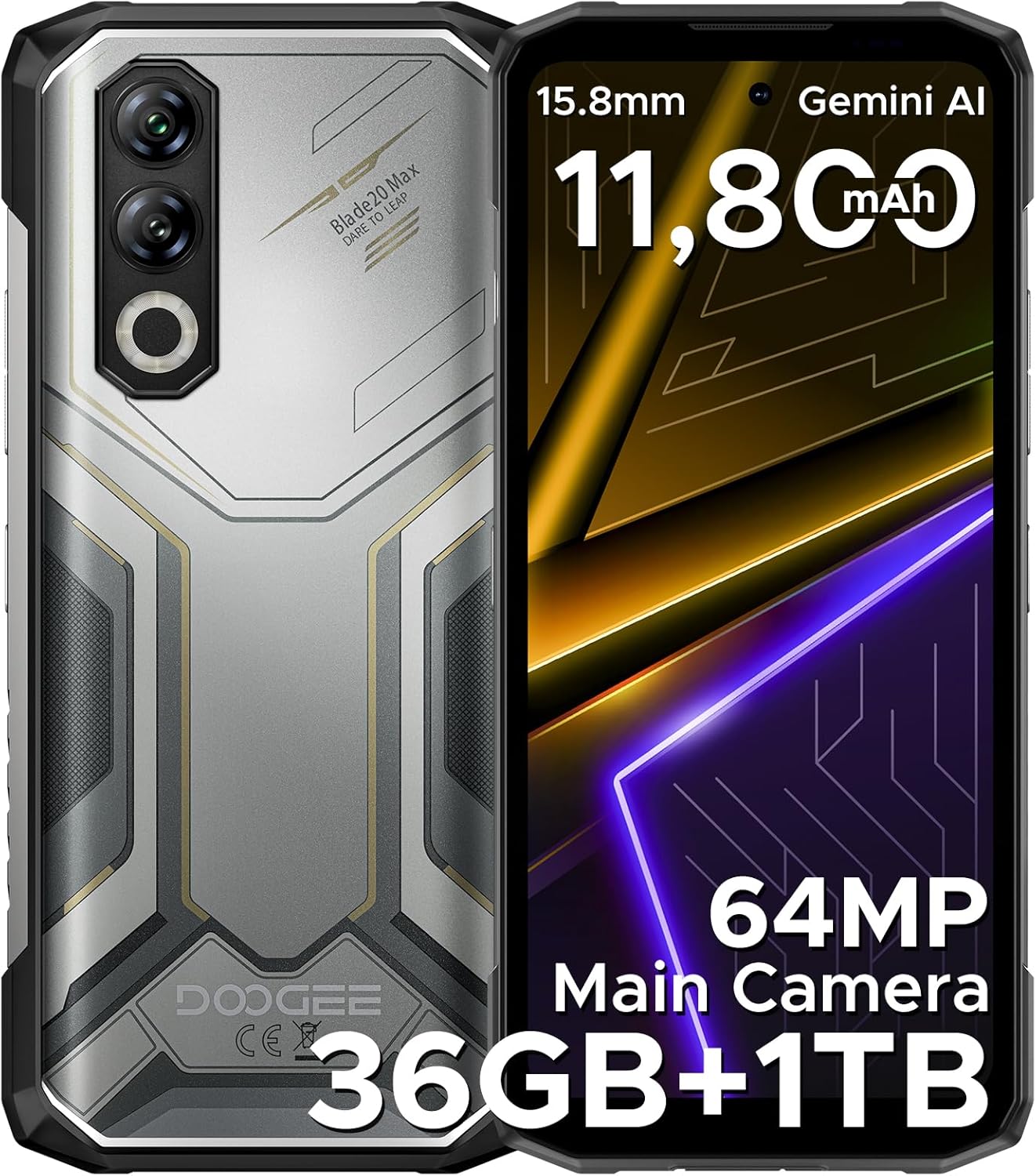

Billedbeskrivelse: En detaljeret view of the DOOGEE Blade 20 Max Rugged Phone, showing both the front display and the textured back panel with its multi-camera setup.

Billedbeskrivelse: An infographic highlighting key features of the DOOGEE Blade 20 Max, including its 1TB ROM, 15.8mm slim body, 11,800mAh Silicon Battery, 64MP Main Camera, and 20MP Night Vision.

4. Opsætning

4.1. Installation af SIM- og TF-kort

The DOOGEE Blade 20 Max supports a triple-card slot, allowing for two SIM cards and one TF (microSD) card simultaneously.

1. Find SIM-kortbakken på siden af ​​enheden.
2. Insert the SIM ejector tool (if provided) into the small hole next to the tray to open it.
3. Carefully place your Nano-SIM cards and TF card into the designated slots on the tray. Ensure they are correctly oriented.
4. Gently push the tray back into the phone until it is flush with the device's side.

4.2. Første opstart

1. Tryk og hold tænd/sluk-knappen nede (normalt på højre side), indtil DOOGEE-logoet vises på skærmen.
2. Følg vejledningen på skærmen for at fuldføre den indledende opsætning, herunder valg af sprog, Wi-Fi-forbindelse og opsætning af Google-konto.

4.3. Netværkskonfiguration

This device supports various frequency bands. Before purchasing, it is recommended to verify compatibility with your local carrier's network to ensure proper functionality. Refer to the specifications section for detailed frequency band information.

5. Betjeningsvejledning

5.1. Display

The Blade 20 Max features a 6.6-inch HD+ IPS notch-free punch-hole display with a 120Hz refresh rate for smooth visuals. It offers vibrant colors and clear images.

Billedbeskrivelse: An image detailing the 6.6-inch HD+ 120Hz display of the DOOGEE Blade 20 Max, highlighting its Incell screen type, 16.7M screen color, 84% screen-to-body ratio, and 1500:1 screen contrast.

5.2. Ydeevne og lagring

Powered by the 6nm Mediatek Helio G100 Octa Core processor and running Android 15, the device offers fast and responsive performance. It comes with 12GB of physical RAM, expandable by an additional 24GB of virtual memory, totaling 36GB RAM. Storage includes a massive 1TB ROM, suitable for extensive data and applications.

Billedbeskrivelse: A diagram illustrating the Helio G100 Octa-core chipset, emphasizing its 6nm processing and Mali G57 GPU for efficient performance.

Billedbeskrivelse: An illustration showing the 12GB+1TB massive storage configuration of the DOOGEE Blade 20 Max, detailing 36GB RAM (12GB Basic + 24GB Virtual RAM) and 1TB ROM.

5.3. Kamerasystem

The device is equipped with a triple-camera system: a 64MP main camera, a 16MP front camera, and a 20MP night vision camera, allowing for clear photos in various lighting conditions.

Billedbeskrivelse: A visual representation of the DOOGEE Blade 20 Max's camera system, highlighting the 64MP main camera, 20MP night vision camera, and 16MP front camera.

Billedbeskrivelse: Et billedshowasing various multi-mode camera features of the DOOGEE Blade 20 Max, including anti-shake, anti-flicker, multi-frame noise reduction, pro mode, and burst mode.

5.4. Batteristyring

The phone is equipped with a large 11800mAh Silicon Anode Battery, providing extended usage times. It supports 33W fast charging and 5W reverse charging, allowing you to charge other devices.

• Standby tid: Op til 19 dage
• Video Watching: Op til 29.9 timer
• Musik afspilles: Op til 186 timer
• Ringer: Op til 100 timer

Billedbeskrivelse: An illustration of the DOOGEE Blade 20 Max's 11800mAh Silicon Anode Battery, highlighting its 33W fast charging and 5W reverse charging capabilities, along with estimated usage times.

5.5. Sikkerhedsfunktioner

Unlock your device securely using either side fingerprint recognition or facial unlock.

Billedbeskrivelse: An infographic illustrating the security features (Face & Side Fingerprint Unlock) and connectivity options (NFC, GPS, Glonass, Galileo, Beidou, 2 SIM + 1 TF Card Slot) of the DOOGEE Blade 20 Max.

5.6. Forbindelse

The Blade 20 Max supports Bluetooth, NFC (for Google Pay), Wi-Fi, and multiple navigation systems including GPS, Glonass, Galileo, and Beidou.

5.7. AI-funktioner

The device includes built-in Gemini AI for enhanced functionality, supporting tasks such as content creation, image analysis, code development, language learning, and smart assistance.

Billedbeskrivelse: A visual representation of the Built-in Gemini AI features on the DOOGEE Blade 20 Max, showing examples of content creation, image analysis, code development, language learning, smart assistant, and Gemini Live.

5.8. Android 15 OS Features

Experience a smooth and intuitive user interface with Android 15, offering features like App Cloning, Dual System Mode, Split Screen, Screen Awareness, Live Caption (English Only), Enhanced Privacy Protection, Glove Mode, and Super Clipboard.

Billedbeskrivelse: An infographic showcasing various features of the Android 15 operating system on the DOOGEE Blade 20 Max, including App Cloning, Dual System Mode, Split Screen, Screen Awareness, Live Caption, Enhanced Privacy Protection, Glove Mode, and Super Clipboard.

6. Holdbarhedsfunktioner

The DOOGEE Blade 20 Max is built to withstand harsh environments, featuring:

• IP68-klassificering: Water-resistant, capable of being submerged in 1.5m of water for 30 minutes.
• IP69K-klassificering: Dustproof and resistant to high-pressure, high-temperature water jets.
• MIL-STD-810H-certificering: Military-grade durability, tested for drops from 1.5 meters.

Billedbeskrivelse: An image illustrating the IP68, IP69K, and MIL-STD-810H durability ratings of the DOOGEE Blade 20 Max, showing the phone submerged in water, covered in dust, and with a drop test indication.

7. Vedligeholdelse

To ensure the longevity and optimal performance of your DOOGEE Blade 20 Max, follow these maintenance guidelines:

• Rensning: Tør regelmæssigt telefonen af ​​med en blød kludamp klud. Undgå barske kemikalier eller slibende materialer.
• Softwareopdateringer: Keep your device's software updated to the latest version to benefit from security patches and performance improvements.
• Batteripleje: Avoid extreme temperatures. Do not fully discharge the battery frequently. Use the original charger and cable for optimal charging.
• Portbeskyttelse: Ensure all port covers (for USB-C, SIM tray) are securely closed to maintain water and dust resistance.

8. Fejlfinding

If you encounter issues with your device, refer to the following common troubleshooting steps:

• Enheden tænder ikke: Sørg for, at batteriet er opladet. Tilslut telefonen til opladeren i mindst 15 minutter, og prøv derefter at tænde den igen.
• Netværksproblemer: Check if your SIM card is properly inserted. Verify that your carrier's frequency bands are supported by the device. Restart the phone.
• Langsom ydeevne: Close unnecessary background applications. Clear cache regularly. Consider performing a factory reset if issues persist (back up your data first).
• Touchskærm reagerer ikke: Genstart enheden. Hvis problemet fortsætter, skal du kontakte kundesupport.

9. Specifikationer

10. Garanti og support

Your DOOGEE Blade 20 Max Rugged Phone comes with a warranty. Please refer to the included Warranty Card in your product packaging for detailed terms and conditions, including warranty period and coverage.

For technical support, service, or further inquiries, please visit the official DOOGEE website or contact their customer service channels. Keep your purchase receipt and warranty card handy for any support requests.
