Indledning
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Gazzyt Foldable Racing Simulator Cockpit. Please read this manual thoroughly before use to ensure proper setup and safe operation.
Sikkerhedsoplysninger
- Sørg for, at alle bolte og fastgørelseselementer er forsvarligt spændt før hver brug.
- Overskrid ikke den maksimale vægtkapacitet på 136 kg.
- Keep hands and fingers clear of moving parts during adjustment and folding.
- Placer cockpittet på en stabil, plan overflade for at forhindre, at det vælter.
- Hold øje med børn under brug.
- Regularly inspect the frame and components for any signs of wear or damage. Discontinue use if damage is found.
Pakkens indhold
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Gazzyt customer support.
- Main Cockpit Frame (Foldable)
- Racing Seat with Headrest
- Ratmontering
- Pedal Plate Assembly
- Shifter Mount Platform
- Hardware Kit (various bolts, nuts, washers, and adjustment handles)
- Assembly Tools (typically Allen wrenches)
Monteringsvejledning
Follow these steps carefully to assemble your racing simulator cockpit. It is recommended to have a clear, open space for assembly.
Step 1: Prepare the Base Frame
Unfold the main frame components. Ensure the base is stable on the floor.
Image: The main frame of the racing simulator cockpit in its unfolded state, ready for component attachment.
Video: Detailed assembly process for the Gazzyt Racing Cockpit, demonstrating how to connect the main frame components.
Step 2: Attach the Pedal Plate
Secure the pedal plate assembly to the front section of the cockpit frame using the provided bolts and nuts. Ensure it is firmly attached.
Image: The racing cockpit with the pedal plate assembly securely mounted to the front section.
Step 3: Install the Steering Wheel Mount
Attach the steering wheel mount to the central frame. This mount allows for angle and height adjustments.
Image: The racing cockpit showing the steering wheel mount installed, highlighting its adjustable features.
Step 4: Mount the Shifter Platform
The shifter platform can be installed on either the left or right side of the cockpit, according to user preference. Secure it with the appropriate hardware.
Image: The racing cockpit with the shifter platform mounted, demonstrating its ambidextrous installation.
Trin 5: Fastgør sædet
Attach the racing seat to the main frame. The seat features a hybrid design with mesh ventilation and a memory foam headrest for comfort.
Image: The fully assembled racing cockpit, showcasing the seat with its breathable mesh and headrest.
Adjustments and Customization
The Gazzyt Racing Simulator Cockpit offers multiple adjustment points to optimize your racing experience for comfort and ergonomics.
- Steering Wheel Height and Angle: The steering wheel mount can be adjusted for height (0-10cm) and angle (±15 degrees) to suit your preferred driving position.
- Pedal Distance and Angle: The pedal plate can be adjusted for distance and tilt angle, accommodating users of various heights (1.4m-1.9m).
- Sædetilbagelæning: The seat's bottom bracket allows for angle adjustment from 45-90 degrees.
- Shifter Platform Position: The shifter platform can be installed on either the left or right side.
Image: An illustration highlighting the various adjustable components of the cockpit, including steering wheel, pedal, and seat angles.
Video: Demonstration of the product's adjustable features, including steering wheel height, pedal position, and seat recline, to fit various user heights.
Foldning og opbevaring
The Gazzyt Racing Simulator Cockpit features a foldable design for convenient storage and portability. It includes rear wheels for easy movement when folded.
Folding Method 1: Compact Fold
To achieve a compact fold, first release the quick-release bolts on the side of the cockpit to allow the steering wheel frame to swing open. Then, close the main support frame and raise the pedal section upwards. This method allows the cockpit to stand upright for storage.
Video: Demonstration of Folding Method 1, showing how to fold the cockpit into a compact, upright position for storage.
Folding Method 2: Disassembly for Minimal Space
For minimal storage space, the pedal section can be detached from the main cockpit. Rotate the handle and pull out the pin to separate the pedal frame. The main cockpit can then be folded as described in Method 1, and the pedal frame stored separately.
Video: Demonstration of Folding Method 2, illustrating how to detach the pedal section and fold the main cockpit for maximum space-saving.
Image: The racing cockpit in its folded state, demonstrating its compact footprint for storage.
Kompatibilitet
The Gazzyt Racing Simulator Cockpit is designed for wide compatibility with various popular sim racing equipment. It supports direct-drive motors up to 10Nm.
Note: This cockpit does not support steering wheels that are only held in place with clamps.
Kompatible enheder:
- Logitech: G29, G920, G923
- Thrustmaster: T248, T300
- Fanatec: Direct Drive Wheels (≤10Nm)
- Other mainstream sim racing gear that can be bolted onto the mounting plates.
Image: A visual guide detailing the compatibility of the cockpit with various racing wheels, pedals, and shifters from brands like Logitech, Thrustmaster, Fanatec, Moza, and Simagic.
Betjeningsvejledning
Once assembled and adjusted, connect your racing wheel, pedals, and shifter to the respective mounts. Ensure all connections are secure. Power on your racing equipment and gaming system, then launch your preferred racing simulation software. Adjust in-game settings as needed for optimal performance and feedback.

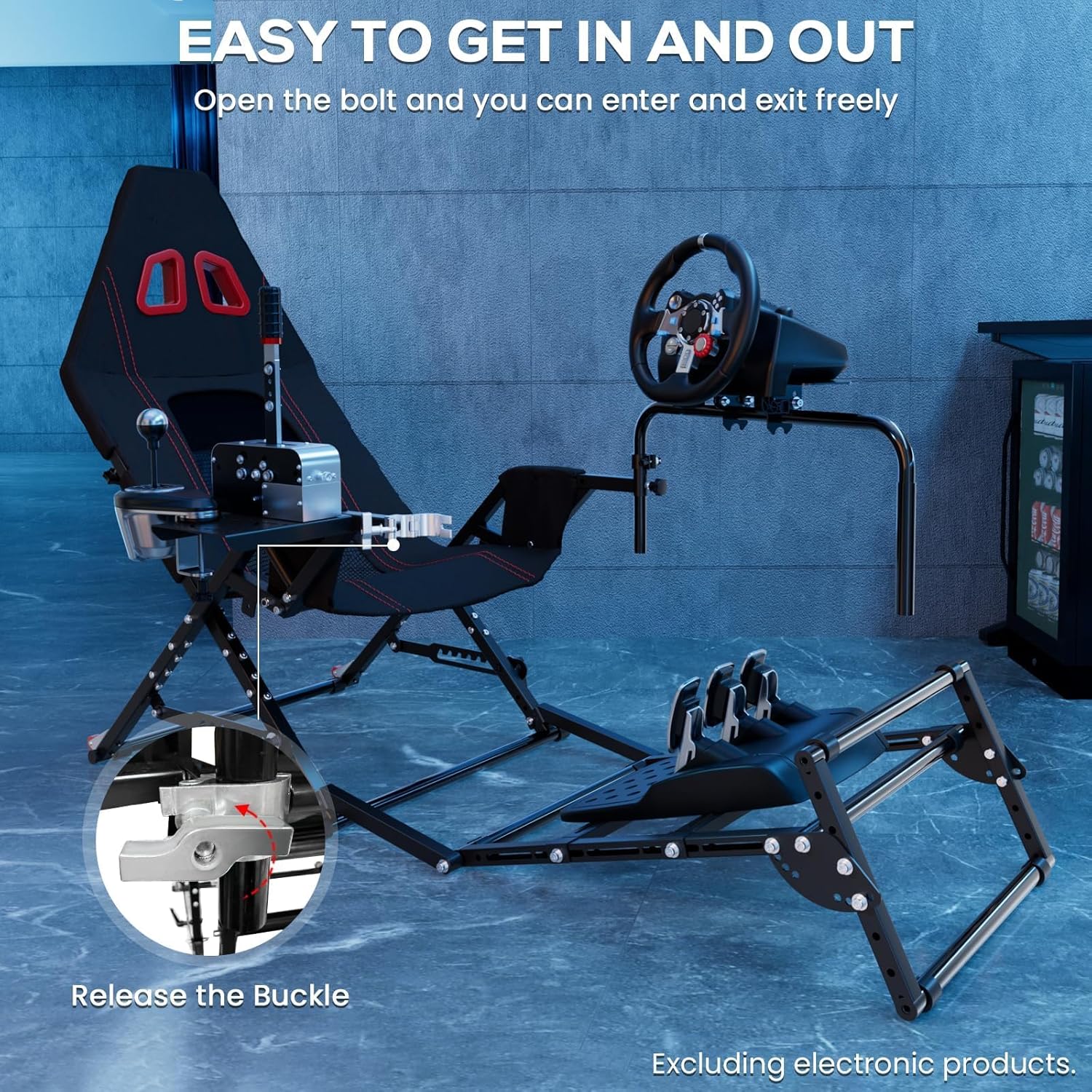

To easily enter and exit the cockpit, utilize the quick-release bolts on the steering wheel frame. Turn them counter-clockwise to open, allowing the frame to swing away, then relock them after seating yourself.
Image: A user seated in the Gazzyt Racing Simulator Cockpit, demonstrating the ergonomic setup for an immersive racing experience.
Opretholdelse
- Rensning: Tør rammen af med reklameamp cloth. For the fabric seat, use a mild soap solution and allow it to air dry. Avoid harsh chemicals.
- Fastgørelseskontrol: Periodically check all bolts, nuts, and adjustment mechanisms to ensure they are tight and secure. Tighten as necessary.
- Rammeinspektion: Inspect the metal frame for any signs of bending, cracks, or corrosion.
- Fabric Inspection: Check the seat fabric for tears or excessive wear.
Fejlfinding
- Cockpit feels unstable: Ensure all assembly bolts are fully tightened. Verify the cockpit is on a flat, stable surface.
- Vanskeligheder med at justere komponenter: Loosen the adjustment knobs or bolts sufficiently before attempting to reposition. Do not force adjustments.
- Vanskeligheder med at folde: Refer to the "Folding and Storage" section and the provided video demonstrations. Ensure all adjustment points are loosened or released as instructed.
- Equipment not fitting: Double-check the compatibility section. Ensure your racing gear uses a bolt-on mounting system rather than clamps.
Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner (udfoldet) | 58.39 x 42.52 x 23.82 tommer (148 cm x 108 cm x 60.5 cm) |
| Varens vægt | 46.1 pund (20.9 kg) |
| Maximum Load-Bearing Capacity | 300 lbs (136 kg) |
| Adjustable Height Range (User) | 1.4m - 1.9m (4'7" - 6'3") |
| Ratjustering | Height 0-10cm, Angle ±15° |
| Pedaljustering | Distance and Tilt Angle (up to 60°) |
| Justering af sædehældning | 45-90° |
| Direct Drive Wheel Support | Up to 10Nm |
| Materiale | Metal frame, fabric seat with mesh ventilation and memory foam headrest |
Garanti og support
For warranty information, technical support, or to order replacement parts, please contact Gazzyt customer service. Refer to the product packaging or the official Gazzyt webwebsted for kontaktoplysninger.
