Indledning
Thank you for choosing the Voyager Monster Jam 12V ATV Ride On Toy. This manual provides essential information for the safe assembly, operation, and maintenance of your new ride-on toy. Please read this manual thoroughly before use and retain it for future reference. This ATV is designed to provide an exciting and imaginative play experience for children aged 3 years and up.
Image: The Voyager Monster Jam 12V ATV Ride On Toy, showcasing its vibrant green and purple design with Monster Jam graphics and illuminated headlights.
Sikkerhedsoplysninger
ADVARSEL: For at mindske risikoen for skader kræves der opsyn af en voksen. Brug aldrig cyklen på veje, i nærheden af motorkøretøjer, på eller i nærheden af stejle skråninger eller trapper, svømmebassiner eller andre vandområder. Brug altid sko. Tillad aldrig mere end én person.
Please follow all instructions in this user manual carefully to ensure safe operation. This product is intended for children aged 3 years and up, with a maximum weight capacity of 66 lbs (30 kg). Ensure the child is always wearing appropriate safety gear, including a helmet, when operating the ATV.
- Hold altid øje med børn under drift.
- Do not operate on public roads, sidewalks, or near traffic.
- Avoid operating on uneven terrain, steep slopes, or near water.
- Sørg for, at batteriet er fuldt opladet før hver brug.
- Regularly inspect the ATV for any damage or loose parts.
Hvad er der i æsken
Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og ubeskadigede:
- ATV Ride On (Main Unit)
- 12V Rechargeable Battery (pre-installed or separate)
- Batterioplader
- Instruktionsmanual
If any parts are missing or damaged, please contact customer support before assembly.
Montering og opsætning
Adult assembly is required. Please follow these general steps for assembly. Specific details may vary, refer to diagrams if provided in a physical manual.
- Udpak komponenter: Fjern forsigtigt alle dele fra emballagen.
- Hjulmontering: Attach the wheels securely to the axles. Ensure all washers and locking pins/nuts are properly installed.
- Styrfastgørelse: Secure the handlebars to the steering column.
- Batteriforbindelse: Locate the battery compartment, usually under the seat. Connect the battery terminals (red to red, black to black). Ensure connections are firm.
- Sædeinstallation: Secure the seat in place.
- Indledende opkrævning: Før første brug skal batteriet oplades helt i den anbefalede periode (se afsnittet "Opladning af batteriet").
Billede: Detaljeret view highlighting the ATV's rugged wheels, the push-start button on the dashboard, and the overall sturdy construction, essential for assembly and operation.
Opladning af batteriet
The Voyager Monster Jam ATV is powered by a 12V rechargeable battery. Proper charging ensures optimal performance and battery longevity.
- Første brug: Charge the battery for 8-12 hours before the first use. Do not overcharge for more than 18 hours.
- Almindelig opladning: After each use, recharge the battery for 8-12 hours.
- Opladningsport: Locate the charging port on the ATV (typically near the battery compartment or under the seat).
- Forbindelse: Plug the charger into a standard wall outlet, then connect the charger's plug to the ATV's charging port.
- Indikator: The charger may have an indicator light to show charging status (e.g., red for charging, green for fully charged).
- Afbrydelse: Once charging is complete, disconnect the charger from the ATV and then from the wall outlet.
Vigtig: Only use the charger supplied with this product. Do not allow children to charge the battery. Always charge in a dry, well-ventilated area.
Betjeningsvejledning
Once the ATV is assembled and the battery is charged, it's ready for operation. Ensure the child is seated properly and wearing safety gear.
- Tænd: Locate the main power switch (if present) and turn it to the "ON" position.
- Start knap: Press the designated "Push Start Button" to activate the ATV.
- Retningskontrol: Brug frem/tilbage-kontakten til at vælge den ønskede kørselsretning.
- Acceleration: Press the foot pedal (accelerator) to move the ATV. Release the pedal to stop.
- Styretøj: Use the handlebars to steer the ATV left or right.
- Lys: The ATV features bright LED headlights for enhanced visibility and a realistic look.

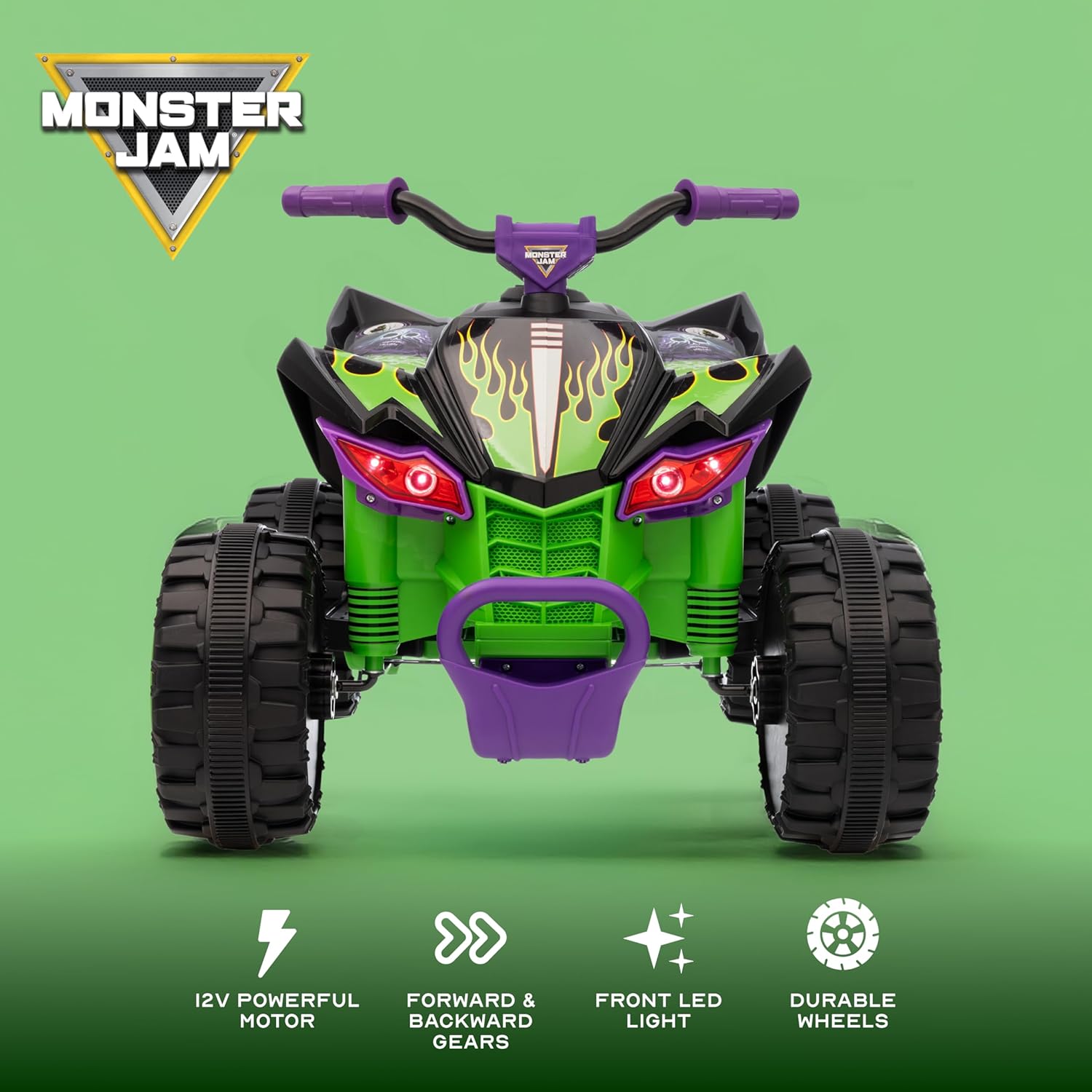

Billede: En fremadvendt view of the ATV, illustrating key features such as the 12V powerful motor, controls for forward and backward gears, bright front LED lights, and robust, durable wheels.
Opretholdelse
Regular maintenance helps prolong the life of your ATV and ensures safe operation.
- Rensning: Wipe the ATV with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly on electrical components.
- Batteripleje:
- Oplad altid batteriet efter hver brug.
- If storing for extended periods, charge the battery once a month to prevent deep discharge.
- Opbevar ikke batteriet i ekstreme temperaturer.
- Inspektion: Periodically check all nuts, bolts, and fasteners for tightness. Inspect wheels and tires for wear or damage.
- Opbevaring: Store the ATV in a dry, cool place away from direct sunlight and moisture.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| ATV does not move | Battery is low or not connected; Power switch is off; Loose wire connection; Overload protection activated. | Charge the battery; Ensure battery is connected; Turn power switch on; Check all wire connections; Reduce load on ATV. |
| Løber langsomt | Low battery charge; Overloaded; Operating on rough terrain. | Recharge battery; Ensure rider weight is within limits; Operate on smoother surfaces. |
| Opladeren bliver varm | Normal during charging. | This is normal. If it becomes excessively hot, disconnect and contact support. |
Specifikationer
- Modelnummer: A12VGD138-GRN-STK-1
- Mærke: Voyager
- Magt: 12V
- Anbefalet alder: 3 år og opefter
- Maksimal vægtkapacitet: 66 lbs (30 kg)
- Produktdimensioner: 30.1 x 19 x 14.9 tommer
- Varens vægt: 30.8 pund
- Batteri: 1 x 12V genopladeligt batteri (inkluderet)
- Fabrikant: Sakar International
- Udgivelsesdato: 26. juli 2025
Garanti og support
For garantioplysninger eller teknisk support henvises til garantikortet, der fulgte med dit produkt, eller kontakt producenten direkte. Gem din købskvittering som købsbevis.
Fabrikant: Sakar International
For yderligere hjælp, besøg venligst Voyager Store on Amazon eller kontakt deres kundeservice.
