1. Introduktion
Welcome to the user manual for your new MIRO A67 Smartphone. This guide provides essential information on setting up, operating, and maintaining your device. Please read this manual thoroughly to ensure optimal performance and longevity of your smartphone.
2. Hvad er der i æsken
Upon unboxing your MIRO A67, please verify that all the following items are included:
- MIRO A67 Smartphone (Blue)
- USB kabel
- Quick Start Guide (may be separate or integrated)
- SIM Ejector Tool (typically included, though not explicitly listed)
Billede: Forside og bagside view of the MIRO A67 smartphone in blue. The front shows the large display with app icons, and the back features the dual camera setup and MIRO logo.
3. Produktet er slutview
The MIRO A67 is designed for a seamless user experience, combining powerful performance with a vibrant display and advanced camera features.
3.1 Nøglefunktioner
- Powerful Octa-Core Performance: Equipped with the UniSoc SC9863A Octa-Core 1.6GHz processor and optimized Android 14 Go Edition for smooth multitasking.
- Immersive HD+ Display: Features an expansive 6.75-inch Water Drop HD+ screen with 1600x720 resolution for vibrant visuals.
- AI-Enhanced Dual Camera System: Capture stunning photos with the 13MP AI Dual Camera and a dedicated 5MP front camera.
- Long-Lasting Battery & Fast Charging: A large 4000mAh battery supports your day, with convenient 10W fast charging via Type-C.
- Udvidelig lagerplads: Comes with 64GB internal storage, expandable up to 1TB.
3.2 Visual Components

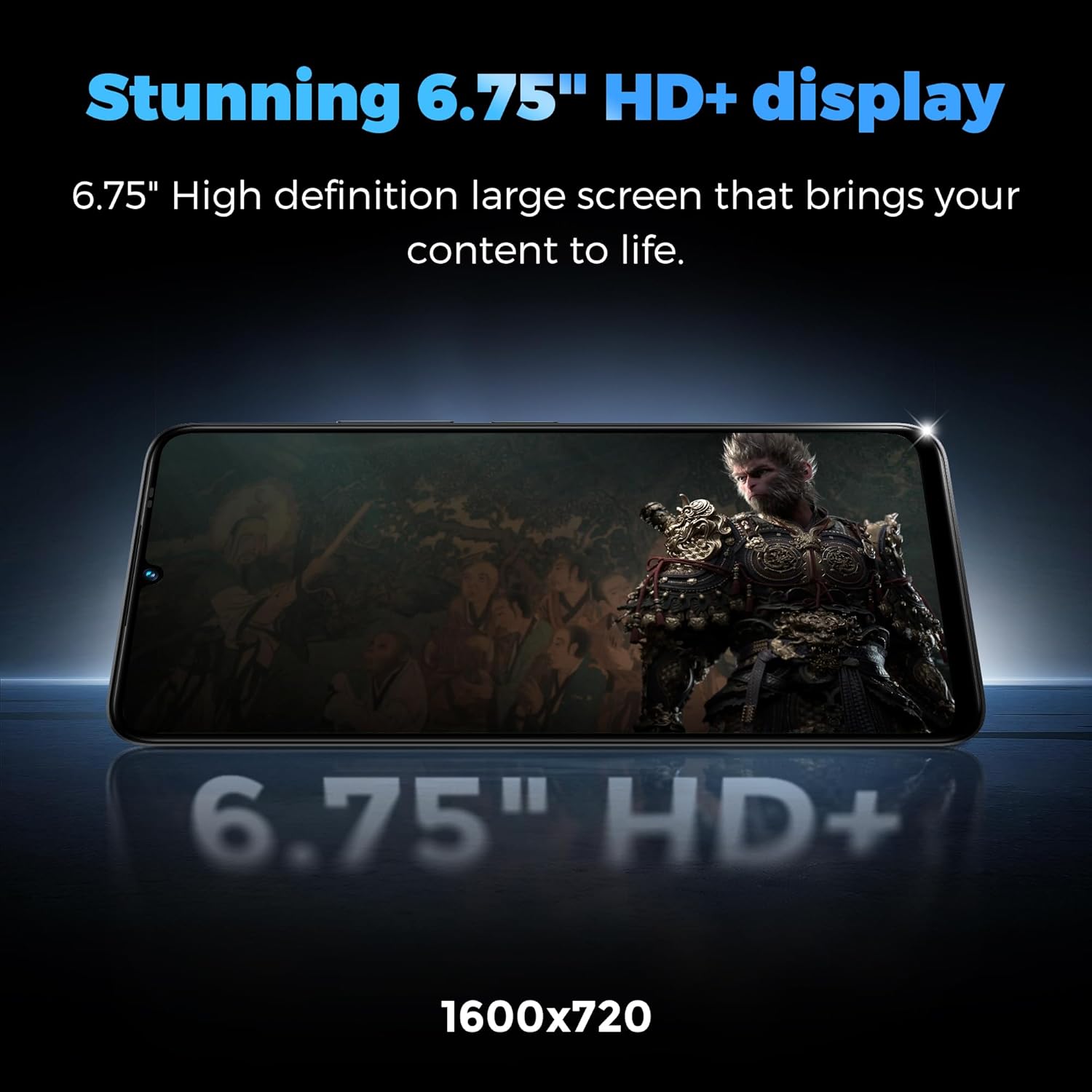

Image: The MIRO A67 smartphone displaying a high-definition movie scene, highlighting its 6.75-inch HD+ screen with 1600x720 resolution.
Image: A visual representation of the UNISOC SC9863A 8-Core processor, emphasizing its role in seamless multitasking for applications and games.
Billede: Et nærbillede view of the MIRO A67's dual rear cameras, featuring a 13MP AI Double Camera and a 0.3MP Depth sensor, designed for capturing detailed photos.

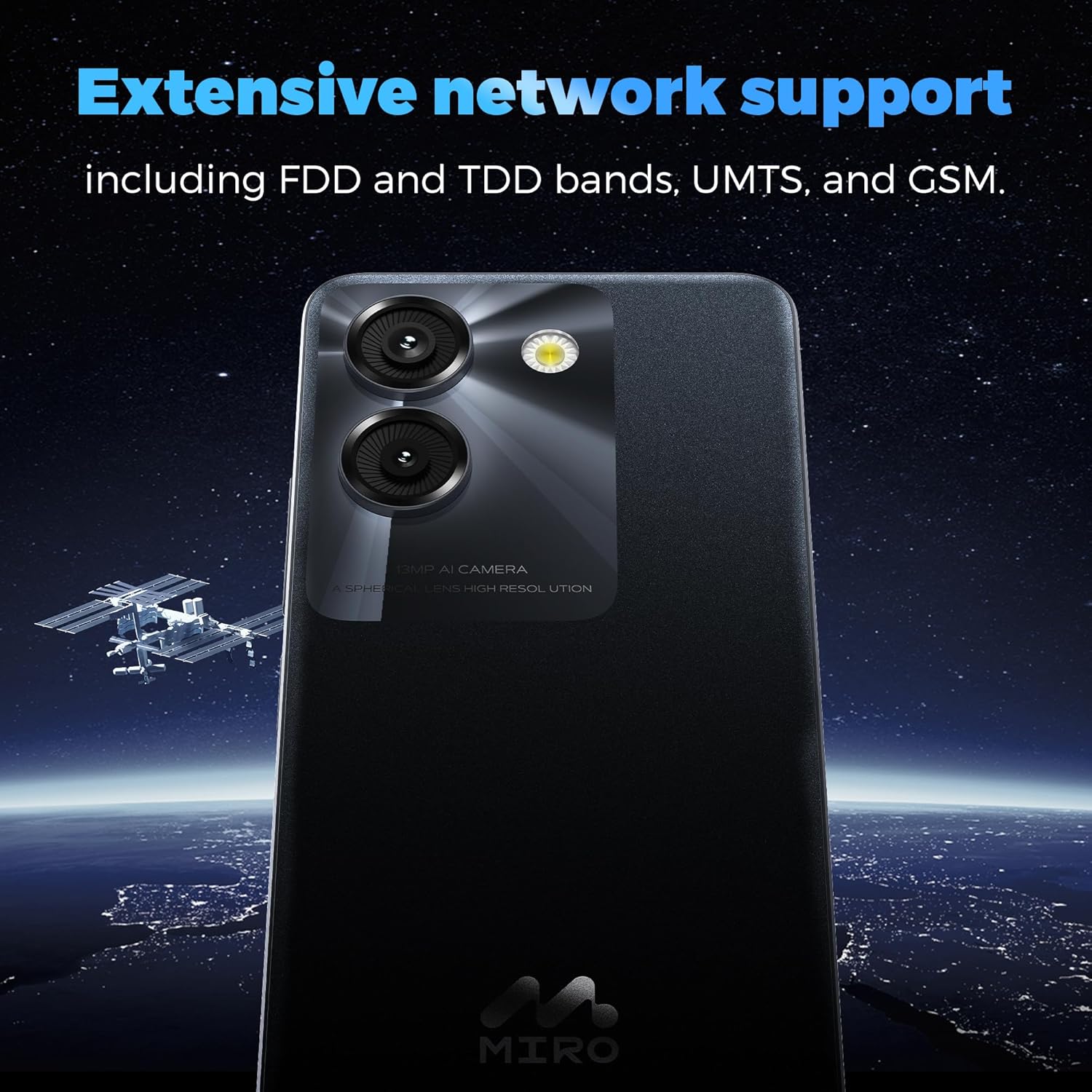

Image: The back of the MIRO A67 phone with a background illustrating extensive network support, including FDD, TDD bands, UMTS, and GSM.
Billede: En intern view illustration of the MIRO A67, highlighting its 4000mAh battery and indicating 10W fast charging capability.
Image: A diagram illustrating the MIRO A67's memory and storage, showing 8GB (4+4GB) RAM and 64GB internal storage, expandable up to 1TB.
Image: A display of the MIRO A67 smartphone in its available color variants: Black, Green, and Blue.
4. Opsætning
4.1 Isætning af SIM-kort og MicroSD-kort
- Find SIM-kortbakken på siden af din telefon.
- Sæt SIM-kortudkastningsværktøjet i det lille hul ved siden af bakken, og tryk forsigtigt, indtil bakken springer ud.
- Place your Nano SIM card(s) and/or MicroSD card (for expandable storage) into the designated slots on the tray. Ensure they are correctly oriented.
- Skub forsigtigt bakken tilbage i telefonen, indtil den klikker på plads.
4.2 Tænding og første opsætning
- Press and hold the Power button (usually on the right side) until the MIRO logo appears.
- Follow the on-screen prompts to complete the initial setup, which includes selecting your language, connecting to Wi-Fi, setting up your Google account, and configuring security options.
5. Betjeningsvejledning
5.1 Grundlæggende navigation
- Berøringsskærm: Tryk for at vælge, swipe for at rulle, knib for at zoome.
- Startskærm: Your central hub for apps and widgets. Swipe left/right to access additional screens.
- Meddelelsespanel: Stryg nedad fra toppen af skærmen for at få adgang til notifikationer og hurtigindstillinger.
- App Skuffe: Stryg op fra bunden af skærmen til view alle installerede applikationer.
5.2 Foretage opkald og sende beskeder
- Opkald: Tryk på telefonikonet, indtast nummeret, og tryk på opkaldsknappen.
- Beskeder: Tryk på ikonet Beskeder, start en ny samtale, indtast modtageren og din besked.
5.3 Forbindelse til Wi-Fi og Bluetooth
- Wi-Fi: Gå til Indstillinger > Netværk og internet > Wi-FiTænd Wi-Fi, og vælg det ønskede netværk.
- Bluetooth: Gå til Indstillinger > Forbundne enheder > BluetoothSlå Bluetooth til, og par med tilgængelige enheder.
6. Kamerafunktioner
The MIRO A67 features an AI-Enhanced Dual Camera system to help you capture memorable moments.
- Bagkamera: 13MP AI Dual Camera with 0.3MP Depth sensor for enhanced photography, including real-time depth effects.
- Forreste kamera: 5MP front camera for clear selfies and video calls.
6.1 Using the Camera App
- Åbn Kamera-appen fra din startskærm eller appskuffe.
- Select your desired mode (e.g., Photo, Video, Portrait).
- Tryk på udløserknappen for at tage et billede eller starte/stoppe optagelse af en video.
- Use the toggle to switch between the front and rear cameras.
7. Batteri og opladning
Your MIRO A67 is equipped with a 4000mAh battery, designed to provide ample power for your daily activities.
- Batterikapacitet: 4000 mioamp Timer.
- Opladning: Supports 10W fast charging via the Type-C port.
7.1 Opladning af din enhed
- Connect the USB cable to the Type-C port on your phone.
- Connect the other end of the USB cable to a compatible power adapter (not always included) or a computer's USB port.
- The charging indicator will appear on the screen. For optimal charging speed, use a 10W compatible power adapter.
8. Lagring og ydeevne
The MIRO A67 is built for efficient performance and ample opbevaring.
- Processor: UniSoc SC9863A Octa-Core 1.6GHz.
- Operativsystem: Android 14 Go Edition.
- VÆDDER: 4GB (expandable up to 8GB with virtual RAM).
- Intern opbevaring: 64 GB.
- Udvidelig lagerplads: Supports MicroSD cards up to 1TB.
8.1 Managing Storage
To check your storage usage or free up space, go to Indstillinger > Lager. You can uninstall unused apps, clear cache, or move files to your MicroSD card.
9. Forbindelse
Your MIRO A67 supports various connectivity options:
- Wi-Fi: 2.4G Wi-Fi for internet access.
- Bluetooth: Bluetooth 4.2 til tilslutning af trådløst tilbehør.
- GPS: Integreret GPS til navigation og positionstjenester.
- Mobilnetværk: Supports FDD and TDD bands, UMTS, and GSM for extensive network compatibility.
- Lydstik: 3.5 mm lydstik til kablede hovedtelefoner.
- USB-port: Type-C for charging and data transfer.
10. Vedligeholdelse
To ensure the longevity and optimal performance of your MIRO A67, follow these maintenance guidelines:
- Hold det rent: Tør regelmæssigt skærmen og kabinettet af med en blød, fnugfri klud. Undgå skrappe kemikalier.
- Beskyt mod skader: Use a screen protector and a protective case to prevent scratches and impacts.
- Undgå ekstreme temperaturer: Do not expose the phone to very high or low temperatures, as this can affect battery life and internal components.
- Softwareopdateringer: Keep your operating system and apps updated to benefit from the latest security patches and features.
- Batteripleje: Avoid fully draining the battery frequently. Charge it regularly and avoid overcharging for extended periods.
11. Fejlfinding
If you encounter issues with your MIRO A67, refer to the following common solutions:
11.1 Telefonen tænder ikke
- Ensure the battery is charged. Connect the phone to a charger for at least 15 minutes before attempting to power on again.
- Tryk og hold tænd/sluk-knappen nede i 10-15 sekunder for at udføre en tvungen genstart.
11.2 Network Issues (No Signal/Cannot Make Calls)
- Kontroller, om dit SIM-kort er isat korrekt.
- Sørg for, at du er inden for netværksdækning.
- Genstart din telefon.
- Gå til Indstillinger > Netværk og internet > Mobilnetværk and ensure your preferred network type is selected and data roaming is enabled if necessary.
11.3 Apps der går ned eller fryser
- Luk og åbn appen igen.
- Ryd appens cache: Indstillinger > Apps > [Appnavn] > Lagerplads og cache > Ryd cache.
- Opdater appen fra Google Play Butik.
- Genstart din telefon.
11.4 Skærmen reagerer ikke
- Udfør en tvungen genstart ved at holde tænd/sluk-knappen nede.
- Ensure the screen is clean and free from moisture.
12. Specifikationer
Detailed technical specifications for the MIRO A67 smartphone:
| Feature | Specifikation |
|---|---|
| Modelnavn | MIRO A67 |
| Mærke | MIRO |
| Operativsystem | Android 14 Go Edition |
| CPU | UniSoc SC9863A Octa-Core 1.6GHz |
| Skærmstørrelse | 6.75 tommer |
| Opløsning | 720 x 1600 (HD+) |
| RAM-hukommelse | 4 GB (expandable to 8GB) |
| Intern opbevaring | 64 GB |
| Udvidelig opbevaring | Op til 1 TB (MicroSD) |
| Bagkamera | 13MP AI Dual Camera + 0.3MP Depth |
| Forreste kamera | 5 MP |
| Batterikapacitet | 4000 mAh |
| Opladning | 10W hurtigopladning (Type-C) |
| Forbindelse | Wi-Fi (2.4G), Bluetooth 4.2, GPS |
| Lydstik | 3.5 mm |
| Trådløs bærer | Ulåst |
| Farve | Blå |
| Varens vægt | 12 ounce |
| Pakkedimensioner | 7.36 x 3.82 x 1.97 tommer |
Image: A comprehensive graphic detailing various features and specifications of the MIRO A67, including screen size, OS, processor, battery, cameras, and connectivity bands.
13. Garanti og support
Your MIRO A67 smartphone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty duration and coverage details.
For technical support, service, or further inquiries, please contact MIRO customer service through the contact information provided on the official MIRO website or your purchase documentation. Keep your proof of purchase handy when contacting support.
