OBDPEAK K80 Trådløs Carplay & Android Auto med Dash Cam - 11.3" HD IPS Touchskærm Brugermanual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your OBDPEAK K80 Wireless Carplay & Android Auto system. This device integrates an 11.3-inch HD IPS touch screen with a 5K front dash camera and a 1080P rear camera, offering advanced connectivity and recording capabilities for your vehicle. Please read this manual thoroughly before using the product to ensure proper function and safety.

2. Produktet er slutview

Nøglefunktioner:

• 11.3-inch HD IPS Touch Screen: Provides a clear and responsive interface for all functions.
• Trådløs Carplay og Android Auto: Problemfri smartphone-integration til navigation, musik og kommunikation.
• Dobbelt kamerasystem: Features a 5K (4096x2304P) front camera and a 1080P rear camera for comprehensive recording.
• Loop-optagelse: Overskriver automatisk den ældste ulåste footage når hukommelseskortet er fyldt.
• GPS-navigation: Supports online map applications and real-time GPS data.
• Flere lydudgangsmuligheder: Bluetooth, FM Transmitter, and AUX cable for connecting to your car's audio system.
• Mirror Link Functionality: Supports Apple Airplay and Android Mirror for screen mirroring.
• Stemmestyring: Integrated Siri and Google Assistant support for hands-free operation.
• Automatisk lysstyrkejustering: Adapts screen brightness to ambient light conditions.

Pakkeindhold:

Image: The complete package contents for the OBDPEAK K80 system, showing the main 11.3-inch screen, front camera, rear camera, various cables, GPS antenna, 64GB TF card, and user manual.

• 11.3-inch Screen with Integrated Front Camera
• Rear Camera with 6-meter Cable
• 3.5M AUX Cable
• 64G TF-kort
• GPS antenne
• Biloplader (Type-C)
• Short Bracket (13.8cm)
• Brugermanual

3. Opsætning

Installationstrin:

1. Monter hovedenheden: Secure the 11.3-inch screen onto your dashboard using the provided bracket. Ensure it does not obstruct your view or interfere with vehicle controls. The ultra-low base design allows for a discreet installation.
2. Tilslut strøm: Plug the Type-C car charger into the main unit and then into your vehicle's cigarette lighter socket.
3. Installer bakkamera: Mount the rear camera at the back of your vehicle, typically above the license plate or near the rear window. Route the 6-meter cable to the main unit and connect it to the designated port. Ensure the camera is positioned for a clear view.
4. Installer GPS-antenne: Attach the GPS antenna to the main unit and place it in a location with a clear view of the sky, such as on the dashboard near the windshield, to ensure optimal signal reception.
5. Indsæt TF-kort: Insert the provided 64GB TF card into the designated slot on the main unit. This card is essential for dash cam recording.
6. Lydforbindelse (valgfrit): If desired, connect the 3.5M AUX cable from the main unit to your car's AUX input for direct audio transmission. Alternatively, you can use Bluetooth or the FM transmitter function (see Operating Instructions).

Note: No need to disassemble the car console. This system is designed to coexist with your car's original radio.

4. Betjeningsvejledning

4.1 Tænd/sluk

• The device will automatically power on when your vehicle starts and power off when the ignition is turned off.
• For at tænde/slukke manuelt skal du trykke på tænd/sluk-knappen på siden af ​​enheden og holde den nede.

4.2 Trådløs Carplay og Android Auto

Image: The K80 screen displaying both Wireless Carplay and Wireless Android Auto interfaces, showing common app icons like Phone, Music, Maps, and Messages.

1. Aktivér Bluetooth og Wi-Fi: On your smartphone, ensure Bluetooth and Wi-Fi are enabled.
2. Par enhed: On the K80 screen, navigate to the Carplay or Android Auto icon. Follow the on-screen prompts to pair your phone via Bluetooth. Once paired, the system will automatically establish a Wi-Fi connection for wireless Carplay/Android Auto.
3. Access Functions: Once connected, you can access navigation, music, calls, and messages directly from the K80 touch screen.

4.3 Dash Cam Operation (Front 5K & Rear 1080P)

Billede: En splittelse view showing the high-resolution 5K recording from the front camera and the 1080P recording from the rear camera, capturing road scenes.

• Automatisk optagelse: The dash cam automatically begins recording when the device powers on.
• Loop-optagelse: Footage is saved to the TF card. When the card is full, the oldest unlocked files overskrives.
• Nødoptagelse: In case of a sudden impact or collision, the G-sensor will trigger emergency recording, locking the current footage for at forhindre, at den bliver overskrevet.
• Viewing Footage: Det kan du view recorded videos directly on the K80 screen or by connecting the TF card to a computer.
• In-App Video Download: Connect your smartphone to the device via Wi-Fi to preview, playback, download, and share video footage using the dedicated mobile application.

4.4 GPS-navigation

Image: The K80 screen displaying a GPS navigation map with a highlighted route, estimated time, and distance, along with icons for calls, music, and Siri control.

• When connected to Carplay or Android Auto, use your preferred navigation apps (e.g., Google Maps, Waze) directly on the K80 screen.
• The external GPS antenna ensures precise real-time location and navigation.

4.5 Lydudgang

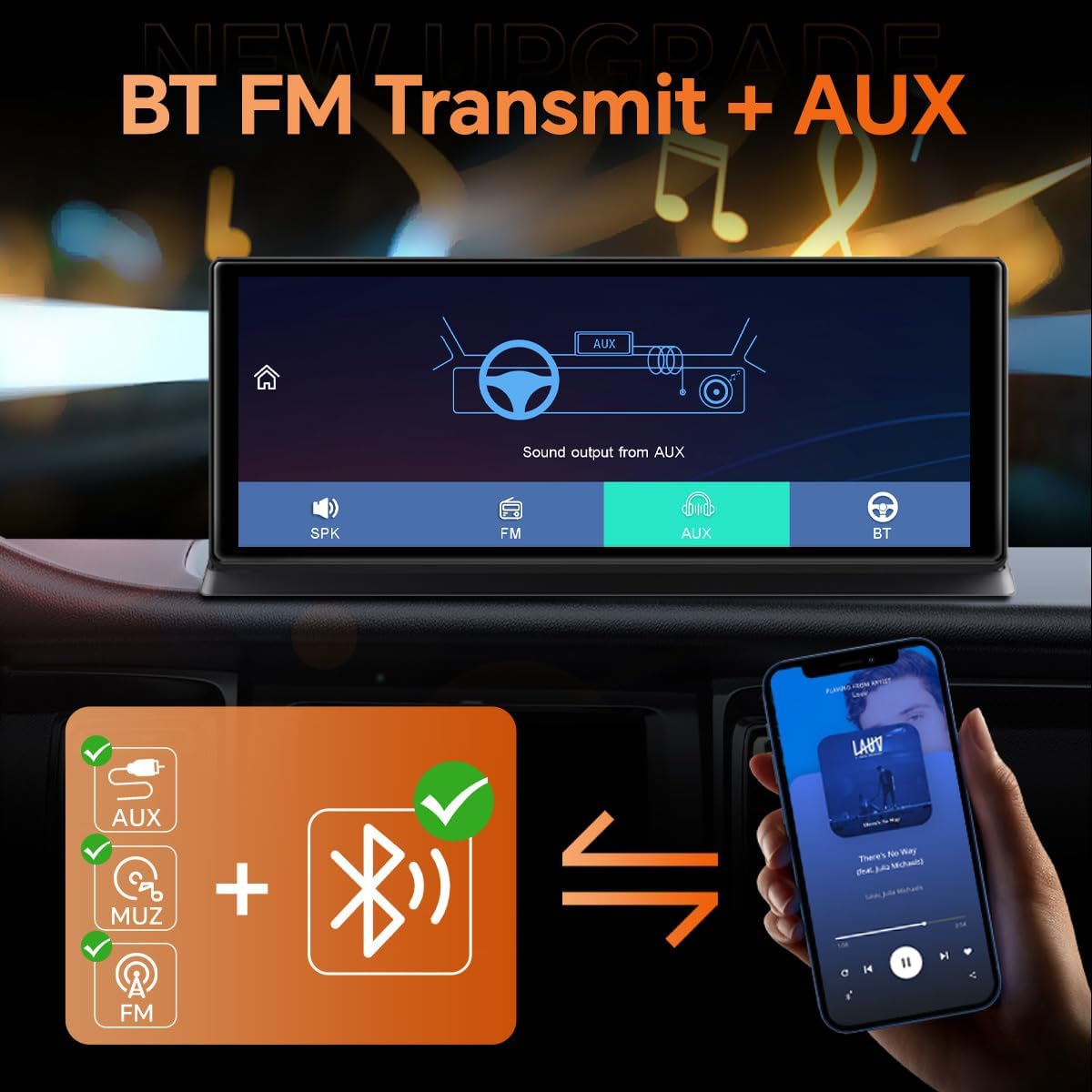

Image: The K80 screen showing options for audio output: internal speaker (SPK), FM transmission, AUX cable, and Bluetooth. A diagram illustrates the AUX connection to the car's audio system.

• AUX kabel: Connect the provided 3.5mm AUX cable from the K80 to your car's AUX input for high-fidelity audio.
• FM Transmitter: Select an unused FM frequency on the K80 and tune your car radio to the same frequency to transmit audio wirelessly.
• Bluetooth: Connect your phone to the K80 via Bluetooth for audio playback. The K80 can then output audio to your car's system via AUX or FM.
• Intern højttaler: The K80 has a built-in speaker for basic audio output.

4.6 Reversing Camera Display

Image: The K80 screen displaying a full-screen view from the rear camera, showing parking guidelines overlaid on a parking lot scene, indicating the system's reversing assistance feature.

• When the vehicle is shifted into reverse, the system will automatically display the rear camera feed in full screen on the K80.
• Dynamic parking guidelines may appear to assist with parking maneuvers.

4.7 Skærmindstillinger

Image: The K80 screen demonstrating the 'Customize Time Brightness' feature, showing different screen brightness levels for daytime (9:00), custom time (18:30), and nighttime (22:00) settings.

• Automatisk lysstyrke: The screen can automatically adjust its brightness based on ambient light conditions.
• Custom Time Brightness: You can set specific brightness levels for different times of the day (e.g., brighter during the day, dimmer at night).

5. Vedligeholdelse

• Rengøring af skærmen: Use a soft, lint-free cloth to gently wipe the touch screen. Avoid abrasive cleaners or solvents.
• TF-korthåndtering: Regularly format the TF card (at least once a month) to ensure optimal recording performance and prevent data corruption. Back up any important footage før formatering.
• Firmwareopdateringer: Tjek producentens website periodically for firmware updates to improve performance and add new features. Follow the provided instructions carefully for any update process.
• Kabelforbindelser: Ensure all cables are securely connected and free from damage.

6. Fejlfinding

7. Specifikationer

Image: A diagram illustrating the physical dimensions of the K80 main unit, showing a length of 26.5cm and a height of 10.4cm.

8. Garanti og support

For warranty information and technical support, please refer to the warranty card included in your product packaging or visit the official OBDPEAK website. If you encounter any issues not covered in this manual, please contact OBDPEAK customer service for assistance.
