Shark Detect Ultralight Støvsuger med ledning, HZ752 Brugsanvisning

1. Introduktion

The Shark Detect Ultralight Corded Stick Vacuum, model HZ752, is engineered to provide powerful and efficient cleaning across various floor types. Featuring advanced Direction Detect technology and a self-cleaning brushroll, this vacuum is designed for ease of use and effective debris removal.

Nøglefunktioner

• ULTRA-POWERFUL HAIR PICKUP: Shark Detect brushroll is no match for long, short, or pet hair.
• DIRECTION DETECT: While most vacuums tackle debris only when moving forward, the Detect nozzle picks up debris in both forward and reverse for powerful cleaning.
• ULTRA-LIGHTWEIGHT: Weighs less than 10 pounds for easy lifting and maneuverability.
• NO HAIR WRAP: The self-cleaning brushroll delivers powerful pet hair pickup without wrapping hair.
• Includes specialized cleaning tools for removing pet hair and cleaning hard-to-reach areas.

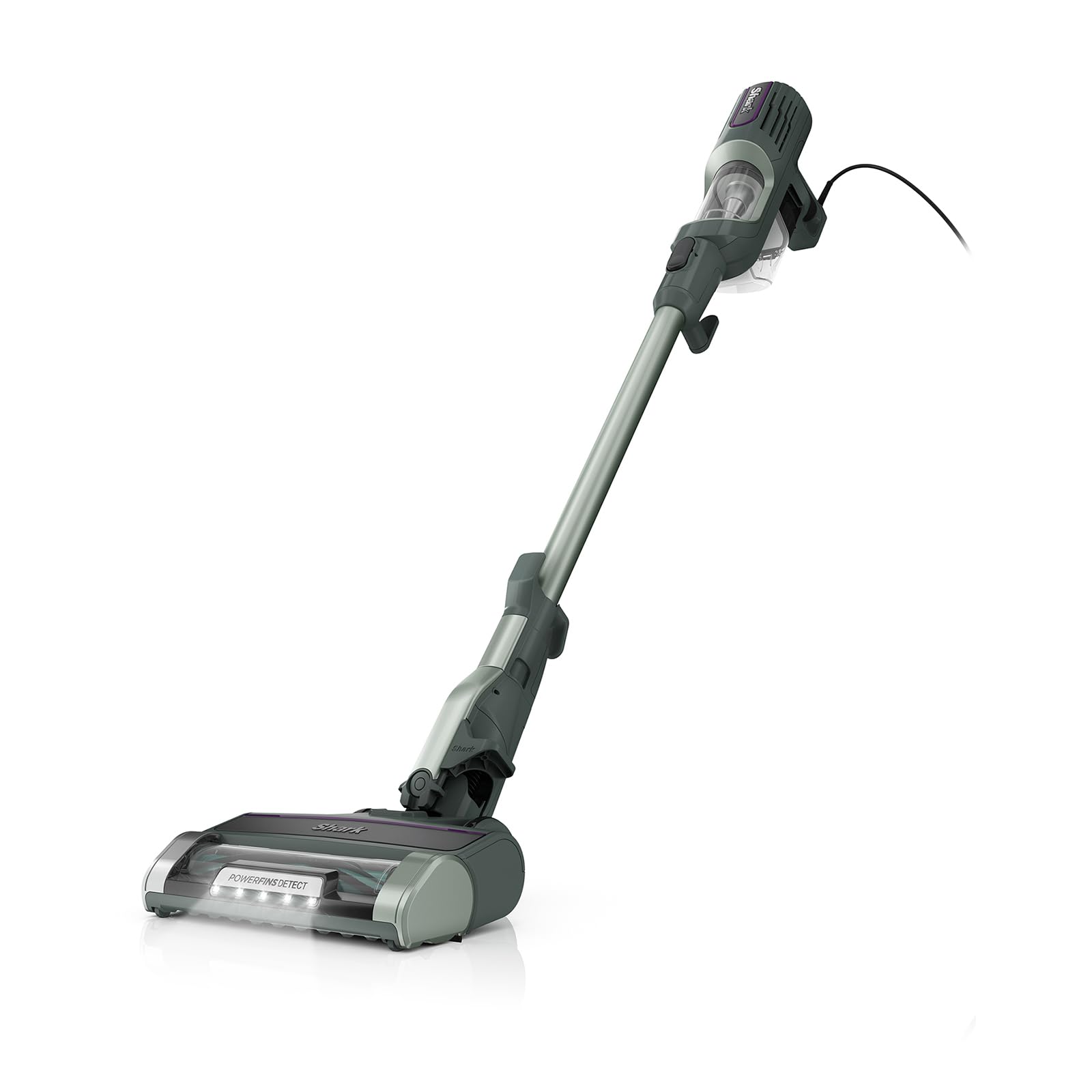

Figure 1.1: Shark Detect Ultralight Corded Stick Vacuum, HZ752.

Figure 1.2: Shark Detect Corded Ultralight - Lightweight and Powerful.

Figure 1.3: Self-Cleaning Brushroll for pet and long hair without tangling.

2. Sikkerhedsinstruktioner

Please read all instructions carefully before using your Shark Detect Ultralight Corded Stick Vacuum. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always unplug the power cord from the electrical outlet when not in use and before cleaning or servicing.
• Må ikke bruges udendørs eller på våde overflader.
• Må ikke bruges som legetøj. Omhyggelig opmærksomhed er nødvendig, når den bruges af eller i nærheden af ​​børn.
• Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
• Må ikke anvendes med en beskadiget ledning eller stik. Hvis apparatet ikke fungerer som det skal, er blevet tabt, beskadiget, efterladt udendørs eller tabt i vand, skal det returneres til et servicecenter.
• Undlad at trække eller bære i snoren, bruge snoren som håndtag, lukke en dør på snoren eller trække snoren rundt om skarpe kanter eller hjørner. Kør ikke apparatet over ledningen. Hold ledningen væk fra opvarmede overflader.
• Tag ikke stikket ud ved at trække i ledningen. For at tage stikket ud skal du tage fat i stikket, ikke i ledningen.
• Håndter ikke stikket eller apparatet med våde hænder.
• Stik ikke genstande ind i åbninger. Må ikke bruges med blokerede åbninger; holdes fri for støv, fnug, hår og alt, hvad der kan reducere luftstrømmen.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• Saml ikke brændbare eller brændbare væsker, såsom benzin, og brug ikke i områder, hvor de kan være til stede.
• Må ikke bruges uden støvkop og/eller filtre på plads.

3. Hvad er der i æsken

Your Shark Detect Ultralight Corded Stick Vacuum comes with the following components:

• Hovedstøvsugerenhed (håndholdt)
• Motorized Floor Nozzle with Self-Cleaning Brushroll
• Wand
• Sprækkeværktøj
• Polstringsværktøj
• Præcisionsduster
• Indbygget opbevaringsklip

Figure 3.1: All components included with the Shark Detect Ultralight Corded Stick Vacuum.

4. Montering

Follow these steps to assemble your Shark Detect Ultralight Corded Stick Vacuum:

1. Sæt stangen ind i det motoriserede gulvmundstykke, indtil det klikker sikkert på plads.
2. Insert the handheld vacuum unit onto the top of the wand until it clicks securely into place.
3. Attach the desired accessory (Crevice Tool, Upholstery Tool, or Precision Duster) to the handheld vacuum unit or the end of the wand, depending on your cleaning needs.
4. Wrap the power cord around the cord clips on the side of the wand for organized storage.

5. Betjeningsvejledning

Tænd/sluk

To turn the vacuum on or off, press the power button located on the handheld unit. The LED headlights on the nozzle will illuminate when the vacuum is powered on.

Selecting Floor Type

The Shark Detect Ultralight features Direction Detect technology, which automatically adjusts brushroll speed for optimal cleaning on different floor types. However, you can manually select floor types:

• Indstilling af hårdt gulv: For bare floors and delicate area rugs.
• Tæppeindstilling: For carpets and rugs.

Håndholdt tilstand

To use the vacuum in handheld mode for above-floor cleaning, press the release button on the wand to detach the handheld unit. You can then attach accessories directly to the handheld unit or to the end of the wand for extended reach.

Figure 5.1: Easily remove the 3-pound hand vac for effortless cleaning above the floor.

Figure 5.2: Detach the hand vac and wand from the nozzle to take on hard-to-reach spaces.

Figur 5.3: Lav-profile design allows for effortless cleaning under furniture.

Figure 5.4: LED headlights reveal hidden dirt and debris around your home.

Video 5.1: Official product video demonstrating the Shark Detect Ultralight Corded Stick Vacuum's features and operation.

6. Vedligeholdelse

Tømning af støvkoppen

To empty the dust cup, ensure the vacuum is unplugged. Press the dust cup release button and remove the dust cup from the handheld unit. Hold the dust cup over a trash bin and press the empty button to release debris. Close the dust cup lid and reattach it to the handheld unit.

Figure 6.1: The removable easy-empty dust cup clears debris in seconds.

Rengøring af filtre

Regularly clean the foam and felt filters to maintain optimal suction. Remove the dust cup, then pull out the foam and felt filters. Rinse them with water and allow them to air dry completely before reinserting. It is recommended to clean filters monthly.

Rengøring af børsterullen

The self-cleaning brushroll is designed to prevent hair wrap. However, if any debris or hair becomes tangled, carefully remove it using scissors or by hand. Ensure the vacuum is unplugged before performing any maintenance on the brushroll.

Figure 6.2: Self-cleaning brushroll picks up pet hair and long hair without tangling.

Figure 6.3: PowerFins Detect grips and captures dirt, debris, and hair on carpets and floors.

7. Fejlfinding

8. Produktspecifikationer

9. Garanti og kundesupport

For warranty information or customer support, please refer to the documentation included with your product or visit the official Shark website. You can also contact Shark customer service directly for assistance with product registration, troubleshooting, or replacement parts.

Online support: Besøg Shark's Official Store
