Honeywell Home X8S Smart Termostat Brugermanual

1. Introduktion

The Honeywell Home X8S Smart Thermostat with Room Sensor is designed to provide advanced climate control and enhanced home comfort. This manual provides instructions for installation, operation, and maintenance of your X8S thermostat and its accompanying room sensor.

Image: The Honeywell Home X8S Smart Thermostat, featuring a digital display showing temperature and settings, alongside its wireless room sensor.

2. Sikkerhedsoplysninger

Please read and understand all safety instructions before installing or operating this device. Failure to follow these instructions may result in property damage, injury, or death.

• Always turn off power at the circuit breaker before installing or servicing the thermostat.
• Installationen bør udføres af en kvalificeret tekniker, hvis du er usikker på nogle trin.
• Do not use this thermostat with electric baseboard heat (120-240V) systems.
• Sørg for, at alle ledningsforbindelser er sikre og overholder lokale el-forskrifter.

3. Pakkens indhold

Bekræft at alle komponenter er til stede i din pakke:

• Honeywell Home X8S Smart Termostat
• Wireless Room Sensor
• UWP Mounting Plate
• Skruer og ankre
• Ledningsetiketter
• Hurtig startvejledning
• Brugervejledning (dette dokument)
• Termostat ID-kort
• Voucher for Honeywell Home C-Wire Adapter (if C-wire is not present in your system)

4. Opsætning og installation

The X8S thermostat is designed for straightforward installation. Follow these general steps:

1. Sluk: Sluk for strømmen til dit HVAC-system ved afbryderen.
2. Fjern gammel termostat: Fjern forsigtigt din gamle termostat fra væggen. Tag et billede af ledningerne som reference.
3. Install UWP Mounting Plate: Mount the Universal Wiring Plate (UWP) to the wall using the provided screws and anchors.
4. Tilslutning af termostaten: Connect the wires from your HVAC system to the appropriate terminals on the UWP. A C-wire is required for operation. If your system lacks a C-wire, use the included voucher to obtain a Honeywell Home C-Wire Adapter.
5. Mount the X8S Thermostat: Snap the X8S thermostat onto the UWP.
6. Tænd: Restore power to your HVAC system.
7. Indledende opsætning: Follow the on-screen prompts to configure your thermostat, including Wi-Fi connection and system type.

Systemkompatibilitet: The X8S works with up to 3 heat/2 cool heat pump systems with electric backup or 2 heat/2 cool conventional systems, hot water heat, and forced air (gas, oil, or electric). It is not compatible with electric baseboard heat (120-240V).

Image: A woman demonstrates the easy installation process of the Honeywell Home X8S Smart Thermostat onto its wall-mounted base plate.

5. Betjeningsvejledning

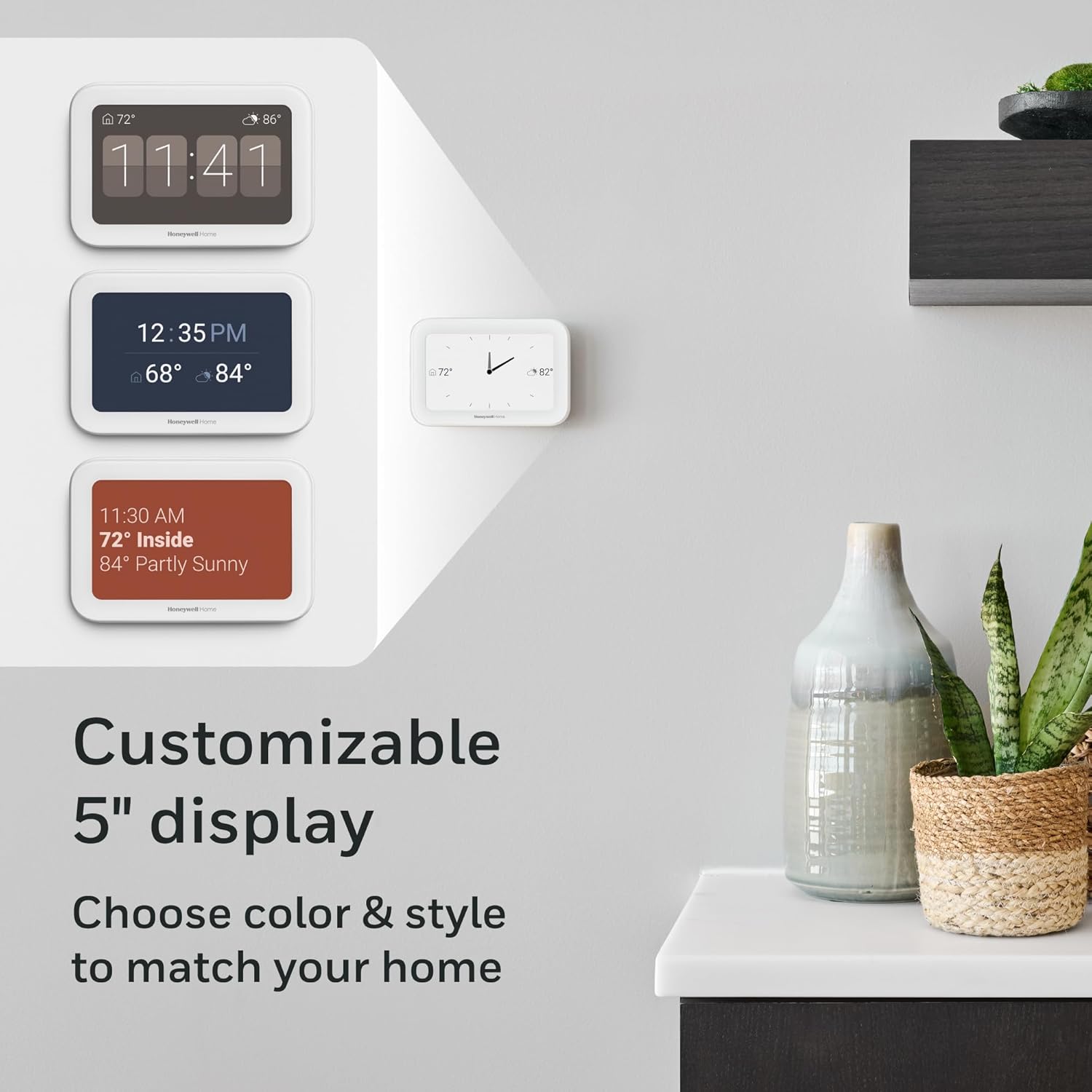

5.1 Customizable Touchscreen Display

The X8S features a sleek 5-inch touchscreen display. You can customize the color and style of the idle screen to match your home's aesthetic. Navigate through menus by tapping the screen.

Billede: Eksamples of the customizable 5-inch display, showing various color schemes and information layouts.

5.2 Doorbell Camera View & Intercom

The thermostat is compatible with First Alert VX1 and Ring streaming doorbells (sold separately). This feature allows you to see and speak to visitors directly from your thermostat's display.

Billede: En kvinde viewing a live video feed from a doorbell camera on the thermostat screen, demonstrating the doorbell compatibility feature.

5.3 Precision Comfort & Indoor Air Quality (IAQ) Control

The X8S monitors and helps maintain optimal indoor air quality by controlling humidity and ventilation. Additional HVAC equipment or accessories may be required for full IAQ control functionality.

Image: A man interacting with the thermostat's display, which shows an 'Indoor Air Quality' screen with indicators for Carbon Dioxide, VOCs, and Humidity levels.

5.4 Advanced Occupancy & Presence Detection with Room Sensor

The thermostat senses occupancy and presence to adjust settings for maximum comfort when you are home and to save energy when you are away. The included wireless Room Sensor provides more targeted comfort control, allowing you to prioritize specific living areas by day and bedrooms by night. Sensors have an extended range of up to 200ft and can be self-standing or adhered to a wall.

Image: A small, white, square Honeywell Home Room Sensor discreetly mounted on a wall in a modern living space.

Image: A woman entering a room, illustrating the thermostat's advanced occupancy and presence detection capabilities.

6. Connectivity and Smart Home Integration

6.1 Wi-Fi-forbindelse

The X8S requires a 2.4 or 5.0 GHz Wi-Fi network (802.11ax/ac/a/b/g/n wireless router) for remote control and smart home integration.

6.2 Remote Control via First Alert App

Control your thermostat from anywhere using the First Alert app. This app also allows integration with other compatible Resideo video, safety, and water leak detection products.

Image: A person using a smartphone to control various smart home functions, including the thermostat, through the First Alert app.

6.3 Smart Home Ecosystem Compatibility

The X8S is Matter certified, ensuring ease of interoperability with various smart home platforms. It is also compatible with Amazon Alexa, Google Assistant, and Apple Home, allowing for voice control and seamless integration into your existing smart home setup.

Image: A couple relaxing on a couch, with icons indicating compatibility with Apple Home, Matter, Amazon Alexa, and Google Home, highlighting voice control capabilities.

7. Vedligeholdelse

• Rensning: Gently wipe the thermostat screen and body with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Softwareopdateringer: Ensure your thermostat's firmware is up to date through the First Alert app to access the latest features and improvements.
• Placering af rumføler: Periodically check the room sensor's placement to ensure it is not obstructed and is providing accurate readings.

8. Fejlfinding

If you encounter issues with your Honeywell Home X8S Smart Thermostat, refer to the following common solutions:

• Ingen strøm til termostaten: Check the circuit breaker for your HVAC system. Ensure the C-wire is properly connected.
• Problemer med Wi-Fi-forbindelse: Verify your home Wi-Fi network is active and within range. Restart your router and the thermostat. Ensure you are connecting to a 2.4 GHz or 5.0 GHz network.
• Forkerte temperaturaflæsninger: Ensure the room sensor is placed in an optimal location, away from direct sunlight, drafts, or heat sources.
• HVAC-systemet reagerer ikke: Check wiring connections at the thermostat and HVAC unit. Ensure the system type is correctly configured in the thermostat settings.
• Problemer med app-styring: Ensure the First Alert app is updated to the latest version. Log out and log back into your account.

For further assistance, contact Honeywell Home customer support.

9. Specifikationer

10. Garanti og support

For warranty information and customer support, please refer to the documentation included with your product or visit the official Honeywell Home webwebsted. Gem din købsbevis til garantikrav.
