American Lighting LED Undercabinet Light User Manual

Indledning

The American Lighting LED 5 Complete 24-inch undercabinet light is designed to provide high-output illumination with versatile features for various lighting needs.

Key features include five selectable CCT options (2700K to 5000K), a ±32° swivel lens for precise aiming, and 925 lumens at 90+ CRI with a wide 120° beam angle. It ensures clean, even, and color-accurate light, ideal for kitchen prep zones, countertops, office cabinetry, and residential millwork. The bright white finish seamlessly integrates with modern and classic cabinetry.

Installation is flexible, supporting plug-in (cord sold separately), rear access hardwire, or housing knockout methods. Multiple fixtures can be linked via jumper cables or direct end-to-end connection. The unit is ENERGY STAR and Title 24 compliant, FCC certified, cETLus listed for dry locations, and dimmable via TRIAC from 10–100%. With a 35,000-hour rated life, this product is engineered for reliable, long-term performance.

Image: Two American Lighting LED Undercabinet Lights, showcasing their slim profile and white finish.

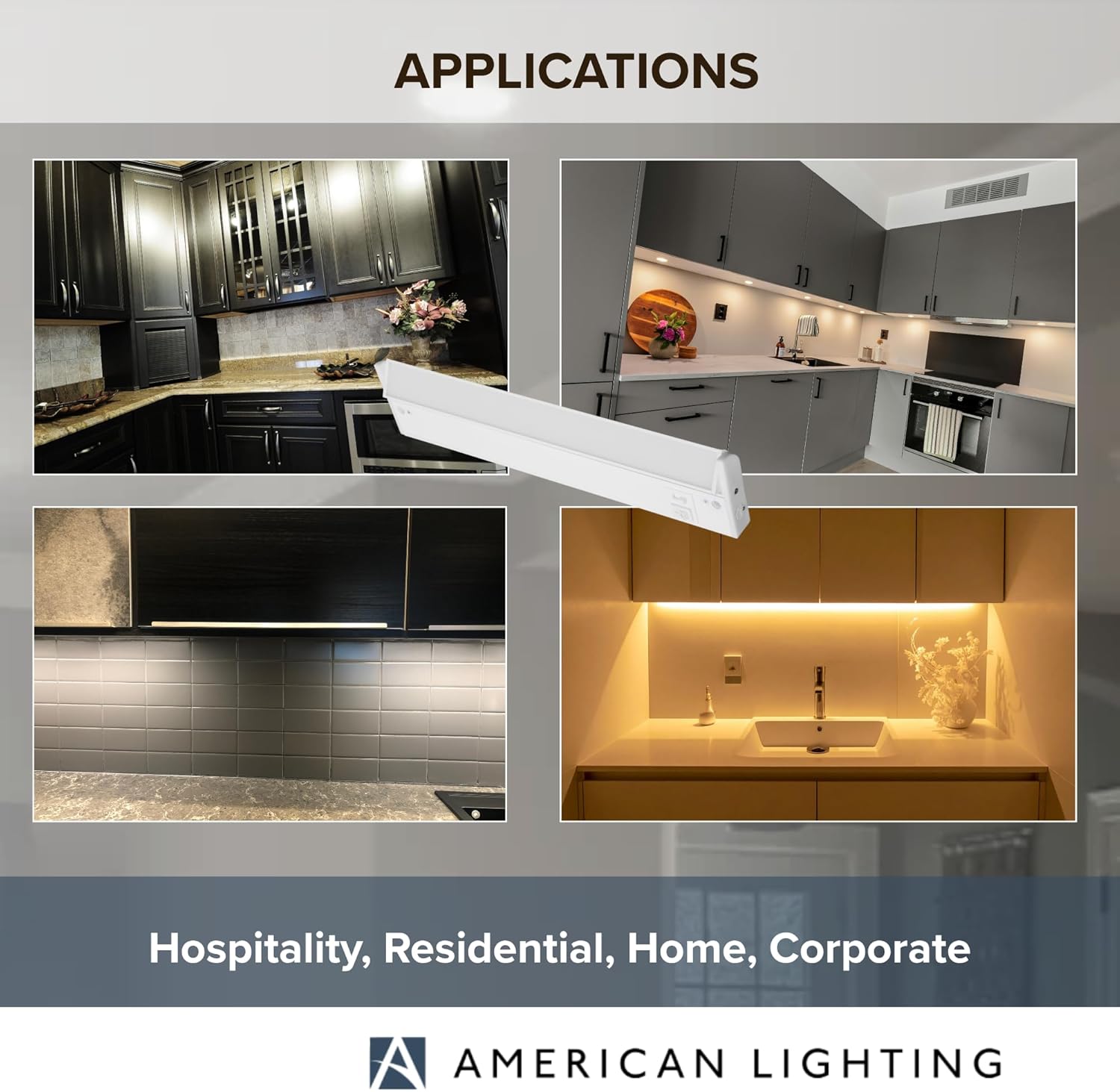

Image: Various applications of the undercabinet lights in different settings, including kitchens and other residential/commercial spaces, highlighting their versatility.

Sikkerhedsoplysninger

• Afbryd strømmen: Always disconnect power at the circuit breaker before installation, maintenance, or cleaning.
• Kun indendørs brug: This fixture is designed for indoor use in dry locations only. Do not expose to moisture or water.
• Uddannet elektriker: Installationen skal udføres af en kvalificeret elektriker eller i overensstemmelse med lokale el-forskrifter.
• Lysdæmper kompatibilitet: Use only TRIAC, CL, or ELV dimmers (10-100% dimming range).
• lysdioder: Do not stare directly at the LEDs when the light is on.
• Rensning: Clean with a dry cloth only. Do not use liquid cleaners or abrasive materials.
• Ledningsføring: Ensure all wires are properly connected and not pinched during installation.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• LED Undercabinet Light (2 units)
• Monteringsskruer
• Hardwire Connector
• End Connection Cover

Note: Plug-in power cord and linking cables are sold separately.

Produkt overview

The American Lighting LED Undercabinet Light features a sleek, low-profile design with advanced lighting capabilities. It is equipped with a selectable CCT switch to adjust color temperature from warm white (2700K) to cool daylight (5000K), allowing customization to suit various environments and preferences. The swivel lens provides directional control, enabling users to aim light precisely where needed.

• Selectable 5CCT: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to match your desired ambiance.
• Swivel Aiming: The lens can swivel ±32° to direct illumination across counters, back walls, or shelving.
• Slank Profile: At just 1-inch thin, it fits seamlessly under shallow valances and blends with modern interiors.
• Høj CRI: 90+ Color Rendering Index ensures accurate color representation of illuminated objects.
• Bred strålevinkel: A 120° beam angle provides broad, even light distribution.
• Dæmpbar: Compatible with TRIAC dimmers for smooth dimming from 10% to 100%.

Image: Visual representation of the LED 5 Complete 5CCT feature, showing how the field-adjustable color temperature and precision aim are suitable for various installations.

Image: Illustrates the benefit of high CRI (Color Rendering Index) and wide beam angle, emphasizing accurate color rendering and broad light coverage.

Image: Demonstrates the ultra-low profile design, highlighting its 1-inch thinness, making it ideal for tight installation spaces under cabinets.

Opsætning og installation

Before starting, ensure power is disconnected at the circuit breaker. Refer to the diagrams for visual guidance.

1. Strømstyring

• Plug-in: Insert a compatible 120V power cord (sold separately) into the side port of the fixture.
• Hardwire (Rear Access):
  1. Open the rear access door.
  2. Use the included connector.
  3. Connect wires: Black = Hot, White = Neutral, Green = Ground.
• Hardwire (Knockout):
  1. Remove the top/back knockout.
  2. Indsæt stikket.
  3. Connect wires as described for Rear Access (Black=Hot, White=Neutral, Green=Ground).

2. Montering

• Mark the desired fixture location under the cabinet.
• Secure the fixture using the included mounting screws. Captive screws simplify secure mounting.
• Ensure wires are not pinched during mounting.

3. Linking Fixtures

• Fixtures can be linked using a jumper cable (sold separately) or via direct end-to-end connection.
• For end-to-end connection, remove the port covers on the ends of the fixtures.

Image: Detailed diagrams (Figure 1-8) illustrating various installation steps, including opening the rear access door, using cable connectors, push-in wire connectors, and linking cables.

Image: A summary of easy installation steps and important notes, including power options (plug-in, hardwire), mounting, and safety precautions.

Betjeningsvejledning

Valg af farvetemperatur (CCT).

The fixture features a selectable CCT switch, typically located on the side or end of the unit. This switch allows you to choose from five different color temperatures:

• 2700K (varm hvid)
• 3000K (blød hvid)
• 3500K (neutral hvid)
• 4000K (Cool White)
• 5000K (dagslys)

To change the CCT, simply slide the switch to your desired setting. This can be done during or after installation to adapt to task, ambient, or design lighting needs.

Dæmpningsfunktion

This undercabinet light is dimmable from 10% to 100% when used with compatible TRIAC, CL, or ELV dimmers. Ensure your dimmer switch is compatible with LED lighting and specifically TRIAC, CL, or ELV types for optimal performance.

Image: Illustrates the dimming compatibility of the fixture, indicating it is dimmable from 10% to 100% with appropriate dimmers.

Swivel Lens Adjustment

The fixture features a ±32° swivel lens. Gently rotate the lens to direct the light beam to your preferred angle, optimizing illumination for specific areas like countertops or backsplashes.

Opretholdelse

• Rensning: To clean the fixture, ensure power is off. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners, solvents, or liquids, as these may damage the finish or electrical components.
• LED levetid: The LEDs in this fixture have a rated lifespan of 35,000 hours and are not user-replaceable.
• Inspektion: Periodically inspect the fixture and wiring for any signs of damage or wear. If any issues are found, disconnect power and consult a qualified electrician.

Fejlfinding

Specifikationer

Garanti og support

American Lighting products are engineered for performance and reliability. For specific warranty details, please refer to the warranty card included with your product or visit the official American Lighting webwebsted.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact American Lighting customer service. Contact information can typically be found on the product packaging or the manufacturer's webwebsted.

When contacting support, please have your product model number (5LCS-24-5CCT-WH) and purchase date available.
