YOUKAIN 52-Inch RGB Ceiling Fan Model 52-YJ811 User Manual

1. Sikkerhedsoplysninger

Read all instructions carefully before beginning installation. If you are unfamiliar with electrical wiring, consult a qualified electrician. Always turn off power at the circuit breaker before installation or maintenance.

• Ensure the installation site can support the fan's weight.
• Do not use an electric drill to install solid wood/plywood blades to avoid damage.
• Hold en minimumsafstand på 7 meter fra gulvet til bunden af ​​ventilatorbladene.
• Sørg for, at alle elektriske tilslutninger overholder lokale forskrifter og bestemmelser.
• This fan is designed for indoor use and is not for direct exposure to rain.

2. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes. Hvis der mangler eller er beskadigede dele, skal du kontakte kundesupport.

Image: All components of the YOUKAIN 52-inch RGB Ceiling Fan, including the motor housing, eight dual-finish blades, 6-inch and 10-inch downrods, remote control, and light kit.

• Motorhus
• Fan Blades (8 pieces, dual finish: matte black/wooden)
• Nedstænger (6 tommer og 10 tommer)
• Bøjlebeslag
• Baldakin
• Light Kit (integrated LED with RGB)
• Fjernbetjening
• Hardware Pack (screws, washers, wire connectors)
• Instruktionsmanual

3. Installationsvejledning

Follow these steps carefully to ensure proper and safe installation of your ceiling fan. Always ensure power is OFF at the circuit breaker before starting.

3.1. Install Hanger Bracket

Secure the hanger bracket to the ceiling junction box. Use appropriate screws for your ceiling type (wood tooth screws for wooden ceilings, expansion screws for concrete ceilings).

Image: Diagrams illustrating hanger bracket installation for both wooden and concrete ceilings, detailing the type of screws required for each.

3.2. Install Downrod

Remove the hanger ball from the downrod, insert the downrod into the motor housing, and secure it with the provided pin and screws. Then, slide the decorative cover over the downrod.

Billede: Et nærbillede view demonstrating the process of inserting the downrod into the fan motor housing and securing it.

3.3. Wire Fan and Hang

Connect the fan's wiring to the receiver, then carefully lift the fan assembly and hang it onto the installed hanger bracket. Ensure the slot on the hanger ball aligns with the tab on the bracket for secure placement. Connect the house wiring to the fan wiring (Green to Ground, White to Neutral, Black to Live) using wire connectors.

3.4. Attach Blades

Secure each fan blade to the motor housing using the provided screws and paper washers. Ensure all blades are firmly attached. Important: Do not use an electric drill for this step to prevent damage to the blades.

Image: A close-up shot showing a fan blade being carefully screwed into the motor housing.

Image: The dual-sided fan blades, offering a choice between a matte black finish and a wooden finish to match different decor styles.

3.5. Install Light Kit

Connect the light kit wires (LED and RGB connectors) and secure the light kit to the fan motor housing. Align the screw holes and tighten the three screws. Finally, attach the acrylic cover by twisting it into place.

Image: Steps for installing the LED light kit, including connecting wires and attaching the acrylic cover.

4. Betjeningsvejledning

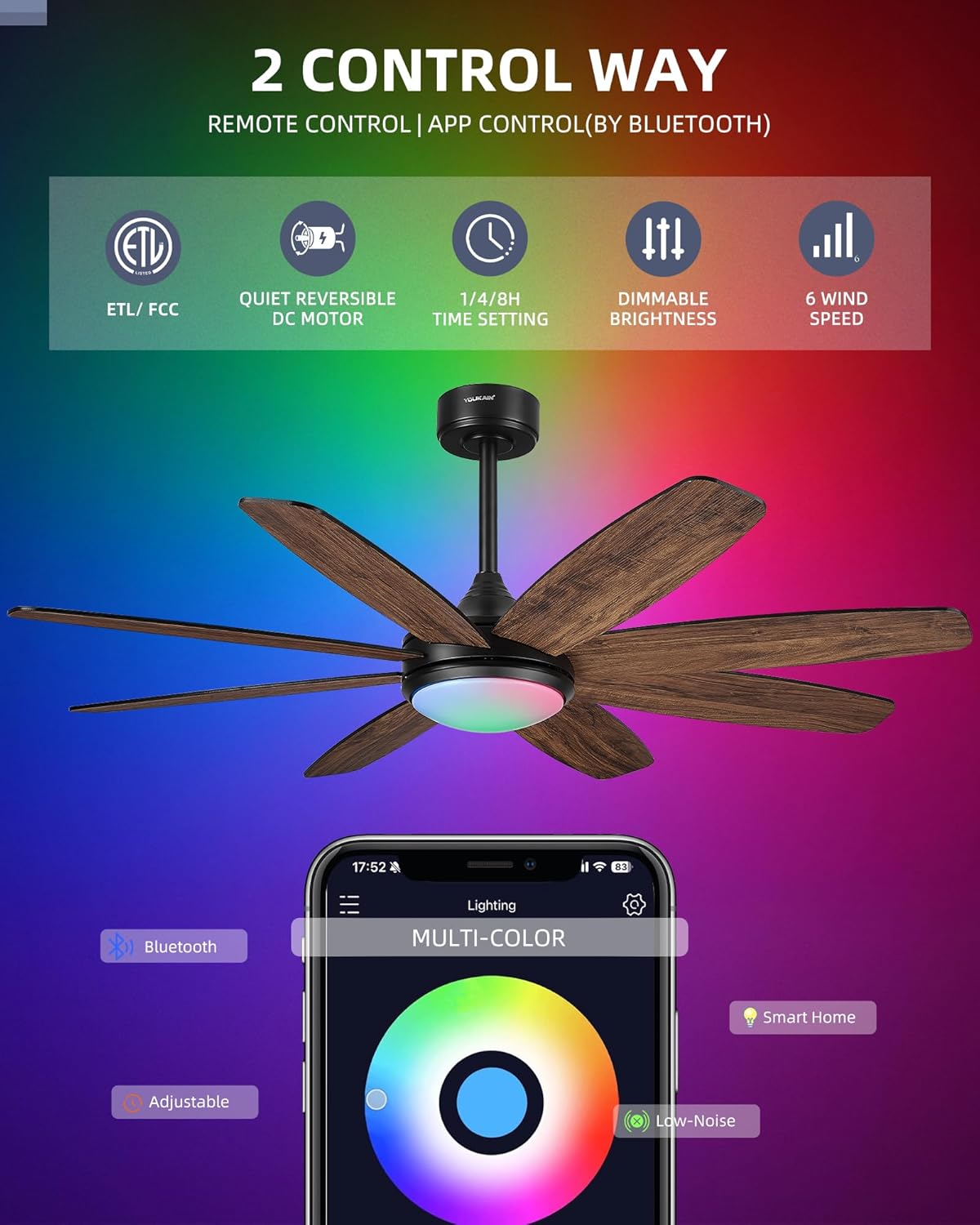

Your YOUKAIN ceiling fan can be controlled via the included remote control or the dedicated smartphone application.

4.1. Betjening af fjernbetjening

The remote control provides full functionality for your fan and light. Ensure batteries are installed correctly.

Image: A comprehensive diagram of the remote control, highlighting each button and its corresponding function for fan speed, light control, and special features.

• LED-indikator: Shows remote activity.
• ALT FRA: Turns off both fan and light.
• RGB Rainbow Cycle: Skifter mellem RGB-farver.
• Ventilator baglæns/fremad: Changes blade rotation direction for summer (downward airflow) or winter (upward airflow).
• Naturlig vind: Simulerer naturlig brise.
• Switch RGB Lights: Toggles RGB lighting.
• 1-6 Speed Control: Justerer ventilatorhastigheden fra 1 (lavest) til 6 (højest).
• Only Fan ON/OFF: Controls fan power independently.
• LED 3-Color Temperature Change: Cycles through 3000K (warm white), 4000K (neutral white), and 6000K (cool white).
• LED Light Dim UP/DOWN: Justerer lysstyrken fra 5% til 100%.
• Only Light ON/OFF: Controls light power independently.
• 2H/4H/8H Timer: Indstiller ventilatoren til at slukke automatisk efter 2, 4 eller 8 timer.

4.2. Styring af smartphone-app

Control your fan and light conveniently from your smartphone using the "i-light pro" app. The app offers advanced features including 16 million colors, smart scheduling, and scene modes.

1. Download app: Scan the QR code provided in the product packaging or search for "i-light pro" on Google Play (Android) or App Store (iPhone).
2. Aktiver Bluetooth: Sørg for, at Bluetooth er aktiveret på din smartphone.
3. Parring: Power on the fan. Open the "i-light pro" app, search for the fan model, and tap to connect.
4. Kontrollere: Once connected, you can control the light (ON/OFF, brightness, 3-color temperature, 16 million RGB colors, scene modes) and fan (ON/OFF, 6-speed settings, reversible motor, timing, buzzer) directly from the app.

Image: The smartphone application interface, displaying options for lighting control (white light, colored light, scenes) and fan functions.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din loftsventilator.

• Rensning: Rengør ventilatorbladene og motorhuset regelmæssigt med en blød klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Spænd skruer: Check all screws and connections annually to ensure they are secure. Loose connections can cause noise or malfunction.
• Knivbalance: If the fan wobbles, check that all blades are securely attached and balanced. A balancing kit (not included) can be used if necessary.
• Lyssæt: The LED light kit is integrated and not user-replaceable. Contact customer support if the light malfunctions.

6. Fejlfinding

Se dette afsnit for almindelige problemer og deres løsninger.

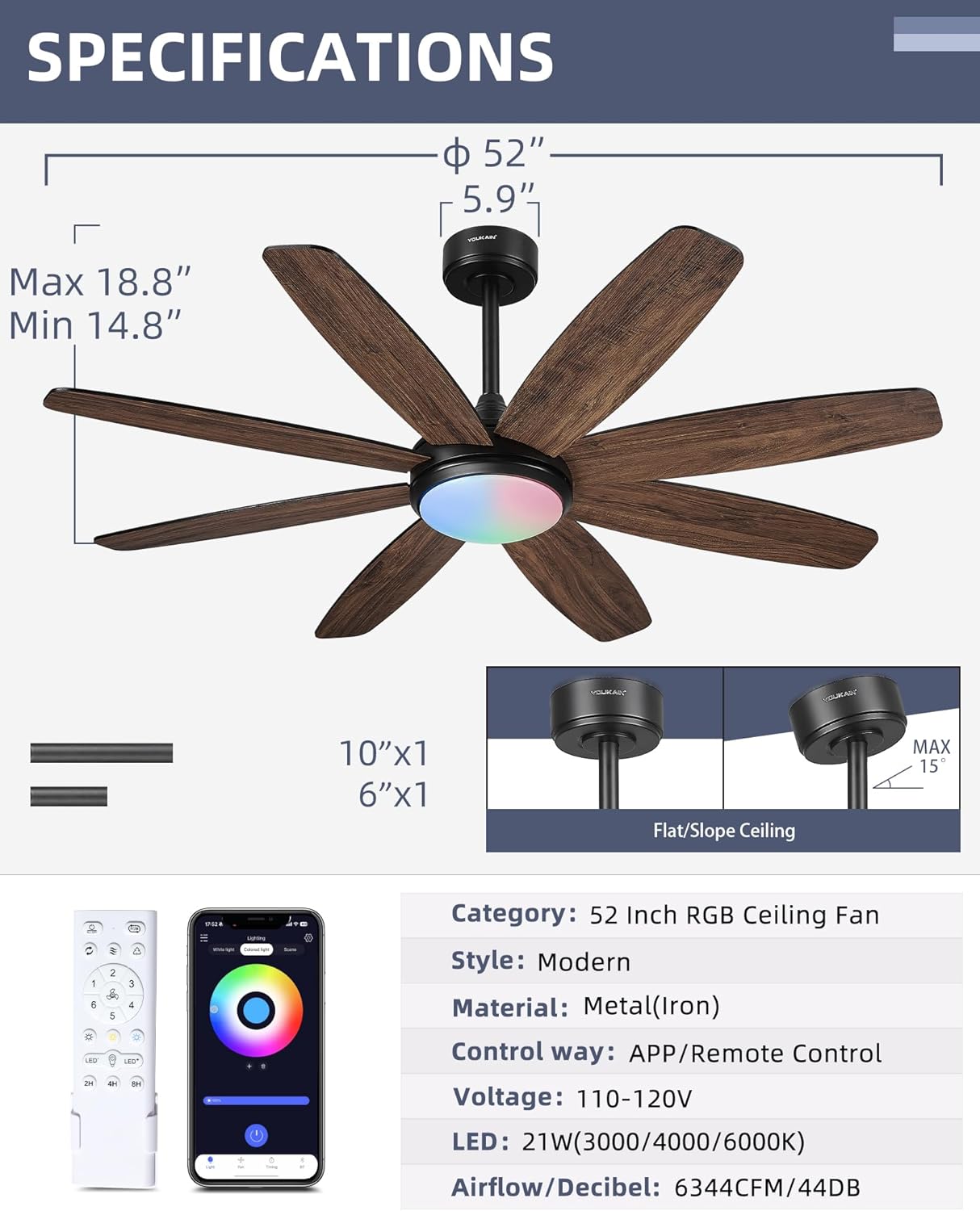

7. Specifikationer

Detailed technical specifications for the YOUKAIN 52-Inch RGB Ceiling Fan Model 52-YJ811.

8. Garanti og support

YOUKAIN provides comprehensive support for your product.

• Garanti: 2 years free replacement quality services.
• Kundesupport: 24 hours a day technical support service.
• Kontakte: If you have any questions about installation or use, please contact YOUKAIN customer support. Refer to your purchase documentation for specific contact details.
