Indledning
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your FIREBAT Gaming Laptop. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.
For further assistance, please refer to the support contact information provided in this manual.
Produkt overview
Nøglefunktioner
- Graphics Performance: NVIDIA RTX 5060 Laptop GPU with Blackwell architecture, offering up to 572 TOPS of AI-powered performance, 4th Gen RT Cores, and 5th Gen Tensor Cores for advanced graphical fidelity.
- Processor: Powerful 13th Gen Intel Core i7-13700HX Processor with 16 cores (8 Performance-cores, 8 Efficient-cores), 24 threads, and a single-core maximum turbo frequency of 5.0 GHz.
- Vise: 16-inch QHD (2560x1600) IPS display with a 16:10 aspect ratio, 100% sRGB color gamut, 300Hz refresh rate, and over 500 nits brightness for high-resolution, high-refresh gaming.
- Kølesystem: ACD all-metal design with highly efficient thermal grease, a silent internal cooling system featuring dual fans, three in-line heat pipes, and dual air outlets, maintaining a low noise level of approximately 48dB.
- Hukommelse og opbevaring: Equipped with 32GB (16GBx2) DDR5 memory (dual channel, expandable up to 96GB) and a 1TB PCIe 4.0 M.2 SSD (dual hard drive interface, expandable).
- Netværksforbindelse: Built-in 2.5Gbps adaptive wired network card and Intel AX210 dual-band wireless network card supporting WiFi AX (6E) protocol (2.4/5/6GHz, MU-MIMO) and Bluetooth 5.3.
- Porte: Comprehensive connectivity including 1x mini DP 2.1a (40Gbps), 1x HDMI 2.1 (48Gbps), 3x USB-A 3.2 Gen1 (5Gbps), 1x USB-C (rear) 10Gbps/DP1.4/PD 140W, 1x USB-C (left) 10Gbps/DP1.4/PD 100W, 1x Kensington Lock, and 1x 3.5mm 2-in-1 Audio Jack.
- Yderligere funktioner: RGB Backlit keyboard and HD privacy webcam.
Komponenter
Your FIREBAT Gaming Laptop package includes:
- FIREBAT Gaming Laptop
- Power Adapter (Lightweight Silicon Carbide Adapter)
- Brugervejledning (dette dokument)
- Højttalere

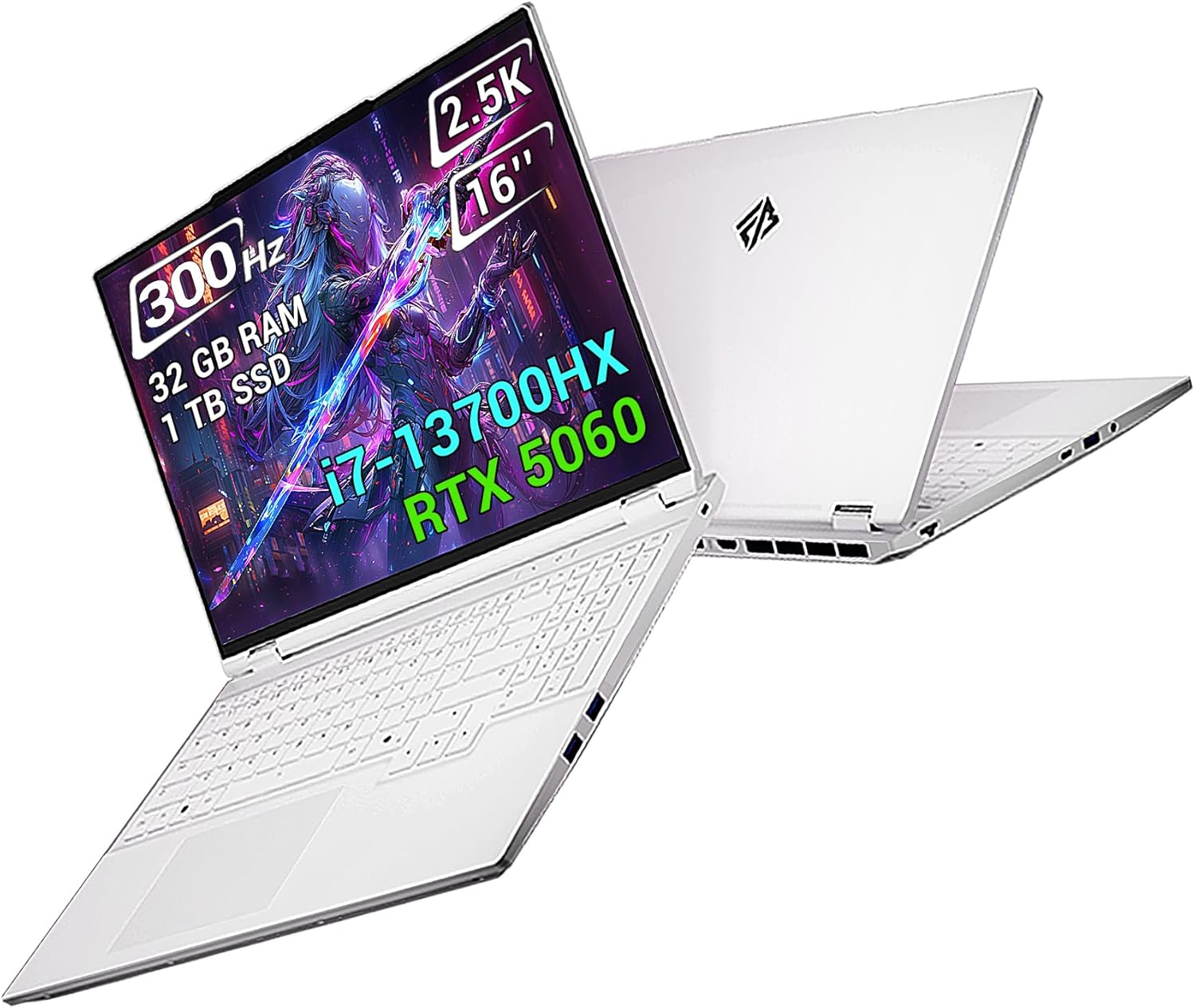

Image: The FIREBAT Gaming Laptop, showcasing its sleek design and vibrant display. The screen highlights its 300Hz refresh rate, 2.5K resolution, 16-inch size, 32GB RAM, 1TB SSD, i7-13700HX processor, and RTX 5060 graphics.

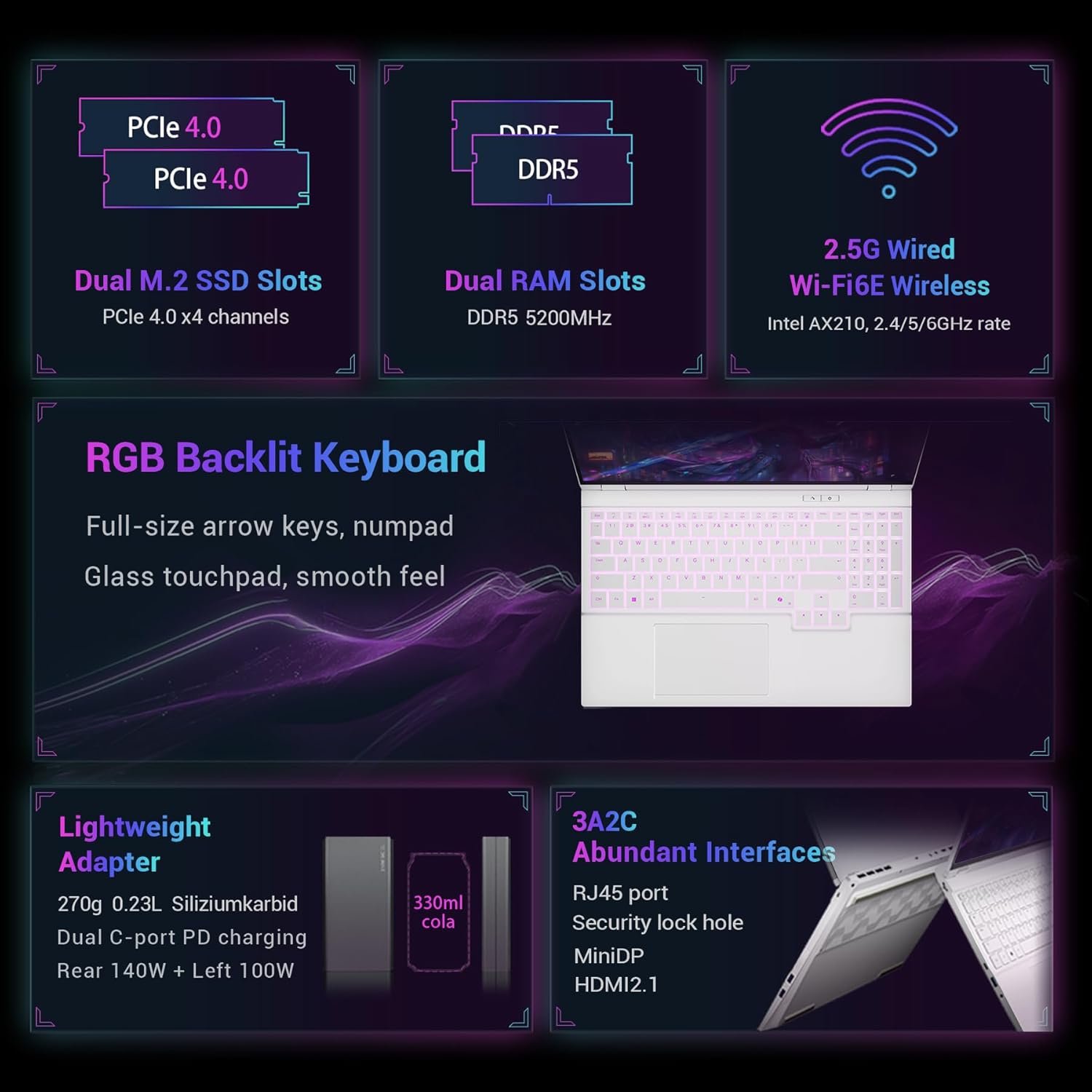

Image: A detailed diagram illustrating the internal components such as Dual M.2 SSD Slots (PCIe 4.0), Dual RAM Slots (DDR5 5200MHz), and 2.5G Wired Wi-Fi6E Wireless (Intel AX210). It also highlights the RGB Backlit Keyboard, Lightweight Adapter, and Abundant Interfaces including RJ45, MiniDP, and HDMI2.1.
Opsætning
Første gang tændt
- Pak den bærbare computer og alt tilbehør ud af kassen.
- Tilslut strømadapteren til den bærbare computers strømindgang og derefter til en stikkontakt.
- Åbn låget på den bærbare computer. Den bærbare computer tænder muligvis automatisk, eller du skal muligvis trykke på tænd/sluk-knappen.
- Follow the on-screen instructions to complete the initial Windows setup, including language, region, network connection, and user account creation.
Tilslutning af eksterne enheder
Utilize the various ports available on your laptop to connect external devices.
- USB-A porte: Til tilslutning af standard USB-enheder som mus, tastaturer og eksterne drev.
- USB-C porte: For data transfer, video output (DisplayPort 1.4), and power delivery (PD 100W/140W).
- HDMI 2.1 & Mini DP 1.4: Til tilslutning af eksterne skærme eller projektorer.
- RJ45 LAN-port: Til kablet internetforbindelse.
- 3.5 mm lydstik: Til hovedtelefoner eller eksterne højttalere.
Image: An illustration detailing the "Luxurious Interface Configuration" of the FIREBAT Gaming Laptop, showing the location and type of each port: USB-C (rear) 10Gbps/DP1.4/PD 140W, Power interface, Mini DP 1.4, HDMI 2.1, Security lock slot, 2.5Gbps RJ45 LAN, USB-C (left) 10Gbps/DP1.4/PD 100W, 2x USB-A 3.2 Gen 1, 3.5mm headphone/microphone combo jack, and 1x USB-A 3.2 Gen 1.
Betjeningsvejledning
Strømstyring
The laptop features a large 5200mAh 80Wh battery. For optimal performance, it is recommended to keep the laptop plugged in during intensive tasks like gaming or video editing.
Ydelsestilstande
Your FIREBAT laptop offers four distinct performance modes to optimize for different usage scenarios. These modes can be switched via a one-key function, allowing for both intelligent scheduling and custom allocation.
- Tilpasset tilstand: Unleash maximum performance potential.
- Raging Mode: Pursue powerful performance.
- Spiltilstand: Balances performance and user experience.
- Kontortilstand: Provides a quiet experience with long battery life.

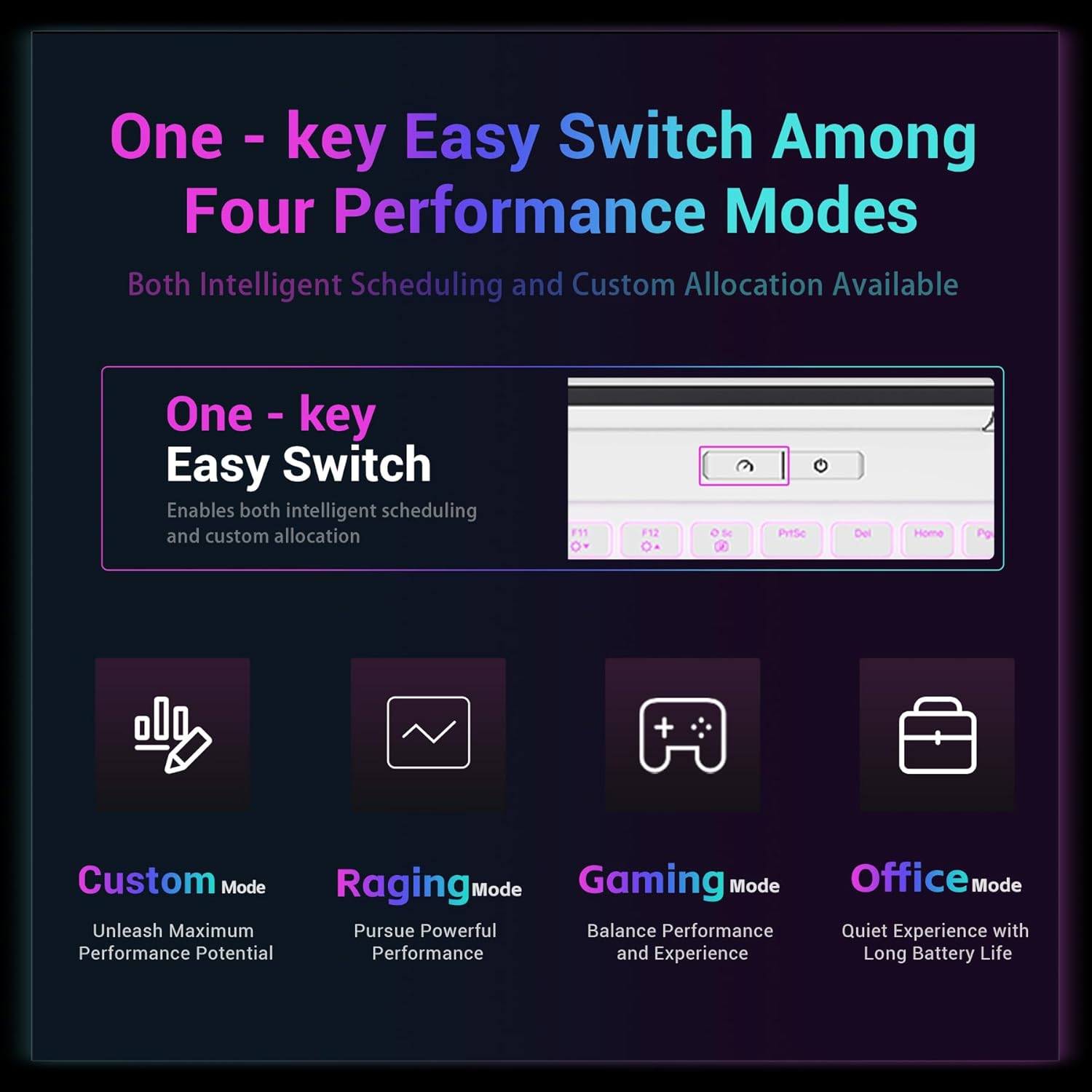

Image: A visual representation of the "One-key Easy Switch Among Four Performance Modes" available on the FIREBAT Gaming Laptop, including Custom Mode, Raging Mode, Gaming Mode, and Office Mode, each with a brief description of its purpose.
Visningstilstande
The laptop supports flexible switching between two displays and three modes to meet various usage scenarios. These modes adjust the independent display direct connection, mixed output, and core display output.
- Nuclear Display Output: Ideal for business trips and office work, maximizing battery life.
- Unique Display Direct Connection: Optimized for game specialization, maximizing performance output.
- Blandet output: Suitable for daily use, offering flexible switching of battery life and performance.
Image: A diagram titled "Two Displays, Three Modes Flexible Switching," illustrating how the laptop can adjust display output for different scenarios: Nuclear display output (Business trips), Unique display direct connection (Game specialization), and Mixed output (Daily use).
Tastatur og touchpad
The laptop features an RGB backlit keyboard with full-size arrow keys and a numpad. The glass touchpad provides a smooth tactile experience.
Billede: Et nærbillede view of the FIREBAT Gaming Laptop's RGB Backlit Keyboard and Glass Touchpad, highlighting its full-size single zone RGB backlight, smooth touch glass touchpad, and full-height arrow keys with numpad.
Opretholdelse
Rensning
To clean the laptop's exterior, use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Avoid harsh chemicals. For the screen, use a dedicated screen cleaner and a microfiber cloth.
Pleje af kølesystem
The laptop's efficient cooling system relies on clear air vents. Regularly check and clean the air vents to prevent dust buildup, which can impede airflow and lead to overheating. Do not block the vents during operation.
Image: A diagram illustrating the "Series Multi-layer Heat Dissipation System" of the FIREBAT Gaming Laptop, showing its ability to handle high power loads for CPU (125W), GPU (115W), and Extreme Raging Mode Dual Roast (170W).
Batteripleje
To prolong battery life, avoid fully discharging the battery frequently. If storing the laptop for an extended period, ensure the battery is charged to around 50-60%.
Softwareopdateringer
Regularly update your operating system, drivers, and applications to ensure optimal performance, security, and compatibility.
Fejlfinding
Fælles problemer og løsninger
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Den bærbare computer tænder ikke. | Battery drained, power adapter not connected properly, faulty power button. | Ensure power adapter is securely connected and plugged into a working outlet. Charge the battery for at least 30 minutes. Try a different power outlet. If issue persists, contact support. |
| Overophedning under brug. | Blocked air vents, intensive applications, dust buildup. | Ensure air vents are clear and not obstructed. Use the laptop on a hard, flat surface. Clean dust from vents. Switch to a less demanding performance mode. |
| Ingen visning på ekstern skærm. | Incorrect cable, wrong input selected on monitor, display settings. | Check HDMI/Mini DP cable connection. Ensure external monitor is powered on and set to the correct input source. Press Windows-tasten + P for at gennemgå visningstilstande. |
| Problemer med Wi-Fi-forbindelse. | Wi-Fi disabled, driver issues, router problems. | Ensure Wi-Fi is enabled in Windows settings. Restart the laptop and router. Update Wi-Fi drivers. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | i7-5060-32GB/1TB |
| Processor | Intel Core i7-13700HX (16 kerner, 24 tråde, op til 5.0 GHz) |
| Grafikkort | NVIDIA RTX 5060 (8GB GDDR7) |
| VÆDDER | 32GB DDR5 (5200MHz, expandable to 96GB) |
| Opbevaring | 1TB PCIe 4.0 M.2 SSD (Dual slots, expandable to 8TB) |
| Vise | 16-inch QHD (2560x1600) IPS, 300Hz Refresh Rate, 500 nits, 100% sRGB |
| Trådløs forbindelse | Intel AX210 WiFi 6E, Bluetooth 5.3 |
| Kablet tilslutning | 2.5Gbps RJ45 LAN |
| Havne | 1x mini DP 2.1a, 1x HDMI 2.1, 3x USB-A 3.2 Gen1, 2x USB-C (with DP1.4 & PD), 1x Kensington Lock, 1x 3.5mm Audio Jack |
| Batteri | 5200mAh 80Wh |
| Vægt | 4.7 pund (2.15 kg) |
| Dimensioner (LxBxH) | 14 x 9.7 x 0.9 tommer |
| Operativsystem | Default (Windows) |
Image: A graphic detailing the specifications of the RTX 5060 GPU, including 3352 CUDA Cores, 115W full-power consumption, DLSS 4 with Ray tracing, 8GB VRAM GDDR7, and a 3DMARK Time Spy graphics score comparison.
Image: A graphic detailing the specifications of the Intel Core i7-13700HX CPU, including 16 cores, 24 threads, Intel 7-nanometer process technology, 5.0GHz theoretical single-core Turbo Boost, 170W performance release, and CINEBENCH R23 Multi-core scores.
Image: A visual representation of the 2.5K Ultra-resolution Wide-color-gamut Gaming Screen, highlighting its ultra-high resolution, wide color gamut, high brightness, high refresh rate, and high screen-to-body ratio.
Image: A comparison demonstrating the benefits of a 300Hz ultra-high refresh rate for smoother gaming and 500 nits high brightness for clearer visuals, especially in dark areas.
Image: A diagram illustrating the "Massive Storage Swift Response" capabilities, showing Dual M.2 SSD Slots (PCIe 4.0, expandable to 8TB) and Dual SO-DIMM RAM Slots (DDR5 4800MHz, expandable up to 96GB), along with the 80Wh Battery Capacity.
Garanti og support
For warranty information and technical support, please contact FIREBAT directly.
E-mail: support@firebatpc.com
Webwebsted: www.firebatpc.com
You may also refer to the protection plans available for purchase on Amazon:
- 2-årig beskyttelsesplan: Forbindelse
- 4-årig beskyttelsesplan: Forbindelse
- Complete Protect (Monthly): Forbindelse
