ALTO TS112C Powered Column Array PA-højttalersystem brugermanual

Indledning

The ALTO TS112C is a powerful, all-in-one column array PA speaker system designed for high-output, room-filling sound. This manual provides essential information for the proper setup, operation, and maintenance of your TS112C system.

The system integrates a 12-inch subwoofer, a five-channel digital mixer with reverb, and Bluetooth streaming capabilities, making it suitable for various applications including live performances, DJ events, fitness classes, and venue sound reinforcement.

Hvad er der i æsken

Verify that all listed components are included in your package:

• TS112C Base Subwoofer
• 2x Columnar Array Attachments
• Carrying Bag for Column Array
• Power Cable (1.5M / 4.9ft)
• Hurtig start guide
• Sikkerheds- og garantimanual

Image: The ALTO TS112C system showing the subwoofer base, two column array sections, and the included carrying bag.

Opsætningsinstruktioner

1. Placering: Position the TS112C base subwoofer on a stable, flat surface. Ensure adequate ventilation around the unit.

2. Assemble Column Array: Carefully connect the two columnar array attachments to each other, then securely insert the assembled column into the designated slot on top of the subwoofer base. Ensure a firm connection.



   Image: A person assembling the column array by inserting it into the subwoofer base.

3. Strømtilslutning: Connect the provided power cable to the AC input on the rear panel of the subwoofer, then plug it into a grounded power outlet. The system is designed for AC power only.

4. Første gang tændt: Before powering on, ensure all volume controls on the mixer are set to their minimum position. Press the power button to turn on the unit. The power indicator light will illuminate.

Betjeningsvejledning

5-Channel Digital Mixer Overview

The TS112C features a built-in 5-channel digital mixer with various inputs and controls for audio sources.

Image: Close-up of the ALTO TS112C rear panel showing the 5-channel digital mixer with various input and control knobs.

• Kanaler 1-3: Feature dual XLR/TRS 1/4" combo inputs for microphones or line-level instruments. Each channel includes EQ, Reverb, and Gain controls.
• Channel 4: Dedicated for Bluetooth/Aux input, with Gain control.
• Kanal EQ: Global EQ section with High and Low band controls to adjust the overall tone.
• Speaker Use Modes: Selectable DSP presets (Normal, Live, DJ, Custom) optimize the sound for different applications.
• Mix output: Balanced XLR output for linking to another speaker system.

Tilslutning af lydkilder

1. Microphones/Instruments: Connect microphones or line-level instruments to Channels 1-3 using XLR or 1/4" TRS cables. Adjust the respective Gain, EQ, and Reverb controls as needed.

2. Bluetooth-streaming:

   • Aktiver Bluetooth på din mobilenhed.
   • Press the Bluetooth button on Channel 4 of the TS112C mixer. The Bluetooth indicator will flash.
   • Select "ALTO TS112C" from your device's Bluetooth settings. The indicator will turn solid blue when connected.
   • Adjust the Gain for Channel 4 and the master volume to control the Bluetooth audio level.
   • For wireless stereo linking (TWS), refer to the full manual for detailed instructions on pairing two TS112C units.

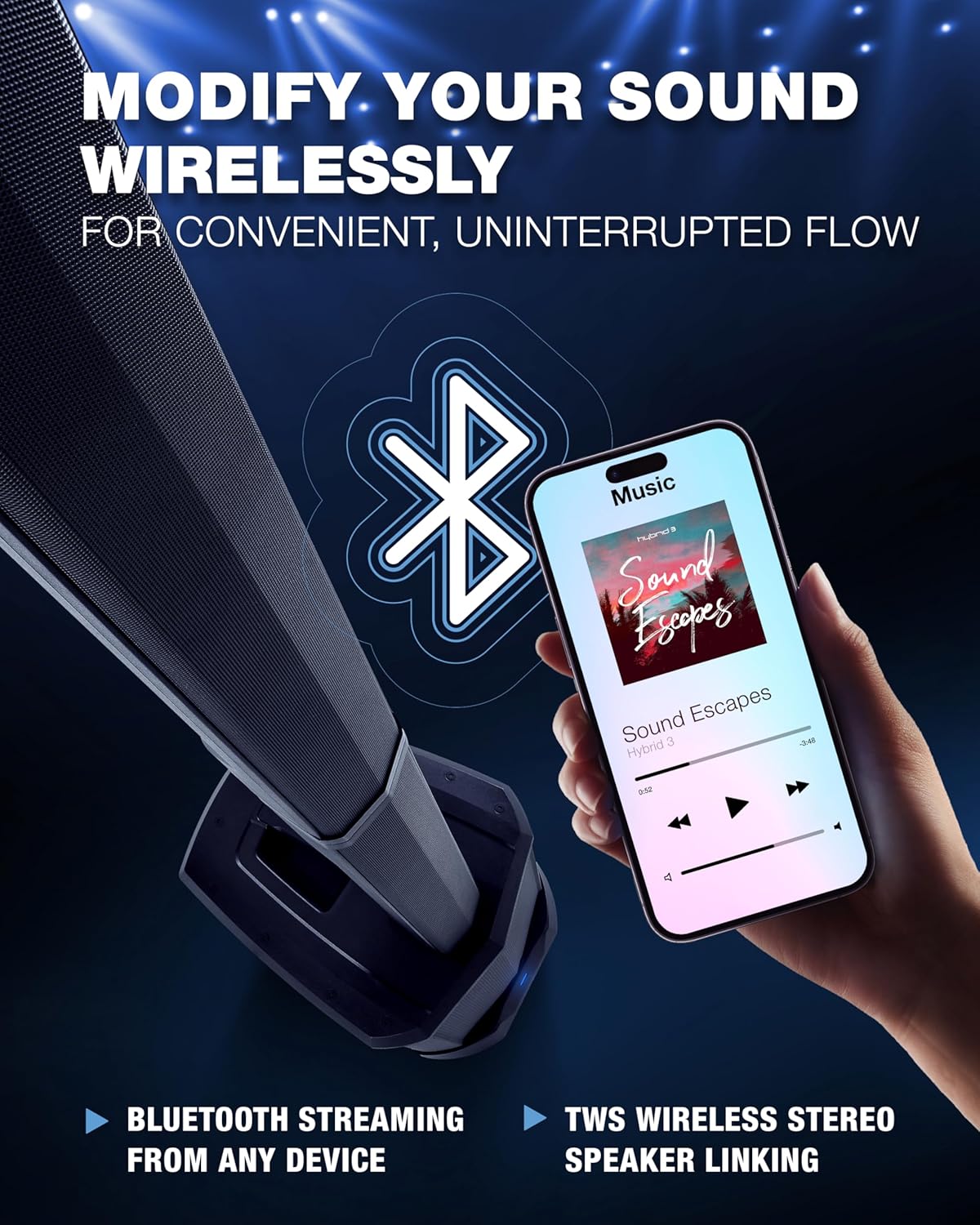

   Image: A smartphone displaying music playback, wirelessly connected via Bluetooth to the ALTO TS112C speaker system.

3. App Control (Alto Pro App):

   • Download the Alto Pro App from your device's app store (available for iOS and Android).
   • Connect your device to the TS112C via Bluetooth as described above.
   • Open the Alto Pro App to access wireless control over the mixer's functions, including EQ, reverb, and speaker use modes.


   Image: Two smartphones displaying the Alto Pro App interface, demonstrating wireless control over the ALTO TS112C speaker system's settings.

Lydstyrkejustering

Gradually increase the Gain controls for active channels and the master volume until the desired sound level is achieved. Monitor the clip indicators to avoid distortion.

Opretholdelse

• Rensning: Use a soft, dry cloth to clean the exterior surfaces of the speaker. Avoid using abrasive cleaners, solvents, or harsh chemicals.
• Opbevaring: When not in use, store the TS112C in a dry, dust-free environment. Utilize the provided carrying bag for the column array during transport and storage to protect it from damage.
• Ventilation: Sørg for, at ventilationsåbningerne på subwooferen ikke er blokerede for at forhindre overophedning.
• Kabelstyring: Regularly inspect power and audio cables for any signs of wear or damage. Replace damaged cables immediately.

Fejlfinding

Specifikationer

Officiel produktvideo

Garanti og support

For warranty information and technical support, please refer to the Safety & Warranty Manual included with your product. You may also visit the official ALTO Professional webwebstedet eller kontakt deres kundesupport direkte.

Manufacturer: inMusic Brands Inc.
