QOZ V969 Mirror Dual Dash Camera Brugermanual

1. Sikkerhedsoplysninger

Please read this manual carefully before using the product to ensure proper operation and to avoid damage. Keep this manual for future reference.

• Do not operate the device while driving. Adjust settings only when the vehicle is safely parked.
• Ensure the dash cam does not obstruct your view of the road or interfere with vehicle controls.
• Use only original accessories provided with the product.
• Undgå at udsætte enheden for ekstreme temperaturer eller direkte sollys i længere perioder.
• Hold enheden væk fra vand og fugt.

2. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Mirror Dash Camera Unit
• Bagkamera
• Bil oplader
• Opladningskabel (USB-C)
• GPS modul
• 64 GB Micro SD-kort
• Installation Tool (Pry Tool)
• Brugermanual
• Mounting Straps (for mirror)
• Adhesive Pads and Screws (for rear camera)

Image: All components included in the QOZ V969 Mirror Dual Dash Camera package.

3. Opsætning og installation

3.1 Installing the Mirror Dash Camera

1. Attach the mirror dash camera to your existing rearview mirror using the provided rubber straps. Ensure it is securely fastened and does not obstruct your view.
2. Adjust the integrated front camera lens to capture the desired view af vejen forude.

Image: The mirror dash camera is designed to clip securely over your vehicle's existing rearview spejl.

3.2 Installation af bagkameraet

1. Mount the rear camera at the back of your vehicle, typically above the license plate or inside the rear window. Use the provided adhesive pads and screws for secure attachment.
2. Route the rear camera cable to the front of the vehicle, tucking it along the headliner and A-pillar trim using the installation tool to conceal the wiring.
3. Connect the rear camera cable to the designated port on the mirror dash camera.
4. Connect the red wire from the rear camera cable to your vehicle's reverse light power wire. This enables the display to automatically switch to the rear camera view ved bakning.

Image: Wiring diagram for connecting the rear camera to the main unit and the vehicle's reverse light for automatic activation.

3.3 Connecting Power and GPS

1. Insert the 64GB Micro SD card into the designated slot on the mirror dash camera.
2. Connect the GPS module to its port on the mirror dash camera. Position the GPS module on the dashboard or near the windshield for optimal signal reception.
3. Plug the car charger into your vehicle's 12V power outlet (cigarette lighter).
4. Connect the USB-C charging cable from the car charger to the mirror dash camera.

Image: The dash camera package includes a 64GB SD card and a GPS module for route and speed tracking.

4. Betjeningsvejledning

4.1 Tænd/sluk

Dashcam'et tænder automatisk og begynder at optage, når bilens tænding tændes. Det slukker automatisk, når tændingen slukkes.

4.2 10" IPS Touch Screen Interface

The 10-inch IPS touch screen provides a wide viewing angle and vivid color accuracy. Swipe left/right to switch between front camera view, bakkamera view, or a split-screen display showing both simultaneously. Swipe up/down on the screen to adjust the camera's vertical viewvinkel.

Image: The 10-inch IPS touch screen offers a clear and responsive interface for managing camera views og indstillinger.

4.3 Stemmekontrol

The dash cam supports voice commands for hands-free operation. Use the following commands:

• "Turn off screen" / "Turn on screen"
• "Show front camera" / "Show rear camera" / "Show both cameras"
• "Lås videoen"
• "Take picture"
• "Tænd lyd" / "Sluk lyd"
• "Tænd Wi-Fi" / "Sluk Wi-Fi"
• "Turn off recording"
• "Open screen"

Image: Voice control allows for hands-free operation of key dash cam functions, enhancing driving safety.

4.4 Built-in Wi-Fi & APP Control

Connect the dash cam to your smartphone via Wi-Fi using the dedicated app (available on iOS and Android). Through the app, you can view live footage, playback recorded videos, manage settings, and download files directly to your device. This allows for easy sharing of travel experiences.

Image: The dash camera connects to a smartphone app via 5.8GHz Wi-Fi for viewing, playback, and management.

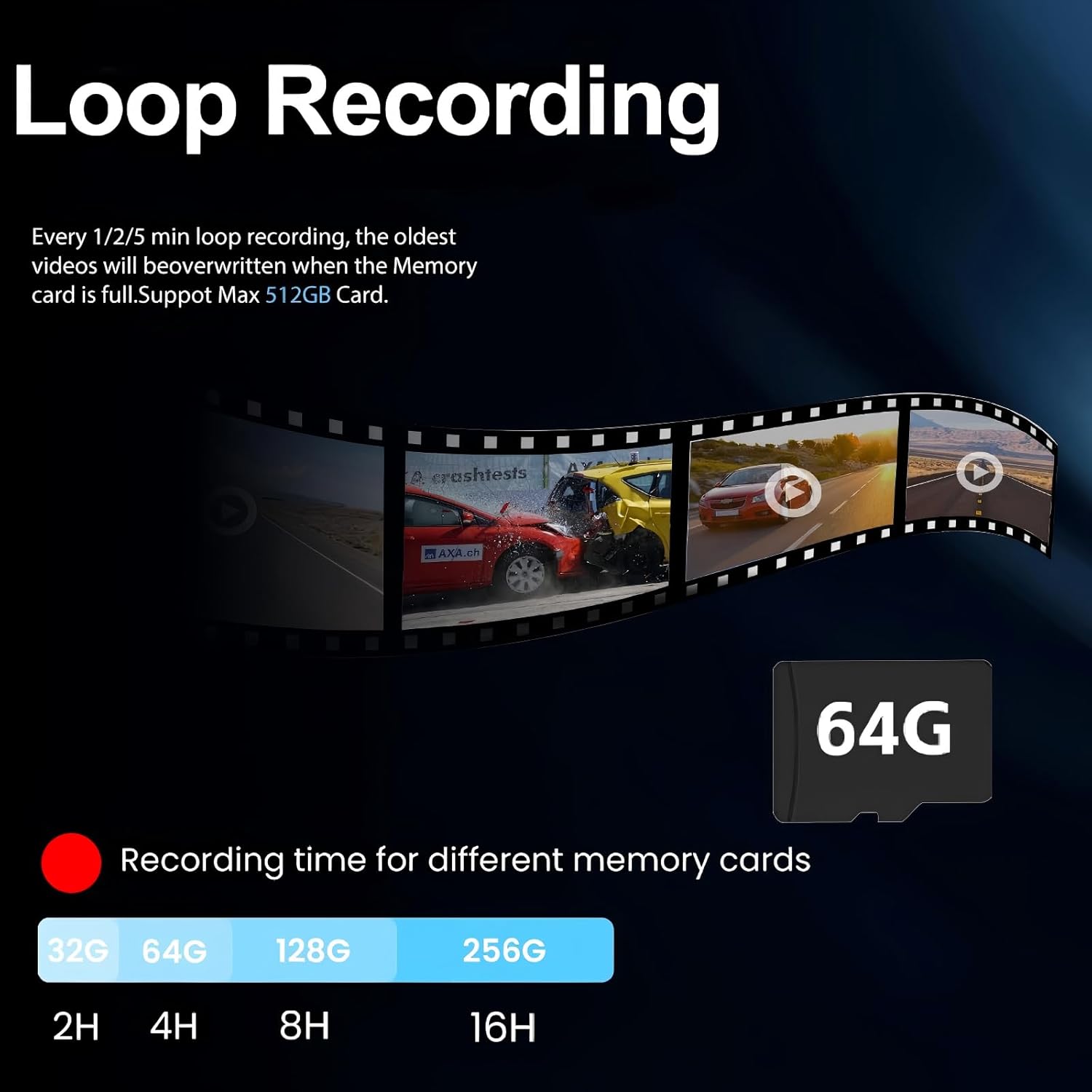

4.5 Loop-optagelse

The dash cam continuously records video in segments (e.g., 1, 2, or 5 minutes). When the SD card is full, the oldest unlocked files are automatically overwritten to ensure uninterrupted recording. Locked files er beskyttet mod at blive overskrevet.

Image: Loop recording ensures continuous video capture by overwriting the oldest files når hukommelseskortet er fuldt.

4.6 G-sensor (optagelse i nødstilfælde)

The built-in G-Sensor detects sudden impacts or collisions. When triggered, it automatically locks the current video segment, preventing it from being overwritten by loop recording. These locked files serve as crucial evidence in case of an accident.

Image: The G-Sensor automatically locks video footage ved opdagelse af en kollision, sikring af vigtige beviser.

4.7 24H Parking Monitor

With the optional hardwire kit (ASIN: B0DCYYLL6T, sold separately), the dash cam can monitor your vehicle 24 hours a day. It detects collisions, vandalism, or suspicious activity while parked and automatically saves critical video clips to the memory card.

Image: The 24-hour parking monitor provides continuous surveillance, requiring an optional hardwire kit.

4.8 WDR & Super Night Vision

The Wide Dynamic Range (WDR) technology balances exposure in varying light conditions, preventing overexposure in bright areas and underexposure in dark areas. Super Night Vision enhances clarity in low-light environments, ensuring sharp details like license plates are captured 24/7.

Image: WDR and Super Night Vision technologies ensure clear and detailed recordings in various lighting conditions, day or night.

4.9 Adjustable Rear Cam Display

The rear camera display can be adjusted to adapt to different installation methods and vehicle types. Options include vertical flip and mirror flip to ensure the correct orientation of the rear view.

Image: The adjustable rear camera display allows for various viewing orientations, including vertical and mirror flips.

5. Vedligeholdelse

• SD-kortformatering: Regularly format the Micro SD card (at least once a month) to ensure optimal performance and prevent data corruption. This can usually be done through the dash cam's settings menu.
• Rensning: Brug en blød, tør klud til at rengøre skærmen og kameralinserne. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler.
• Firmwareopdateringer: Tjek producentens webbesøg webstedet regelmæssigt for firmwareopdateringer for at sikre, at din enhed har de nyeste funktioner og fejlrettelser.

6. Fejlfinding

• "SD Card Full" Error: If you encounter this message, ensure loop recording is enabled. If it persists, format the SD card. If the issue continues, the SD card may be faulty and require replacement.
• Dash Cam tænder ikke: Check the car charger connection and ensure the vehicle's 12V power outlet is functioning.
• Dårlig videokvalitet: Ensure camera lenses are clean. Check the recording resolution settings (set to 4K front and 2.5K rear for optimal quality).
• GPS sporer ikke: Ensure the GPS module is properly connected and placed in an area with clear sky view.

7. Specifikationer

8. Garanti og support

For warranty information, technical support, or any inquiries regarding your QOZ V969 Mirror Dual Dash Camera, please contact the manufacturer directly. Refer to the contact information provided in the product packaging or on the official QOZ webwebsted.
