1. Introduktion
Thank you for choosing the HOFTRONIC Stratos Spot LED 20W Outdoor Lamp. This manual provides essential information for the safe installation, operation, and maintenance of your new LED floodlight. Please read this manual thoroughly before installation and retain it for future reference.
This product is designed for outdoor and indoor use, providing efficient and reliable illumination for areas such as driveways, garages, terraces, workshops, and courtyards.
2. Sikkerhedsoplysninger
- Elektrisk sikkerhed: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before installation or maintenance.
- Voltage: This product operates on 220-240V AC. Verify your power supply matches this requirement.
- Jording: The fixture must be properly grounded to prevent electric shock.
- Vandtæthed: Lamp is IP65 rated, meaning it is protected against dust ingress and low-pressure water jets from any direction. However, it should not be submerged in water.
- Temperatur: Betjen ikke lamp outside the specified operating temperature range of -20°C to +40°C.
- Lyskilde: Se ikke direkte ind i LED-lyskilden, når den er tændt, da dette kan forårsage øjenbelastning eller skader.
- Ændringer: Do not attempt to modify or repair the product. Unauthorized modifications will void the warranty and may pose safety risks.
3. Pakkens indhold
Kontroller venligst, at alle komponenter er til stede og ubeskadigede:
- HOFTRONIC Stratos Spot LED 20W Lamp (with integrated LED)
- Monteringsbeslag
- Installation Hardware (screws, wall plugs - may vary)
4. Produktfunktioner
- Høj effektivitet: 20W LED providing 1620 lumens of neutral white light (4000K).
- Holdbar konstruktion: Robust aluminum housing with an improved heatsink for optimal heat dissipation and extended lifespan.
- Vejrbestandig: IP65 rating ensures protection against dust and water, suitable for various outdoor conditions.
- Bred strålevinkel: 110° beam angle for uniform and non-glare illumination over large areas.
- Justerbar hældning: Features a 175° tilt angle for flexible light direction.
- Høj farvegengivelse: Color Rendering Index (CRI) of ≥ 70 Ra for natural color reproduction.
- Impact Resistance: Equipped with IK07 single-pane safety glass.
- Lang levetid: Average lifespan of 50,000 hours.
5. Opsætning og installation
Before beginning installation, ensure the power supply is switched off at the main circuit breaker.
- Vælg monteringssted: Select a suitable location on a wall, ceiling, or other stable surface. Consider the desired light coverage and the 110° beam angle.
- Markér borepunkter: Use the mounting bracket as a template to mark the drilling points on the chosen surface.
- Bore huller: Drill holes of appropriate size for the provided wall plugs and screws.
- Sikkert beslag: Insert wall plugs into the drilled holes and securely fasten the mounting bracket using screws.
- Vedhæft Lamp: Monter LED lamp onto the secured bracket. The bracket allows for a 175° tilt adjustment. Adjust the lamp to the desired angle and tighten the securing bolts.
- Elektrisk tilslutning: Connect the 15 cm connection cable of the lamp to your main power supply (220-240V AC). Ensure correct wiring: Live (brown), Neutral (blue), and Earth (green/yellow). All connections must be secure and insulated.
- Prøve: Once installation is complete and all connections are secure, restore power and test the lamp.
Image: Various mounting options for the HOFTRONIC Stratos Spot LED, including wall, ground, and ceiling installations.
Image: Illustration of the 175-degree tilt angle adjustment feature of the lamp.
Image: HOFTRONIC Stratos Spot LED installed on an exterior wall, providing illumination.
6. Betjening
The HOFTRONIC Stratos Spot LED is designed for simple operation. Once properly installed and connected to the power supply, the lamp will illuminate when power is supplied to the circuit. It does not feature dimming capabilities.
Image: Illustration of the 110-degree beam angle providing wide illumination, shown over a garage driveway.
7. Vedligeholdelse
The HOFTRONIC Stratos Spot LED is designed for low maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Rensning: Afbryd strømmen før rengøring. Brug en blød, tør klud.amp cloth to wipe the exterior of the lamp. Do not use abrasive cleaners or solvents, as these can damage the finish or glass.
- Inspektion: Efterse lamp and its mounting for any signs of damage, loose connections, or wear. Address any issues promptly.
- Ingen dele, der kan serviceres af brugeren: The LED light source is integrated and not replaceable by the user. Do not attempt to open the fixture.

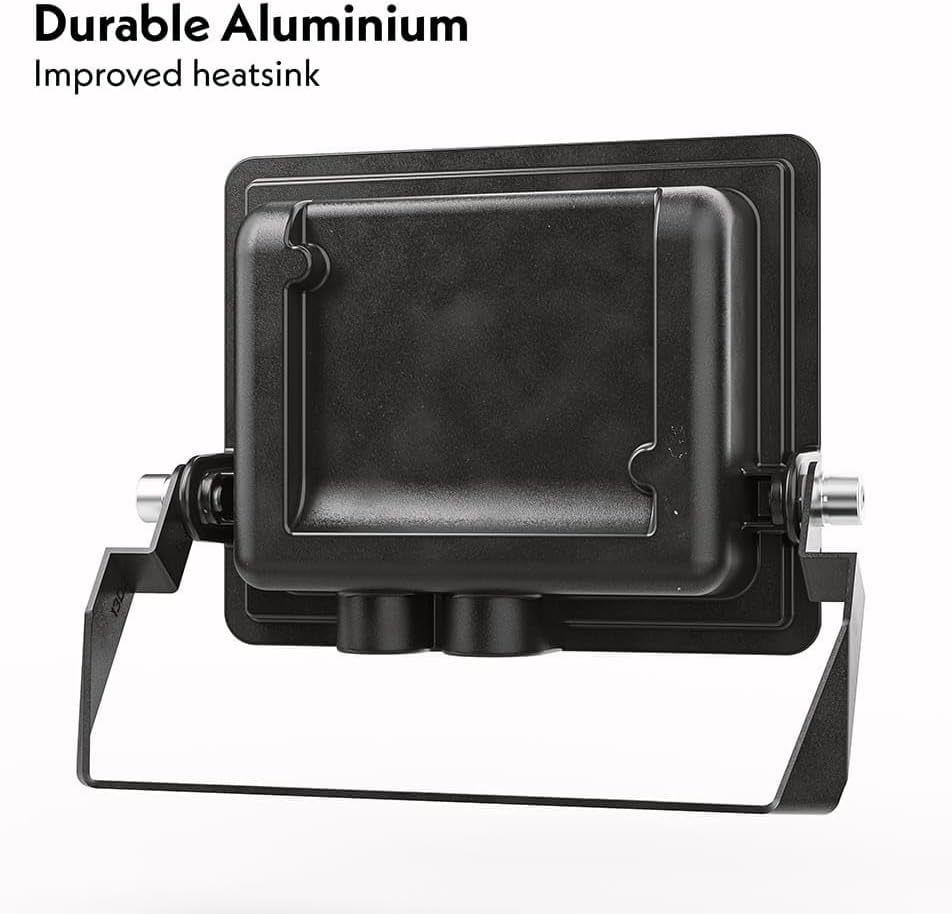

Billede: Bagside view af lamp, visasing the durable aluminum housing and heatsink design.
8. Fejlfinding
Hvis lamp does not function correctly, refer to the following common issues and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke | Ingen strømforsyning Løs ledningsforbindelse Faulty circuit breaker/fuse | Kontroller, om afbryderen er tændt. Verify main circuit breaker is not tripped. Inspect all wiring connections for tightness (ensure power is off). Consult a qualified electrician if the issue persists. |
| Light output is weak or flickers | Ustabil strømforsyning Forkert voltage | Sørg for stabil strømforsyning. Bekræft input voltage er inden for 220-240V AC. Contact customer support if the problem continues. |
For issues not listed above or if troubleshooting steps do not resolve the problem, please contact HOFTRONIC customer support.
9. Specifikationer
| Parameter | Værdi |
|---|---|
| Modelnummer | 2723583 |
| Strømforbrug | 20 watt |
| Lysstrøm | 1620 lumen |
| Input bindtage | 220-240V AC |
| Frekvens | 50/60 Hz |
| Farvetemperatur | 4000K (neutral hvid) |
| Dæmpbar | Ingen |
| Strålevinkel | 110° |
| Materiale | Aluminium + glas |
| Farve | Sort |
| IP-vurdering | IP65 |
| CRI (Color Rendering Index) | ≥ 70 Ra |
| Dimensioner (L x B x H) | 127 x 107 x 28 mm |
| Driftstemperatur | -20°C til +40°C |
| Skiftende cyklusser | 20,000 |
| Gennemsnitlig levetid | 50,000 timer |
| Vægt | 5 kilo |
| Energieffektivitetsklasse | F |
Image: EU Energy Label for the HOFTRONIC Stratos Spot LED. For more details, visit the EPREL-database.
10. Garanti og support
This HOFTRONIC Stratos Spot LED lamp kommer med en 2 års garanti fra købsdatoen, dækker defekter i materialer og udførelse ved normal brug.
The warranty does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or natural disasters.
For warranty claims, technical support, or any questions regarding your product, please contact HOFTRONIC customer service through your retailer or the official HOFTRONIC webwebsted.
