JDIAG HD10 Diagnostisk Scanningsværktøj til Tung Lastbiler og Biler Brugermanual

1. Introduktion

The JDIAG HD10 is a versatile diagnostic scan tool designed for comprehensive analysis of both 12V gasoline/diesel vehicles and 24V diesel heavy-duty trucks. This device supports a wide range of diagnostic functions, including reading and clearing Diagnostic Trouble Codes (DTCs), displaying live data, and performing various system checks. Its ergonomic design and user-friendly interface aim to provide efficient vehicle diagnostics.

Figure 1: JDIAG HD10 Diagnostic Scan Tool with included 6-pin and 9-pin adapters.

2. Sikkerhedsoplysninger

Always observe the following safety precautions when operating the JDIAG HD10 diagnostic tool:

• Ensure the vehicle is in a safe, well-ventilated area.
• Wear appropriate personal protective equipment, such as eye protection.
• Avoid contact with hot engine components or moving parts.
• Do not operate the tool while driving.
• Keep the tool dry and away from extreme temperatures.
• Refer to the vehicle's service manual for specific diagnostic procedures and warnings.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• HD10 heavy duty scanner tool
• 6-pin adapter (for trucks)
• 9-pin adapter (for trucks)
• USB datakabel
• Brugermanual

4. Enhed overview

The JDIAG HD10 features a 2.4-inch color screen and intuitive button layout for easy navigation. Its robust design includes non-slip grips and a durable integrated cable.

Figure 2: Ergonomic design features including silicone buttons, non-slip sides, durable cable, and OBD2 connector.

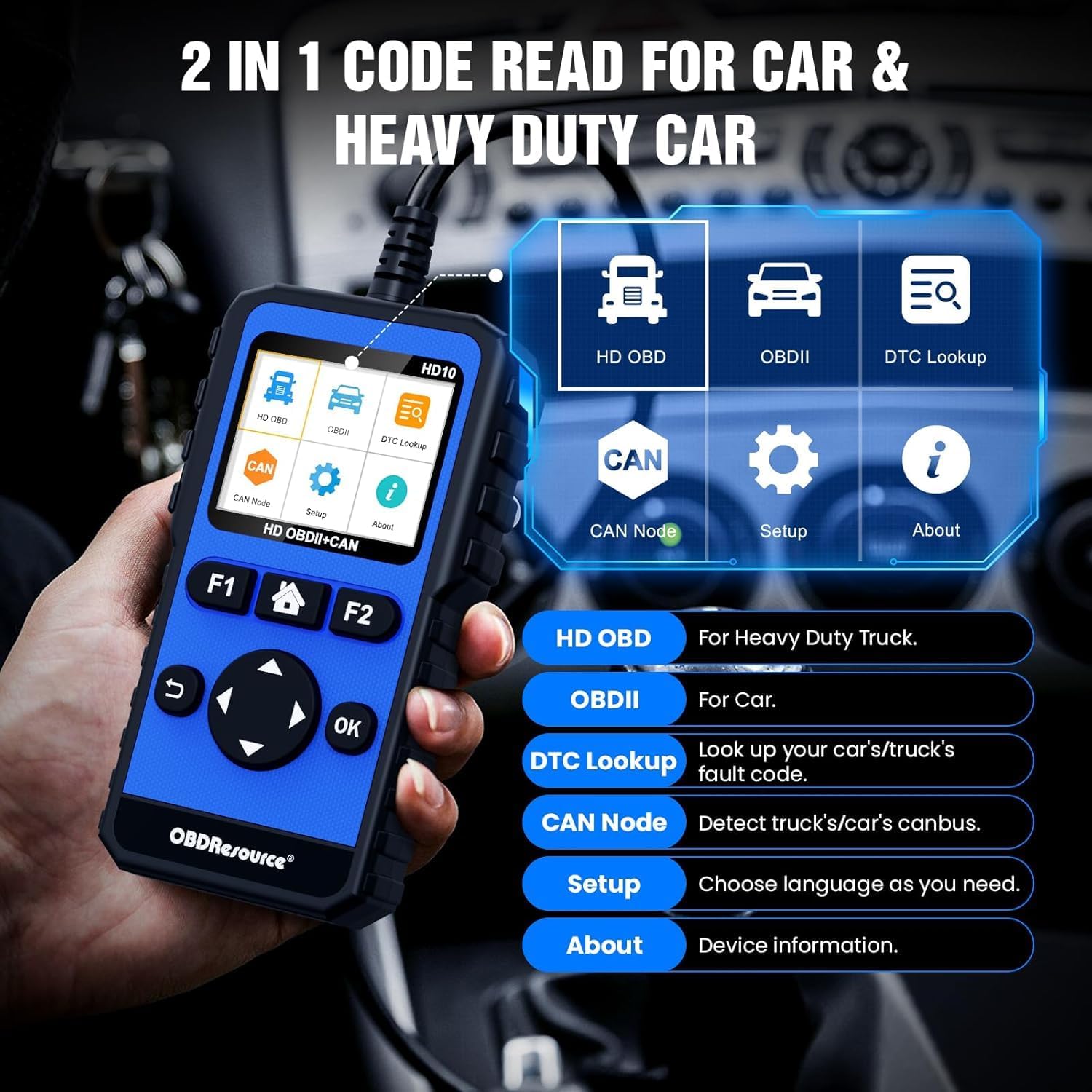

Figure 3: Main menu interface of the HD10 device.

4.1. Fysiske egenskaber

• Vise: 2.4-inch TFT Color Screen (320 x 240 resolution).
• Knapper: Clearly arranged silicone physical buttons for high sensitivity and fast response.
• Bolig: Anti-slip design on both sides for secure handling.
• Kabel: Integrated, thick, and durable wire (up to 105 cm).
• Forbindelser: Standard OBD2 connector, with included 6-pin and 9-pin adapters for heavy-duty vehicles.

5. Opsætning

5.1. Tilslutning til køretøjet

1. Locate the vehicle's Diagnostic Link Connector (DLC). For 12V vehicles, this is typically a 16-pin OBD2 port. For heavy-duty 24V vehicles, it will be a 6-pin or 9-pin connector.
2. If diagnosing a heavy-duty vehicle, attach the appropriate 6-pin or 9-pin adapter to the HD10's main cable, then connect to the vehicle's DLC. For 12V vehicles, connect the standard OBD2 connector directly.
3. Ensure the connection is secure. The device will power on automatically once connected to the vehicle's power supply.

Figure 4: The HD10 displaying live data, illustrating its 2.4-inch color screen.

5.2. Indledende indstillinger

Ved første brug eller efter en nulstilling skal du muligvis konfigurere grundlæggende indstillinger:

• Naviger til Opsætning menu using the directional buttons and press OK.
• Vælge Sprog to choose your preferred language.
• Other settings like unit of measurement (e.g., Metric/Imperial) may also be available in the Setup menu.

6. Betjeningsvejledning

The JDIAG HD10 offers various diagnostic functions accessible through its main menu.

6.1. Hovedmenunavigation

Use the directional buttons (Up, Ned, Venstre, Højre) to highlight menu options and press the OK button to confirm a selection. The Retur button (curved arrow) navigates back to the previous screen.

6.2. HD OBD (Heavy Duty On-Board Diagnostics)

This mode is for diagnosing heavy-duty trucks and supports protocols like SAE J1939, SAE J1587/J1708, ISO15765, ISO 14230, and ISO 9141-2.

Figure 5: Full system diagnostic capabilities for heavy-duty vehicles.

• Læs koder: Retrieves Diagnostic Trouble Codes (DTCs) from various vehicle systems (Engine, Transmission, Drivetrain, Suspension, Braking System, Cab Climate, Body Control, Dashboard, Fuel System, etc.).
• Slet koder: Clears DTCs from the vehicle's computer after repairs have been made.
• Live data: Displays real-time operational parameters of the vehicle's systems.
• Fuld systemdiagnose: Accesses and diagnoses all supported electronic control units (ECUs) in 24V diesel vehicles.

6.3. OBDII (Standard On-Board Diagnostics)

This mode is for diagnosing 12V gasoline/diesel vehicles and supports standard OBD2 protocols including SAE J1850.

Figur 6: Overview of full OBD2 functions available.

• Læs koder: Retrieves current, pending, and permanent DTCs.
• Slet koder: Sletter DTC'er og slukker fejlindikatoren Lamp (MIL).
• I/M parathed: Checks the readiness of emission-related monitors.
• Datastrøm: Viser live sensordata i tekst- eller grafformat.
• Frysestativ: Records a snapshot of vehicle conditions when an emission-related fault occurs.
• O2-sensortest: Henter resultater fra O2-sensorovervågningstest.
• Overvågning ombord: Henter resultater for overvågningstests af specifikke komponenter/systemer i forbindelse med indbyggede diagnostiske tests.
• Test af fordampningssystem: Starter en test af fordampningsemissionskontrolsystemet.
• Køretøjsoplysninger: Displays the vehicle's Vehicle Identification Number (VIN), Calibration ID (CALID), and Calibration Verification Number (CVN).

6.4. DTC opslag

The built-in DTC Lookup function allows you to search for definitions of diagnostic trouble codes directly on the device, helping to understand the nature of a fault without external resources.

6.5. CAN Node Detection

This function helps quickly detect CANBUS nodes and identify faulty modules or lines by checking existing nodes, improving diagnostic efficiency.

6.6. BAT Test (Battery Test)

The BAT Test function allows for basic battery voltage checks, providing quick insights into the vehicle's battery health.

6.7. Software opdatering

The JDIAG HD10 supports lifetime free software updates. Connect the device to a computer via the USB data cable and follow the instructions on the manufacturer's website to download and install the latest software. This ensures expanded fault coverage and up-to-date functionality.

7. Vedligeholdelse

7.1. Rensning

Tør enheden af ​​med en blød, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at enheden er tør, før den opbevares eller tages i brug igen.

7.2. Opbevaring

Store the JDIAG HD10 in a clean, dry environment, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use to prevent damage.

8. Fejlfinding

9. Specifikationer

• Mærke: JDIAG
• Model: HD10 (Item model number) / CC0147HD10 (Manufacturer Model)
• Operativsystem: Linux
• Biltilpasningstype: Universal Fit
• Supported Protocols (Heavy Duty): SAE J1939, SAE J1587/J1708, ISO15765, ISO 14230, ISO 9141-2
• Supported Protocols (OBD2): SAE J1850 (VPW/PWM), ISO9141, ISO14230 (KWP), ISO15765-4 (CAN)
• Vise: 2.4 tommer TFT farveskærm
• Varens vægt: 1.15 pund
• Pakkedimensioner: 7.48 x 6.69 x 1.57 tommer

Figure 7: Compatibility table for various heavy-duty truck brands and protocols.

10. Garantioplysninger

For detailed warranty information regarding your JDIAG HD10 diagnostic tool, please refer to the documentation included with your purchase or contact JDIAG customer support directly. Protection plans may be available for extended coverage.

11. Support

If you encounter any issues or have questions regarding the operation of your JDIAG HD10, please contact the JDIAG technical support team. They are available to provide assistance and operational guidance.

• Fabrikant: JDIAG
• Teknisk support: Refer to the contact information provided in your product packaging or on the official JDIAG webwebsted.
