Brugermanual til Echo Show 5 & Blink videodørklokkepakke

1. Introduktion

This user manual provides comprehensive instructions for setting up, operating, and maintaining your Echo Show 5 and Blink Video Doorbell bundle. This integrated system offers enhanced smart home security and convenient monitoring capabilities.

The Echo Show 5 is a compact smart display with Alexa, designed to fit into any room. The Blink Video Doorbell provides head-to-toe HD video, two-way audio, and long-lasting battery life for front door monitoring.

Figure 1.1: Echo Show 5 and Blink Video Doorbell. This image displays the Echo Show 5 smart display positioned next to the Blink Video Doorbell and its Sync Module, illustrating the complete bundle.

2. Hvad er der i æsken

Upon unboxing your Echo Show 5 and Blink Video Doorbell bundle, please verify that all components are present:

• Echo Show 5 (Newest Model)
• Power Adapter for Echo Show 5
• Blink videodørklokke
• Blink Sync Module 2
• Mounting Kit for Blink Video Doorbell (screws, anchors)
• 2 x AA Energizer Lithium Batteries (pre-installed in doorbell or separate)
• Quick Start Guide for Echo Show 5
• Quick Start Guide for Blink Video Doorbell

3. Opsætning

3.1. Setting Up Your Echo Show 5

1. Tilslut: Tilslut strømadapteren til din Echo Show 5, og sæt den i en stikkontakt. Enheden tænder automatisk.
2. Følg instruktionerne på skærmen: The Echo Show 5 will guide you through selecting your language, connecting to your Wi-Fi network, and logging in with your Amazon account.
3. Alexa-opsætning: Complete the Alexa voice profile setup for personalized experiences.

Figure 3.1: Echo Show 5 Smart Home Interface. This image shows the Echo Show 5 screen displaying smart home controls for thermostat and lighting, along with icons for Calendar, Smart Home, Entertainment, Built-in Camera, and Privacy Controls.

3.2. Setting Up Your Blink Video Doorbell

1. Download Blink-appen: Download the Blink Home Monitor app from your device's app store (iOS or Android).
2. Opret en konto: Open the app and create a new Blink account or log in to an existing one.
3. Tilføj synkroniseringsmodul: In the app, tap the "+" icon to add a new device. Select "Blink Sync Module" and follow the on-screen instructions to connect it to your Wi-Fi network. Ensure the Sync Module is placed centrally within your home for optimal signal.
4. Add Video Doorbell: Once the Sync Module is online, add the Blink Video Doorbell. Scan the QR code on the back of the doorbell or manually enter the serial number.
5. Indsæt batterier: Ensure the two AA Energizer Lithium batteries are correctly inserted into the doorbell.
6. Monter dørklokken:
   • Vælg et monteringssted, der giver en klar view of your entryway.
   • Use the provided mounting plate as a template to mark drill holes.
   • Bor forhuller og isæt vægankre, hvis det monteres i gipsvægge eller murværk.
   • Secure the mounting plate with the provided screws.
   • Attach the Blink Video Doorbell to the mounting plate.

Figure 3.2: Blink Video Doorbell Battery Installation. This image shows a hand holding the Blink Video Doorbell, highlighting its design and the text indicating its two-year battery life with AA lithium batteries and a Sync Module.

3.3. Integrating Blink with Echo Show 5

Once both devices are set up, link them for seamless operation:

1. Enable Blink Skill: On your Echo Show 5, say, "Alexa, enable the Blink skill." Alternatively, open the Alexa app on your smartphone, go to "Skills & Games," search for "Blink Smart Home," and enable the skill.
2. Tilknyt konti: Follow the prompts to link your Blink account with your Amazon account.
3. Opdag enheder: Say, "Alexa, discover my devices," or use the Alexa app to discover new devices. Your Blink Video Doorbell should now appear as a connected device.

4. Betjening af dine enheder

4.1. Using the Echo Show 5

The Echo Show 5 responds to voice commands with Alexa. Here are some common functions:

• Generelle kommandoer: "Alexa, what's the weather?", "Alexa, play music," "Alexa, set a timer for 10 minutes."
• Smart Home Control: "Alexa, turn on the living room lights," "Alexa, set the thermostat to 72 degrees."
• Videoopkald: "Alexa, call Mom."
• Kameraadgang: "Alexa, show me the front door." (This will display the Blink Video Doorbell feed).
• Privatlivskontroller: Use the physical shutter to cover the camera and the microphone/camera off button to disable audio and video recording.

4.2. Using the Blink Video Doorbell

The Blink Video Doorbell provides real-time monitoring and communication:

• Bevægelsesdetektion: The doorbell detects motion and sends alerts to your Blink app and Echo Show 5.
• Levende View: Access a live feed from the Blink app or by asking your Echo Show 5.
• Tovejs lyd: Speak to visitors at your door through the Blink app or Echo Show 5.
• Recorded Clips: Motion-activated recordings are stored in the cloud (subscription may be required) and accessible via the Blink app and Echo Show 5.

Figure 4.1: Integrated System in Action. This image shows the Echo Show 5 displaying a live video feed from the Blink Video Doorbell, with a text bubble above stating, "Alexa, show me what's at the front door."

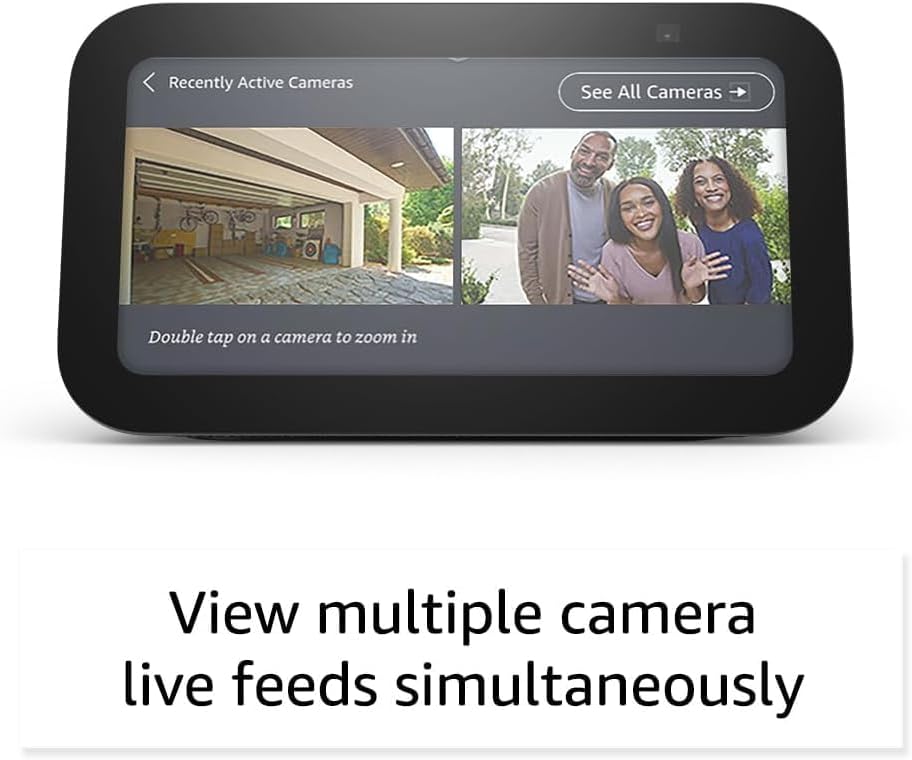

Figure 4.2: Multi-Camera View on Echo Show 5. This image illustrates the Echo Show 5's capability to display live feeds from multiple connected cameras simultaneously, with options to view recently active cameras or all cameras.

5. Vedligeholdelse

• Rensning: Use a soft, lint-free cloth to clean the screens and surfaces of both devices. Do not use abrasive cleaners or sprays.
• Blink Doorbell Battery Replacement: The Blink Video Doorbell uses two AA Energizer Lithium batteries. When the battery level is low (indicated in the Blink app), replace both batteries simultaneously for optimal performance.
• Softwareopdateringer: Ensure both your Echo Show 5 and Blink devices are connected to Wi-Fi to receive automatic software updates, which provide new features and security enhancements.
• Sync Module Placement: Periodically check that your Sync Module remains in a central location, free from obstructions, to maintain strong signal strength to your doorbell.

6. Fejlfinding

7. Specifikationer

7.1. Echo Show 5 (Newest Model)

• Vise: 5.5 tommer touchskærm
• Kamera: Built-in camera with physical shutter
• Lyd: Højttaler i fuld rækkevidde
• Forbindelse: Wi-Fi, Bluetooth
• Stemmeassistent: Alexa

7.2. Blink Video Doorbell

• Video: 1080p HD day and infrared night vision
• Felt af View: 135° diagonal (Head-to-Toe HD)
• Lyd: To-vejs lyd
• Magt: 2 x AA Energizer Lithium batteries (up to 2-year battery life)
• Forbindelse: Wi-Fi via Blink Sync Module 2
• Driftstemperatur: -4° til 113° F (-20° til 45° C)

Figure 7.1: Blink Video Doorbell Key Features. This image showcases the Blink Video Doorbell with text highlighting its main features: Head-to-Toe HD View, Two-Year Battery Life, Two-Way Audio, and Simple Setup.

8. Garanti og support

Your Echo Show 5 and Blink Video Doorbell bundle is covered by a limited warranty provided by Amazon. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Amazon support webwebsted.

For technical support, troubleshooting assistance, or to inquire about warranty claims, please contact Amazon Customer Service:

• Online support: Besøg amazon.com/devicesupport
• Telefonsupport: Refer to the contact information provided in your product's quick start guide or on the Amazon support webwebsted.

Please have your device's serial number and proof of purchase ready when contacting support.
