GeekTale Smart Dørlås K12 B Mini Brugermanual

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your GeekTale Smart Door Lock K12 B Mini. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

Image: GeekTale Smart Door Lock K12 B Mini, featuring the exterior keypad knob and interior knob in a sleek black finish. A smartphone screen next to it displays the lock's companion application, indicating its smart capabilities.

Produktegenskaber

• Passcode Access: Supports up to 20 unique access codes with anti-peep functionality (4-8 digits).
• App kontrol: Unlock the door via Bluetooth using the dedicated app. Manage users, add/delete access, share E-keys, and view adgangslogfiler.
• Remote Unlock & Voice Control: Requires a separately sold gateway for remote unlocking and integration with Alexa or Google Home via the 'Smart Life' skill.
• Three Lock Modes: Features Auto Lock, Passage Mode, and Secure Mode, selectable via a button on the interior knob.
• Indbygget genopladeligt batteri: Long-lasting battery provides approximately 8 months of use on a 3-hour charge. Includes a low battery warning.

Pakkens indhold

• Exterior Door Knob with Keypad
• Indvendig dørhåndtag
• Låsemekanisme
• Monteringsplade
• Slagplade
• Monteringsskruer
• Backup Keys (2 pcs)
• Installationsskabelon
• Brugermanual
• Lithium Ion Battery (pre-installed)

Specifikationer

Installationsvejledning

Før du starter installationen, skal du sørge for, at din dør opfylder følgende specifikationer:

• backset: 2-3/4" eller 2-3/8" (70 mm eller 60 mm)
• Dørhuls diameter: 2-1/8" (54 mm)
• Dørtykkelse: 1-3/8" til 2-1/8" (35 mm til 54 mm)

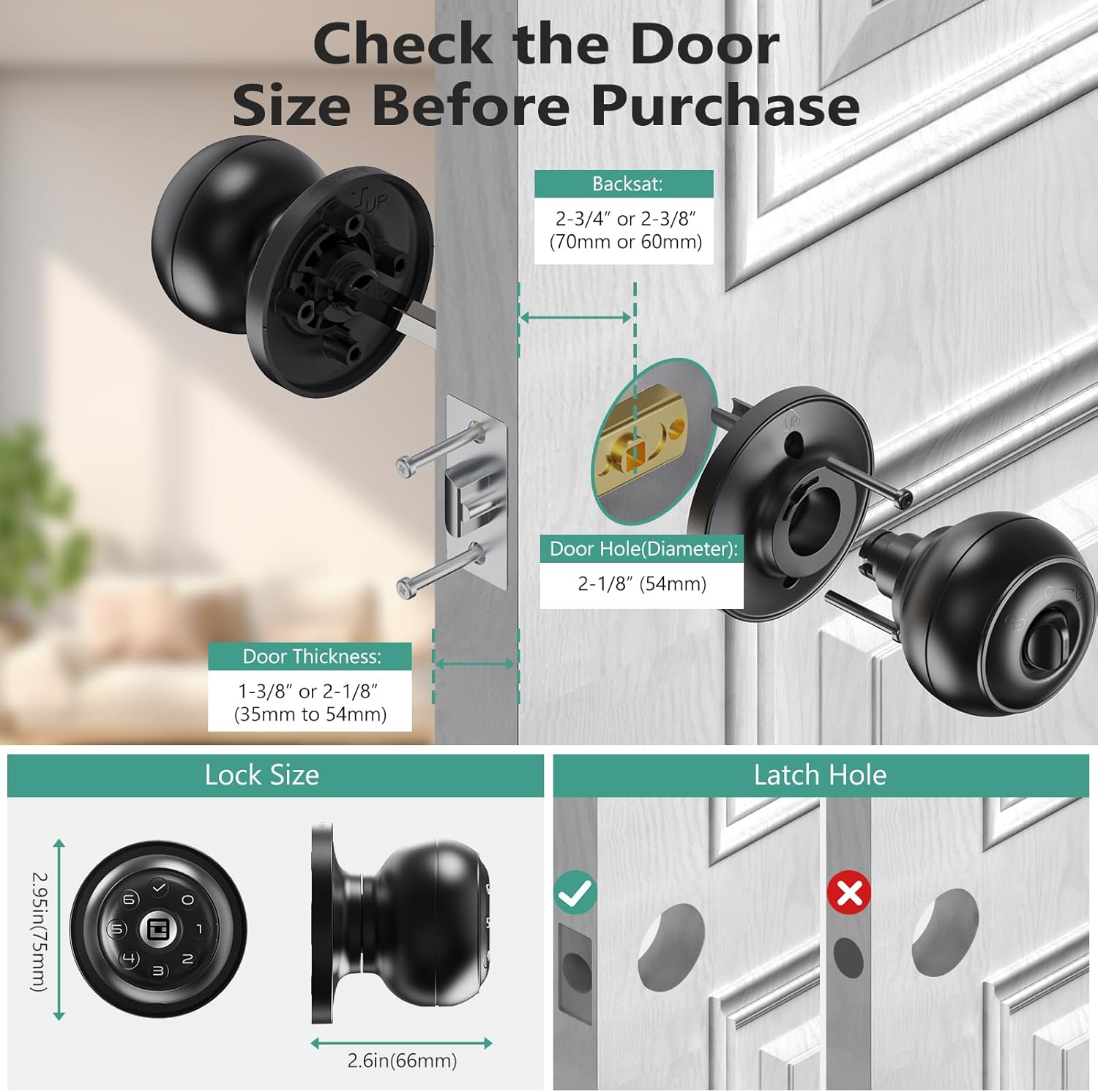

Image: A detailed diagram illustrating the necessary door measurements for installing the GeekTale Smart Door Lock, including backset, door hole diameter, and compatible door thickness. It also provides the lock's dimensions and highlights the correct placement for the latch hole.

Note: Do not close the door until the door lock is fully installed.

1. Step 1: Install the exterior door knob. Ensure the exterior knob keyhole and Type-C charge port face downward.
2. Step 2: Pull out the interior knob with a pin. This separates the interior knob components for installation.
3. Trin 3: Tilslut kablerne. Carefully connect the cables between the exterior and interior components.
4. Step 4: Install the interior door knob. Secure the interior knob to the door using the provided screws. Ensure the 'UP' indicator is correctly oriented.
5. Step 5: Close the lid of the interior door knob. Once all connections and screws are secure, attach the cover to the interior knob.

Image: A visual guide detailing the five steps for installing the GeekTale Smart Door Lock. It shows the placement of the exterior knob, cable connections, interior knob assembly, and final cover attachment.

Betjeningsvejledning

1. Passcode Access

Enter your 4-8 digit access code on the keypad. The lock supports an anti-peep function, allowing you to enter random digits before or after your actual code to prevent others from guessing it.

Image: This image illustrates the anti-peeping PIN code feature, where a user enters a code on the lock's keypad while a smartphone displays the unlock interface, emphasizing secure access.

2. App Control (Bluetooth Range)

Within Bluetooth range (approximately 10 meters), you can use the dedicated app to:

• Manage Users: Add or delete authorized users.
• Set Passwords: Create or modify access codes.
• Check Unlock Records: View a log of all lock and unlock events.

Image: A user demonstrates app control of the smart door lock from a couch, highlighting the Bluetooth range of 10 meters. Icons represent features like user management, password settings, and access log review.

3. Remote Unlock and Voice Control

For remote unlocking and voice control (via Alexa or Google Home), a GeekTale Gateway (sold separately) is required. Connect the gateway and link it to the 'Smart Life' app using your account credentials.

4. Three Lock Modes

The interior knob features a button to switch between three operational modes:

• Autolås: The door will automatically lock after 5 seconds of being unlocked.
• Passagetilstand: The door remains unlocked after entry. To activate, unlock the door with a passcode or app, then turn the button to Passage Mode. The door will stay unlocked until manually re-locked or switched to another mode.
• Sikkerhedstilstand: Only the app or an administrator passcode can unlock the door.

Image: A visual representation of the three operational modes for the smart door lock: Passage Mode, where the door remains unlocked; Auto Lock, which relocks the door after 5 seconds; and Security Mode, which restricts unlocking to the app or administrator passcode.

Batteristyring

The GeekTale Smart Door Lock K12 B Mini is equipped with a built-in rechargeable Lithium Ion battery. It provides approximately 8 months of operation on a single 3-hour charge.

• Opladning: Fully charge the battery before initial installation and use. Use the Type-C power port located on the exterior knob for charging.
• Advarsel om lavt batteri: The lock will provide a low battery alert when power is running low. Recharge promptly to avoid interruption of service.

Image: The smart door lock is depicted with a charging cable connected to its Type-C port, illustrating the built-in rechargeable battery feature. A 'Low battery alert' icon is also shown.

Opretholdelse

To ensure optimal performance and longevity of your smart door lock:

• Rensning: Tør låsens overflade af med en blød, tør klud. Undgå at bruge slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen og de elektroniske komponenter.
• Batteripleje: Recharge the battery as soon as a low battery warning is indicated. Avoid completely draining the battery frequently.
• Miljøforhold: This lock is designed for indoor use only. Avoid exposure to extreme temperatures, direct sunlight, or moisture.
• Firmwareopdateringer: Periodically check the companion app for any available firmware updates to ensure your lock has the latest features and security enhancements.

Fejlfinding

If you encounter issues with your GeekTale Smart Door Lock, refer to the following common solutions:

• Låsen svarer ikke: Check the battery level and recharge if necessary. Ensure the lock is properly installed and all cables are securely connected.
• Tastatur virker ikke: Verify that the battery has sufficient charge. If using an anti-peep code, ensure the correct sequence of your actual code is entered.
• Problemer med appforbindelse: Ensure Bluetooth is enabled on your smartphone and you are within the 10-meter range of the lock. Try restarting the app or your phone's Bluetooth.
• Remote Unlock/Voice Control Not Working: Confirm that your GeekTale Gateway is properly set up, connected to the internet, and linked to your 'Smart Life' app account.
• Knoppen føles løs: Recheck the installation screws and ensure they are tightened appropriately. Avoid over-tightening.
• Auto-Lock Malfunction: Verify the lock mode setting on the interior knob. If in Passage Mode, it will not auto-lock.

For further assistance, please contact GeekTale customer support.

Sikkerhedsoplysninger

Overhold venligst følgende sikkerhedsforanstaltninger:

• Do not attempt to disassemble or repair the lock yourself. This may void the warranty and could lead to malfunction or injury.
• Keep backup keys in a safe location outside the property, accessible only to trusted individuals.
• Regularly change your access codes for enhanced security.
• Ensure children do not have unauthorized access to the app or administrator passcodes.
• This product is intended for interior door use only.

Garanti og support

GeekTale-produkter er designet til pålidelighed og ydeevne. For specifikke garantioplysninger henvises til garantikortet, der følger med dit produkt, eller besøg den officielle GeekTale-side. website. For technical support, troubleshooting, or service inquiries, please contact GeekTale customer service through the contact information provided on their webwebstedet eller i produktemballagen.
