POWTREE 7000mAh 25.2V Replacement Battery for Dyson V10 SV12 Series Vacuum Cleaner Instruction Manual

1. Introduktion

This manual provides essential instructions for the safe and effective use, installation, and maintenance of your POWTREE 7000mAh 25.2V Li-ion replacement battery for Dyson V10 and SV12 series vacuum cleaners. Please read this manual thoroughly before installation and use.

2. Sikkerhedsoplysninger

• Batteriet må ikke skilles ad, knuses eller punkteres.
• Avoid exposing the battery to high temperatures (above 60°C/140°F) or direct sunlight.
• Kortslut ikke batteripolerne.
• Hold batteriet væk fra vand eller andre væsker.
• Opbevar batteriet på et køligt, tørt sted, når det ikke er i brug.
• Bortskaf brugte batterier i henhold til lokale bestemmelser. Må ikke bortskaffes sammen med husholdningsaffaldet.
• Use only the original Dyson charger or a compatible charger designed for V10/SV12 batteries.
• If the battery shows signs of damage, overheating, or leakage, discontinue use immediately.

Image: The POWTREE V10 replacement battery features multiple safety protections, including overcharge, overvoltage, short circuit, and overcurrent protection, indicated by CE, FC, and RoHS certifications.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1 x POWTREE 7000mAh 25.2V Replacement Battery
• 1 x skruetrækker
• 3 x skruer
• 1 x Post Filter
• 1 x Battery Protection Cap

Image: The complete package includes the replacement battery, a screwdriver, three screws, a post filter, and a battery protection cap for a comprehensive replacement solution.

4. Installationsvejledning

Follow these steps to replace the battery in your Dyson V10 or SV12 series vacuum cleaner:

1. Sluk: Ensure your Dyson vacuum cleaner is turned off and unplugged from any charging source.
2. Find batteriet: The battery is typically located at the bottom of the main unit handle.
3. Fjern skruer: Use the provided screwdriver to remove the screws securing the old battery. There are usually two screws: one near the charging port and another behind the pull-out washable filter.
4. Detach Old Battery: Carefully slide the old battery out of its housing.
5. Installer nyt batteri: Align the POWTREE replacement battery with the vacuum cleaner's battery slot. Ensure the connectors are properly seated.
6. Sikkert nyt batteri: Use the provided new screws to fasten the replacement battery securely into place. Do not overtighten.
7. Install Post Filter: If replacing the post filter, remove the old filter by twisting it counter-clockwise and then insert the new filter, twisting clockwise to secure it.
8. Indledende opkrævning: Det anbefales at oplade det nye batteri helt inden første brug.

Image: This diagram illustrates the components included in the package, which are essential for the battery replacement process.

Image: Visual guide demonstrating the simple steps to install and clean the included post filter, ensuring optimal vacuum performance.

5. Betjeningsvejledning

5.1 Opladning af batteriet

• The POWTREE replacement battery is designed to be compatible with your original Dyson V10/SV12 charger and charging stand.
• Connect the vacuum cleaner to its charging station or directly to the charger.
• The LED indicators on the battery will illuminate to show the charging status. A full charge is indicated when all LEDs are solid.
• Avoid leaving the battery on the charger for extended periods after it is fully charged to prolong its lifespan.

5.2 Batteriindikatorer

The battery features LED indicators to display the remaining charge level and charging status. Refer to your Dyson vacuum cleaner's original manual for specific indicator patterns, as they typically reflect the battery status.

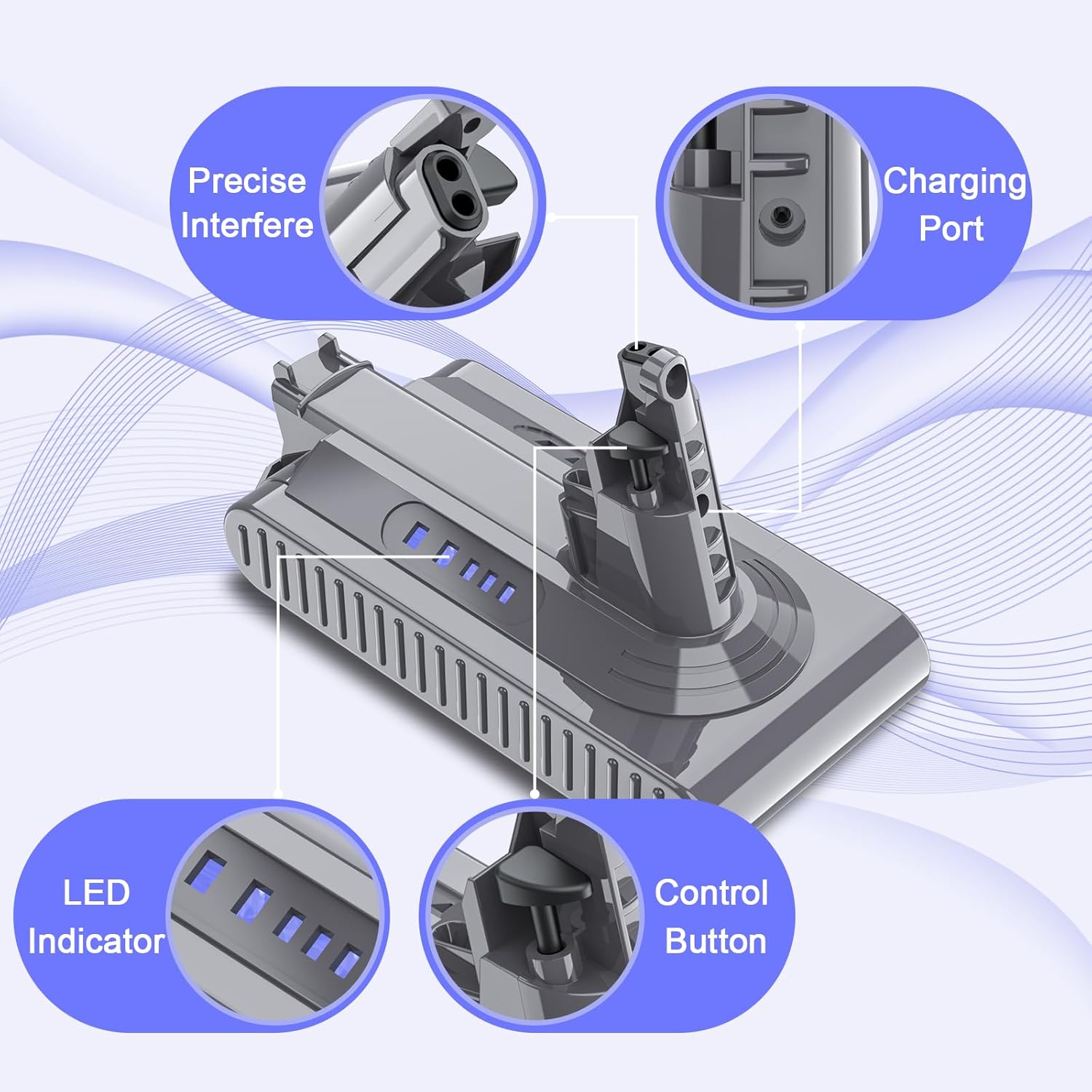

Billede: Detaljeret view of the battery's design, highlighting the charging port, LED indicators for charge status, and the control button.

6. Vedligeholdelse

6.1 Pleje af batterier

• For optimal performance, fully charge the battery before each use.
• If the vacuum cleaner will not be used for an extended period, store the battery at approximately 50% charge in a cool, dry place.
• Undgå at aflade batteriet helt ofte, da dette kan reducere dets samlede levetid.

6.2 Filtervedligeholdelse

The included post filter is washable and reusable. Regular cleaning of the filter is crucial for maintaining optimal suction power and battery efficiency.

1. Fjern filter: Twist the post filter counter-clockwise to detach it from the vacuum cleaner.
2. Vask: Skyl filteret under koldt rindende vand, indtil vandet er klart. Brug ikke rengøringsmidler.
3. Tørre: Allow the filter to air dry completely for at least 24 hours before reinserting it. Ensure it is thoroughly dry to prevent damage to the motor.
4. Geninstaller: Once dry, reinsert the filter by twisting it clockwise until secure.

7. Fejlfinding

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact POWTREE customer support for assistance.

8. Specifikationer

Image: Key product parameters are displayed, confirming the battery type as Li-ion, voltage at 25.2V, and a capacity of 7000mAh.

Image: This visual confirms the battery's compatibility with Dyson V10 and SV12 series vacuum cleaners, including models like V10 Animal, V10 Absolute, and V10 Motorhead.

9. Garanti og support

POWTREE provides a 12 måneders garanti for this V10 replacement battery. For any questions, concerns, or technical assistance, please contact our professional customer support team. We offer 24-hour online support to ensure your satisfaction.

For support, please refer to the contact information provided with your purchase or visit the official POWTREE store on Amazon.
