FIREBAT Mini PC A8 User Manual

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your FIREBAT Mini PC A8. The FIREBAT A8 is a compact, high-performance mini computer equipped with an AMD Ryzen 8745HS processor, AMD Radeon 780M graphics, and an OCuLink port for external GPU expansion. It supports quad-screen display and offers versatile connectivity options. Please read this manual thoroughly to ensure proper use and to maximize the performance of your device.

Billede 1.1: Foran og bagpå view of the FIREBAT Mini PC A8, showcasing dens kompakte design og forskellige porte.

Billede 1.2: Overview of the FIREBAT A8 Mini PC, highlighting its core features and design.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede varer, bedes du kontakte kundesupport.

• 1 x FIREBAT A8 AMD Ryzen 7 8745HS Mini PC
• 1 x US Power Supply (19V 6.32A 120W)
• 1 x VESA-beslag
• 1 x HDMI kabel
• 1 x Brugermanual (dette dokument)

Image 2.1: Visual representation of the items included in the FIREBAT A8 package.

3. Produktet er slutview

3.1 Nøglefunktioner

• Processor: AMD Ryzen 7 8745HS (8 Cores/16 Threads, up to 4.9GHz)
• Grafik: Integreret AMD Radeon 780M
• Hukommelse: 32GB DDR5 5600MHz RAM (expandable up to 64GB)
• Opbevaring: 1TB PCIe 4.0 M.2 2280 SSD
• Forbindelse: WiFi 6 (802.11ax), Bluetooth 5.2, Dual 2.5Gbps RJ45 LAN
• Display output: Quad-screen support via 2x USB-C 4.0, 1x DP 1.4, 1x HDMI 2.1

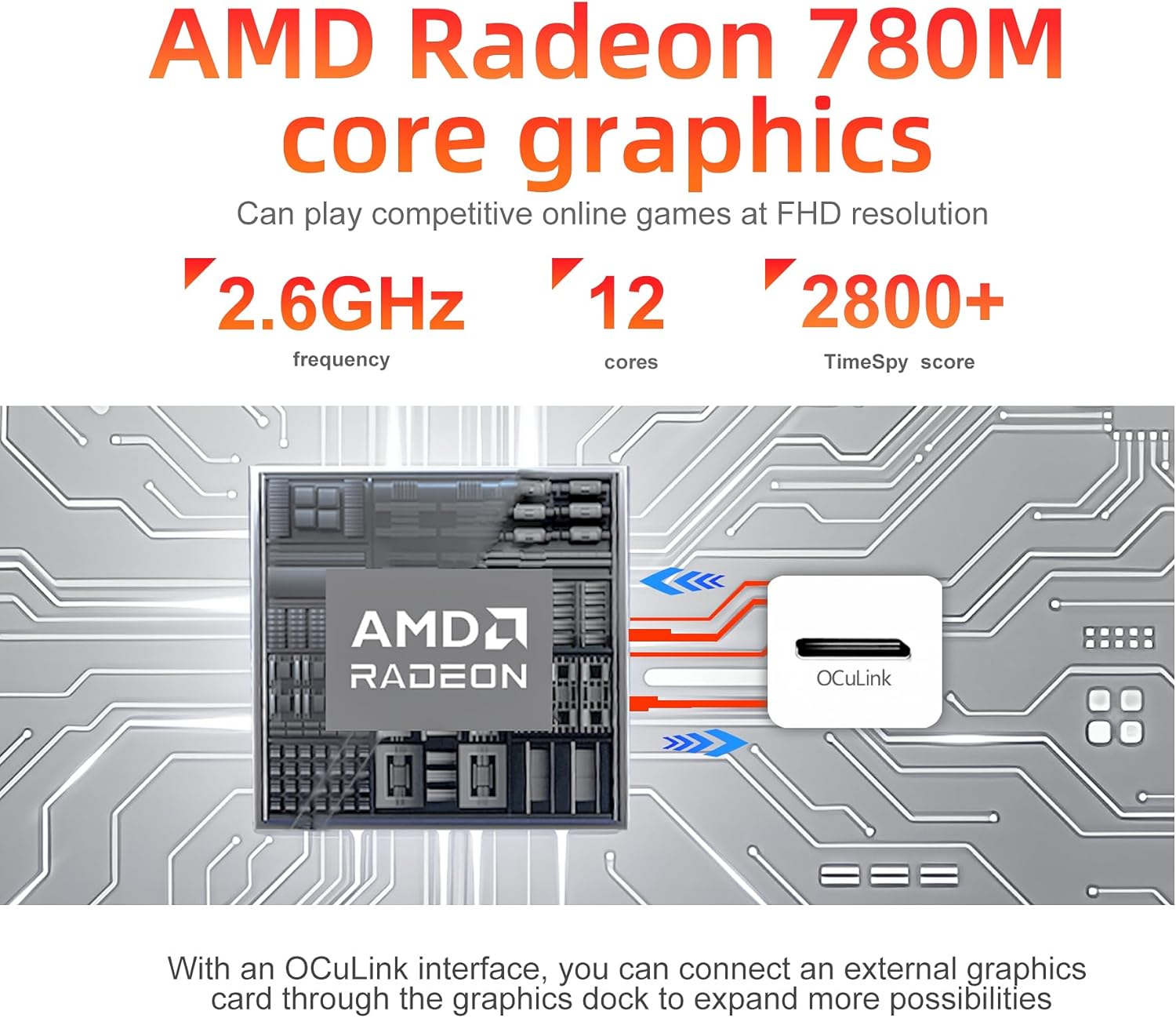

• Udvidelse: OCuLink port for external graphics card support
• Ydeevnetilstande: One-click switch for Quiet (45W), Balanced (54W), and Performance (65W) modes

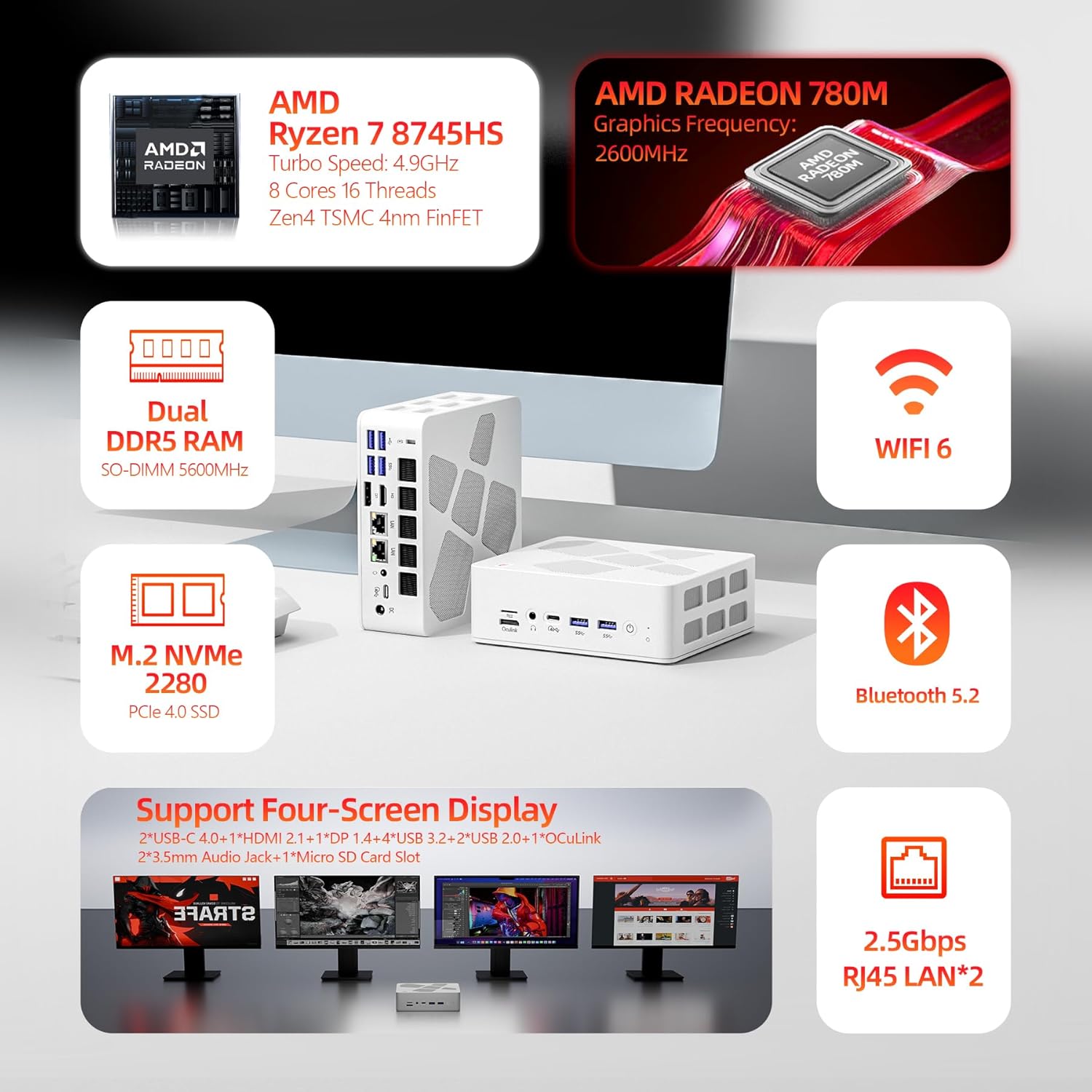

Image 3.1: Diagram highlighting the main components and features of the FIREBAT A8 Mini PC.

3.2 Porte og grænseflader

The FIREBAT A8 Mini PC offers a comprehensive set of ports for various peripherals and displays.

• 1x OCuLink port (for external graphics card)
• 1x TF-kortplads
• 2x USB-C 4.0 (supports Power Delivery, DisplayPort, up to 40Gbps data transfer)
• 4x USB 3.2 Gen2 (up to 10Gbps data transfer)
• 2x USB 2.0 (up to 5Gbps data transfer)
• 1x Kensington Anti-theft Lock Hole
• 1x DisplayPort 1.4
• 1x HDMI 2.1
• 2x 3.5mm Audio Jacks (Headphone & Microphone)
• 2x 2.5Gbps RJ45 LAN ports
• 1x DC-strømindgang
• 1x Power knap

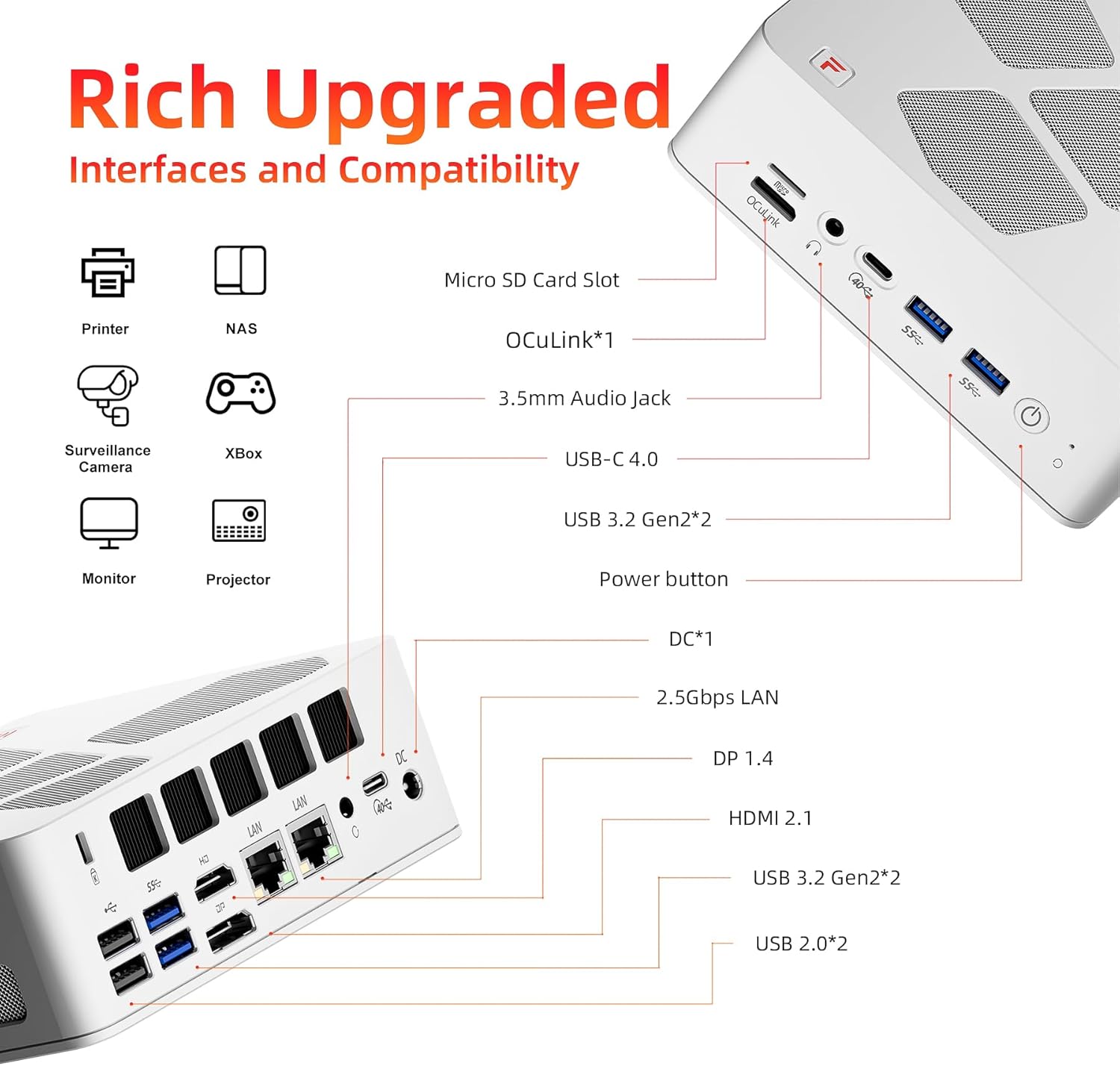

Image 3.2: Detailed diagram illustrating the location and type of all ports and interfaces on the FIREBAT A8 Mini PC.

4. Opsætningsvejledning

4.1 Første tilslutning

1. Tilslut skærm: Connect your monitor(s) to the Mini PC using the HDMI, DisplayPort, or USB-C 4.0 ports. The device supports up to four displays simultaneously.
2. Tilslut ydre enheder: Tilslut dit tastatur, din mus og andre USB-enheder til de tilgængelige USB-porte.
3. Tilslut netværk: For a wired connection, connect an Ethernet cable to one of the 2.5Gbps RJ45 LAN ports. For wireless, ensure your WiFi network is available.
4. Tilslut strøm: Connect the provided power adapter to the DC power input port on the Mini PC, then plug the adapter into a power outlet.
5. Tænd: Press the power button located on the front of the Mini PC to turn on the device.

4.2 Installation af VESA-beslag

The included VESA mount allows you to attach the Mini PC to the back of a compatible monitor or to a wall mount, saving desk space.

1. Secure the VESA mount bracket to the back of your monitor or desired surface using appropriate screws.
2. Slide the Mini PC onto the mounted bracket until it clicks securely into place.

5. Betjeningsvejledning

5.1 Ydelsestilstande

The FIREBAT A8 features a one-click performance mode switch, allowing you to adjust power consumption and performance based on your needs. The LED indicator on the device will change color to reflect the current mode.

• Green (Quiet Mode - 45W): Ideal for office tasks, web browsing, and light applications where low noise and power efficiency are prioritized.
• Blue (Balanced Mode - 54W): Suitable for medium workloads, general computing, and moderate applications.
• Red (Performance Mode - 65W): Provides maximum performance for demanding tasks such as gaming, video editing, and other high-load applications.

Image 5.1: The performance mode switch button and its corresponding LED indicators.

Image 5.2: Visual representation of the 65W Performance Mode in action.

5.2 Multiskærmsvisning

The FIREBAT A8 supports simultaneous output to up to four screens, enhancing productivity and immersive experiences.

• HDMI 2.1 port supports up to 8K@60Hz resolution.
• USB-C 4.0 ports support up to 4K@144Hz resolution.
• DisplayPort 1.4 also supports high-resolution output.

Connect your displays to the available video output ports and configure your display settings within the operating system.

Billede 5.3: Eks.ample setup demonstrating the quad-screen display capability of the Mini PC.

6. Lagerplads og hukommelsesudvidelse

The FIREBAT A8 allows for easy upgrades of both RAM and SSD storage to meet future demands.

• Hukommelse: The device comes with 32GB DDR5 5600MHz RAM (2x16GB SO-DIMM). It supports dual-channel memory and can be expanded up to 64GB.
• Opbevaring: It includes a 1TB PCIe 4.0 M.2 2280 SSD. There is an additional slot for another M.2 2280 SSD, allowing for further storage expansion.

To access the internal components for upgrade, carefully remove the bottom cover of the Mini PC. Consult a professional if you are unsure about the upgrade process.

Billede 6.1: Intern view of the FIREBAT A8, highlighting the DDR5 SO-DIMM memory slots and the M.2 2280 SSD slot.

Image 6.2: Close-up of the internal layout, showing the M.2 SSD and DDR5 RAM modules for potential upgrades.

7. Cooling and Noise Management

The FIREBAT A8 is designed with an efficient dual-fan cooling system, incorporating thermal grease and three heat pipes to maintain optimal operating temperatures and minimize noise.

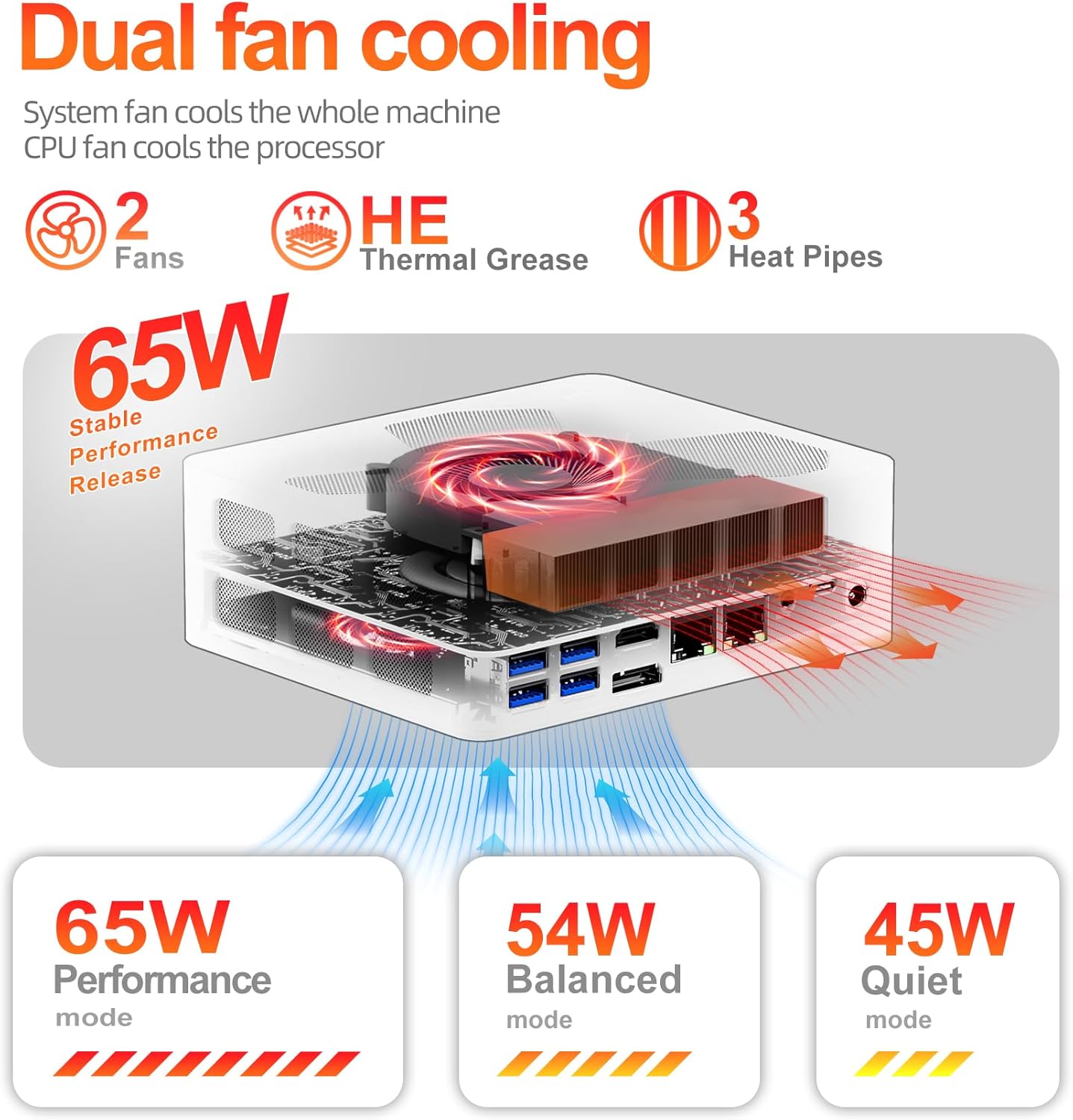

Image 7.1: Diagram illustrating the dual-fan cooling system and heat dissipation within the Mini PC.

Image 7.2: Information on the low noise levels of the FIREBAT A8 during operation.

8. Tekniske specifikationer

Image 8.1: The compact dimensions of the FIREBAT A8 Mini PC.

9. Fejlfinding

9.1 Ingen strøm

• Sørg for, at strømadapteren er korrekt tilsluttet både mini-pc'en og en fungerende stikkontakt.
• Kontroller, at stikkontakten fungerer ved at tilslutte en anden enhed.
• Check if the power adapter's LED indicator (if any) is lit.

9.2 Ingen skærmudgang

• Confirm that the display cable (HDMI, DP, USB-C) is firmly connected to both the Mini PC and the monitor.
• Sørg for, at skærmen er tændt og indstillet til den korrekte inputkilde.
• Try a different display cable or port on the Mini PC.
• Hvis du bruger flere skærme, kan du prøve kun at tilslutte én skærm ad gangen for at isolere problemet.

9.3 Problemer med netværksforbindelse

• wired: Check the Ethernet cable connection to both the Mini PC and your router/modem. Verify router/modem status.
• Trådløs: Ensure WiFi is enabled in the operating system. Check if the correct WiFi network is selected and the password is entered correctly. Restart your router/modem.

9.4 Problemer med systemets ydeevne

• Ensure the Mini PC is set to an appropriate performance mode (Balanced or Performance) for demanding tasks.
• Check for background applications consuming excessive resources.
• Ensure adequate ventilation around the Mini PC to prevent overheating.
• Opdater drivere og operativsystem.

10. Garanti og support

FIREBAT is committed to providing quality products and customer satisfaction. For warranty information, technical support, or any inquiries regarding your FIREBAT Mini PC A8, please contact us through the following channels:

• E-mail support: support@firebatpc.com
• Officiel Webwebsted: www.firebatpc.com

Please have your product model (A8) and purchase details ready when contacting support.
