FiiO QX13 bærbar DAC Amplivligere brugervejledning

1. Introduktion

The FiiO QX13 is a high-performance portable Digital-to-Analog Converter (DAC) and headphone amplifier designed to deliver exceptional audio quality. Featuring a flagship ESS ES9027PRO 8-channel DAC, powerful TI op-amps, and a vibrant color display, the QX13 enhances your listening experience across various devices.

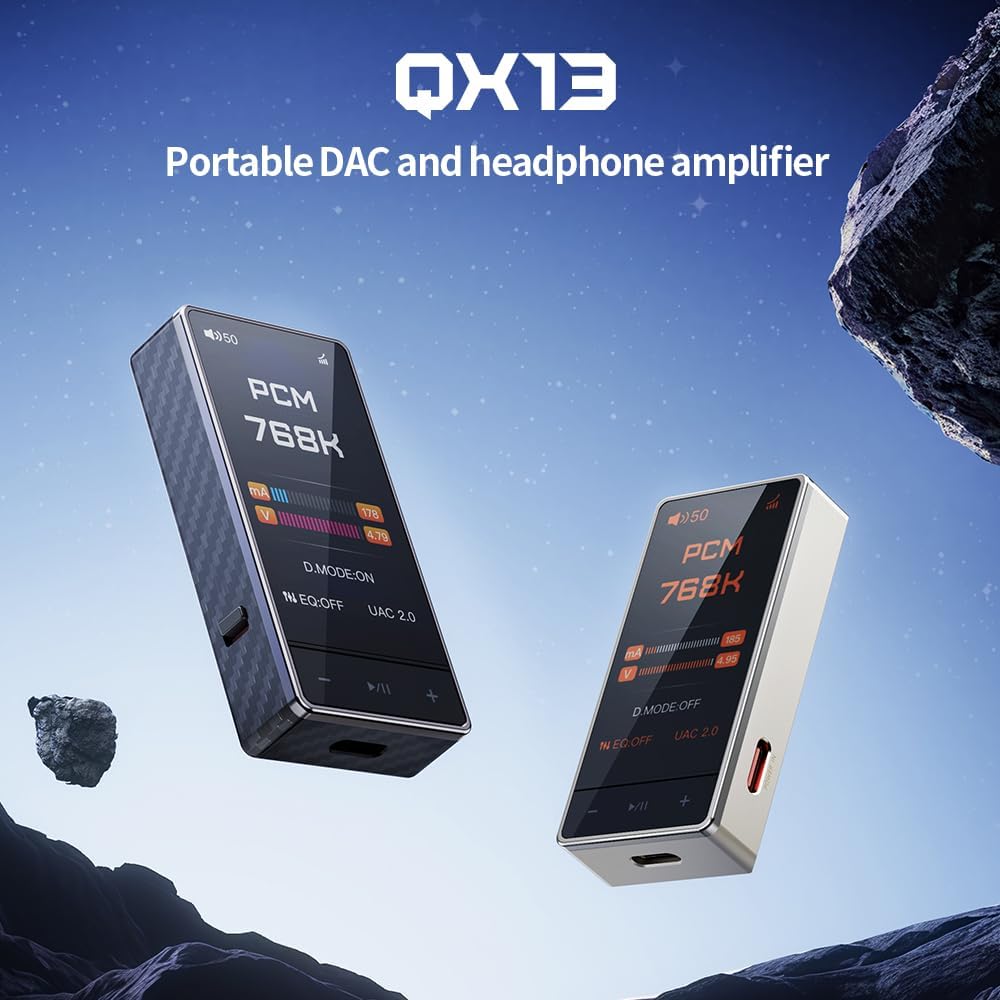

Figure 1: FiiO QX13 Portable DAC Amplifier in Titanium Gold and Black finishes. This image showcases the compact design of the device.

2. Pakkens indhold

Sørg venligst for, at alle varer er til stede i pakken:

• FiiO QX13 bærbar DAC Amplivligere
• USB-C til USB-C kabel
• Magnetic leather case
• 8-strand decoding cable
• Brugervejledning (dette dokument)

3. Enhed overview

Familiarize yourself with the main components and features of your FiiO QX13.

Figur 2: Forside view of the FiiO QX13, highlighting its 1.99-inch color display. The display shows "PCM 768K" indicating high-resolution audio playback.

Nøglefunktioner:

• Flagship ESS ES9027PRO 8-Channel DAC: Utilizes a fully differential 8-channel parallel design for ultra-low distortion and studio-level signal accuracy.
• 1.99-Inch Large Color Display: Full-color touchscreen with Corning Gorilla Glass 3 for scratch resistance, supporting dynamic UI themes.
• Kraftig output: 6x TI High-Performance Op-Amps delivering 900mW per channel, capable of driving high-impedance headphones.
• Magnetic Ecosystem: Compatible with magnetic leather case and E-Stick Power Bank (sold separately) for enhanced portability and desktop setup.
• XMOS 16-Core XU316: Supports up to 768kHz/32bit PCM and DSD512 native decoding, with 10-band high-precision PEQ.

4. Opsætning

4.1 Connecting to a Source Device

The FiiO QX13 can be connected to various devices such as laptops, desktops, tablets, and smartphones.

1. Tilslut USB-C-kablet: Use the provided USB-C to USB-C cable to connect the QX13 to your source device's USB-C port.
2. Tilslut hovedtelefoner: Plug your headphones into the appropriate audio output port (3.5mm or 4.4mm balanced) on the QX13.
3. Tænd: The QX13 will typically power on automatically when connected to a powered source device.

Figure 3: The magnetic ecosystem allows for easy attachment to smartphones and compatibility with external power banks for extended use.

4.2 Driver Installation (Windows/Mac)

For optimal performance on Windows or Mac, it may be necessary to install specific drivers. Please visit the official FiiO website for the latest driver downloads and installation instructions for your operating system.

5. Betjeningsvejledning

5.1 Grundlæggende betjening

• Tænd/sluk: The device powers on automatically when connected. To power off, disconnect from the source or use the dedicated power button if available (refer to device specific controls).
• Lydstyrkekontrol: Adjust the volume using the physical buttons on the device or through the connected source device.
• Displaynavigation: Use the touchscreen display to navigate through menus and settings.

5.2 Desktop Mode

The QX13 features a patented Desktop Mode for enhanced performance. When connected to an external dedicated power supply (e.g., E-Stick Power Bank), the device can deliver up to 900mW output power per channel.

Figure 4: Illustration of the Patented Desktop Mode, showing increased output power (900mW) compared to non-desktop mode (570mW) and power consumption reduction.

5.3 Equalizer (EQ) indstillinger

The QX13 supports a 10-band high-precision Parametric Equalizer (PEQ). EQ settings can be adjusted via the device's touchscreen or through the FiiO Control App (available for Android).

• Custom PEQ: Create and save personalized EQ profiles.
• Built-in Presets: Utilize pre-configured sound adjustments.
• Online deling: Access and share EQ settings with the FiiO community.

Figur 5: Overview of various features including 3.5mm output, UAC1.0 mode for gaming consoles, 60-step and 120-step volume adjustment, and support for the FiiO Control App.

6. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre enheden. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Strømkilde: The FiiO QX13 is powered by the connected source device or an external power bank (sold separately). It does not contain an internal battery.
• Firmwareopdateringer: Periodically check the official FiiO webwebsted for firmwareopdateringer for at sikre optimal ydeevne og adgang til nye funktioner.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle FiiO webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering til garantikrav.

Online ressourcer:

• Officiel FiiO Webwebsted: www.fiio.com
• Product Support Page: (Check FiiO website for specific QX13 support page)
