AUTO-VOX Solar 1PRO/4B Wireless Backup Camera Kit

Indledning

The AUTO-VOX Solar 1PRO/4B Wireless Backup Camera Kit is an all-in-one solution designed to enhance visibility and safety for various vehicles, including trucks, RVs, trailers, and campers. This kit offers a truly wireless experience with minimal installation effort.

Nøglefunktioner:

• Alt-i-et-sæt: Includes a 5" magnetic wireless camera, solar panel, USB charger, and bendable mount for quick installation.
• Solenergi: The camera is powered by sunlight, eliminating the need for complex wiring or frequent battery changes.
• USB to 12V Cable: Allows powering the system via any 5V USB port, freeing up your vehicle's cigarette lighter. Features stable voltage og kortslutningsbeskyttelse.
• 5" HD Monitor: A large touchscreen monitor provides clear 1080P HD video with real-time rear view, supporting split-screen for multiple cameras.
• Adjustable & Strong Suction Mount: Securely positions the monitor with 360° flexibility on the windshield or dashboard.
• 1080P HD IR Night Vision: Provides clear visibility even in low-light conditions.
• IP69K Waterproof: Ensures durability and reliable performance in various weather conditions.

Pakkens indhold

The AUTO-VOX Solar 1PRO/4B Wireless Backup Camera Kit includes the following components:

• 5" HD-skærm
• Wireless Backup Camera (Solar 4B)
• Monitor Suge Mount
• Metal Plate (for magnetic mounting on non-metallic surfaces)
• Kamerabeslagsbase
• Kamera magnetisk beslagbase
• Solpanel
• Car Charger Cable (12V plug with USB port)
• USB-mikro-opladerkabel
• Kamerabaseskruer (x4)
• Tyverisikringsskruer (x2)
• Skruetrækker
• USB Boost Cable (4Pin USB to 12V step-up cable)
• Sugekopbeslag
• Brugermanual
• Opbevaringspose

Figur 1: Komplet pakkeindhold

Opsætning og installation

1. Kamerainstallation

The wireless camera offers flexible installation options:

• Magnetisk montering: The camera features a strong magnetic base with a rubberized texture to prevent scratching. Simply attach it to any metallic surface on your vehicle (e.g., trailer hitch, tailgate).
• Skrue montering: For non-metallic surfaces or a more permanent fixture, use the provided metal plate and screws. The camera can be attached to the plate, which is then screwed onto the desired location.

Figure 2: Magnetic Camera Installation on an RV

2. Monitorinstallation

The 5" HD monitor comes with an adjustable suction mount for secure placement.

• Placering: Attach the suction mount to your windshield or dashboard. The flexible design allows for 360° positioning to achieve the optimal viewvinkel.
• Magt: Plug the monitor's car charger cable into your vehicle's 12V cigarette lighter socket. The charger also includes a USB port for additional device charging. Alternatively, use the USB Boost Cable to power the monitor via any 5V USB port.

Figure 3: Flexible Monitor Placement Options

3. Solar Panel Connection

The camera is designed for solar charging. Ensure the solar panel is positioned to receive adequate sunlight for continuous power.

Figure 4: Solar Panel Charging Setup

Betjeningsvejledning

1. Tænd/sluk

• Overvåge: The monitor will automatically power on when connected to a power source and the camera is active.
• Kamera: Press the power button on the camera unit to activate it.

2. Overvågningsfunktioner

The monitor features a touchscreen interface and side buttons for navigation:

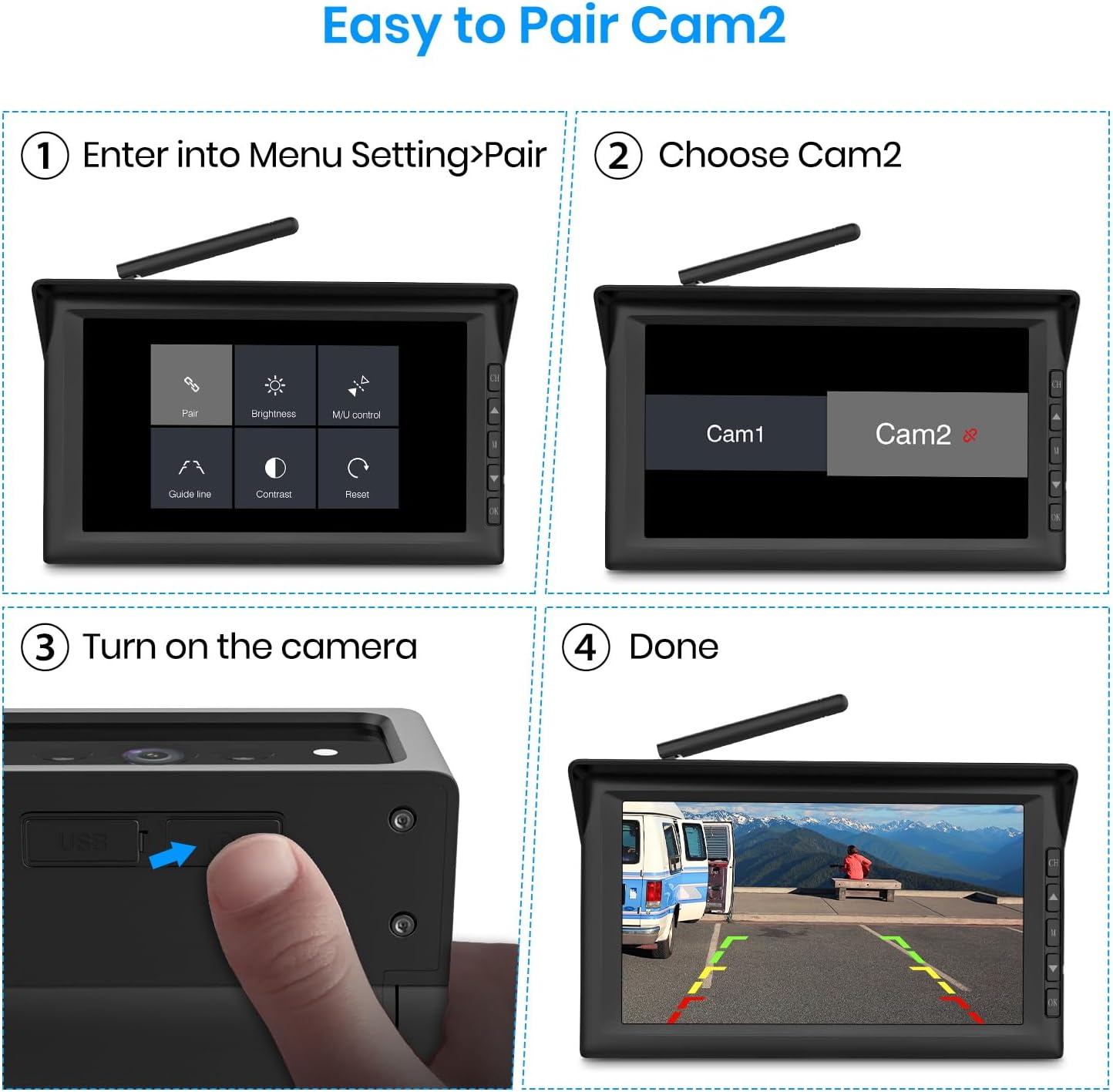

• Parring: Access the menu to pair additional cameras (e.g., Cam2).
• Lysstyrke/kontrast: Juster skærmindstillinger for optimal viewing.
• Retningslinjer: Toggle parking guide lines on/off for assistance.
• Delt skærm: If multiple cameras are connected, the monitor supports split-screen viewing.

Figure 5: Monitor Menu Interface

3. Nattesyn

The camera is equipped with IR Night Vision for clear visibility in low-light conditions.

Opretholdelse

• Batteriopladning: The camera's integrated solar panel continuously recharges the battery during daylight. For initial use or if the battery is low, use the provided USB-Micro Charging Cable to fully charge the camera.
• Vejrbestandighed: The camera is IP69K waterproof, ensuring protection against dust and high-pressure water jets. It is designed to operate reliably in extreme temperatures.
• Rensning: Rengør kameralinsen og solpanelet regelmæssigt med en blød klud.amp klud for at sikre optimal ydeevne.

Fejlfinding

• Intet signal: Ensure both the camera and monitor are powered on. Check the antenna connections on both units. Verify that the camera battery is charged.
• Fuzzy Image: Clean the camera lens. Adjust the brightness and contrast settings on the monitor. Ensure there are no obstructions between the camera and monitor that could interfere with the wireless signal.
• Skærmen tænder ikke: Confirm the monitor's power cable is securely plugged into a functional 12V outlet or USB port.
• Kameraet oplader ikke: Ensure the solar panel is clean and exposed to direct sunlight. If charging via USB, verify the cable and power source are working correctly.

Specifikationer

Garanti og support

The AUTO-VOX Solar 1PRO/4B Wireless Backup Camera Kit comes with an extended 18-month warranty. For any questions, technical support, or warranty claims, please refer to the contact information provided in your user manual or on the official AUTO-VOX webwebsted.
