1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Duronic DM6A2 Dual Monitor Arm. The DM6A2 is designed to securely hold two computer monitors, offering flexible adjustments for an ergonomic workspace. It features a gas spring mechanism for smooth height adjustments and integrated cable management to maintain an organized desk.

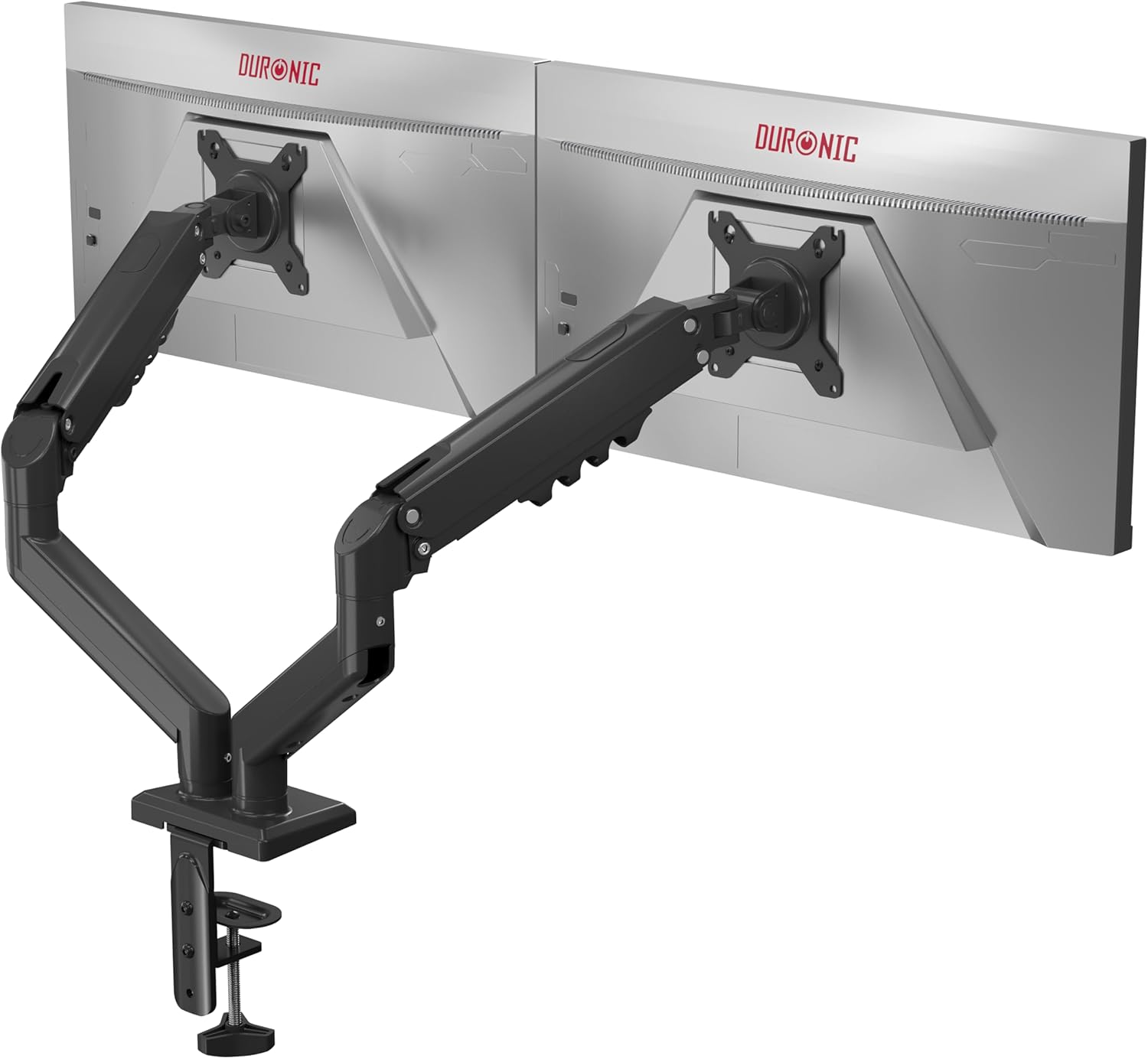

Image 1.1: The Duronic DM6A2 Dual Monitor Arm supporting two monitors.

2. Sikkerhedsoplysninger

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in product damage, injury, or property damage.

• Ensure your desk surface is strong enough to support the combined weight of the monitor arm and two monitors.
• Overskrid ikke den maksimale vægtkapacitet på 9 kg (19.8 lbs) pr. arm.
• Ensure all screws are tightened securely before use. Do not overtighten.
• Hold børn og kæledyr væk fra installationsområdet.
• Adjust the gas spring tension carefully to match your monitor's weight. Improper tension can cause monitors to drop or spring up unexpectedly.

3. Pakkens indhold

Verify that all components are present before beginning installation. If any parts are missing or damaged, please contact Duronic customer support.

• Main pole and base
• Two monitor arms with gas springs
• Two VESA mounting plates
• Skrivebord clamp and grommet mounting hardware
• Kabelhåndteringsklemmer/dæksler
• Assembly tools (Allen keys, screws)

4. Opsætningsvejledning

4.1. Choose Your Mounting Method (Clamp eller Grommet)

The DM6A2 offers two installation options: desk clamp or grommet mount. Select the method suitable for your desk.

Image 4.1: Desk clamp supports thickness from 15mm to 100mm. Grommet mount supports thickness from 15mm to 50mm.

4.1.1. Skrivebord Clamp Installation

1. Fastgør clamp base to the main pole.
2. Placer clamp på kanten af ​​dit skrivebord.
3. Spænd clamp screw until the arm is securely fastened to the desk. Ensure it is stable.

4.1.2. Montering af rørbeslag

1. Hvis dit skrivebord har et hul til maljen, skal du indsætte maljebasen gennem hullet.
2. Secure the base from underneath the desk using the provided plate and nut.
3. Attach the main pole to the grommet base.

4.2. Fastgør VESA-plader til skærme

The DM6A2 supports VESA 75x75mm and 100x100mm mounting patterns.

Image 4.2: The DM6A2 supports monitors from 13 to 32 inches and VESA patterns 75x75mm and 100x100mm, with a maximum weight of 9kg per arm.

1. Placer forsigtigt din skærm med forsiden nedad på en blød, ren overflade.
2. Align the VESA mounting plate with the screw holes on the back of your monitor.
3. Secure the plate using the appropriate screws provided. Do not overtighten.

4.3. Mount Monitors to Arms

1. Slide the VESA plate with the attached monitor onto the end of each monitor arm.
2. Sørg for, at skærmen sidder sikkert på armen.
3. Tighten any locking screws on the VESA head to prevent accidental detachment.

4.4. Juster gasfjederspændingen

The gas spring mechanism allows for smooth and stable monitor positioning. You must adjust the tension to match the weight of your monitors.

Image 4.3: The internal gas spring mechanism provides smooth monitor adjustments.

Image 4.4: Adjust the gas spring tension using the provided tool.

1. Use the provided Allen key to adjust the tension screw located on the arm.
2. Turn clockwise to increase tension (for heavier monitors) or counter-clockwise to decrease tension (for lighter monitors).
3. Adjust until the monitor stays at the desired height when released, without drifting up or down.

4.5. Kabelforvaltning

Route your monitor cables through the integrated cable management clips or covers on the arms to keep your workspace tidy.

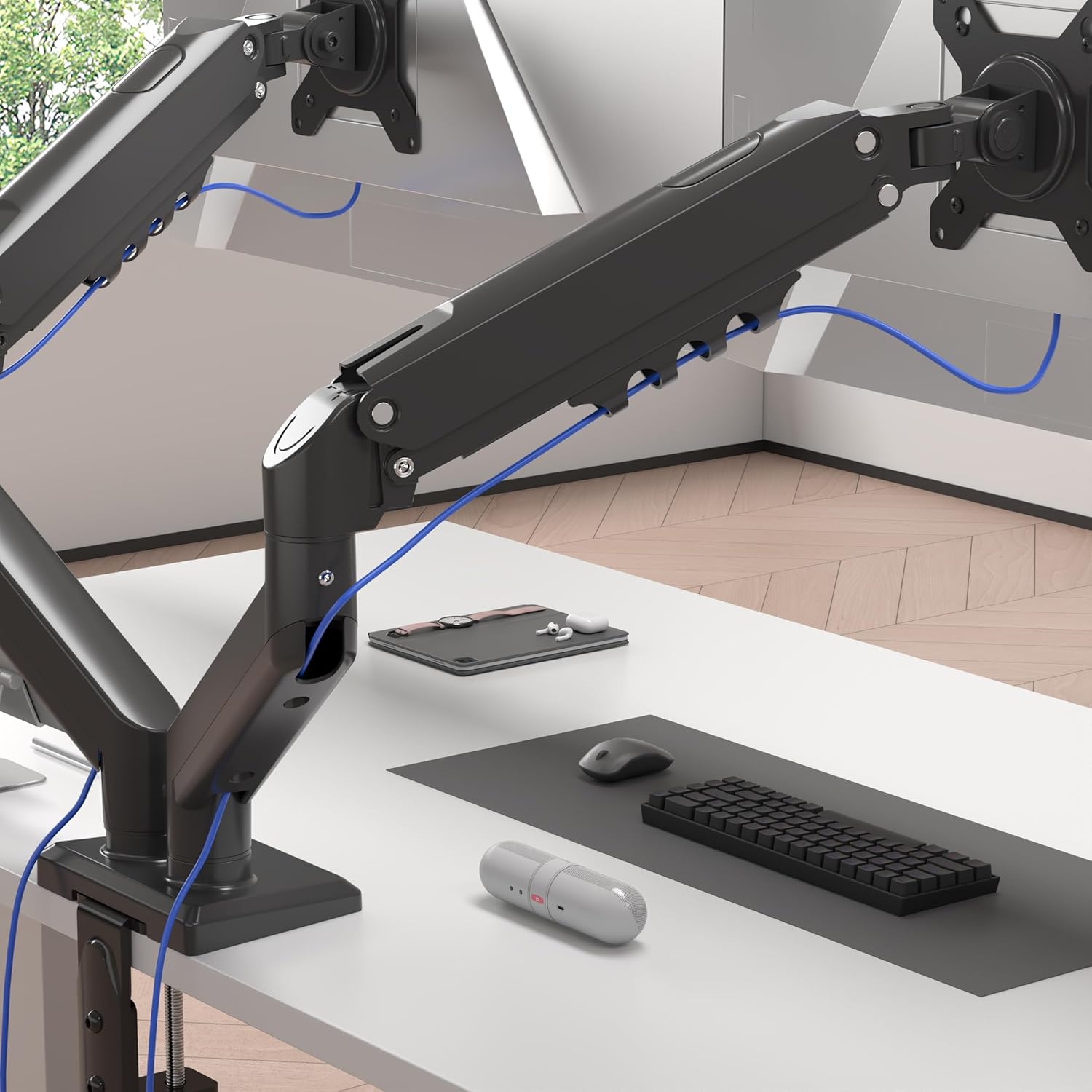

Image 4.5: Cables are neatly organized using the arm's cable management system.

5. Betjeningsvejledning (Justeringer)

The Duronic DM6A2 offers a range of adjustments for optimal viewkomfort.

5.1. Højdejustering

Gently push or pull the monitor to the desired vertical position. The gas spring will hold it in place once the tension is correctly set.

5.2. Hældningsjustering

The monitor can be tilted up or down to reduce glare and improve viewing vinkler.

Image 5.1: The monitor can be tilted from -90° to +85°.

5.3. Drejejustering

Drej skærmen til venstre eller højre for at dele din skærm med andre eller justere din viewvinkel.

Image 5.2: The monitor can swivel +/-90°.

5.4. Rotation Adjustment

Drej skærmen 360 grader for at skifte mellem liggende og stående retning.

Image 5.3: The monitor can rotate 360° for landscape or portrait viewing.

6. Vedligeholdelse

• Rensning: Tør skærmarmen af ​​med en blød kludamp klæde. Undgå slibende rengøringsmidler.
• Periodiske kontroller: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver stramme og sikre. Efterspænd om nødvendigt.
• Justering af gasfjeder: If your monitor's weight changes, or if the arm starts to drift, readjust the gas spring tension as described in Section 4.4.

7. Fejlfinding

• Monitor sags or drops: Gasfjederens spænding er for lav til skærmens vægt. Øg spændingen ved at dreje justeringsskruen med uret.
• Monitor springs up or is difficult to push down: The gas spring tension is too high for the monitor's weight. Decrease tension by turning the adjustment screw counter-clockwise.
• Arm is unstable: Sørg for, at skrivebordet klamp or grommet mount is securely tightened to the desk. Check all arm connections for tightness.
• Monitor does not rotate/tilt/swivel smoothly: Check for any obstructions. Ensure the pivot points are not overtightened. A small amount of silicone lubricant can be applied to moving parts if needed, but avoid contact with electrical components.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Duronic website. If you encounter any issues not covered in this manual, please contact Duronic customer service for assistance.
