Tenveo 4K NDI PTZ-kamera (model TEVO-VHD20H4KN) Brugervejledning

1. Introduktion

This manual provides detailed instructions for the Tenveo 4K NDI PTZ Camera, Model TEVO-VHD20H4KN. This camera is designed for professional video conferencing and live streaming applications, offering advanced features such as 4K resolution, 20X optical zoom, AI-powered auto-tracking, and multiple connectivity options including NDI, HDMI, LAN, and USB3.0. Please read this manual thoroughly before operating the device to ensure proper setup and optimal performance.

Figure 1: Tenveo 4K NDI PTZ Camera (Model TEVO-VHD20H4KN)

2. Produktet er slutview

2.1 Nøglefunktioner

• 4K Ultra HD Video: Delivers 4K 30fps and 1080P 60fps video with a Sony 1/2.8" CMOS Sensor (8.29MP Effective Pixels).
• 20X Optical Zoom: High-quality optical zoom for capturing distant subjects with clarity.
• AI Humanoid & Face Auto-Tracking: Advanced deep learning algorithms enable precise, millisecond-level response tracking and autoframing, even if the target is momentarily blocked.
• NDI|HX Support: Enables low-latency, IP-based production workflows for high-quality, frame-accurate video streaming and PTZ control.
• Multiple Video Output Interfaces: Supports USB3.0, HDMI, and LAN/NDI outputs.
• PoE (Power over Ethernet): Simplifies installation by providing power and data over a single Ethernet cable (802.3af compliant).
• Professional Live Streaming: Compatible with RTMP, RTSP, SRT protocols for direct streaming to platforms like YouTube, Facebook, and OBS.
• Multi-Camera Production: Supports multi-camera video production and sync capabilities.

Figure 2: Key Features of the Tenveo 4K NDI PTZ Camera

2.2 Hvad er der i æsken

• Tenveo 4K NDI AI Auto Tracking PTZ Live Streaming Camera (20X Optical Zoom)
• IR fjernbetjening
• DC12V strømadapter
• USB 3.0 kabel
• Vægbeslag
• Monteringsskruer
• Brugermanual

3. Opsætning

3.1 Monteringsmuligheder

The Tenveo 4K NDI PTZ Camera supports various installation methods to suit your environment:

• Desktopplacering: Placer kameraet på en flad, stabil overflade.
• Vægmontering: Use the included wall mount and screws to secure the camera to a wall.
• Loftsmontering: The camera can be inverted and mounted to the ceiling. The image can be flipped via remote control or web grænsefladeindstillinger.
• Stativ montering: The camera can be mounted on a standard tripod for portable setups.

Figure 3: Various Installation Methods

3.2 Forbindelse

The camera offers multiple connection options for video output and control:

• USB3.0: Connect directly to a computer for video capture.
• HDMI: Connect to a display, video switcher, or capture card.
• LAN/NDI: Connect to a network for IP streaming, NDI workflows, and IP control. PoE (802.3af) is supported, requiring a PoE switch for power and data over a single cable.
• RS-232/RS-485: For external PTZ joystick controller connections.

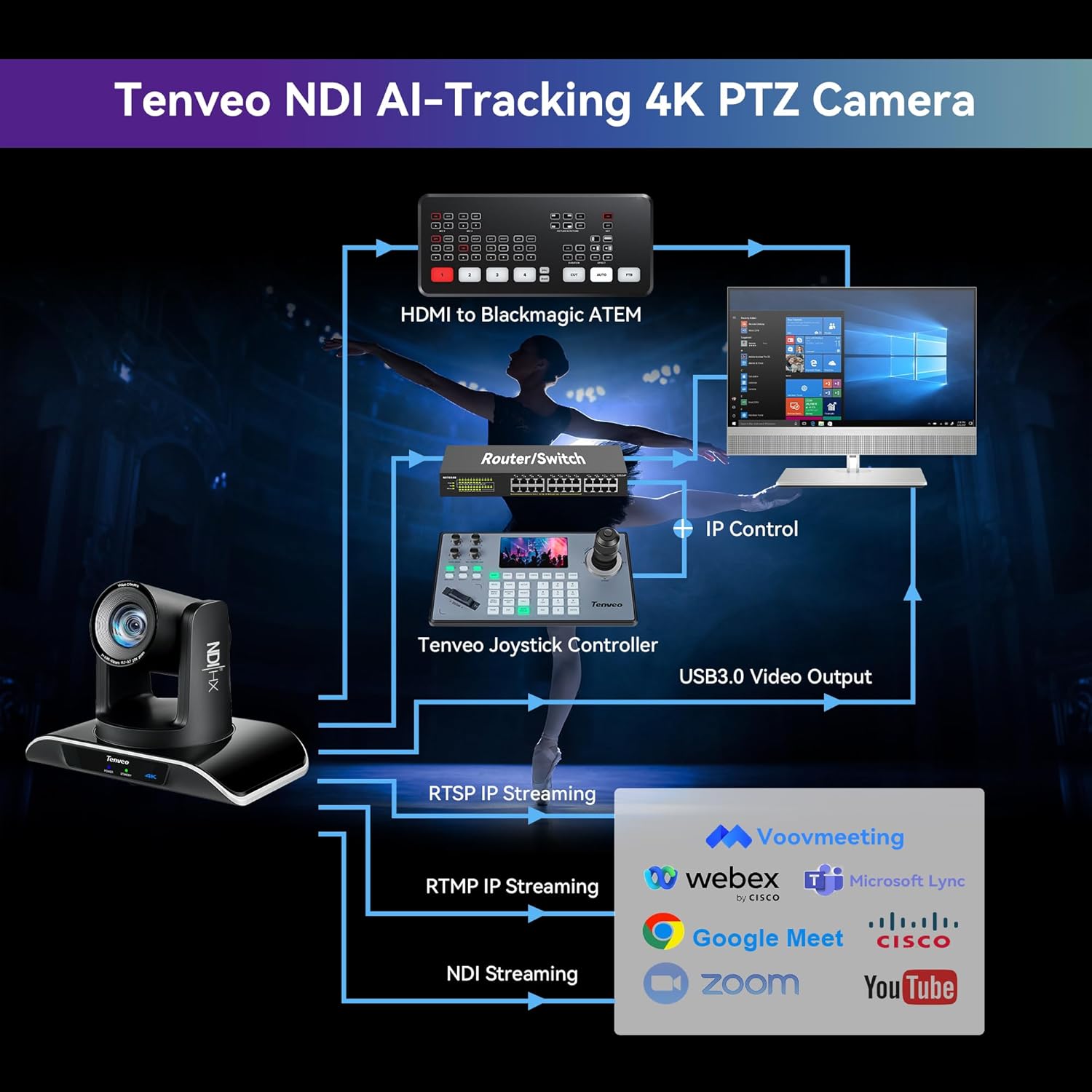

Figure 4: Multiple Connection Options

3.3 Indledende opsætningstrin

1. Tilslut strøm: Connect the DC12V power adapter or use a PoE switch if utilizing Power over Ethernet.
2. Connect Video Output: Choose your preferred video output (USB3.0, HDMI, or LAN) and connect it to your receiving device (computer, display, or network).
3. Network Configuration (for LAN/NDI): If using LAN/NDI, connect the camera to your network. You may need to access the camera's web interface via its IP address to configure network settings and NDI.
4. Tænd: Press the power button on the camera or remote control.

Figur 5: Eksample Setup Diagram

4. Betjeningsvejledning

4.1 Panorering, vipning og zoom (PTZ)-kontrol

The camera features 350° pan and 180° tilt capabilities, along with 20X optical zoom. Control can be achieved via the included IR remote control, a dedicated PTZ joystick controller (sold separately), or the web interface.

Figure 6: Pan, Tilt, and Zoom Capabilities

4.2 AI Auto-Tracking

The camera's AI auto-tracking function uses deep learning to accurately track human figures and faces. This ensures subjects remain centered in the frame during movement.

• Præsentationstilstand: Tracks a single designated speaker.
• Autoframing-tilstand: Automatically adjusts the frame to include all detected participants.
• Uninterrupted Tracking: The camera maintains tracking even if the target is momentarily obscured.

Figure 7: AI Auto-Tracking in Action

4.3 Betjening af fjernbetjening

The IR remote control allows for easy adjustment of camera functions:

• PTZ kontrol: Use the directional buttons to pan and tilt, and the zoom buttons to adjust magnification.
• Forudindstillede indstillinger: Save and recall up to 10 camera positions and zoom levels.
• AI Tracking/Autoframing: Dedicated buttons for enabling/disabling AI tracking and switching between modes.
• Billedindstillinger: Adjust brightness, focus, and other image parameters.

4.4 Web UI kontrol

For advanced control and configuration, access the camera's web grænseflade via en web browser. Enter the camera's IP address in your browser to access settings for:

• Network settings (IP address, subnet mask, gateway).
• Video encoding parameters (resolution, frame rate, bitrate).
• PTZ control and preset management.
• AI tracking mode selection and fine-tuning.
• Image adjustments (color, exposure, white balance).

4.5 Livestreaming

The camera supports various protocols for direct live streaming:

• NDI|HX: For high-quality, low-latency video over IP networks.
• RTMP/RTSP/SRT: Directly stream to platforms like YouTube, Facebook Live, OBS, and other streaming services without additional hardware.

Figure 8: NDI|HX Live Streaming Integration

5. Vedligeholdelse

To ensure the longevity and optimal performance of your Tenveo 4K NDI PTZ Camera, follow these maintenance guidelines:

• Rensning: Brug en blød, tør klud til at rengøre kamerahuset. Brug en specialklud og -opløsning til objektivet. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Miljø: Operate and store the camera in a clean, dry environment, away from extreme temperatures, humidity, and direct sunlight.
• Kabelstyring: Ensure all cables are securely connected and not under strain to prevent damage to ports or cables.
• Firmwareopdateringer: Periodically check the Tenveo webwebsted for firmwareopdateringer for at sikre, at dit kamera har de nyeste funktioner og ydeevneforbedringer.

6. Fejlfinding

Hvis du støder på problemer med dit kamera, kan du se følgende almindelige fejlfindingstrin:

6.1 Ingen strøm

• Kontroller, at strømadapteren er korrekt tilsluttet både kameraet og en fungerende stikkontakt.
• If using PoE, ensure your PoE switch is powered on and the Ethernet cable is connected correctly.

6.2 Ingen videoudgang

• Check all video cables (USB3.0, HDMI, Ethernet) for secure connections.
• Ensure the input source on your display or capture device is correctly selected.
• For LAN/NDI, verify network connectivity and IP address settings.

6.3 PTZ Control Not Responding

• Ensure the IR remote control has fresh batteries and a clear line of sight to the camera's IR receiver.
• If using a joystick controller, check its connection and power.
• For web UI control, verify network connection to the camera.

6.4 AI Tracking Issues

• Ensure the lighting conditions are adequate for the camera to detect subjects clearly.
• Verify that AI tracking is enabled via the remote control or web interface.
• Avoid rapid, erratic movements that might exceed the camera's tracking speed.

If problems persist, please contact Tenveo customer support for further assistance.

7. Specifikationer

8. Garanti og support

Tenveo offers a 3 års standardgaranti for this product. We are committed to providing excellent after-sales service and lifetime technical support. Should you require assistance with setup or encounter any issues, remote assistance can be provided if necessary.

Your purchase is backed by a 30-day no-questions-asked money-back guarantee, ensuring a risk-free experience.

For any questions or support needs, please contact Tenveo customer service. We aim to respond within 12 hours and provide a satisfactory solution.

Kontakt email: tenveo_amazon@tenveo.com
