ARZOPA 16.1-inch Z1C Portable Monitor User Manual

Indledning

This manual provides essential information for setting up, operating, and maintaining your ARZOPA 16.1-inch Z1C Portable Monitor. Please read it thoroughly before use to ensure optimal performance and longevity of your device.

Hvad er der i æsken

• 1 x ARZOPA 16.1" Portable Monitor
• 1 x USB-C til USB-C-kabel
• 1 x Mini HDMI til HDMI kabel
• 1 x Brugervejledning (dette dokument)

Figure 1: Included accessories with the ARZOPA Z1C Portable Monitor.

Produktegenskaber

• 16.1" FHD 1080P Display: Experience clear picture quality with 1920x1080 resolution and 100% sRGB color gamut for vibrant visuals.
• Dual-Orientation & Stable Kickstand: Easily switch between horizontal and vertical display modes. The integrated 80° adjustable kickstand provides stable support on various surfaces.
• Universal kompatibilitet: Connects instantly to laptops, PCs, Macs, smartphones (with full-function USB-C), Xbox/PS5/Switch consoles, and more via USB-C or HDMI.
• Ultra-bærbart design: Weighing just 1.7lbs with a 0.3-inch slim profile, the monitor is designed for easy transport in backpacks or briefcases.

Figure 2: The ARZOPA Z1C Portable Monitor showcasing dens visningsmuligheder.

Opsætning

1. Udpakning og indledende inspektion

Carefully remove all components from the packaging. Inspect the monitor and accessories for any signs of damage. Retain the packaging for future transport or storage.

2. Tilslutning til din enhed

The ARZOPA Z1C supports multiple connection methods:

• USB-C (Full Function): Use the provided USB-C to USB-C cable to connect the monitor to a compatible laptop, smartphone, or tablet. This single cable can transmit both video signal and power.
• HDMI & USB-A: Use the provided Mini HDMI to HDMI cable for video signal and a USB-A to USB-C cable (not explicitly listed in "What's in the Box" but implied by "Rich Cables Boost Compatibility" image) for power if your device does not support full-function USB-C.

Figure 3: Connection options for the ARZOPA Z1C Portable Monitor.

Ensure your device's USB-C port supports video output (DisplayPort Alternate Mode) and power delivery for single-cable operation. If not, external power via USB-A is required.

Betjeningsvejledning

1. Tænd/sluk

The monitor will typically power on automatically when connected to a powered device. To manually power on/off or access the On-Screen Display (OSD) menu, use the buttons located on the side of the monitor.

Figur 4: Overview of the monitor's ports and control buttons.

2. Visningstilstande

Once connected, your operating system should detect the monitor. You can configure display modes (Duplicate, Extend, Second Screen Only) through your device's display settings.

• Horizontal/Vertical Orientation: The monitor supports both landscape and portrait modes. Adjust the physical orientation and then change the display settings on your connected device accordingly.

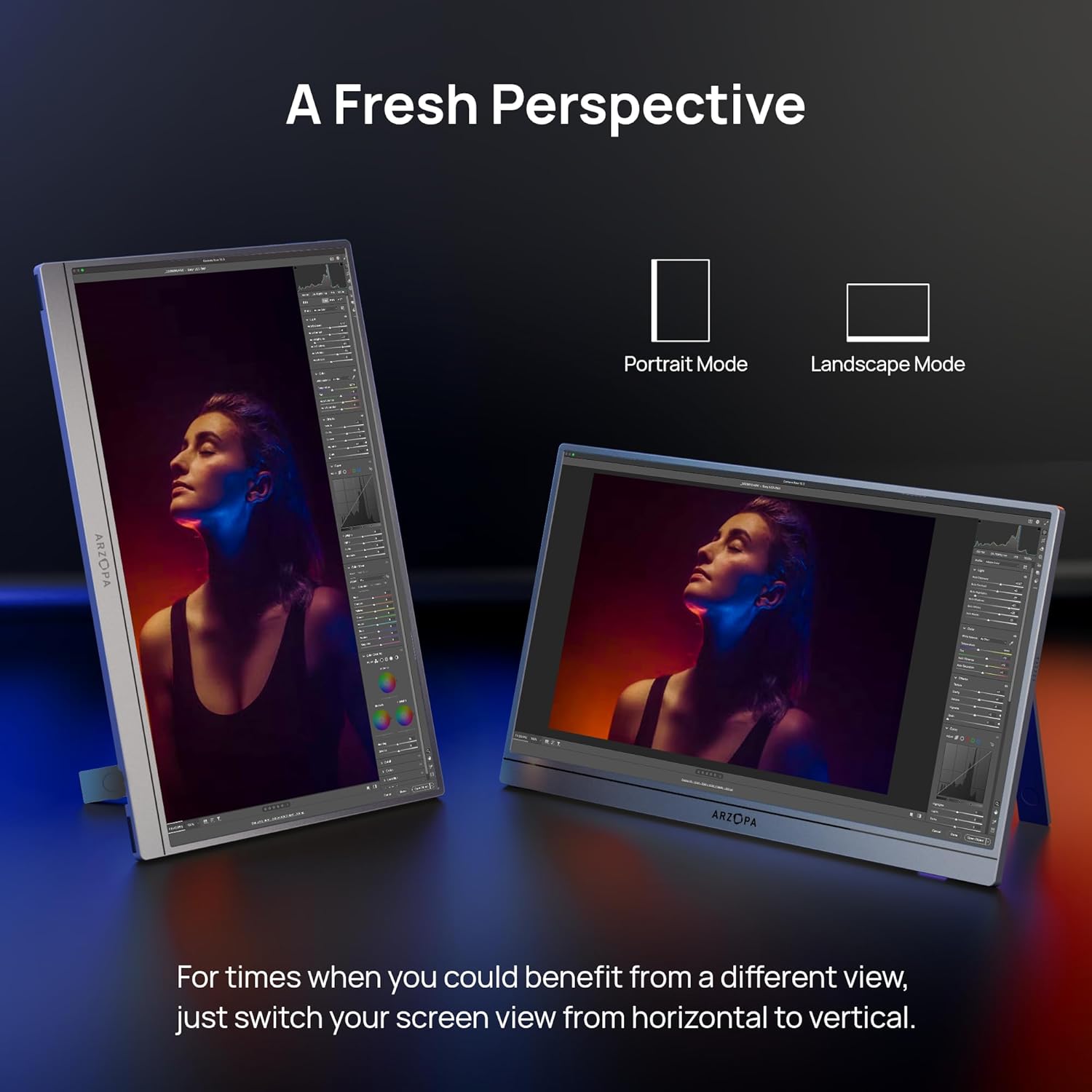

Figure 5: The ARZOPA Z1C monitor supports both portrait and landscape orientations.

3. On-Screen Display (OSD) menu

Use the OSD menu button and adjustment controls to fine-tune settings such as brightness, contrast, color temperature, input source, and more.

Opretholdelse

• Rensning: Brug en blød, fnugfri klud til forsigtigt at tørre skærmen og ydersiden af. Undgå skrappe kemikalier eller slibende materialer.
• Opbevaring: When not in use, store the monitor in a cool, dry place, ideally in its original packaging or a protective sleeve to prevent scratches.
• Håndtering: Undgå at trykke for hårdt på skærmen eller tabe enheden.

Fejlfinding

• Intet signal:
  • Ensure cables are securely connected to both the monitor and the source device.
  • Verify the input source selected on the monitor matches the connected port (e.g., USB-C, HDMI).
  • Check if your device's USB-C port supports video output.
• Flimrende skærm:
  • Ensure the monitor is receiving sufficient power. If using a single USB-C cable, try connecting an additional power source to the monitor's second USB-C port or using a dedicated power adapter.
  • Reduce screen brightness if flickering persists.
• Ingen lyd:
  • Kontroller skærmens lydstyrkeindstillinger i OSD-menuen.
  • Verify your device's audio output is directed to the portable monitor.

Specifikationer

Garanti og support

ARZOPA offers 24-month after-service support. For any inquiries or issues, please contact the dedicated customer support team. This ensures prompt responses and hassle-free solutions from purchase to long-term use.

Yderligere beskyttelsesplaner kan købes:

• 3-årig beskyttelsesplan
• 4-årig beskyttelsesplan
• Komplet beskyttelse: Én plan dækker alle berettigede tidligere og fremtidige køb (månedlig fakturering)
