Nelko PM220 Bluetooth Thermal Label Printer User Manual

1. Introduktion

Thank you for choosing the Nelko PM220 Bluetooth Thermal Label Printer. This portable device is designed for efficient label printing without the need for ink cartridges, making it ideal for small businesses, address labeling, logo printing, and various organizational tasks. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance.

2. Produktet er slutview

The Nelko PM220 is a compact thermal label printer that connects wirelessly via Bluetooth to your smartphone or PC. It supports various label sizes and offers clear, high-resolution printing for text, barcodes, and QR codes.

2.1 Pakkens indhold

• Nelko PM220 Label Printer
• Label Paper Roll (starter roll)
• USB opladningskabel
• Brugermanual

Figur 1: The Nelko PM220 Bluetooth Thermal Label Printer shown with a roll of blank labels. The printer features a sleek navy blue design with a power button and a paper feed button on the front panel.

3. Opsætningsvejledning

3.1 Ilægning af etiketbånd

1. Open the printer cover by gently pushing the release button or lifting the designated area.
2. Insert the label roll into the paper bin, ensuring the labels face upwards and the leading edge extends slightly out of the printer slot.
3. Adjust the paper slot guide to the right to ensure the label paper is tightly attached to the far right side of the paper bin, preventing misalignment during printing.
4. Luk printerdækslet forsvarligt.

Figur 2: A label roll being correctly inserted into the paper compartment of the Nelko PM220 printer. The roll is placed with the labels facing upwards.

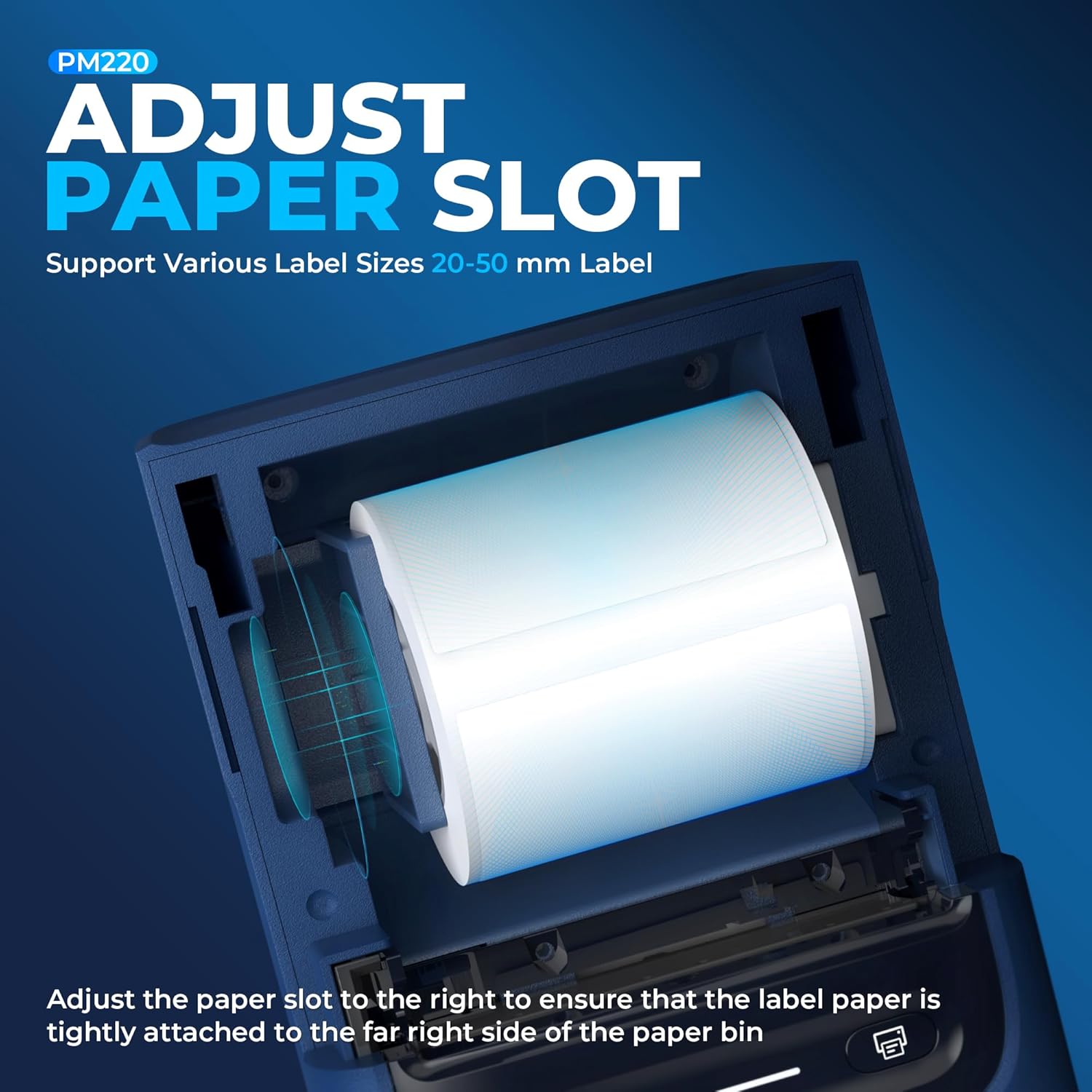

Figur 3: Et nærbillede view demonstrating how to adjust the paper slot guide within the Nelko PM220 printer. The guide is moved to the right to secure the label roll.

3.2 Tilslutning til strøm

1. Connect the provided USB charging cable to the printer's charging port.
2. Sæt den anden ende af USB-kablet i en kompatibel USB-strømadapter (medfølger ikke) eller en computers USB-port.
3. Allow the printer to charge fully before first use. The indicator light will typically change color to indicate a full charge.

3.3 Appinstallation og Bluetooth-parring

1. Download the official Nelko label printing application from your device's app store (e.g., Apple App Store for iOS, Google Play Store for Android). For PC connectivity, download the appropriate driver and software from the official Nelko webwebsted.
2. Sørg for, at Bluetooth er aktiveret på din smartphone eller pc.
3. Power on the Nelko PM220 printer by pressing and holding the power button until the indicator light illuminates.
4. Open the Nelko app (or PC software) and navigate to the device connection section.
5. Søg efter available Bluetooth devices and select 'Nelko PM220' from the list.
6. Follow any on-screen prompts to complete the pairing process. A successful connection will be indicated by a change in the printer's indicator light or a message within the app.

4. Betjeningsvejledning

4.1 Tænd/sluk

• For at tænde: Press and hold the power button for approximately 2-3 seconds until the indicator light turns on.
• For at slukke: Press and hold the power button for approximately 2-3 seconds until the indicator light turns off.

4.2 Udskrivning af en etiket

1. Ensure the printer is powered on and successfully connected to your device via Bluetooth.
2. Open the Nelko app or PC software.
3. Select your desired label template or create a new label design.
4. Enter the text, add images, barcodes, or QR codes as needed.
5. Adjust label size and print settings within the app to match the loaded label tape.
6. Preview etiketten for at sikre nøjagtighed.
7. Tap the 'Print' button in the app. The printer will feed and print the label.
8. Carefully tear off the printed label along the serrated edge.

Figur 4: The Nelko PM220 printer actively printing various labels, including shipping labels, product labels, and decorative stickers, demonstrating its versatility.

5. Vedligeholdelse

5.1 Rengøring af printhovedet

Regular cleaning of the print head ensures optimal print quality and extends the life of your printer. Use a soft, lint-free cloth lightly dampafsluttet med isopropylalkohol.

1. Ensure the printer is powered off and disconnected from power.
2. Åbn printerdækslet.
3. Gently wipe the print head surface with the dampened cloth. Avoid touching the print head with bare hands.
4. Lad printhovedet tørre helt, før du lukker dækslet og tænder printeren.

5.2 Opbevaring

Store the printer in a cool, dry place away from direct sunlight and extreme temperatures. Remove any label rolls if storing for an extended period.

6. Fejlfinding

If you encounter issues with your Nelko PM220 printer, refer to the table below for common problems and solutions.

7. Tekniske specifikationer

8. Garanti og support

Nelko products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Nelko website. If you require technical assistance or have questions not covered in this manual, please contact Nelko customer support through their official channels.

Online support: Visit the official Nelko webwebsted med ofte stillede spørgsmål, drivere og softwaredownloads.

E-mail support: Se din produktemballage eller den officielle webhjemmeside for kundeservice e-mailadresser.
